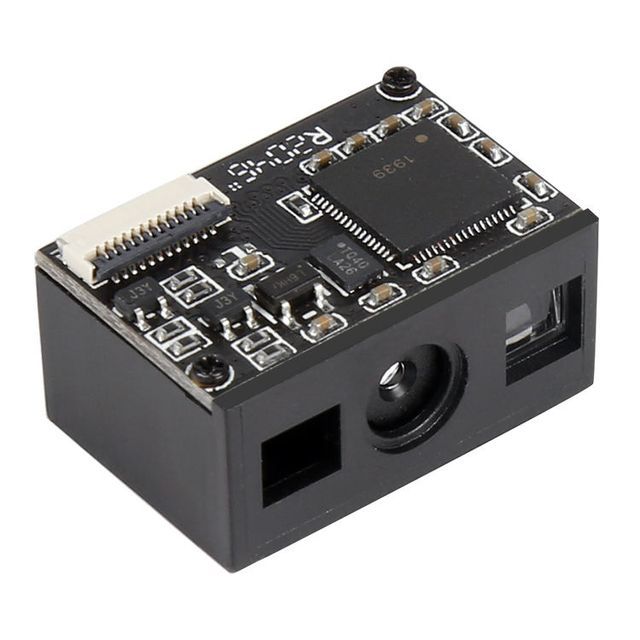

Small QR Code Compact Decoding Scan Reader Engine Module Fixed QR Barcode Scanner Embedded POS

  • $16.80 / 1 - 99 units
    $16.20 / 100 - 499 units
    $15.60 / 500 - 999 units
    $15.30 / >=1000 units
  • 1 unit
  • Shenzhen Edoo IOT Technology Co., Ltd.
  • Guangdong, China
  • Mr JUSON CHEN
PRODUCT DETAIL
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramPrivate Mold:Yes
Packaging Details:100 units/carton Gross weight: 8kg Carton size: 553*425*263mm Barcode scanning module ME11 Suitable for various information kiosks, retail vending machinesapplication:kiosk pos
Image Sensor:640 480 CMOStype:Scanner
weight:9 gramsScan speed:60 scans/second
Imaging sensor:CMOSCertification:CE FCC RECH certification
model:ME11Symbol comparison:≥20%
Storage temperature:-40℃~+80℃Origin:Guangdong, China
Color Depth:32 bitPhysical Dimensions (mm):21.5(D) 14.5(W) 10.0(H)
Scan element type:CMOSinterface:USB RS232 TTL
2D scanner:PDF417 Data Matrix QR codebrand:Aidu
Excellent screen code reading abilityDesigned for barcode payment, it can quickly read payment codes and electronic coupons on the screen of mobile devices, and is suitable for cashier environments with heavy traffic.
imagine Applicable to AFC, access control, express cabinet, ticket inspection machine, Display Kiosk, self-service terminal
multiple interfacesProvide USB or TTL-232 interface to meet different interface requirements.

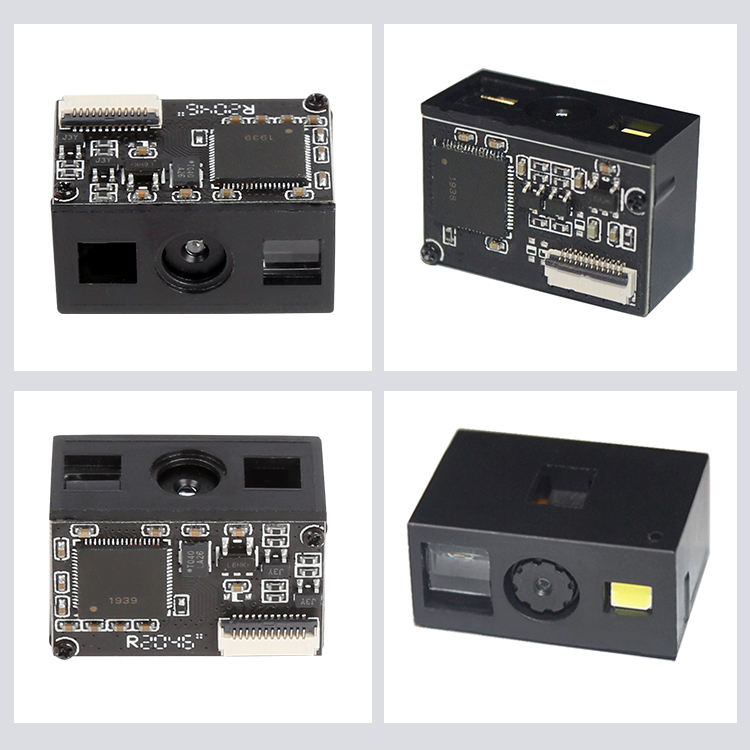

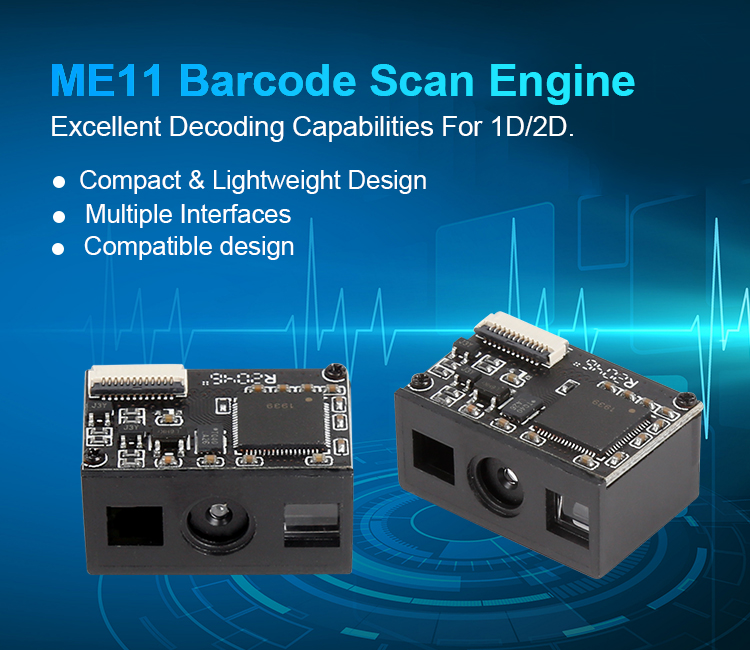

ME11-00 barcode scanning engine
Performance
Image Sensor
640×480 CMOS
illumination
aim
white light emitting diode
red light emitting diode
Symbolism
two dimensional
PDF417, data matrix, QR code
One-dimensional
Code 128, Ean-13, Ean-8, UPC-E, UPC-A, ITF-25 (Interleaved 2 0f 5), Code39, Code93, Codabar
accurate*
≥5 million
depth of field*
EAN-13
45mm-269mm (13 million 13 bytes) typical
code 39
35mm-119mm (5 million 7 bytes)
Code128
43mm-310mm (13 million 10 bytes)
QR code
19mm-185mm (15 million 30 bytes)
data matrix
45mm-116mm (10 million 30 bytes)
Symbol comparison*
≥20%
Sensitivity*
Tilt ±55°, Tilt ±55°, Roll 360°
Field of view
Horizontal 36°, Vertical 27°
Mechanical/
electrical
Communication Interface
TTL-232, USB (HID-KBW, virtual serial interface)

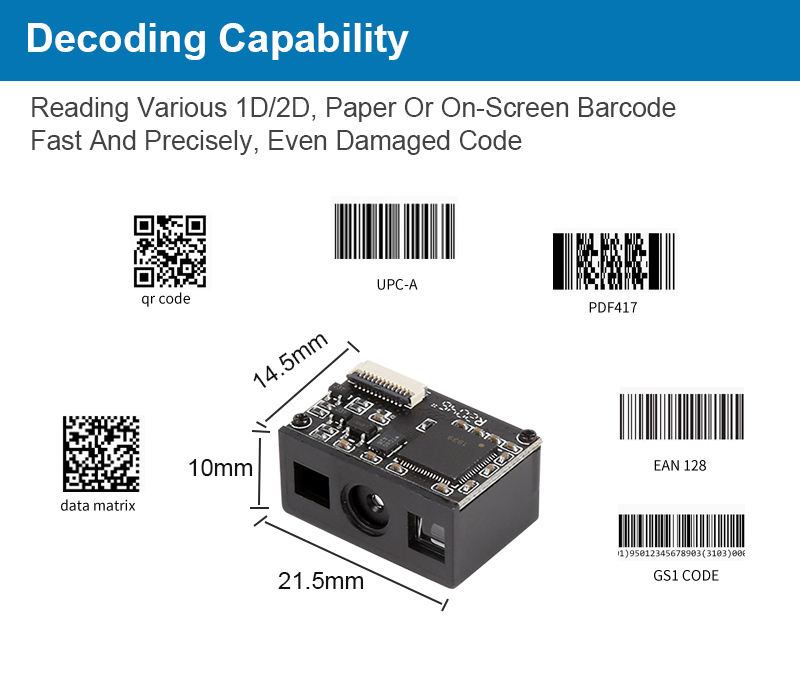

Physical size (mm)
21.5(D)×14.5(W)×10.0(H) (Maximum)
weight
9 grams
Voltage
DC 3.3V(operation)/150mA(normal)/750mW(consumption)
stand-by current
70 mA
environmental
operating temperature
-20℃~+60℃
Storage temperature
-40℃~+80℃
Working humidity
5%~95% (non-condensing)
illumination
0~100000 lux (natural light)
certified
FCC Part15 Class B, CE EMC Class B
Accessories
development board
Development board with trigger key and buzzer, RS232 and USB interface
data line
USB

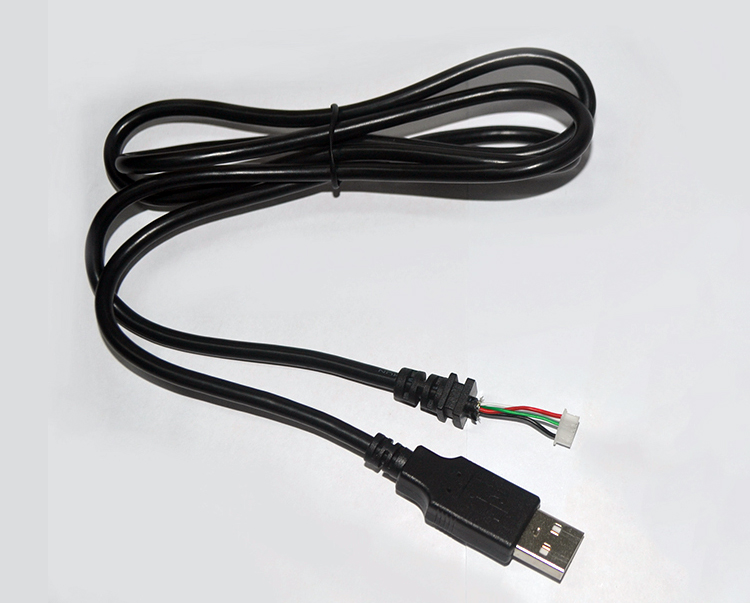

USB data cable, connect the development board and the information receiving host
RS-232
RS-232 line, connecting the development board and the information receiving host
Power Adapter
5V power adapter, auxiliary power supply to the development board through the RS-232 line
