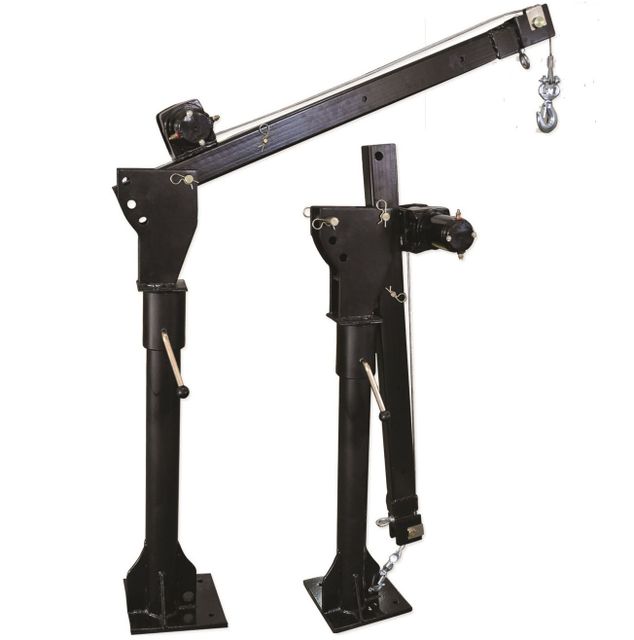

Small Truck Crane Small Crane Hoist Hoist Lifting Motor
- $200.00 / 1 - 49 units
$170.00 / >=50 units - 1 unit
- Zhejiang Jndo Hoisting Equipment Co., Ltd.
- Zhejiang, China
- Ms daisy su
PRODUCT DETAIL
product name: | small crane | Voltage: | 12v 24v |
Supply capacity: | 300 units per quarter | Custom Support: | OEM |
Packaging Preview: | port: | Tianjin harbor | |
high: | 1940mm | payment terms: | wire transfer |
place of origin; place of origin: | China | Packaging Details: | packed in wooden box |
Product Description
Small craneSmall truck craneSmall craneSmall cranes 500kg Truck-mounted craneLifting hoist lifting motor
Miniature truck cranes are also called miniature cranes or small cranes, truck cranes. Besides the durable steel frame, another important part is the electric hoist or hoist motor.

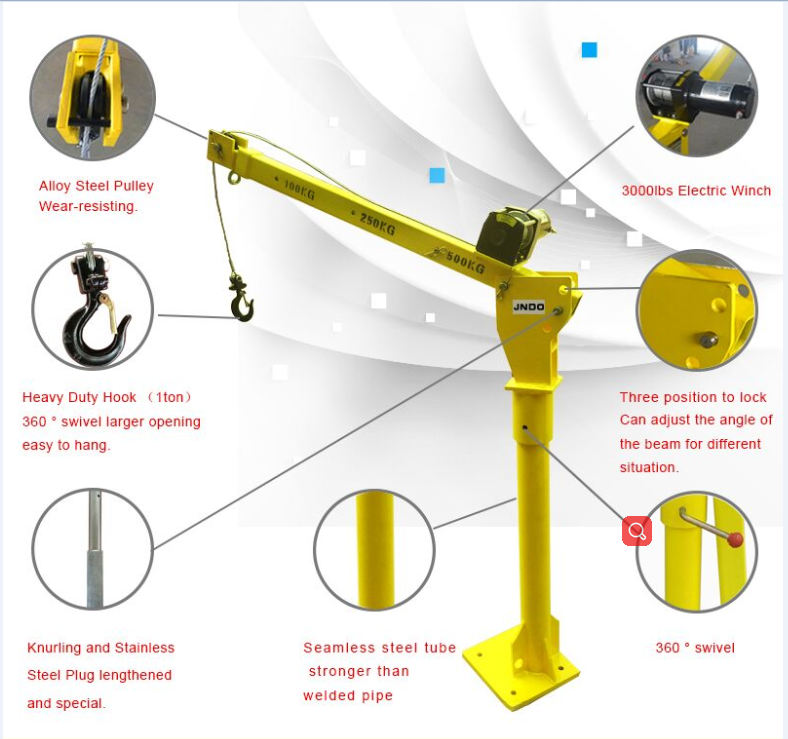

1 Miniature truck crane seamless steel column. more durable.
2 360 degree rotation. Lock and release by steel handle.
3 The beam is telescopic, with relative capacities of 100kg, 250kg and 500kg, with a maximum beam range of 1490mm
4 The hoist or hoisting motor of the mini truck crane is a DC 12v or 24v 3000lbs electric winch.
5 Three positions to adjust the beam angle. The angles are fixed by stainless steel pins. The pin surface has a friction pattern
6 Alloy steel pulleys for wire rope running smoothly
7 Small Truck Crane Heavy Duty Black Forged Hook. The hook can be rotated 360 degrees.
Specification
Model | HP 800 |
capacity | 300-500kg |
wire rope | Ф4.8mm×6.6m |
maximum height | 1940mm |
arrival | 1490mm |
Voltage | DC 12/24V 125 amps |
Mounting the base | 250×250mm×18mm |
weight | 68kg |
Package dimensions | 140*39*39cm |

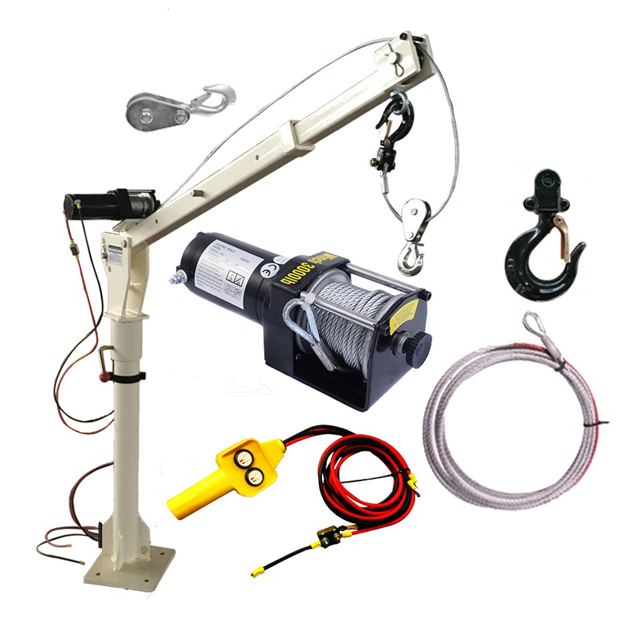

Configuration of miniature truck crane
1 | miniature truck crane |
2 | 3000 lb electric winch |
3 | Forged black swivel hook |
4 | pulley block |
5 | control switch |
6 | spare wire rope |

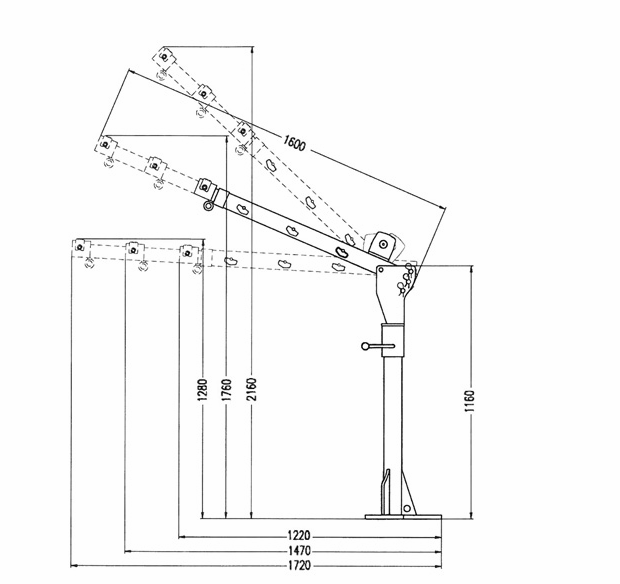

Miniature Truck Crane Dimensions
Dimensions of small truck cranes

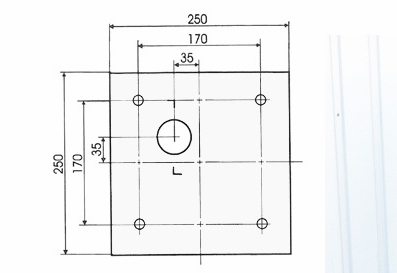

Miniature truck crane mounting base size

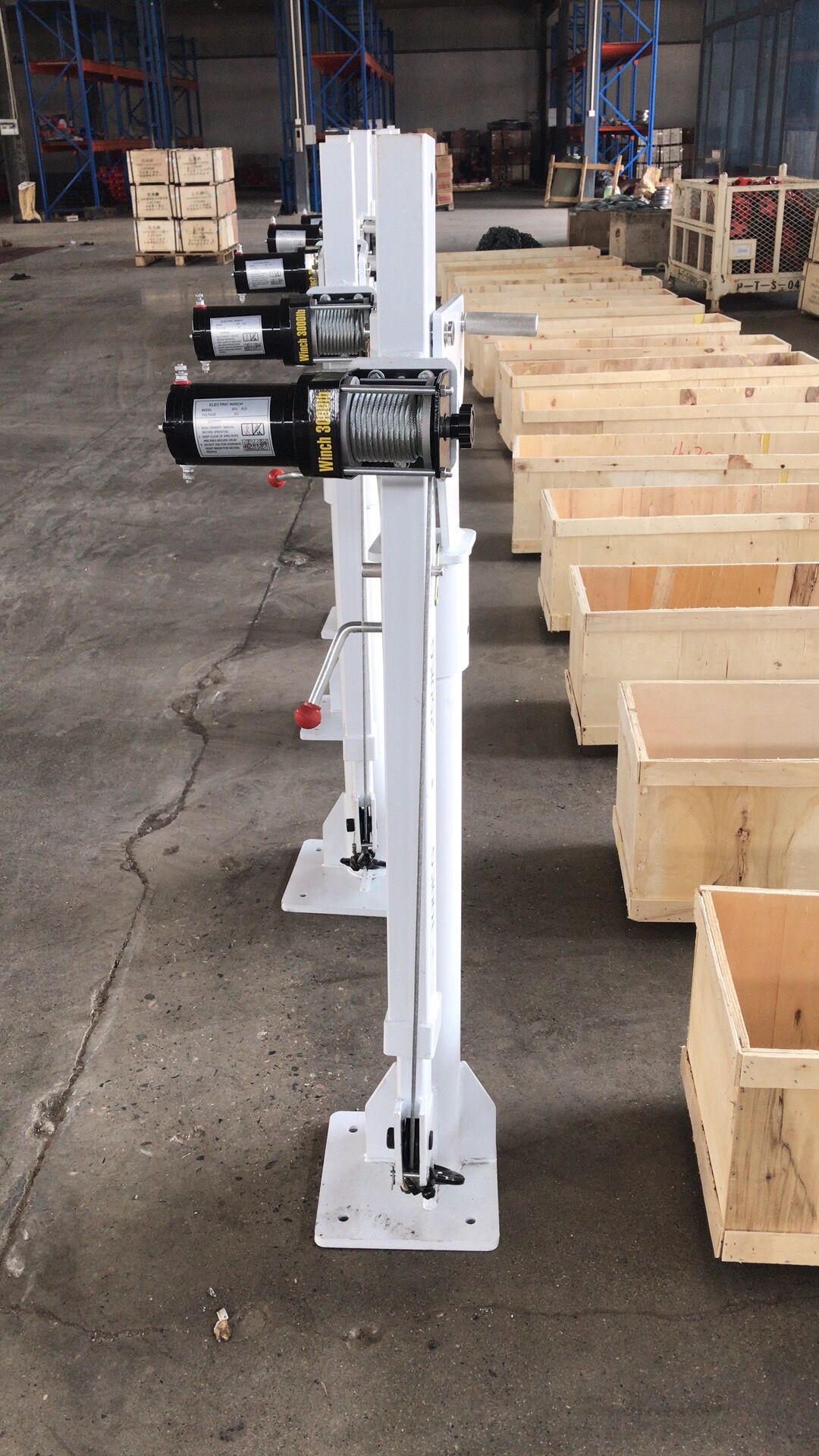

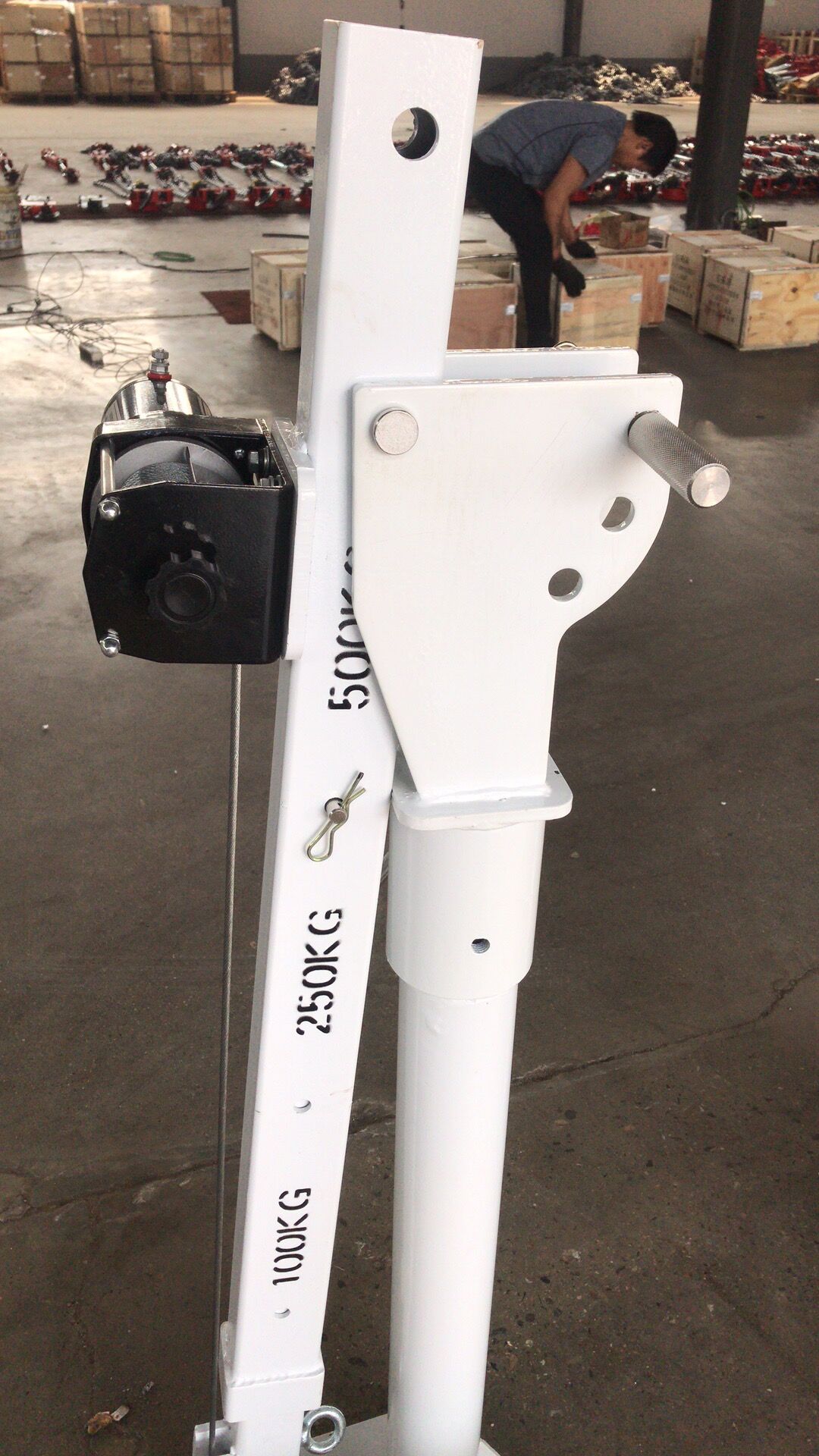

Detailed picture of miniature truck crane

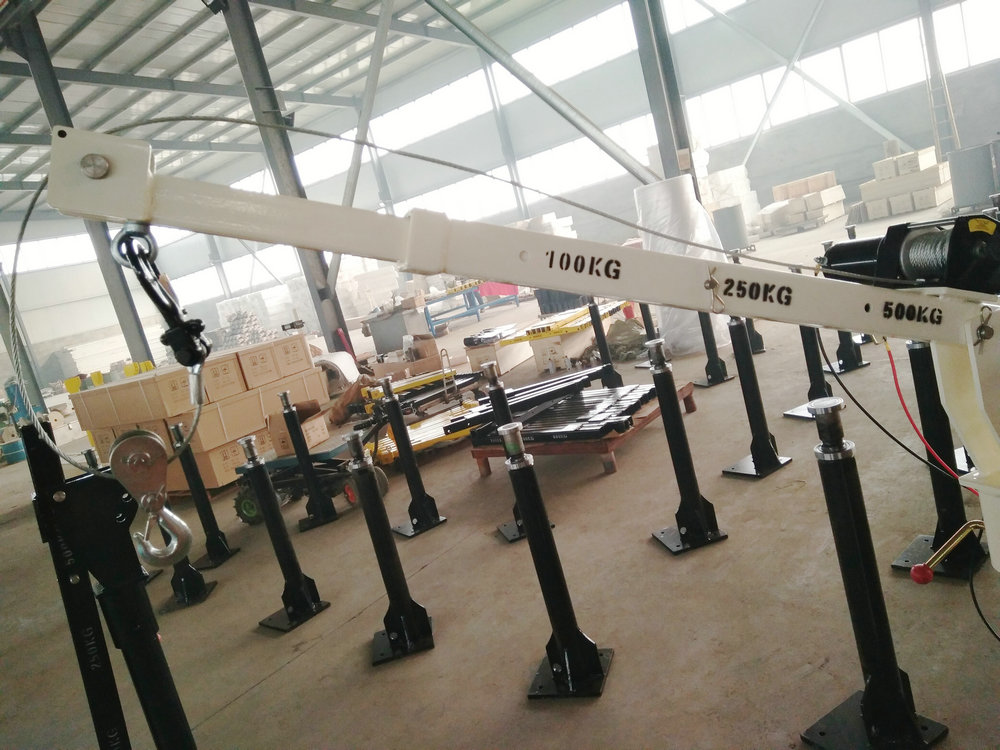

Micro truck crane telescopic beam
The beam of the miniature truck crane is retractable. The largest beach is 1490 mm.Capacity ranges from 100kg to 500kg.

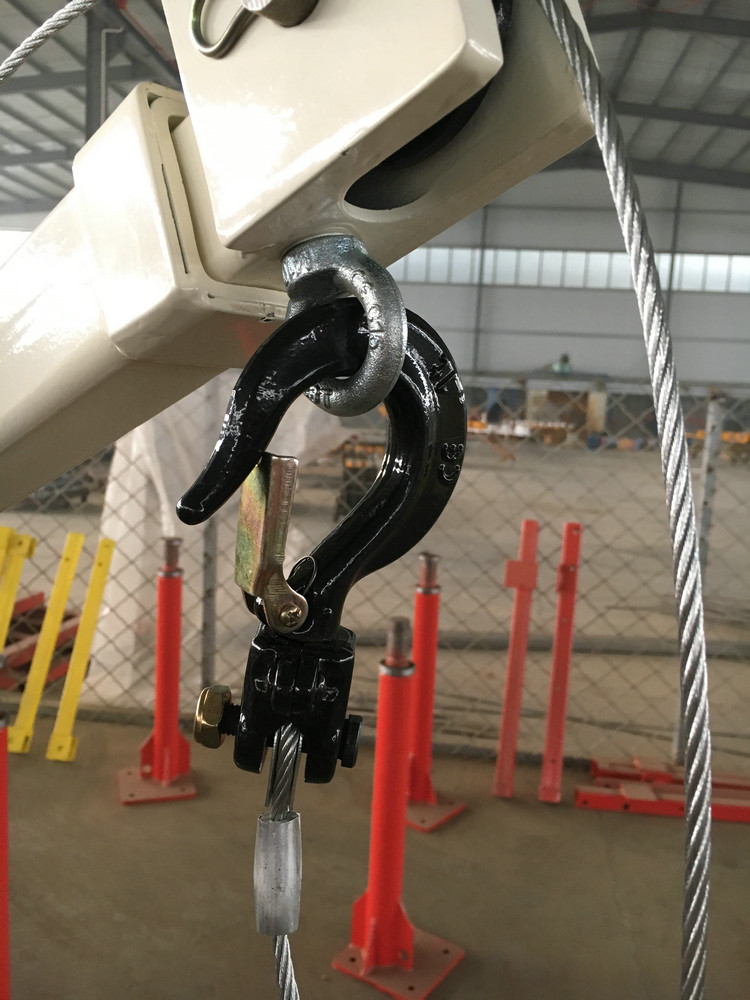

Forged black swivel hook
The forged hook of the small truck crane can be rotated 360 degrees.Forged hook with safety latch.

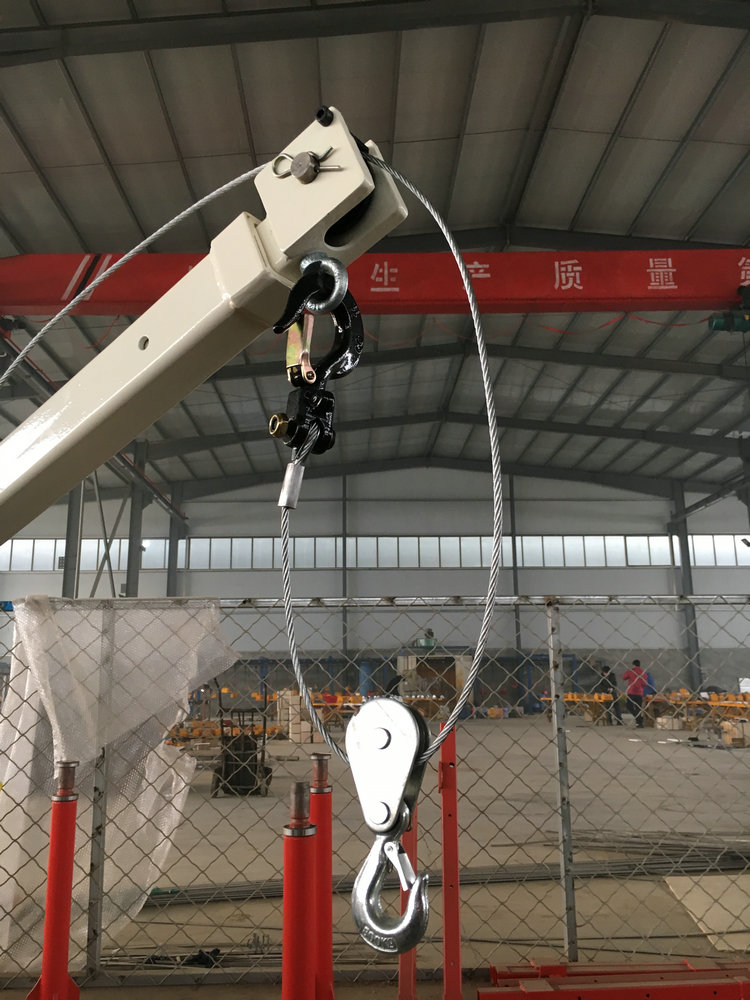

Miniature truck crane pulley block
The pulley block is suitable for double line with double rated capacity.

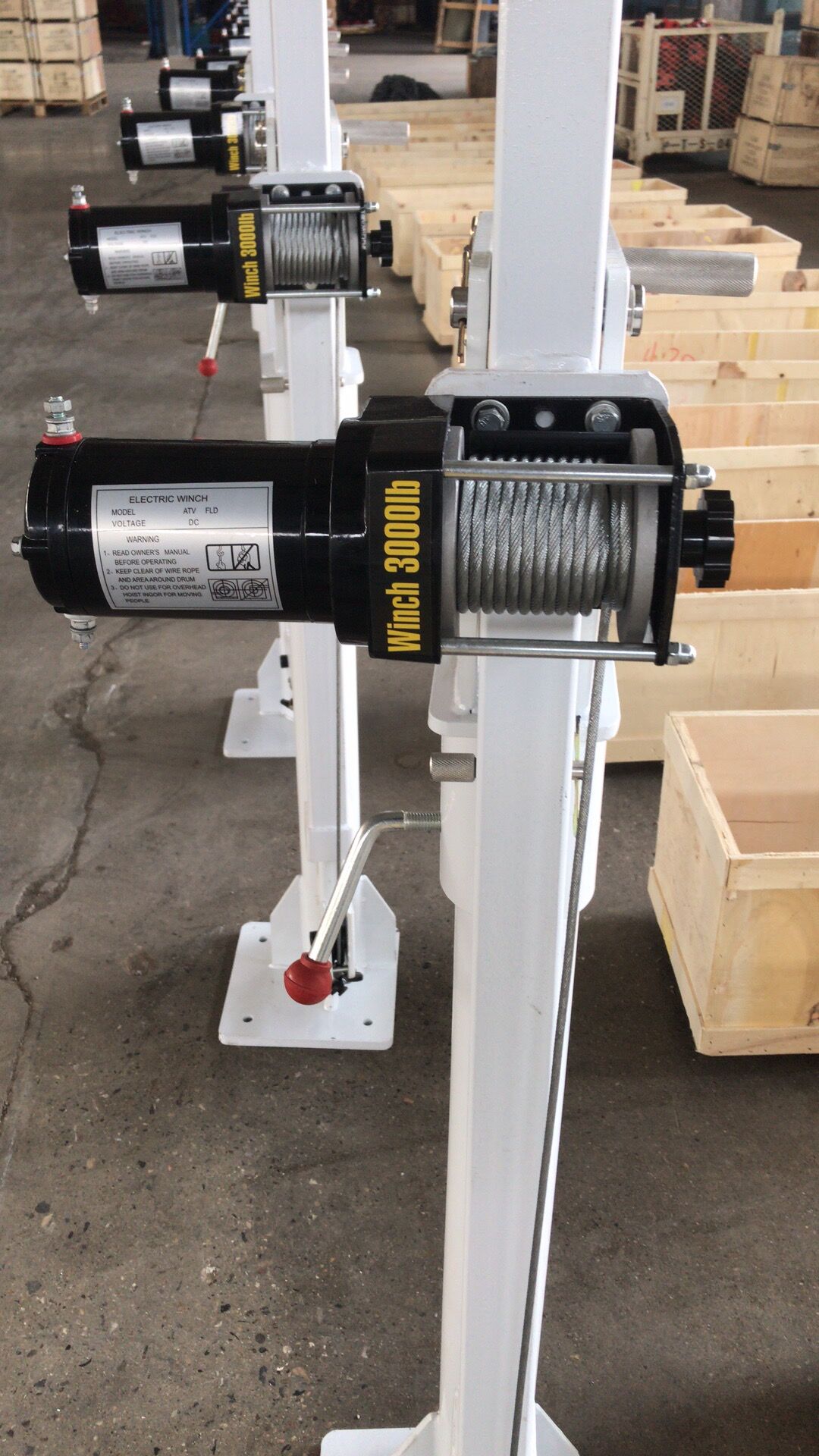

3000 lbs miniature truck crane electric winch
The DC 12v or 24v electric winch acts as a hoisting motor.
