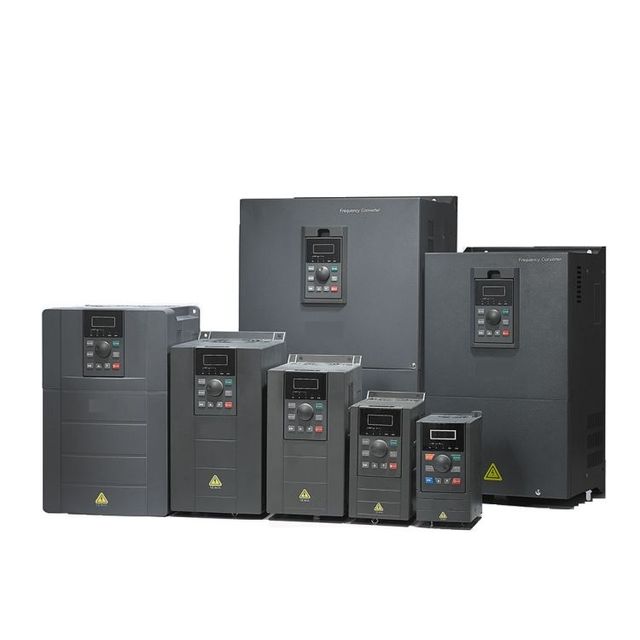

Solar water pump inverter system LK 15kw 18kw 22kw 30kw MPPT solar inverter controller for submersible pumps

PRODUCT DETAIL
brand:LK-SolarMPPT (Maximum Power Point Tracking):99.9% efficiency
place of origin; place of origin:Guangdong, Chinapayment terms:wire transfer
output type:three phaseModel:IP20 (customized IP54)
model:GS500-4TBFunction:Unattended automatic operation
Packaging Preview:Warranty:2 years
product name:Solar Water Pump InverterCommunication Interface:Standard RS-485
Packaging Details:cartoncustom made:OEM/ODM
Output current:32~60AAmbient temperature:Derating
port:ShenzhenOutput frequency:0~600HZ
exhibit:LED displayCertificate:CE, ISO
usage:irrigationProtect:Solar and grid automatic switching
Supply capacity:5000 pieces per month

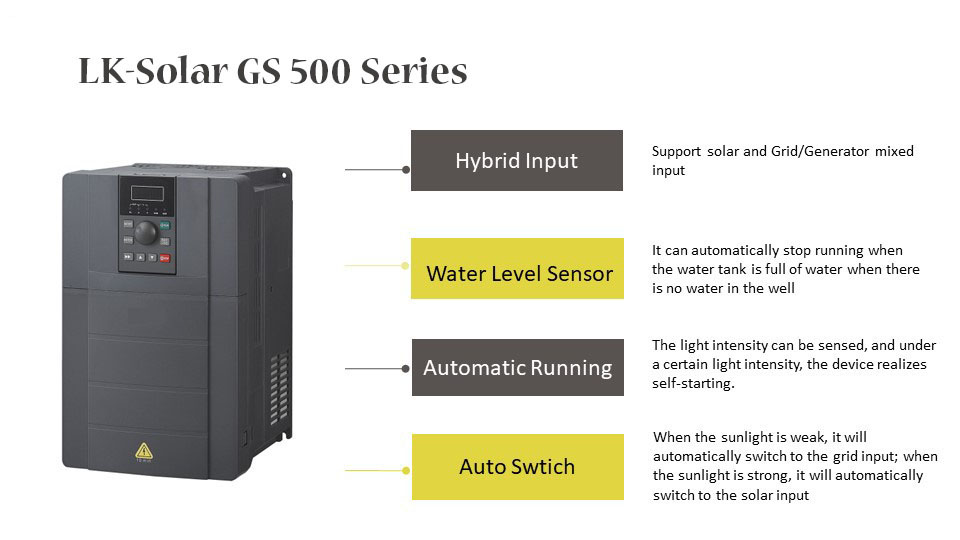

Product Description

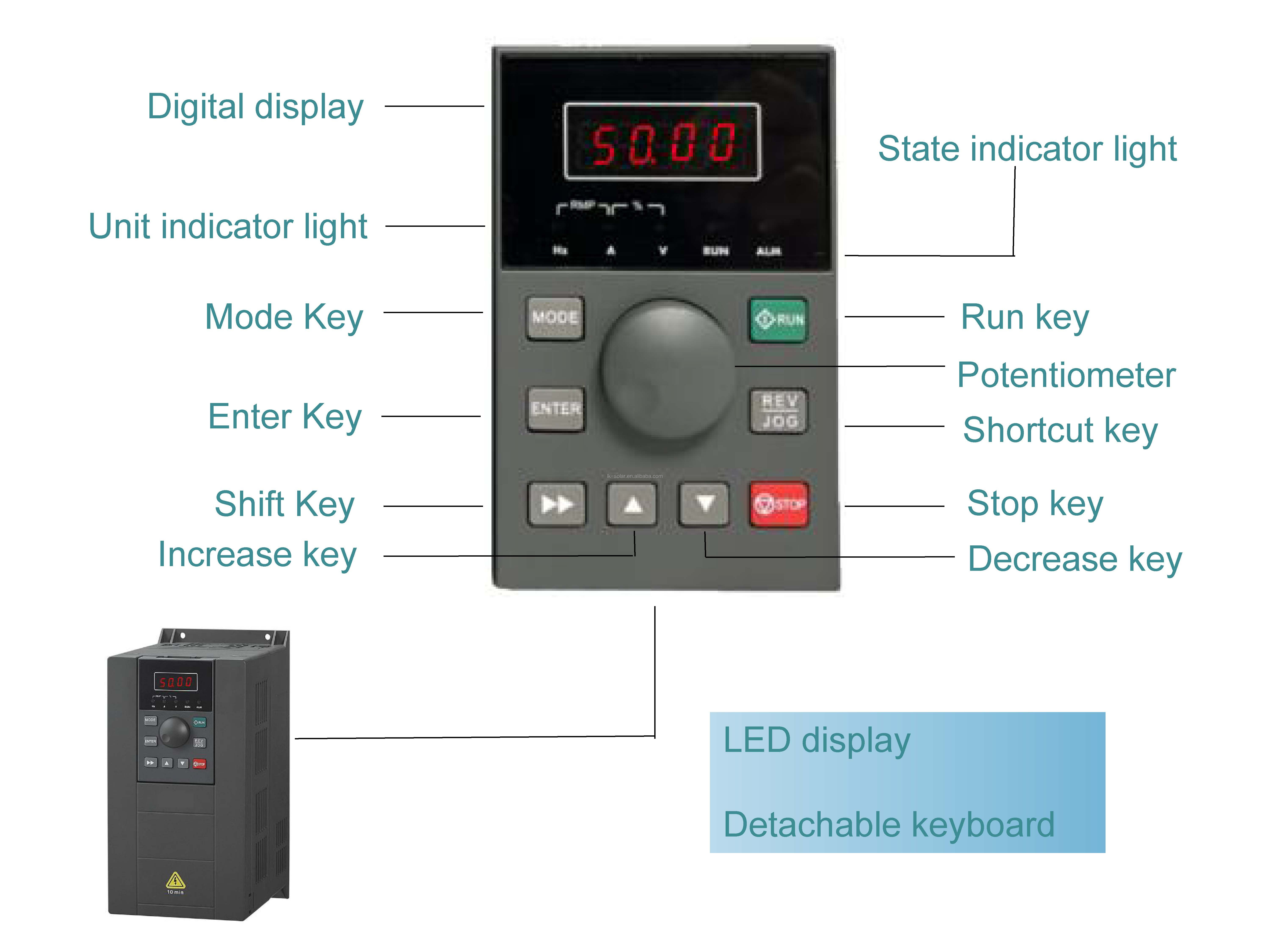

keyboard display

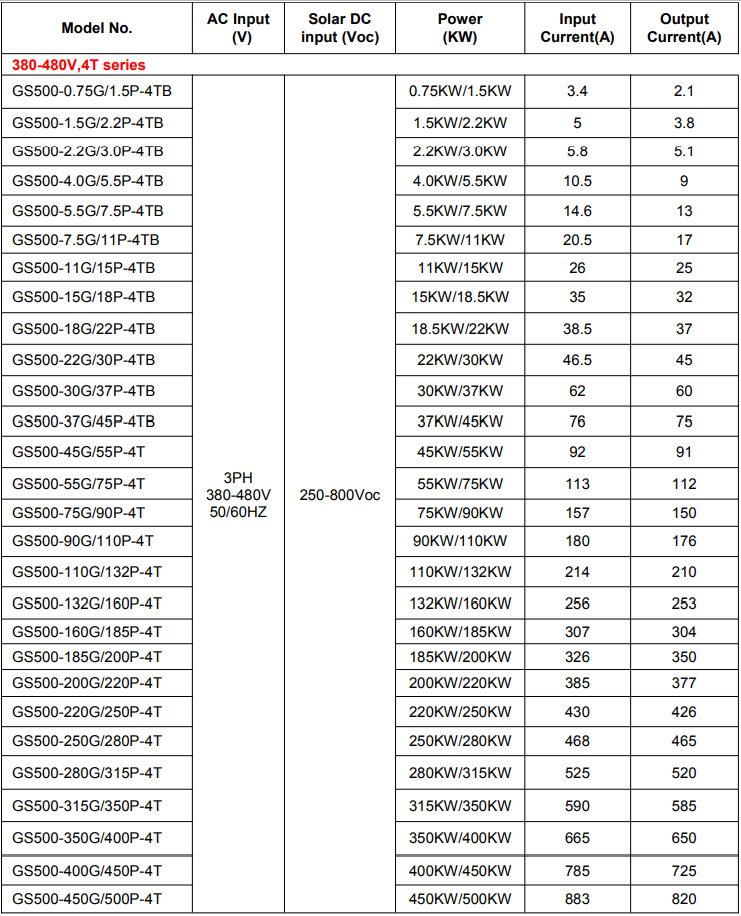

Specification

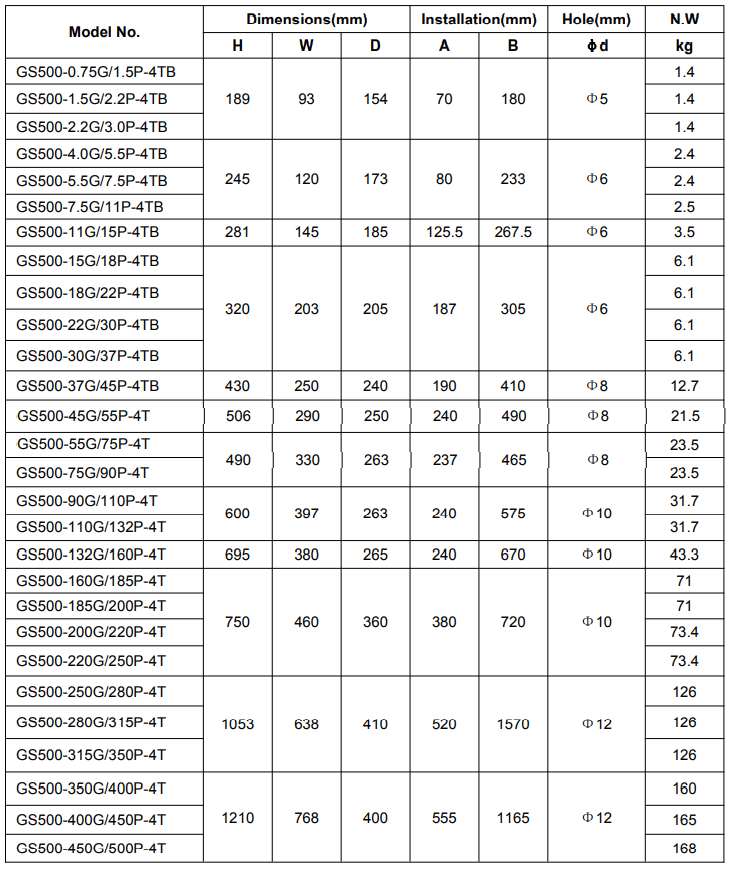

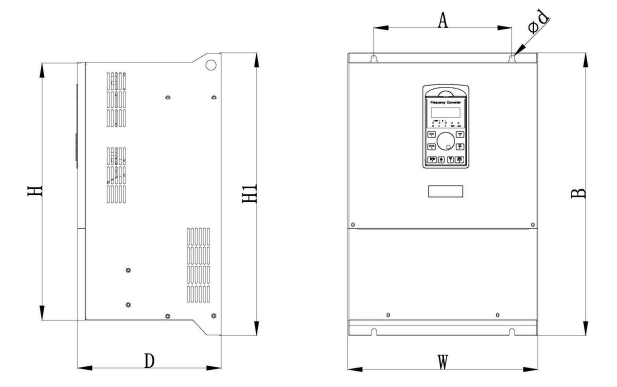

Dimensions and Weight

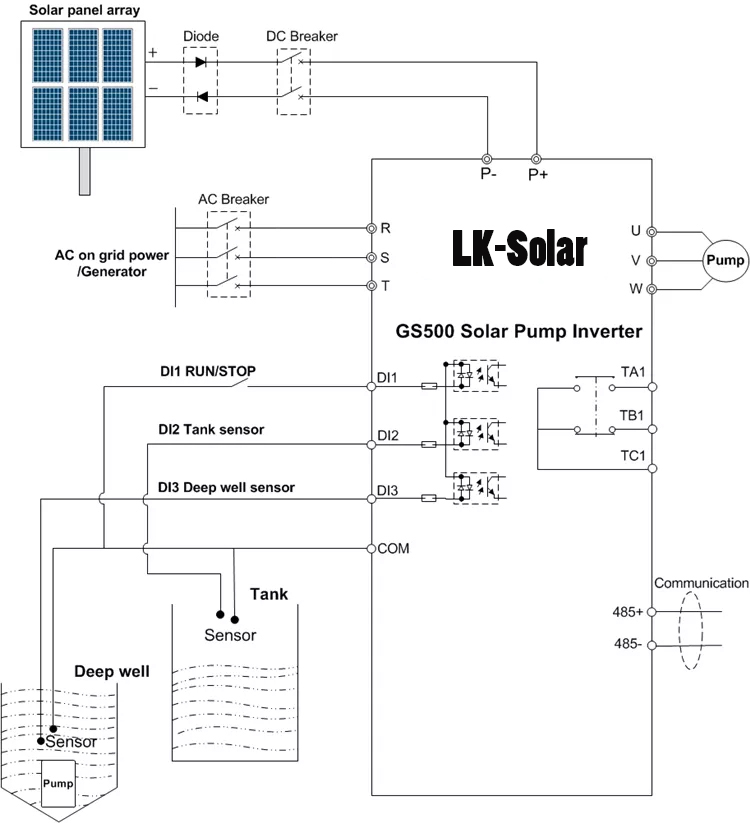

Working diagram

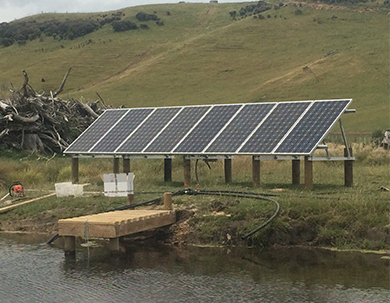

Applications

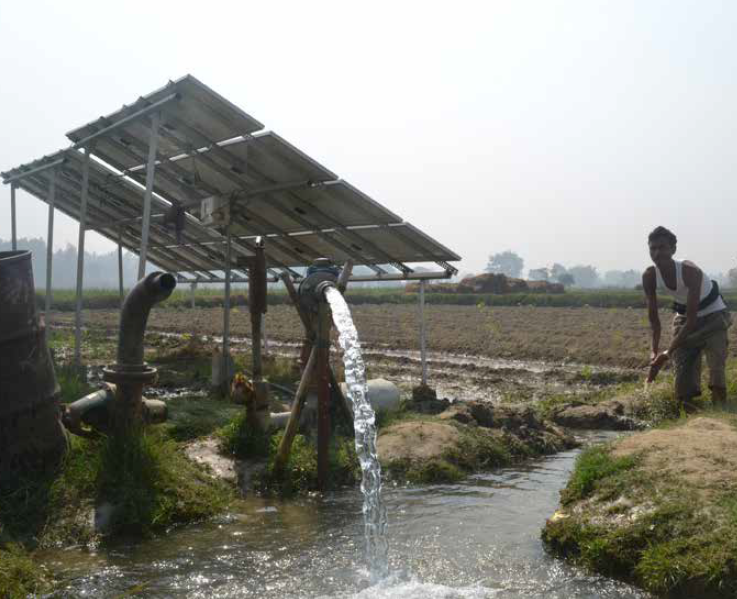

farmland irrigation
Livestock Feeding on Smart Farms
running water
Suitable for areas with power shortage or installation difficulties
desert greening
Suitable for deserts and other areas, saving costs

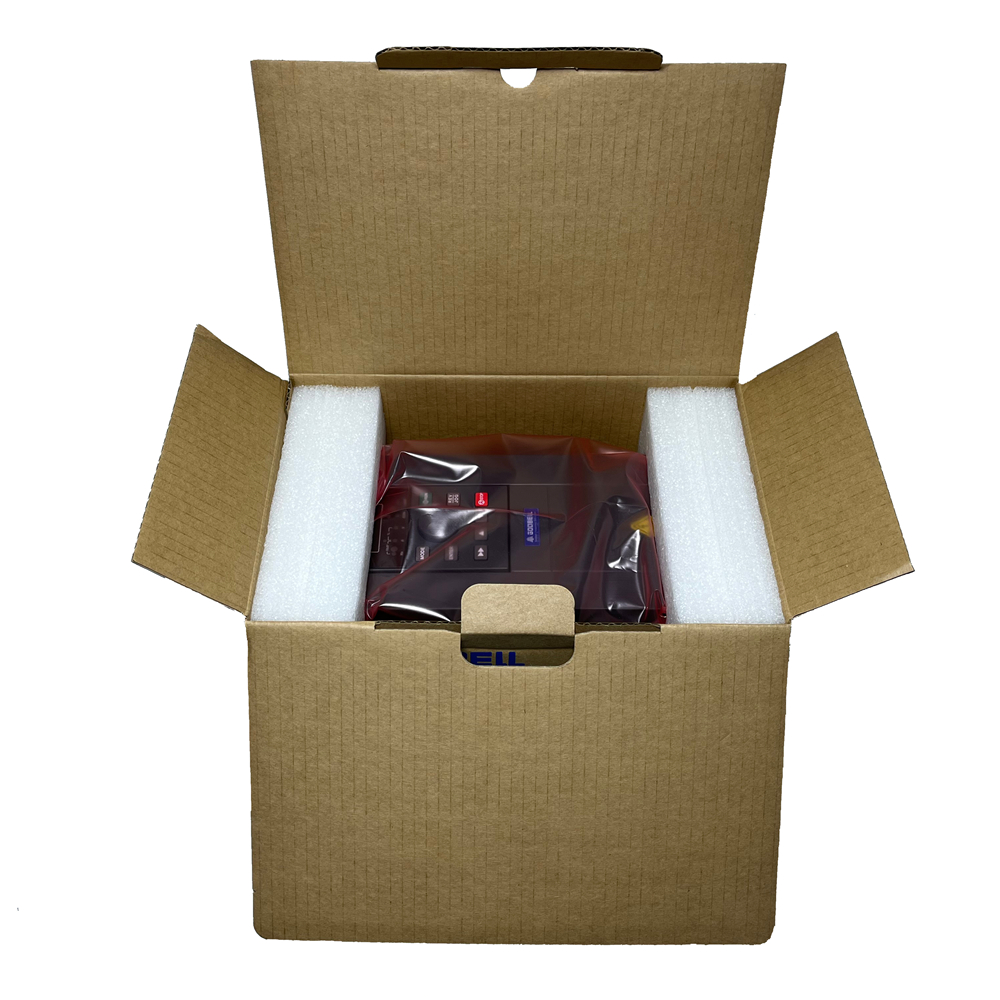

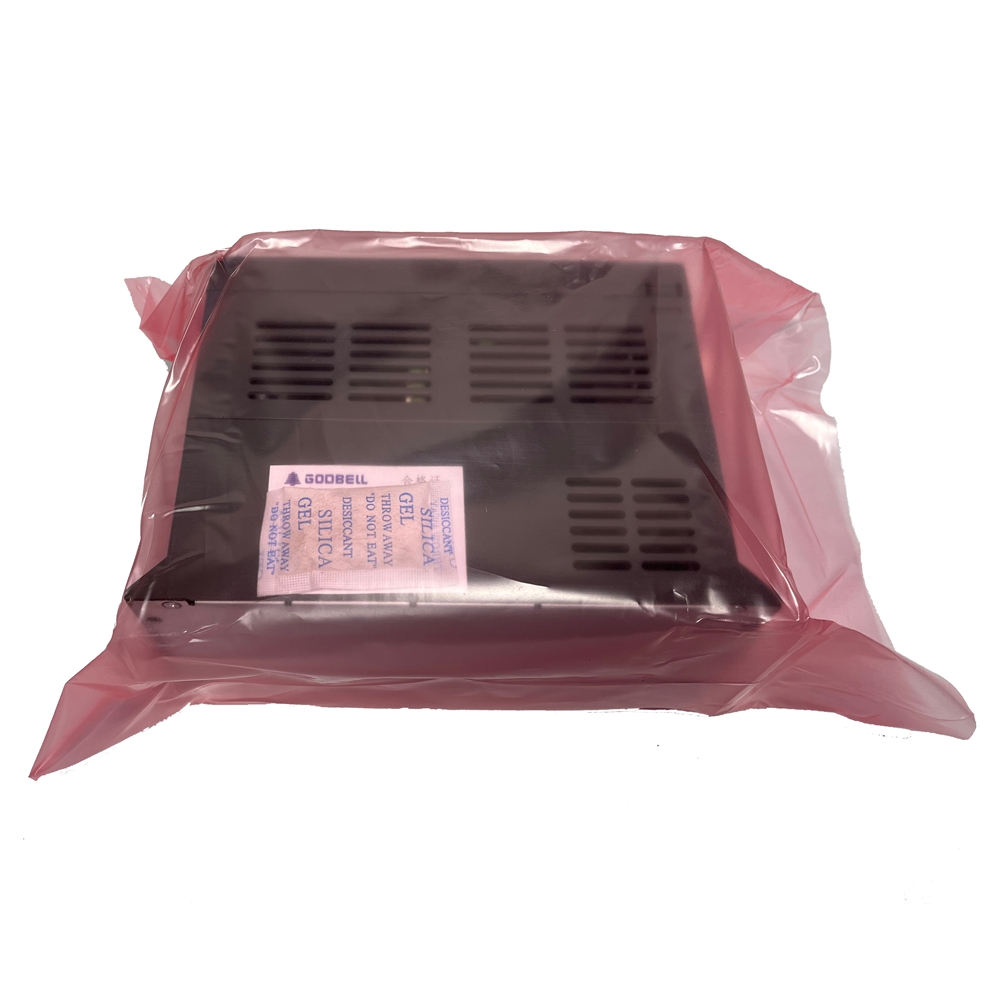

Packaging and Delivery

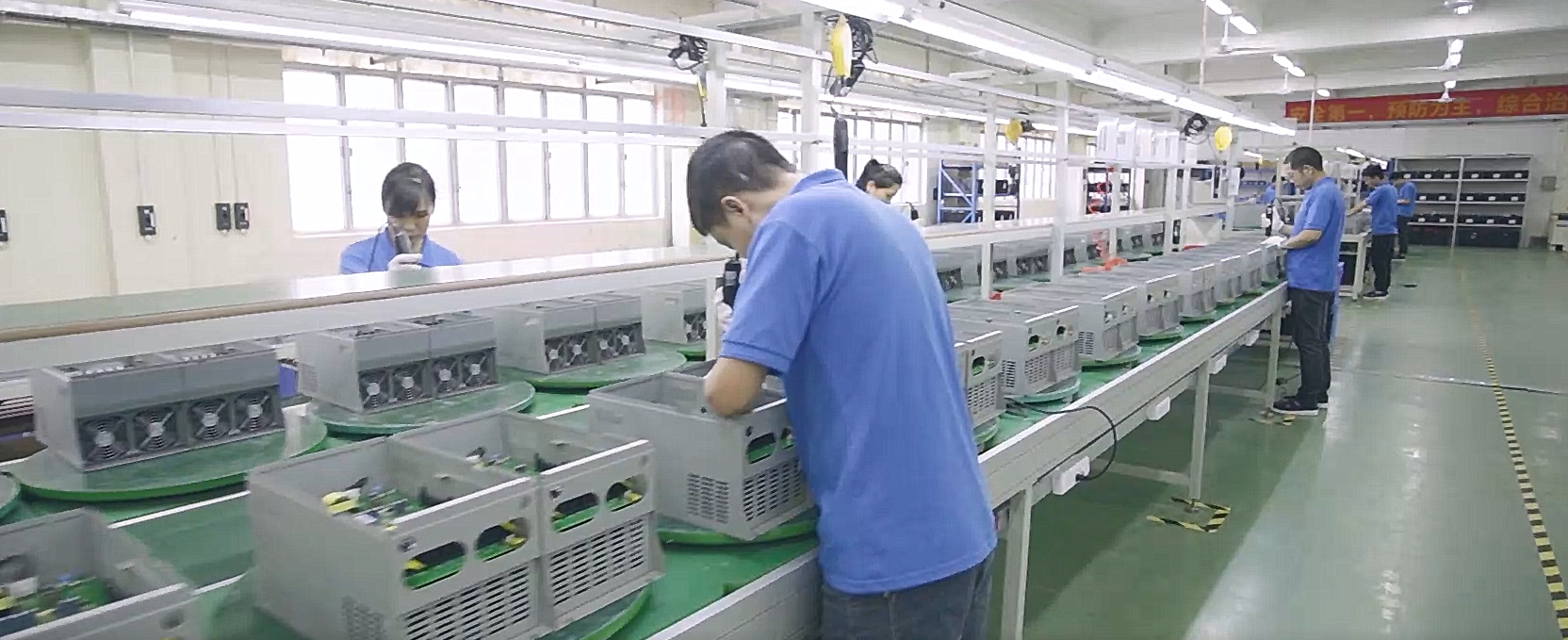

Company Profile
Shenzhen Lijin Solar Co., Ltd.
Located in Shenzhen, China. We specialize in the integrated sales of solar water pumping systems: from solar water pumps, solar inverters, solar panels to photovoltaic installation kits, cables, we can supply them all. Meet customers' one-stop purchasing needs and save time for customers

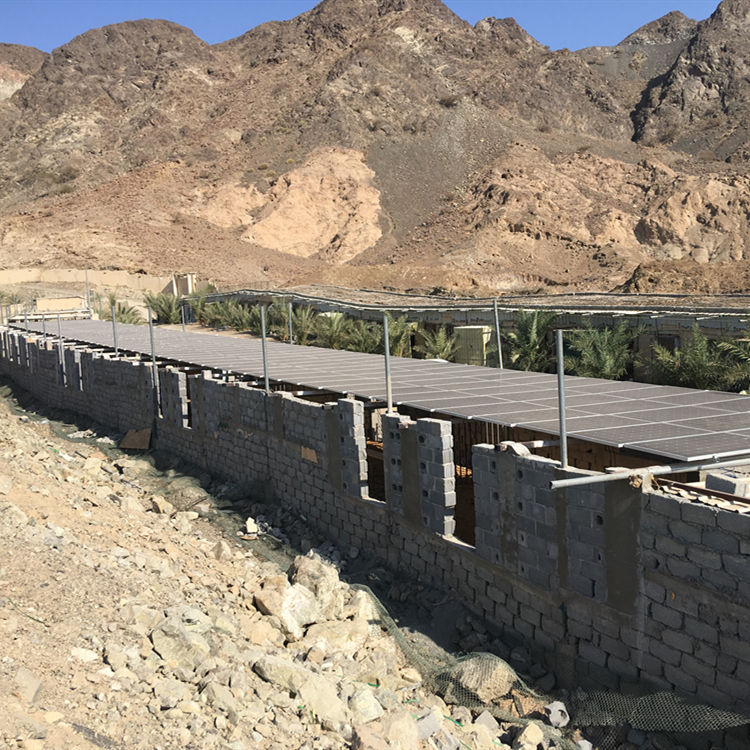

project's venue
Purpose
Solar panels
Solar Water Pump Inverter
Pump model


Inner Mongolia, China


desert greening
22.8KW total power solar panel
60PCS 380W/pcs single half solar panel
Connection method: 15PCS in series * 4 in series and parallel
GS500-15G/18P-4TB, 15KW 30A 3PH 380V MPPT solar inverter for water pump
6SP46-09, 15KW (20HP) 3PH 380V 50HZ, all AISI304 pump material

Flow 48 m3/h water flow, flow 86 m head

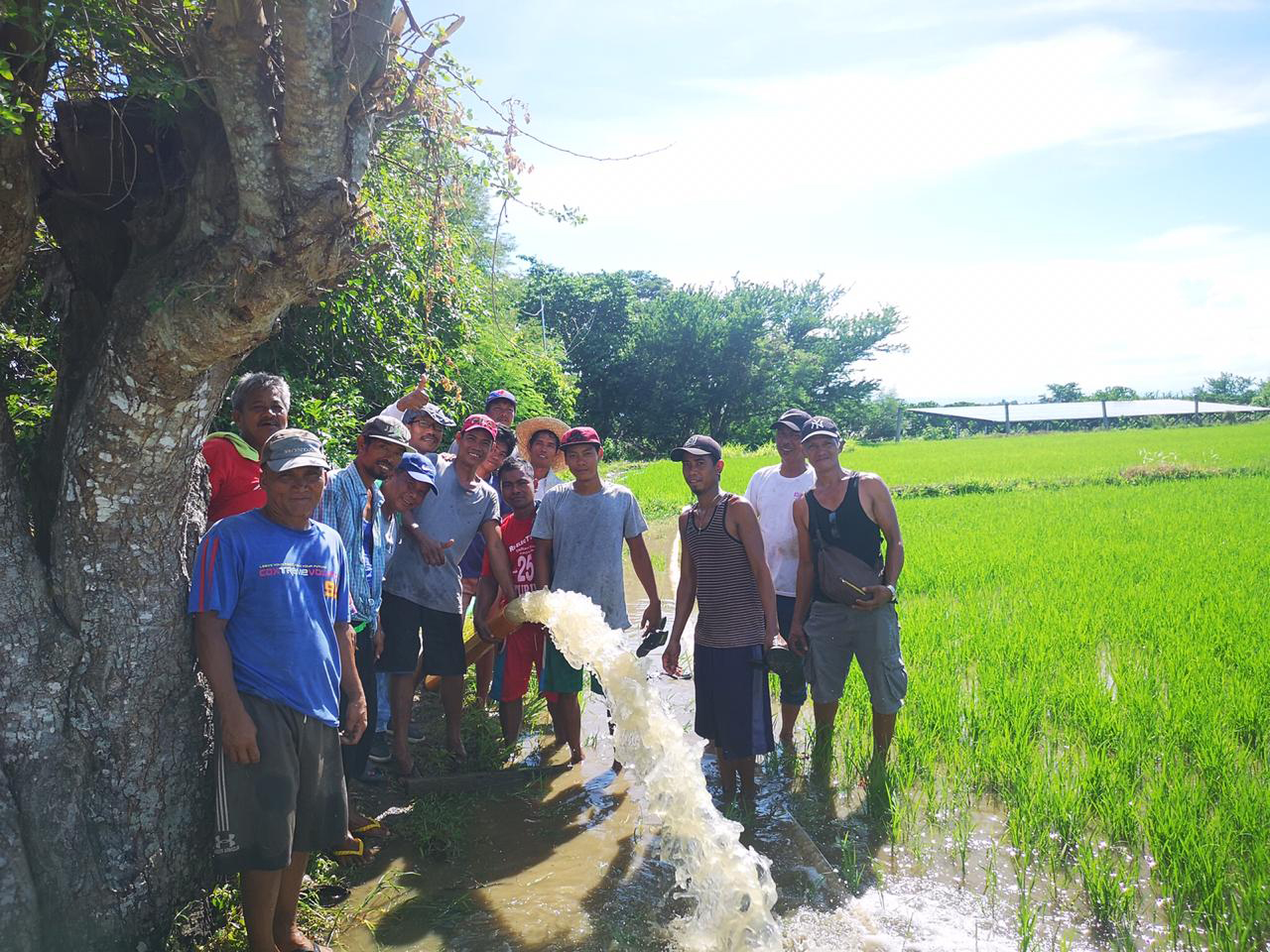

philippines taitai

Farm fishing, animal husbandry
3.6KW total power solar panel

9PCS 400W/pcs Single Half Cell Solar Panel
Connection method: 9PCS series

GS500-2.2G-2SB, 2.2KW 10A 3PH 380V MPPT solar inverter for water pump

4SP8-14, 2.2KW (3HP) 3PH 220V 50HZ, all AISI304 pump material
Flow rate 10 m3/h water flow, flow rate 46 m head




Somalia Mogadishu



agricultural farm
92KW total power solar panel

225PCS 410W/pcs single half solar panel
Connection method: 15PCS series * 15 series parallel


GS500-75G/90P-4TB, 75KW 150A 3PH 380V MPPT solar inverter for water pump


Customer-supplied pump, 55KW 3PH 380V ground pump.
Water flow 450 m3/h, water head 15m


Algeria


desert agriculture
43KW total power solar panel
105PCS 415W/pcs Single Half Solar Panel
Wiring method: 15PCS in series * 7 in series and parallel

GS500-37G/45P-4TB, 37KW 75A 3PH 380V MPPT solar inverter for water pump
6SP46-20, 30KW (40HP) 3PH 380V 50HZ, all AISI304 pump material

46 m3/h water flow, 173m head
