South Africa Hot Sale Single Embossed Toilet Paper Making Machine

PRODUCT DETAIL
Core components:Motors, gears, PLCsPackaging Details:Other requirements for crates or toilet paper machines
Model:MJT-1575Core component warranty:1 year
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramDimensions (L*W*H):when made
Main selling points:easy to operateproduct name:Single embossed toilet paper making machine for sale in South Africa
Package preview:weight:2000 kg
Origin:Henan, ChinaAfter-sales service provided:Does not provide overseas services
Applicable industries:manufacturing plantHealth status:new
maximum. Working width:1800mmProduction capacity:1.5 tons/day
Showroom location:India, Uzbekistanport:Qingdao
brand:MejoySupply capacity:100 sets per month
Production speed:150-200m/min.Computerized:Yes Yes
PLC brand:deltaOutput paper:toilet paper roll
Voltage:380 voltsVideo outbound inspection:if
type:paper embossing machineWarranty:1 year
Mechanical test report:ifMarketing Type:2020 New Products
production line

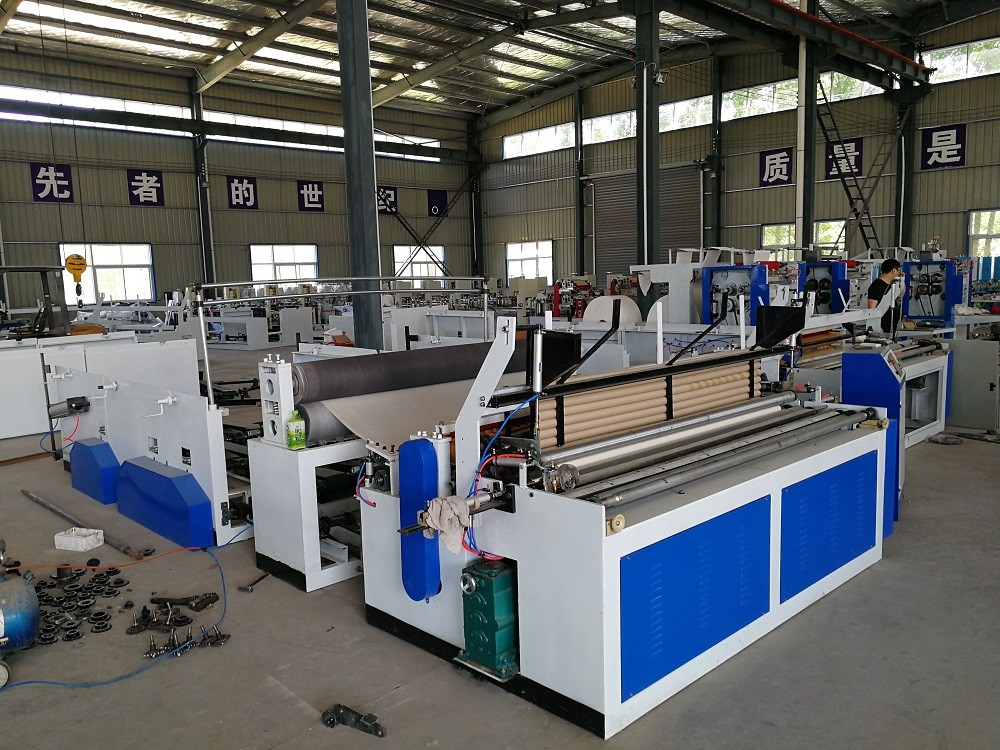

South Africa Hot Sale Single Embossed Toilet Paper Making Machine

Product Description

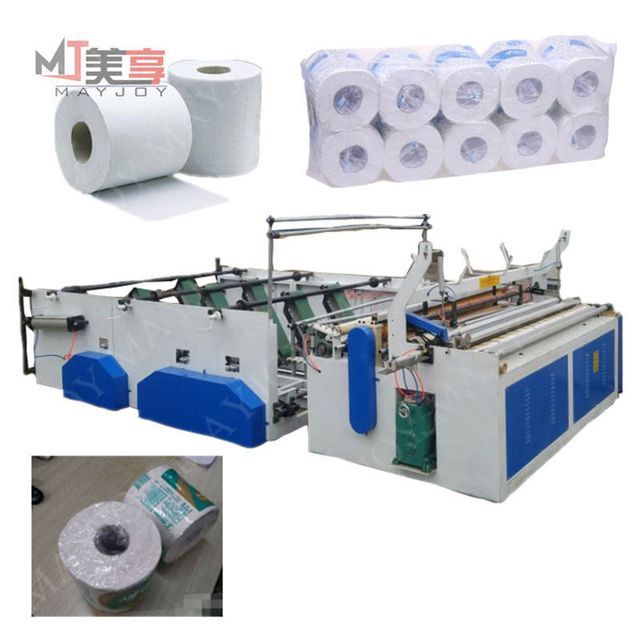

South Africa Hot Sale Single Embossed Toilet Paper Making Machine

introduce:

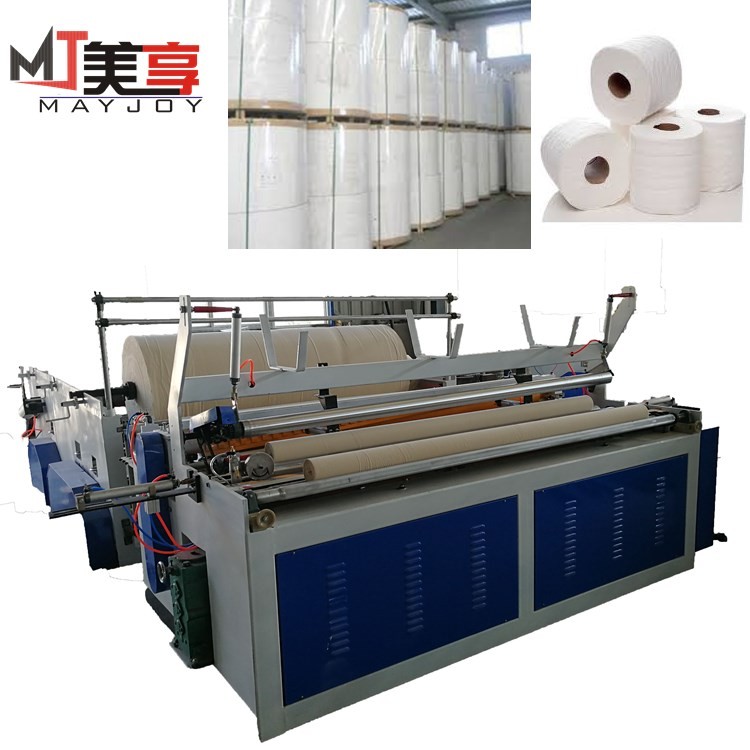

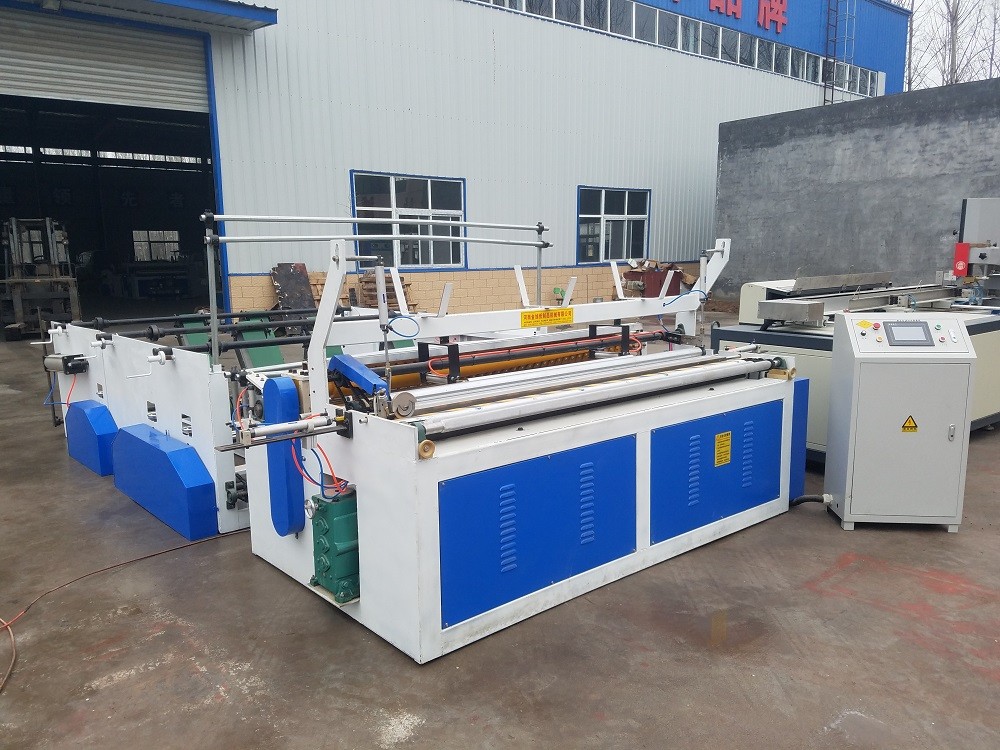

The fully automatic toilet paper rewinding machine produced by our factory adopts the international advanced PLC computer programming technology, frequency conversion speed regulation, electronic brake, and is equipped with a touch screen man-machine interface system, the newly developed core-free roll paper forming and rewinding system, Achieved the purpose of rewinding. With core or coreless volume effect, one machine can be used for multiple purposes, so that the machine can be fully upgraded after being put into use in the market for many years, making the operation more convenient and fast, and greatly improving production efficiency.

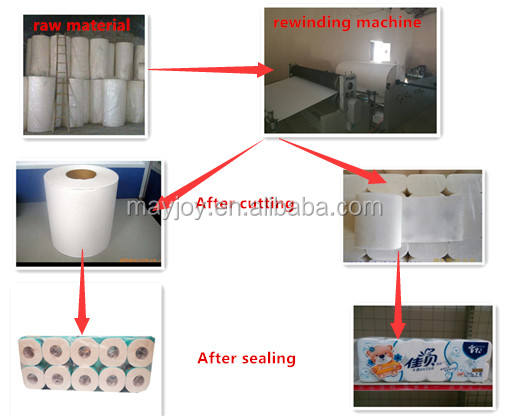

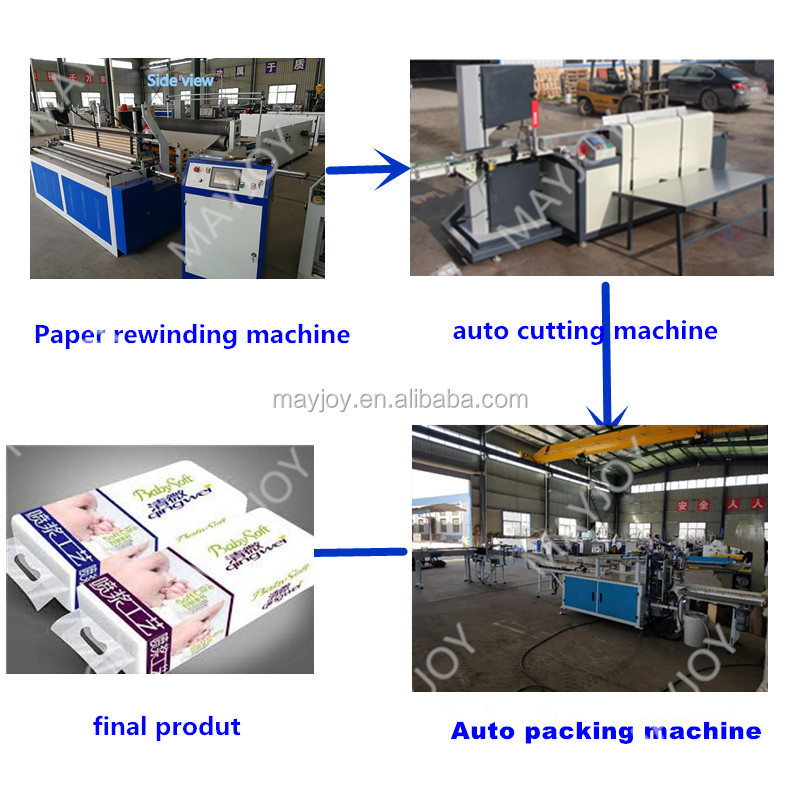

A complete fully automatic tissue production line requires three machines:
1. Toilet Paper Rewinder
Rewind mother paper rolls into small and large rolls
2. Automatic toilet paper cutting machine
Cut small and large rolls into final toilet paper
3. Automatic toilet paper packaging machine
Put toilet paper in a bag

feature:

1. This model adopts PLC control system design, fully automatic production process, complete functions and high production speed. The rewinding process of the finished product is tightened first and then loosened, and the degree of looseness is divided into stages, which solves the problem of separation of paper cores during long-term storage.


2. Automatic core change, glue spraying and sealing without stopping the machine, and automatic speed up and down when changing core.

3. When changing the core, the machine tightens first and then loosens to avoid the core from falling off.

4. Equipped with an automatic alarm device when the core tube is full. The machine will stop automatically when there is no core tube. Paper break automatic alarm.

5. Each unwinding jumbo roll is equipped with an independent tension control.

6. The characteristics can be easily changed to produce any other core tube winding.

7. Leave a reminder after the product is sealed, which is convenient for use.

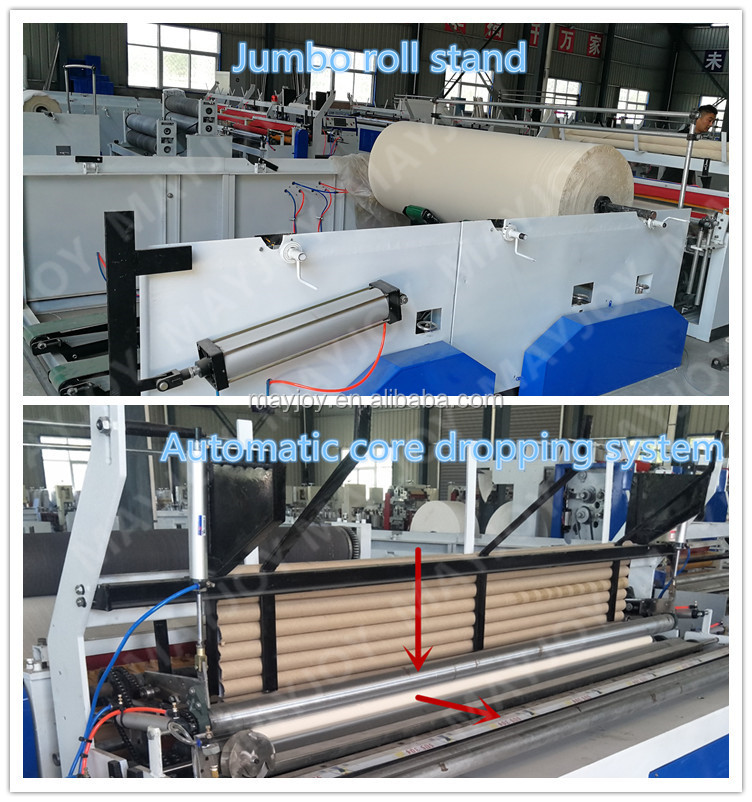

8. The large roll holder adopts pneumatic installation.

9. Stepless adjustment, each function can operate independently.

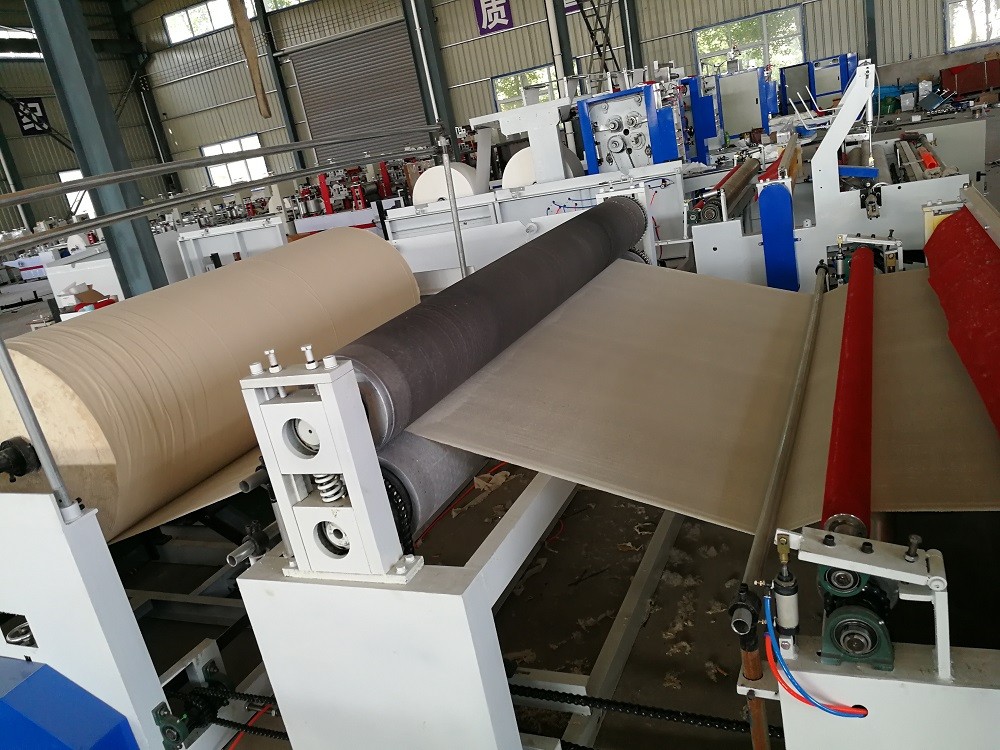

10. Three-layer horizontal unwinding rack, pneumatic wide belt feeding, each set of raw paper racks has an independent tension adjustment device; point-to-point embossing, clear and beautiful patterns, light weight, steel-to-steel embossing can be configured according to user needs ;The base paper traction adopts micro switch, which is easy to operate, safe and practical.


machine type
MJT-1092
MJT-1575
MJT-1760
MJT-1880
MJT-2800
MJT-3500
Paper width (mm)
1300
1800
2000
2200
2800
3500
Finished diameter
φ50~1800mm (width and tightness adjustable)
Finished paper core
φ30~55mm
base diameter
With 1100mm
Standard (other sizes available)
Large core diameter
76mm
Process Capability
National standard (other sizes are available)
parameter setting
150~280M/min
rear bracket
PLC computer operating system interface
Perforation spacing (mm)
Standard Layer 3 synchronous transmission
Pneumatic system
2 bald heads, 150~300mm
strength
3 air compressors, the minimum pressure is 5kg/cm2Pa (not included in the quotation, generally customers purchase by themselves)
aspect
2.5kW~15kW
weight
CVT
detailed image

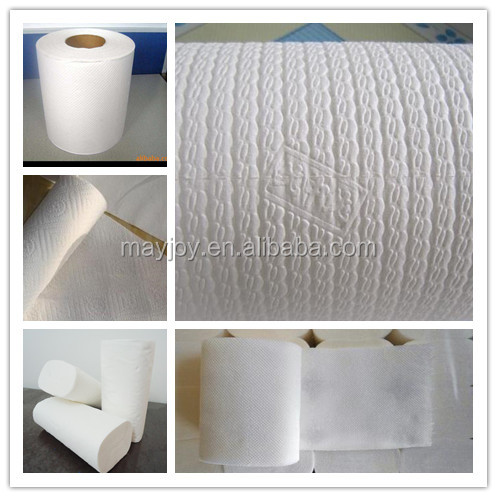

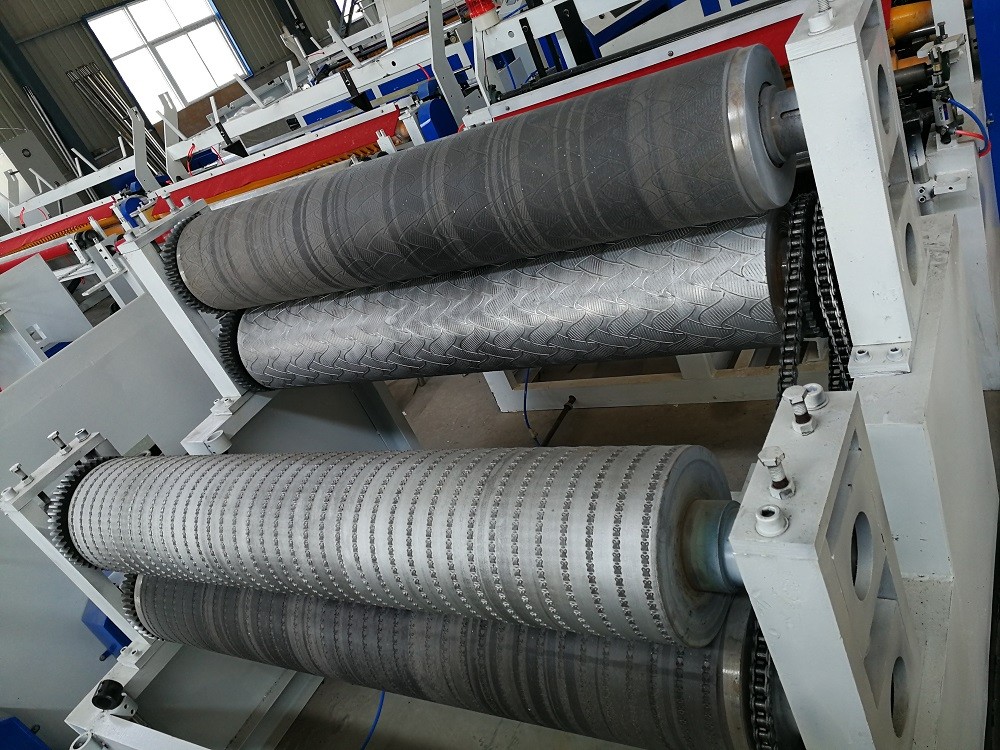

Embossed patterns can be customized according to customer requirements. We can design for you.
