Soybean Grinder - Separate Aluminum Frame

PRODUCT DETAIL
payment terms:Western Union, T/T, MoneyGramVideo external inspection:if
Core components:Aluminum alloyHealth status:new
Packaging Details:wooden boxApplicable industries:Hotels, Mechanical Repair Shops, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Food Stores, Food and Beverage Stores, Others
weight:1 kilogramsMarketing Type:normal product
Showroom location:not anyMechanical test report:if
Warranty:unavailableMain selling point:easy to operate
Packaging Preview:place of origin; place of origin:China Shanghai
Core Components Warranty:Not availablebrand:Tiangang

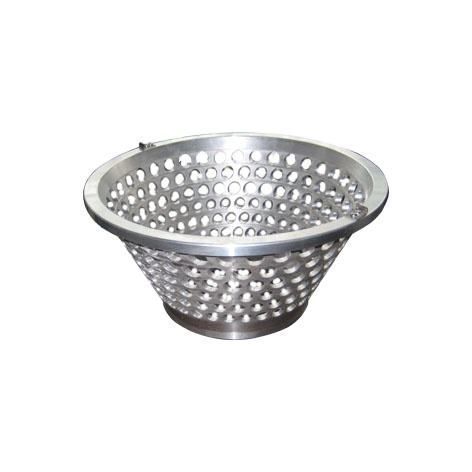

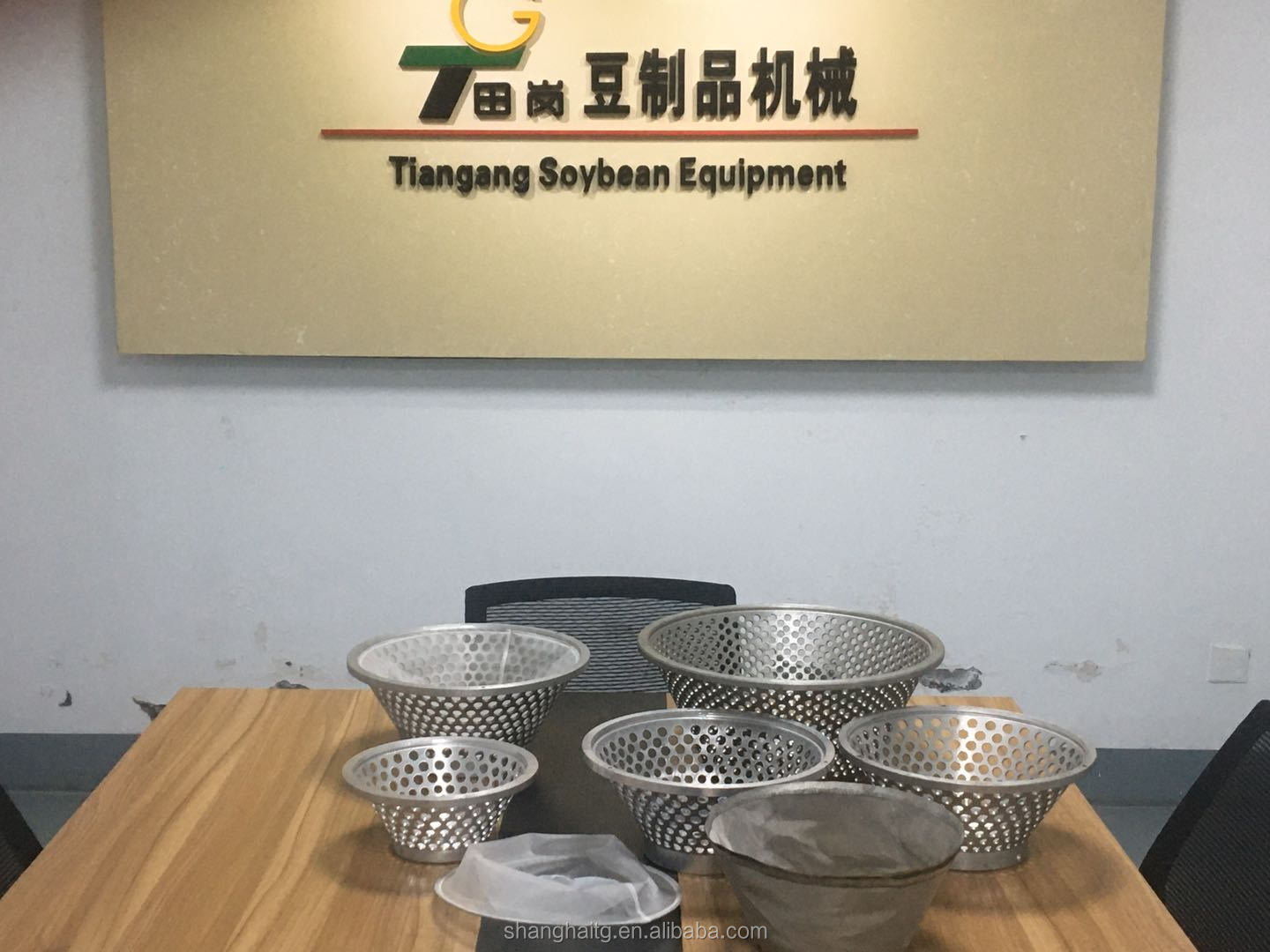

TGM Series Soybean Grinding Separator Accessories
Comment:Soybean Grinder - Split Aluminum Frame. Dimensions are only available with TGM series grinders. Please know the model and size of the grinder when purchasing.
TGM-200 size: 385*215*161mm. ;Net weight: 2kg
TGM-150 size: 310*215*138mm. ;Net weight: 1.25kg
TGM-130 size: 280*143*124mm. ;Net weight: 870g
TGM-100 size: 194*110*92mm. ;Net weight: 525g

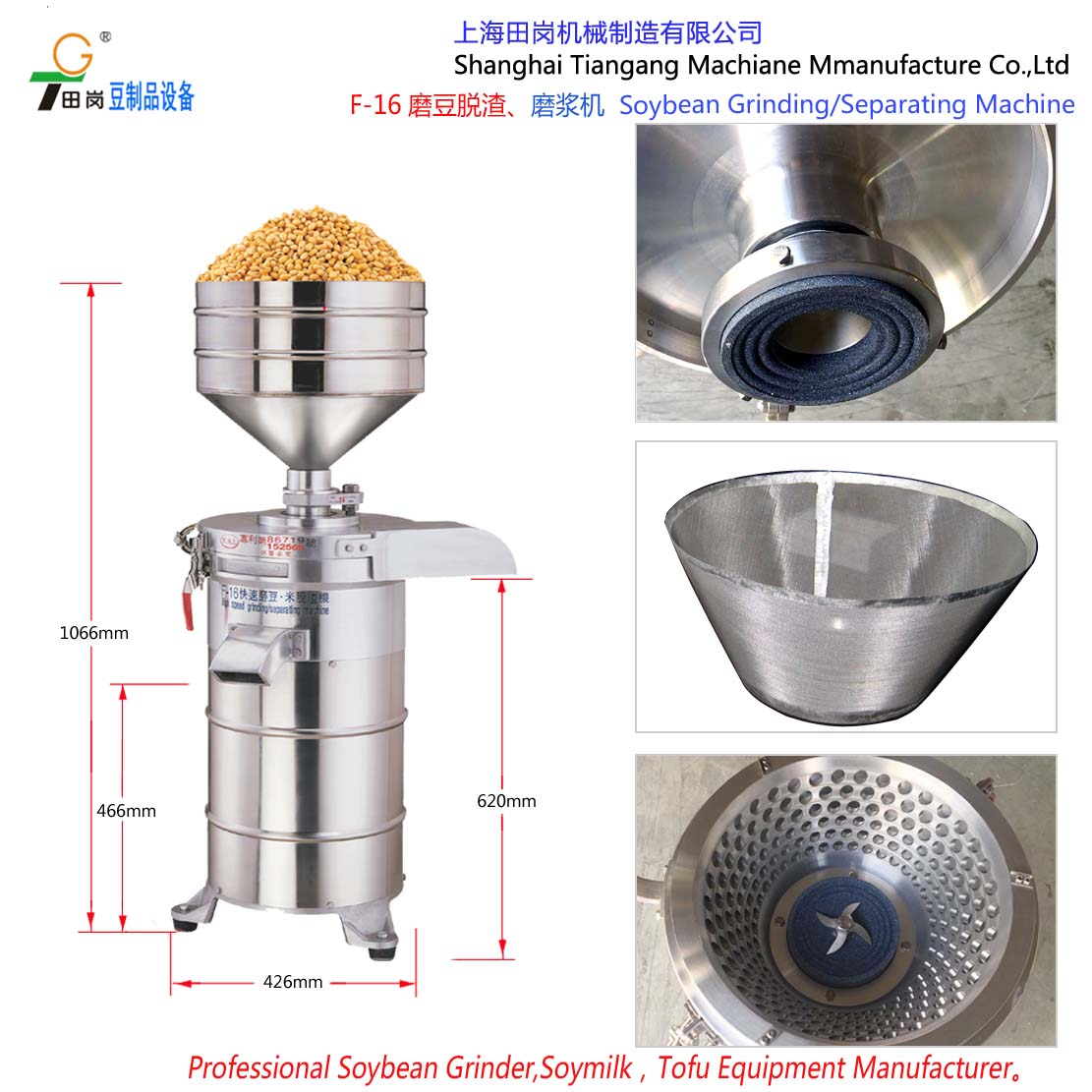

F-16 internal size: 275*157*127mm. ;Net weight: 1.5kg

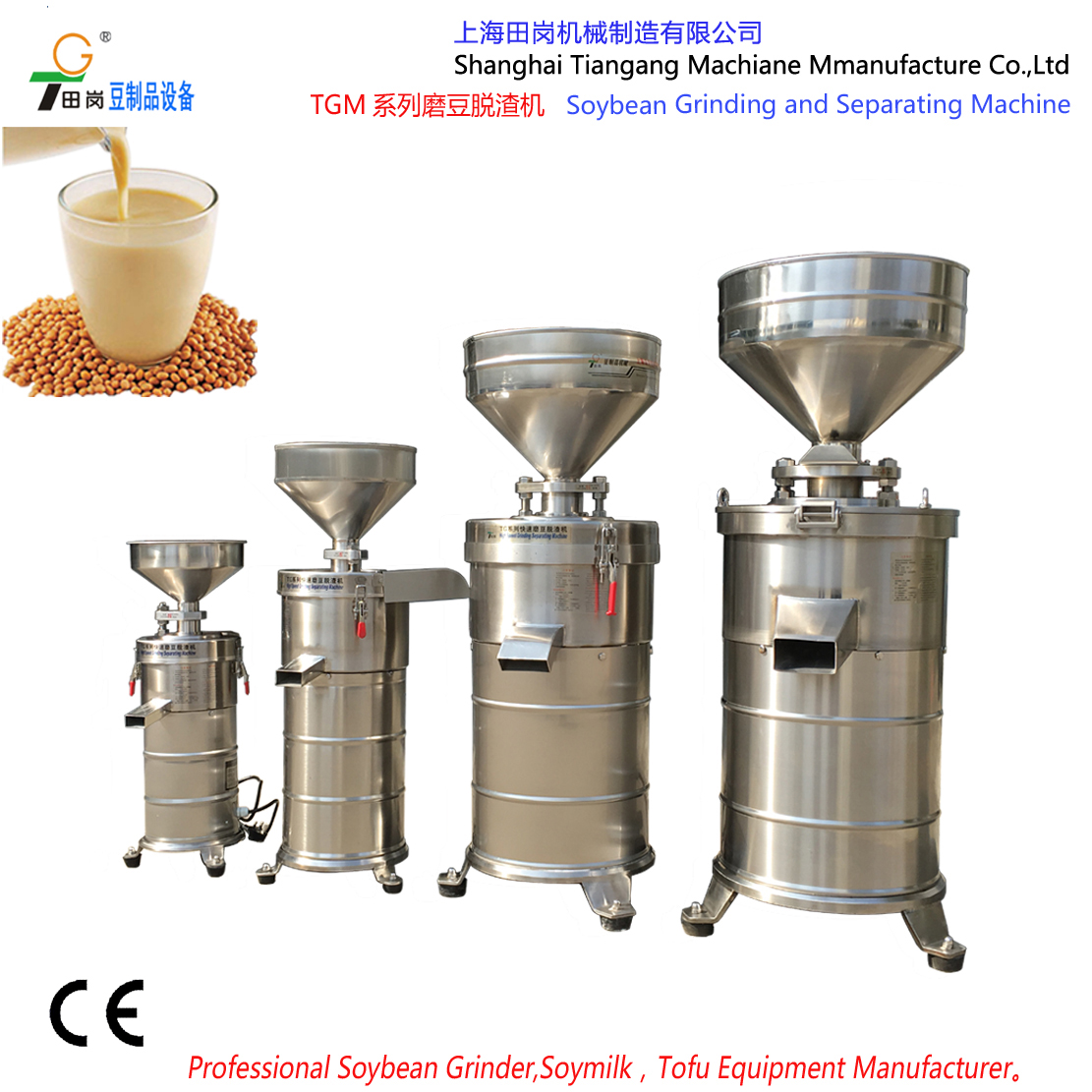

TGM Series Soybean Grinding Separator
Application: Soybean Grinder. Suitable for making soy milk, tofu, etc. It is suitable for unit canteens, restaurants and small food processing plants.
Features: Made of stainless steel grinding beans, the fragrant bean paste comes out all at once, and the bean dregs are removed at one time, and the flaky bean dregs are discharged at the same time.
brief introduction.
1. Unique feeding mechanism, special grinding device for cylinder block and motor can effectively solve the problem of equipment leakage. 2. The well-designed grinding chamber makes the slurry flow smoothly, with less material accumulation and easy cleaning. 3. Practical and unique fine pitch adjustment mechanism, easy to adjust and reliable locking. 4. Special formula grinding stone, long service life and high output. 5. Clean and hygienic, the entire working channel from feeding, grinding to discharging is made of stainless steel;
application:It is suitable for soybeans and soybeans after soaking, soaking soft products, grinding and other functions.

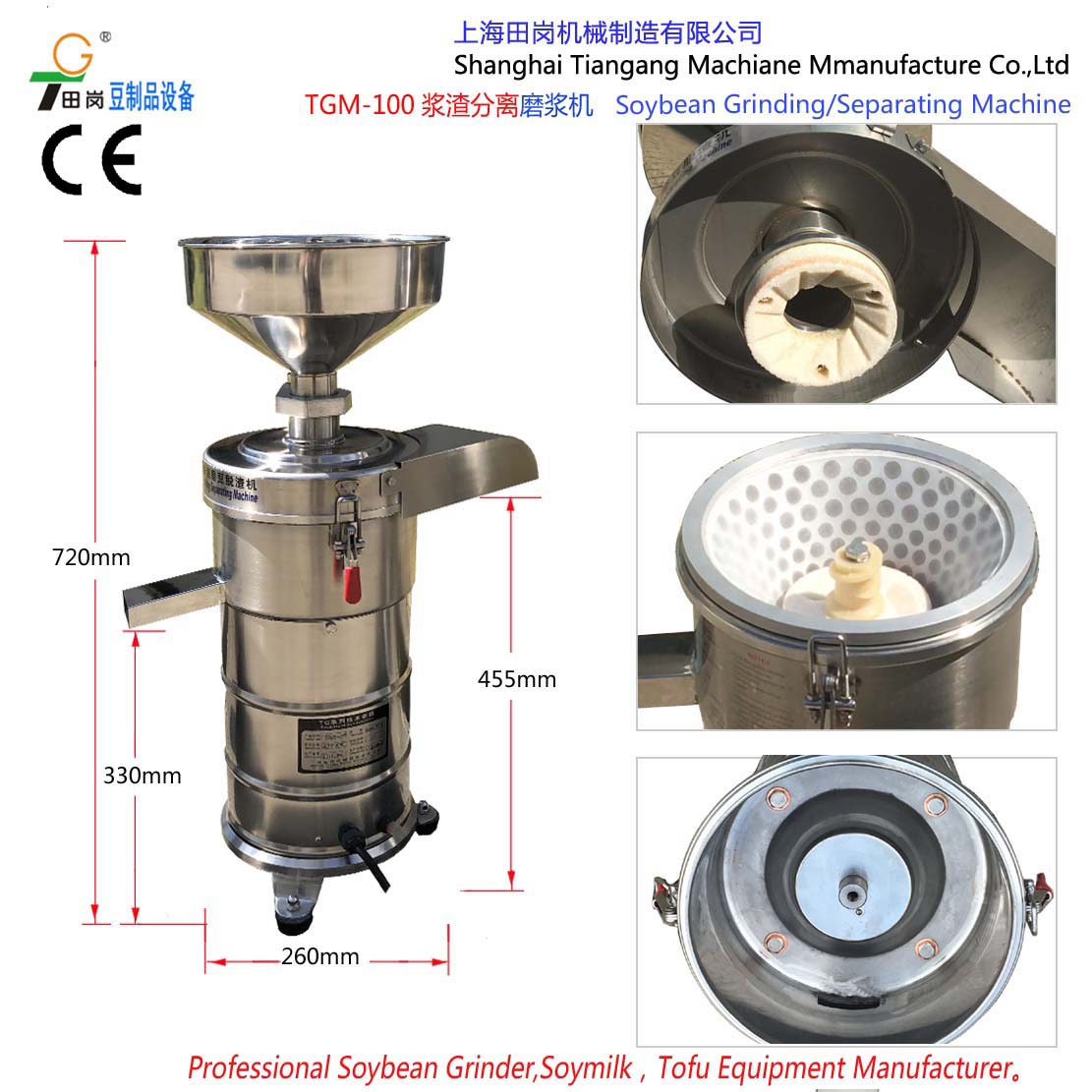

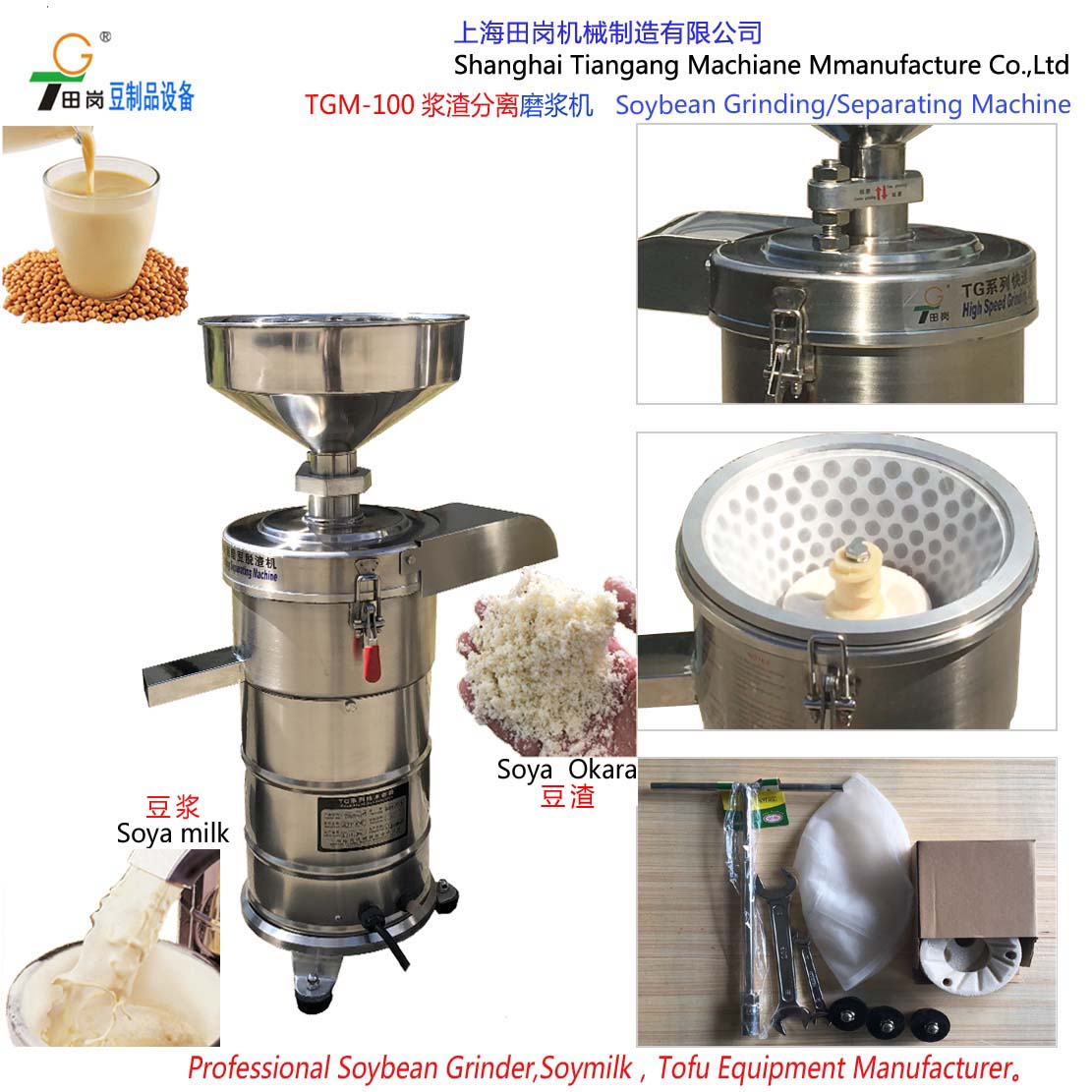

TGM-100 main data:
TGM-100 main data: Voltage: 220v/50Hz; Power: 750w; (customizable)Speed: 2880 rpm; Filter: 100 mesh, Capacity: 15-20kgs/hr (calculated by dry beans) Grinding Stone Diameter: 95mm; Grinding Stone Material: White Corundum; Weight: 22kgs; Size: 320*360*720mm; Gross Weight : 28kgs; Packing size: 300*320*800mm

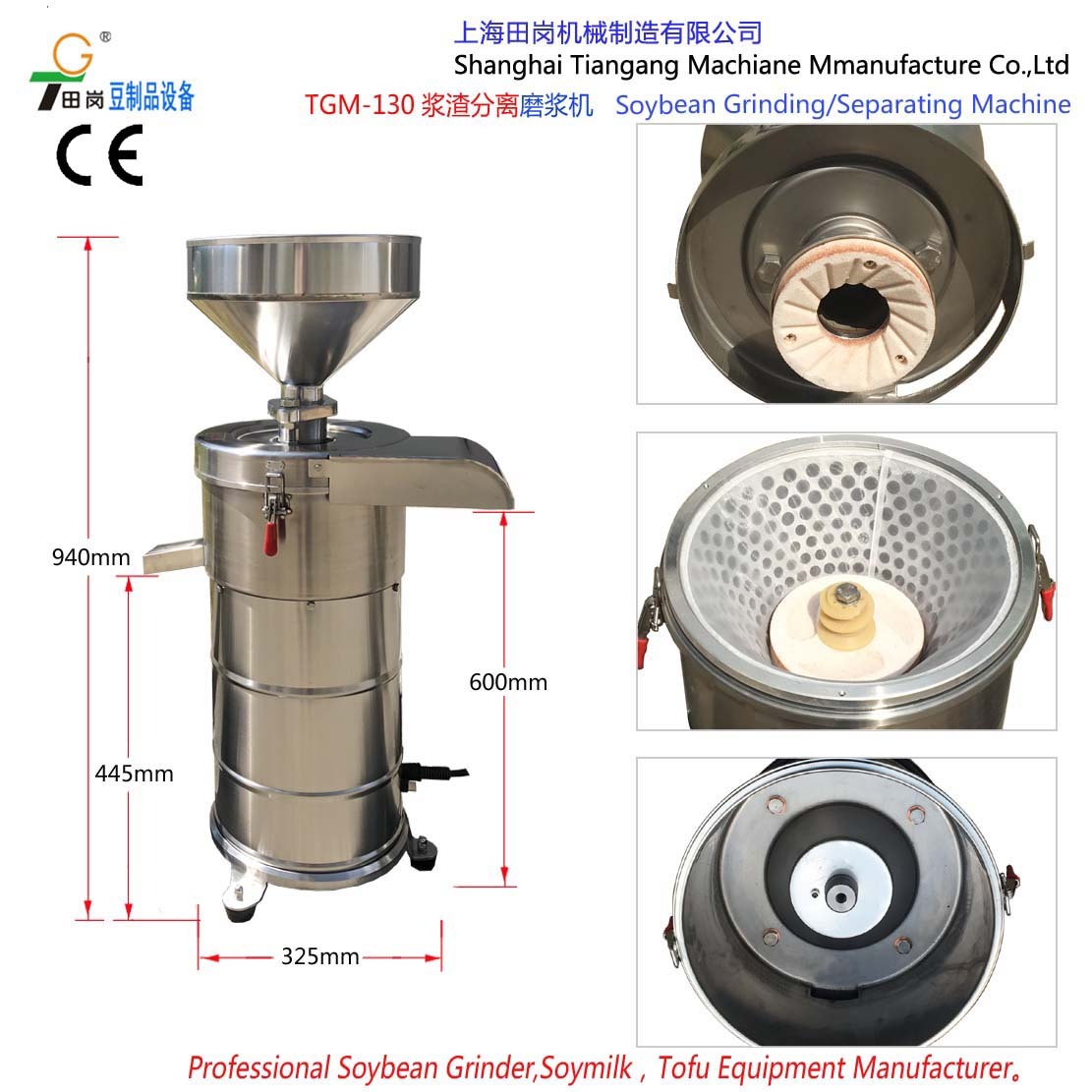

TGM-130 main data:
Voltage: 220v/50Hz; Power: 1500W; (customizable)Speed: 2880 rpm; Filter: 100 mesh, Capacity: 35-65kgs/hr (calculated by dried tofu) Grinding stone diameter: 125mm; Grinding stone material: White corundum; Weight: 45kgs; Size: 360*480*880mm; Gross weight: 53kgs; packing size: 380*420*1020mm;

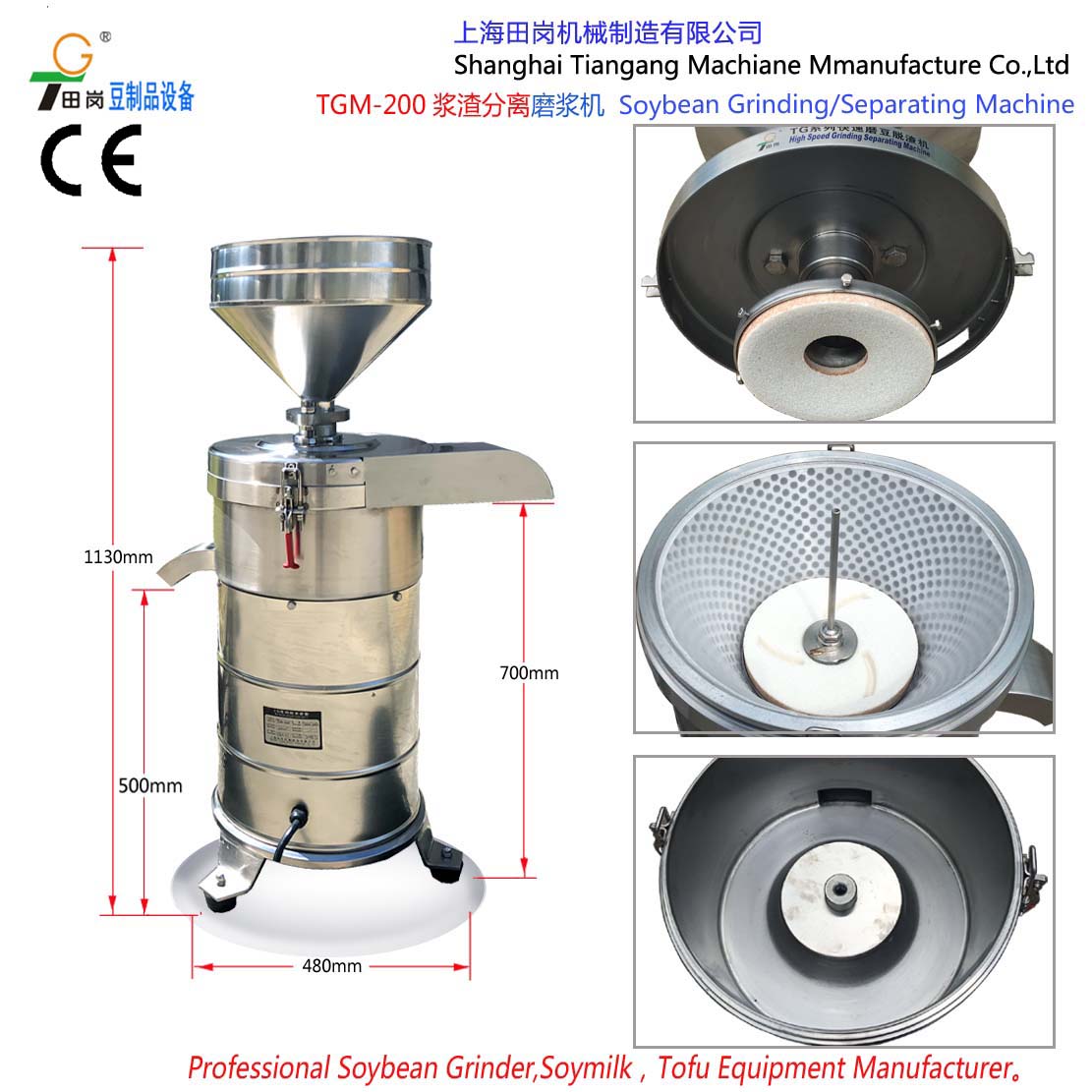

TGM-200 main data:
Voltage: 380V/50Hz; Power: 5KW; Speed: 2880 rpm; Filter: 100 mesh, Capacity: 100-175kgs/hr (calculated by dried tofu) Grinding stone diameter: 200mm; Grinding stone material: White corundum; Weight: 96kgs ; Size: 480*600*1150mm; Gross Weight: 105kgs; Packing Size: 530*470*1250mm;

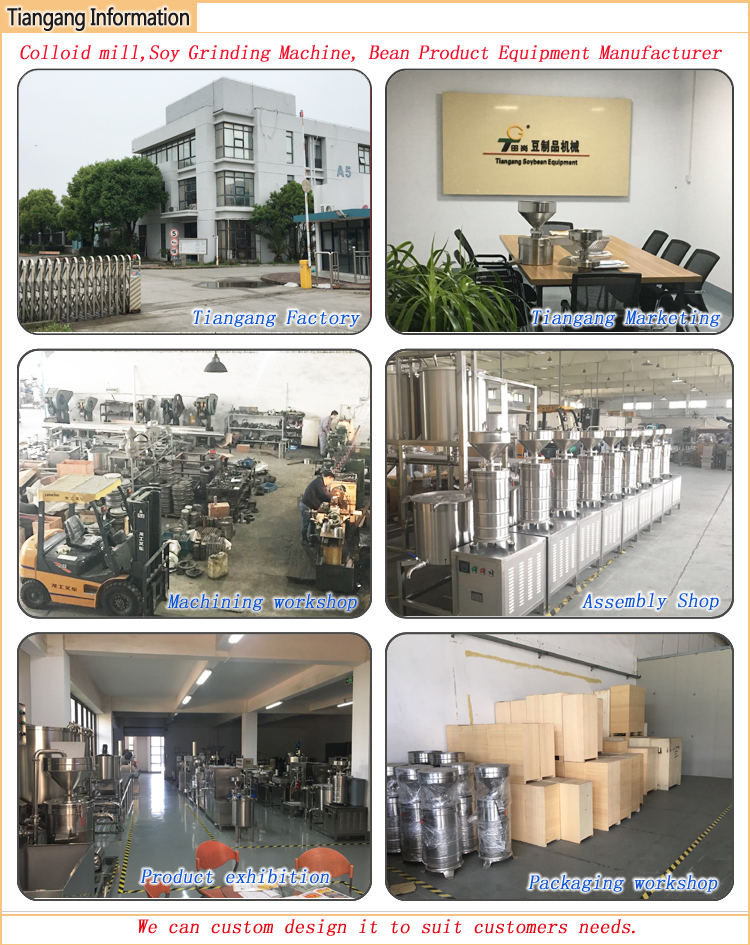

Shanghai Tiangang Machinery is a professional soybean processing machinery manufacturer.

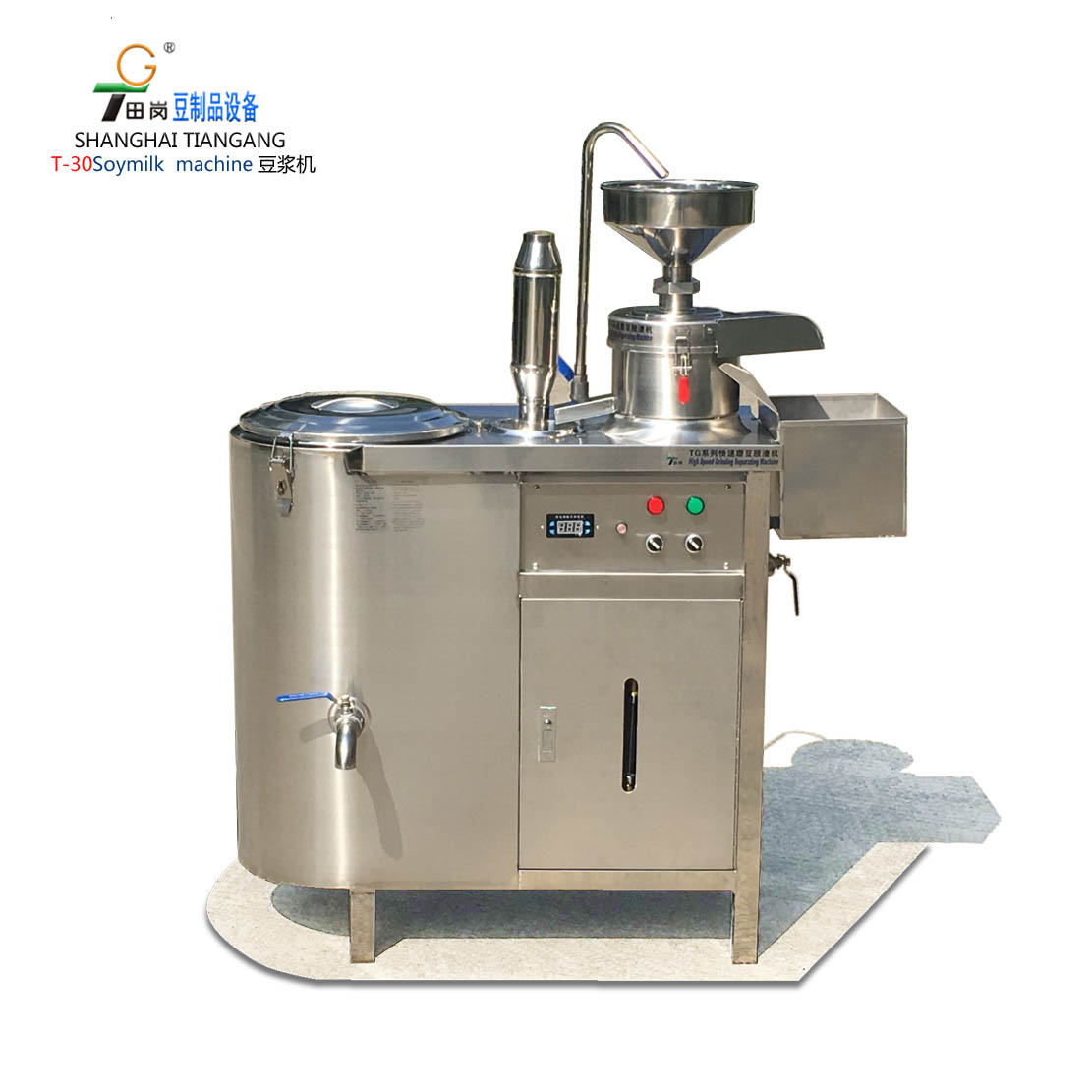

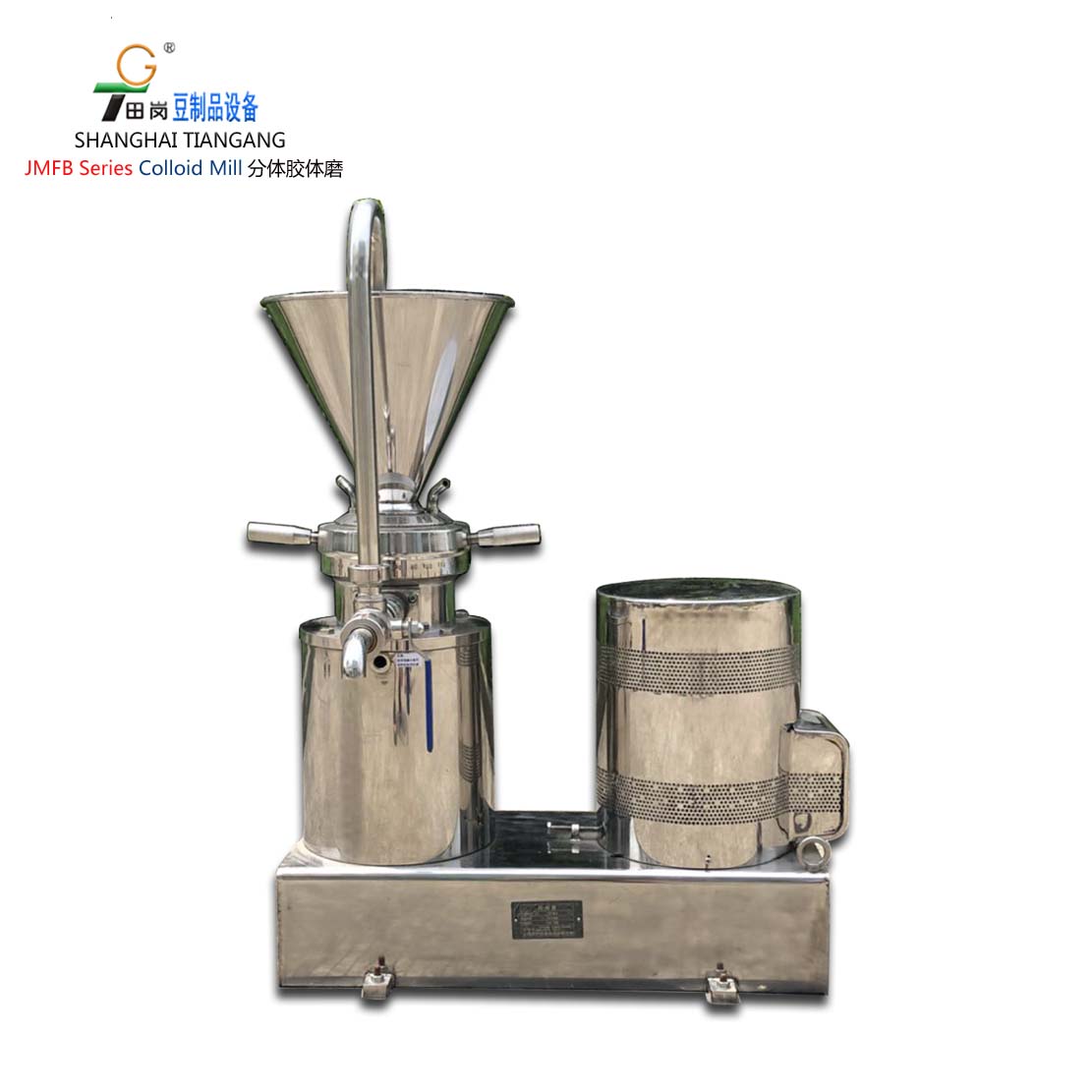

Core Products:soybean grinder.colloid mill.Soymilk machine. tofu machine

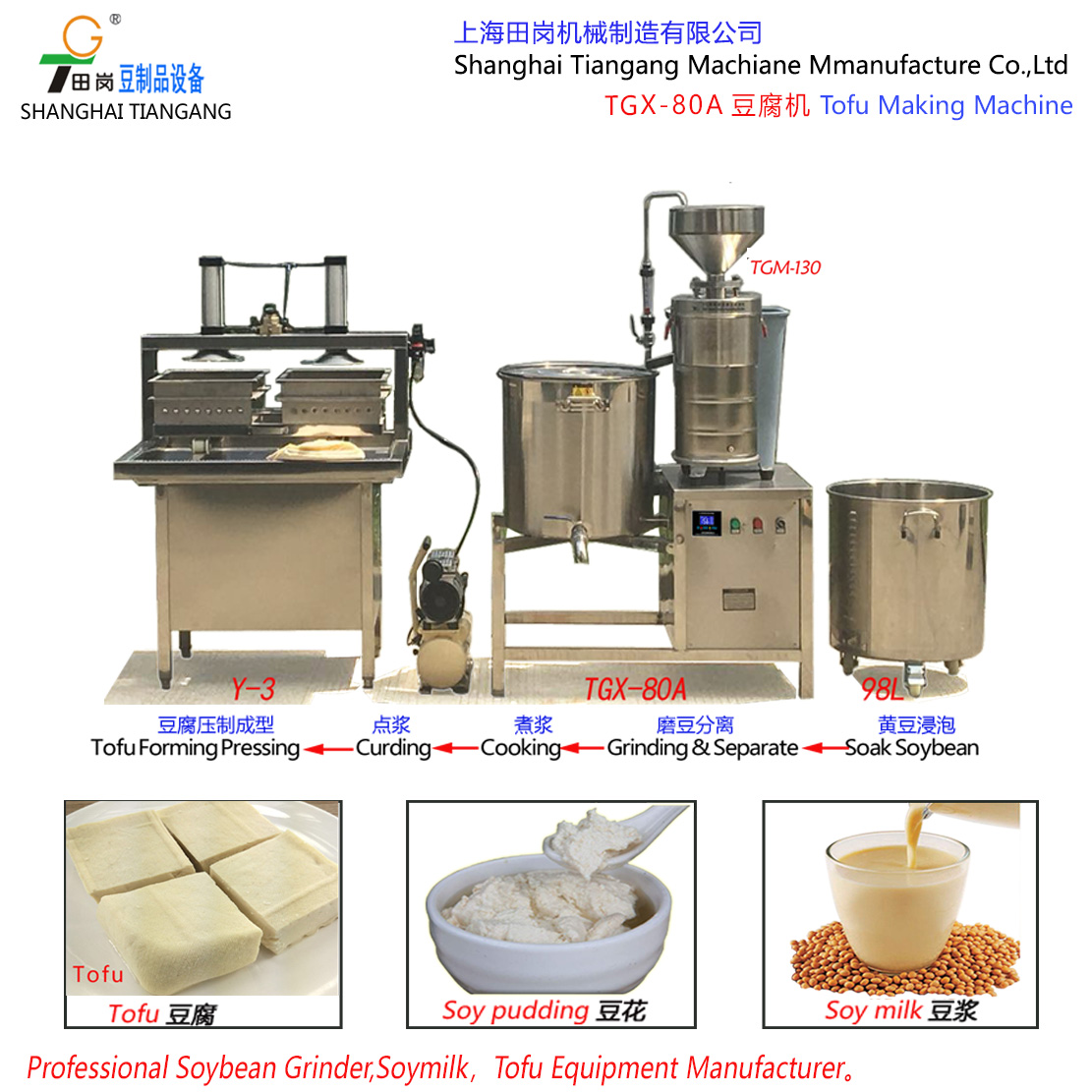

Shanghai Tiangang Machinery Manufacturing Co., Ltd. has been engaged in the manufacture of soybean processing machinery. Our products are widely used all over the world. Mainly include food grinders, colloid mills, commercial soybean milk machines, tofu machines, packaging and other soybean processing machinery. In addition, we can provide a complete set of soybean milk and tofu processing production lines, including soybean soaking, soybean suction, grinding separation, cooking, crushing, pressing and sterilization, packaging, etc. What's more, we can design turnkey projects according to customer's needs. Our sales staff and engineers all know our products very well, and they will serve you with their professionalism and sincerity. Looking forward to working with you in the near future!
