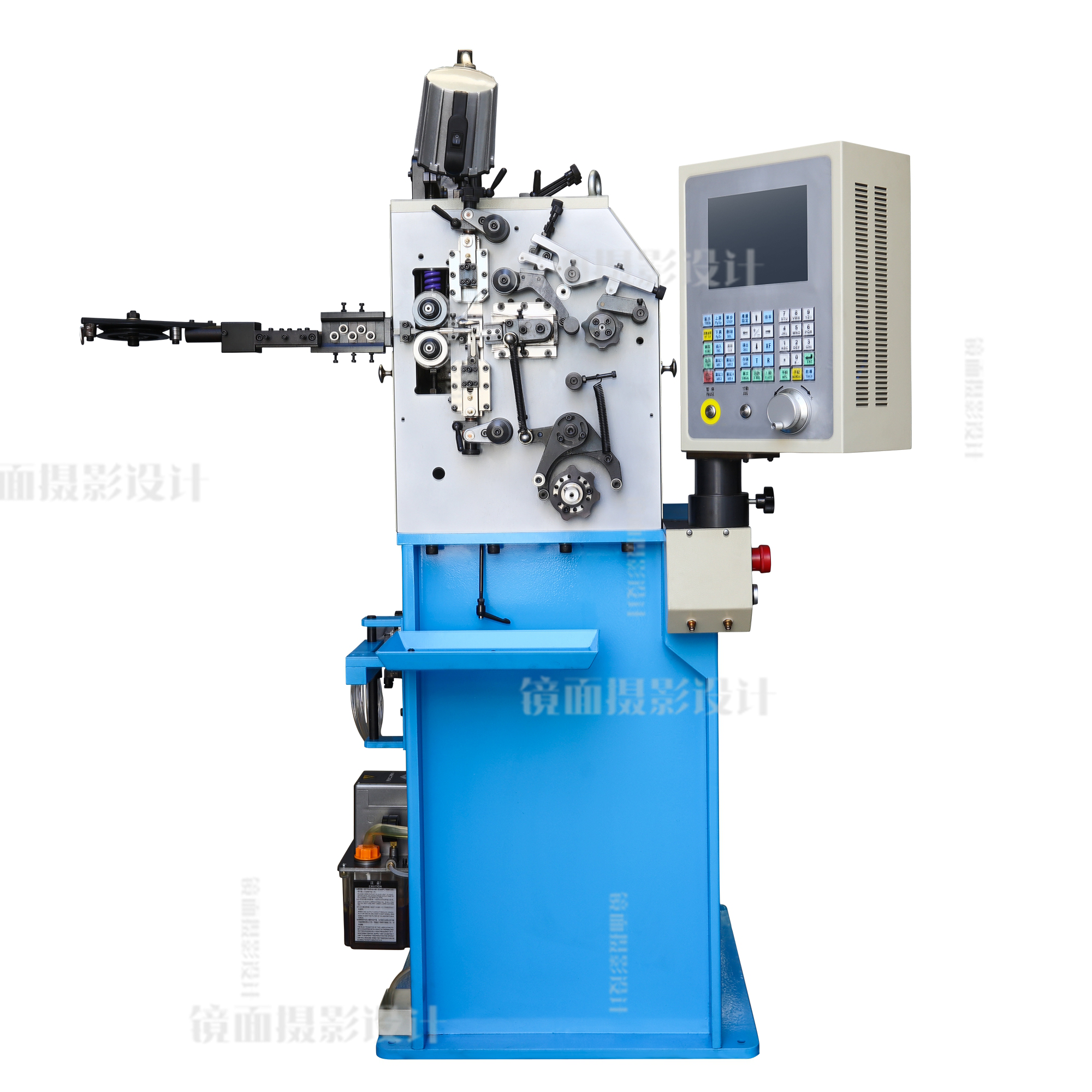

Spring coiling machine
- $3000.00 /set
- 1 set
- Dongguan Yusen Metal Technology Co., Ltd.
- Guangdong, China
- Ms Layla Liu
PRODUCT DETAIL

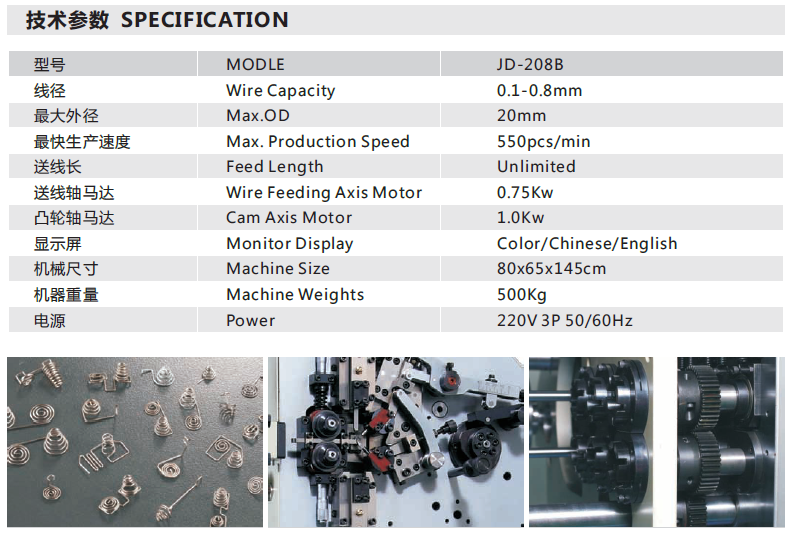

| port: | Shen Zhe | Video shipment inspection: | Not available |
| Supply capacity: | 100 sets per month | Health status: | new |
| product name: | spring machine | Country of birth: | China |
| Mechanical test report: | Not available | Wire capacity: | 0.1-0.8mm |
| After warranty service: | online support | Core components: | motor |
| Model: | 208B | Machine weight: | 500Kg |
| After-sales service provided: | online support | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Showroom location: | not any | Weight (kg): | 500 |
| Main selling points: | automatic | Core component warranty: | 1 year |
| Local service location: | not any | Wire feed shaft motor: | 0.75Kw |
| Marketing Type: | New Products 2020 | place of origin; place of origin: | China |
| Monitoring shows: | Color/Chinese/English | Warranty: | 1 year |
| Applicable industries: | other |
Product Description
machine characteristics
It has the advantages of traditional spring machines. There are also. High speed and precision of modern spring machines
Computer controlled servo system.

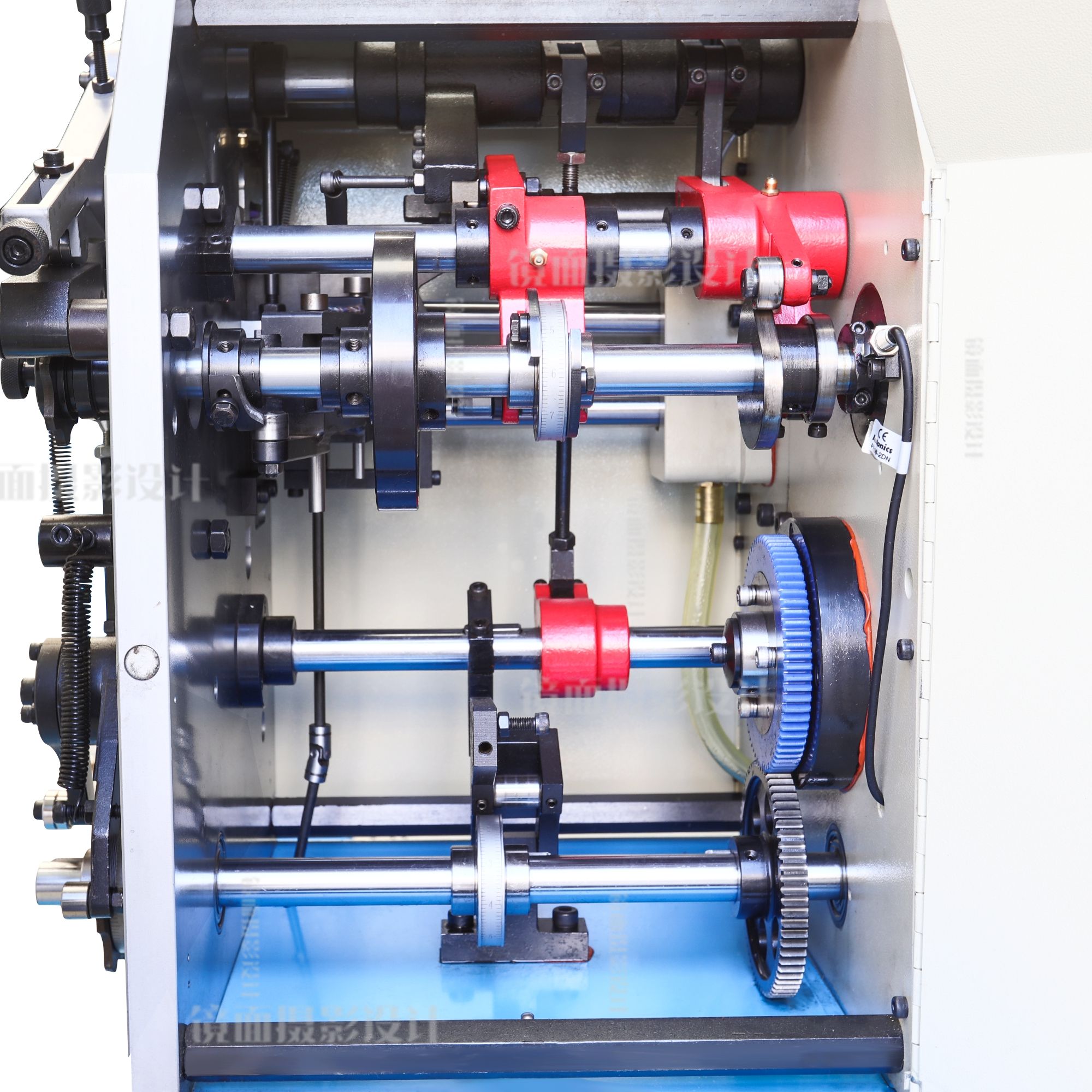

1. It adopts servo control system and fully digital drive. The camshaft can be reversed, and the wire feeding spool can be
Send the wire forward and backward.
Computer controlled servo system.
1. It adopts servo control system and fully digital drive. The camshaft can be reversed, and the wire feeding spool can be
Send the wire forward and backward.
2. Using a large digital (Matrix) touch screen, the buttons are synchronized with the film, making the computer operation easier
Operation.
Operation.
3. Exclusive use of micro-current detection technology to achieve high-sensitivity probe without deceleration
Detection, 20 times more sensitive than normal.
Detection, 20 times more sensitive than normal.
4. During production, the capacity can be increased or decreased by turning the hand wheel at any time. and also allows the wire
Send spools to increase or decrease the length of the wire.
Send spools to increase or decrease the length of the wire.

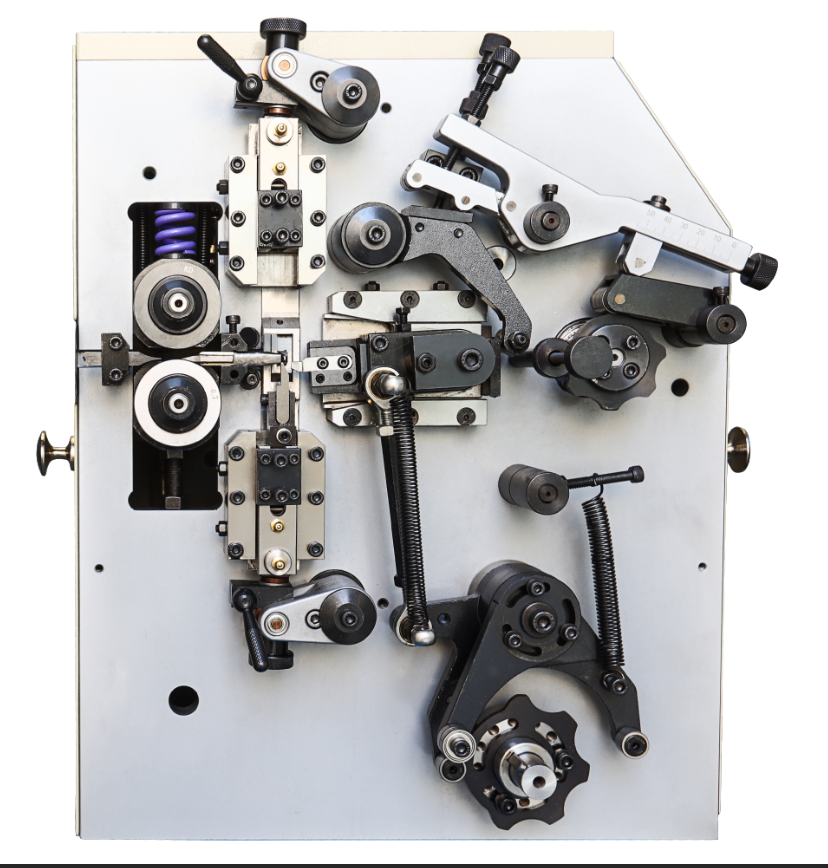

5. Unique wire feeding rack, integrated functional modules. Can save the complex circuit of traditional wire feeding
frame, and allow the computer to directly control the motor of the wire feeding frame.
frame, and allow the computer to directly control the motor of the wire feeding frame.
6. All computer output peripheral circuits adopt contact short circuit protection technology. Save the trouble of replacing the fuse.
7. The spring machine has automatic oiling function, no need for manual oiling.
