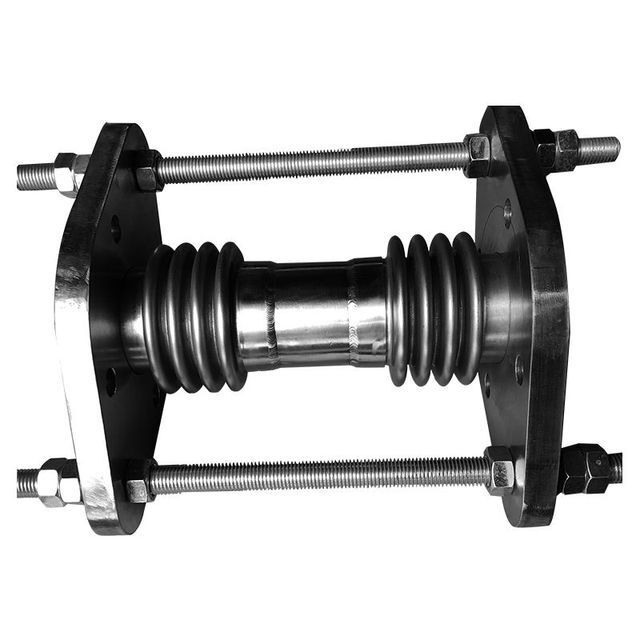

Stainless Steel Double Expansion Joint/ Bellows Expansion Joint/ Flexible Joint Bellows Joint 304 321 316L EJMA2010

PRODUCT DETAIL
Packaging Detail:carton inside, ply-wooden case outside or follow customer request;Brand Name:HJ;
Place of Origin:Jiangsu, China;Certificate:ISO9001;
Size:DN20-DN2000;Supply Ability:500 Pieces per Month;
Package Preview:;Model Number:HJ-022;
After-sale Service:Online Technical Support;Price term:CIF FOB EXW;
Port:Shanghai;Supply Ability:500pcs/week;
Payment Terms:L/C,Western Union,T/T;Processing Service:Bending,Welding,Decoiling,Punching,Cutting;
Thickness:0.1mm-4mm;Delivery port:Shanghai;
Grade:stainless steel, titanium alloy, nickel alloy;Material:stainless steel, carbon steel, inconel 625;
Surface:Polished;Form:hydraulic forming;
Tolerance:±1%;
Product Description
Material
stainless 304 321 316L, inconel 600, inconel 625, incoloy 825, incoloy800, titanium alloy
Type
reinforcement bellows expansion joint
Size
32-1600mm
Work temperature
-196~800 deg.C
Length
100-2000mm or custom request
PN
0.1-6Mpa
Thickness of stainless steel sheets
0.2mm-3mm
Manufacturing standard
EJMA2008, GB/T12777-2019
Certification
ISO9001:2016
Axial compensator
10mm-100mm
Lateral compensator
3mm-10mm
Angle movement
1-30 degrees
Feature:
1. shock absorption
2. easy installment and keep up
3. resistant to medium and temperature, pressure
4. This product can greatly reduce vibration and noise, pipeline system but can not solve all kinds of pipe interface displacement, degree of axial stretching problems.
5. The material can be made according to different acid, alkali, corrosion, oil heat and other kinds of species to adapt to various of media and the environment.
6. Material is a polar rubber, sealing, light weight, easy installation and maintenance, long life, but to avoid contact with sharp metal instruments, so as not to puncture the sphere.
7. Without supporting bracket should use flexible stent, installation bolt tightened to use the diagonal method
8. Such as the pipeline pressure is too high, the application of limit bolts to both ends of the flange together
9. Flange connection standard adapt GB standard as to other standards, can be explain. Level of the product working pressure 0.1-6.0Mpa.

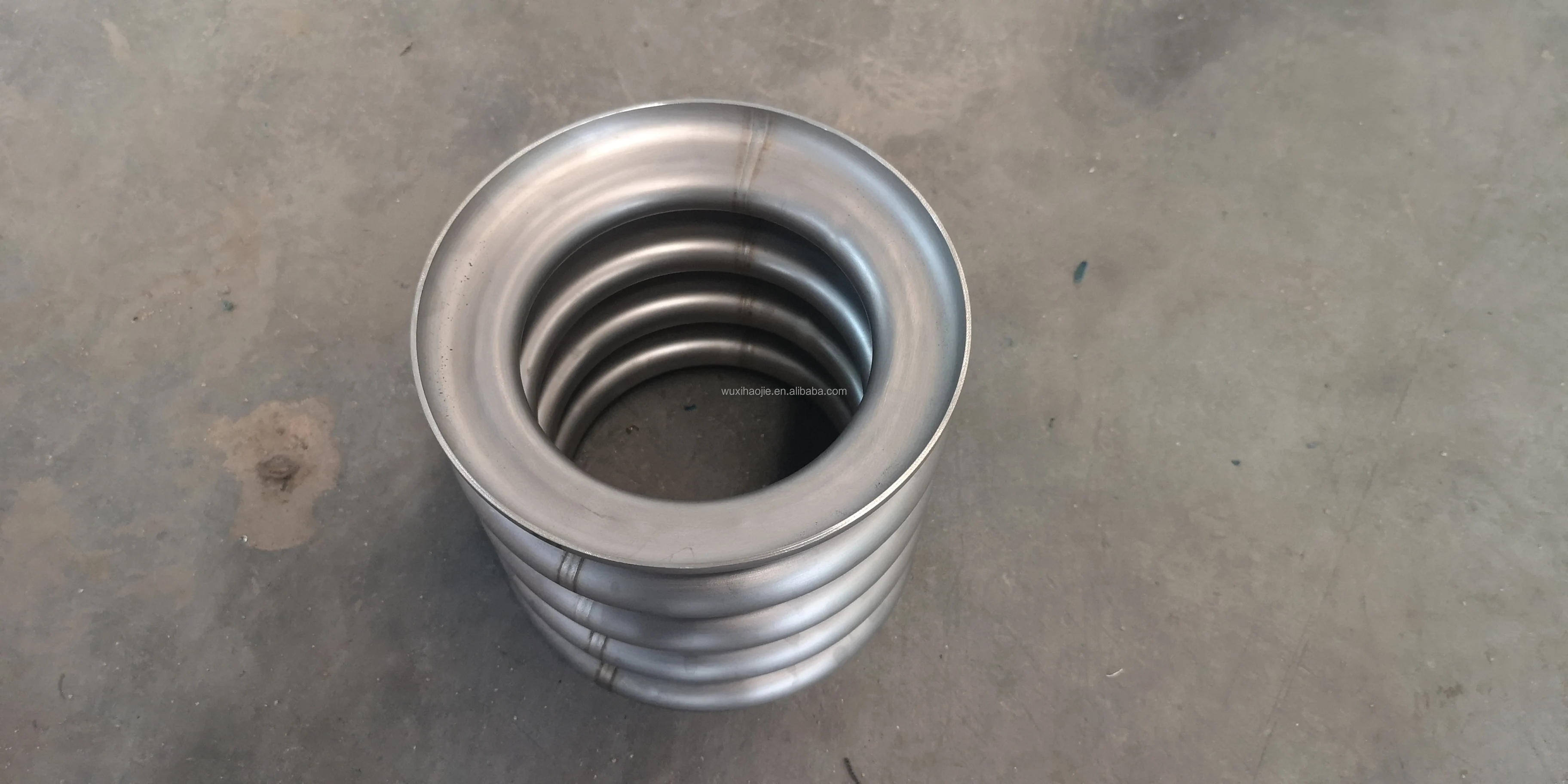

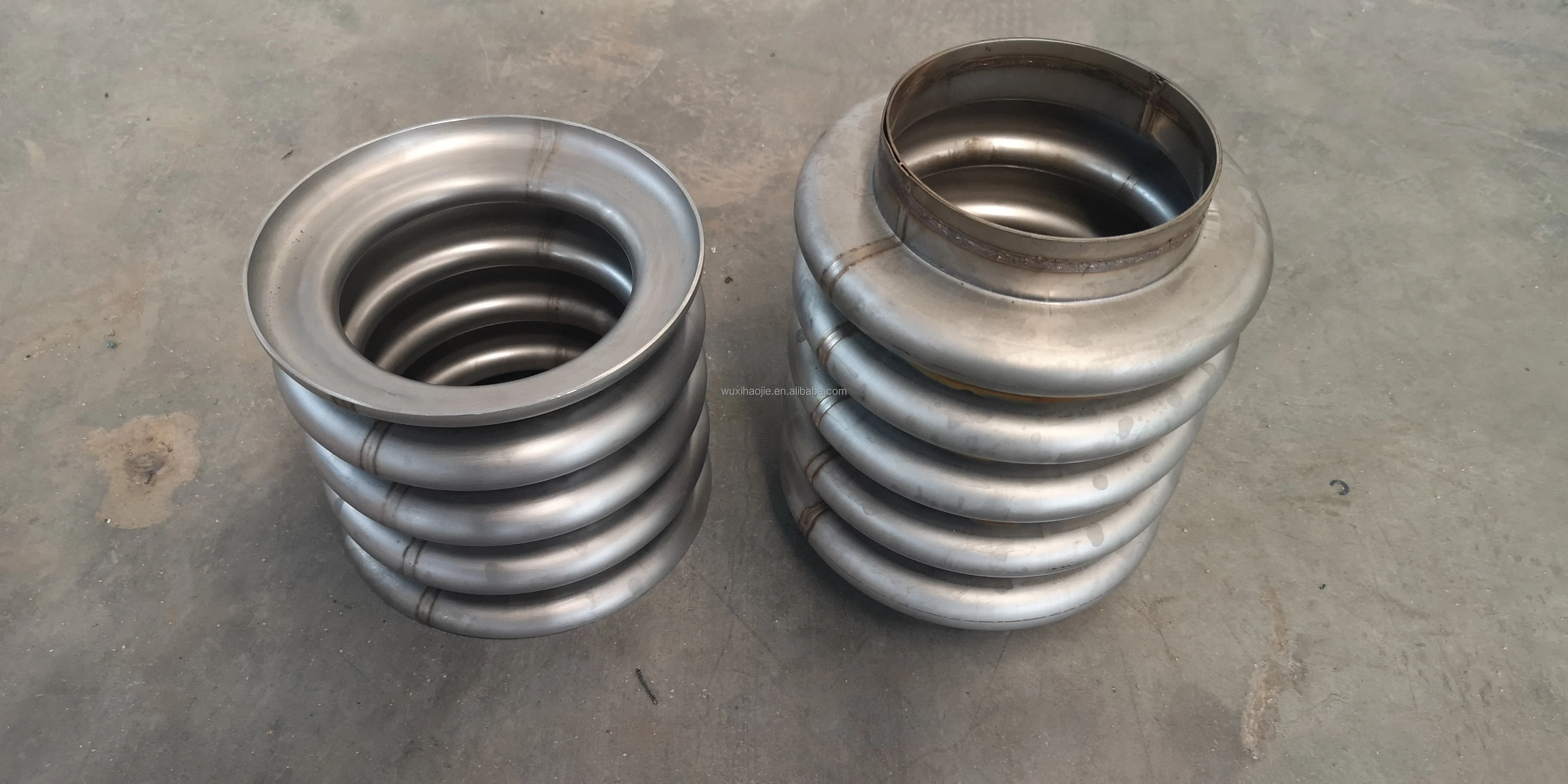

Product Details
Company Profile
Wuxi Haojie Bellows Co.,Ltd was built in 2021, located in Xinwu District,Wuxi City, which is New and Hi-tech Development Zone of the Wuxi City. We have 10 years expirience of designing and manufacturing stainless steel welding pipe, corrugated pipe, metal hose, compensator, expansion joint, exhaust bellows and automobile muffler. Our products are used in thermo-electricity, steel, aviation, shipbuilding, spin, electric power, metallurgy, food machinery, petro-chemical, environment protection equipment, heat supply network industry and so on.
Why Choose Us
1. 10 years bellows design and manufacturing expirience. 2. Near the raw material market of the southeast China. 3. Good quality control process studied from world famous bellows manufacture. 4. Familiar with export and import regulations.

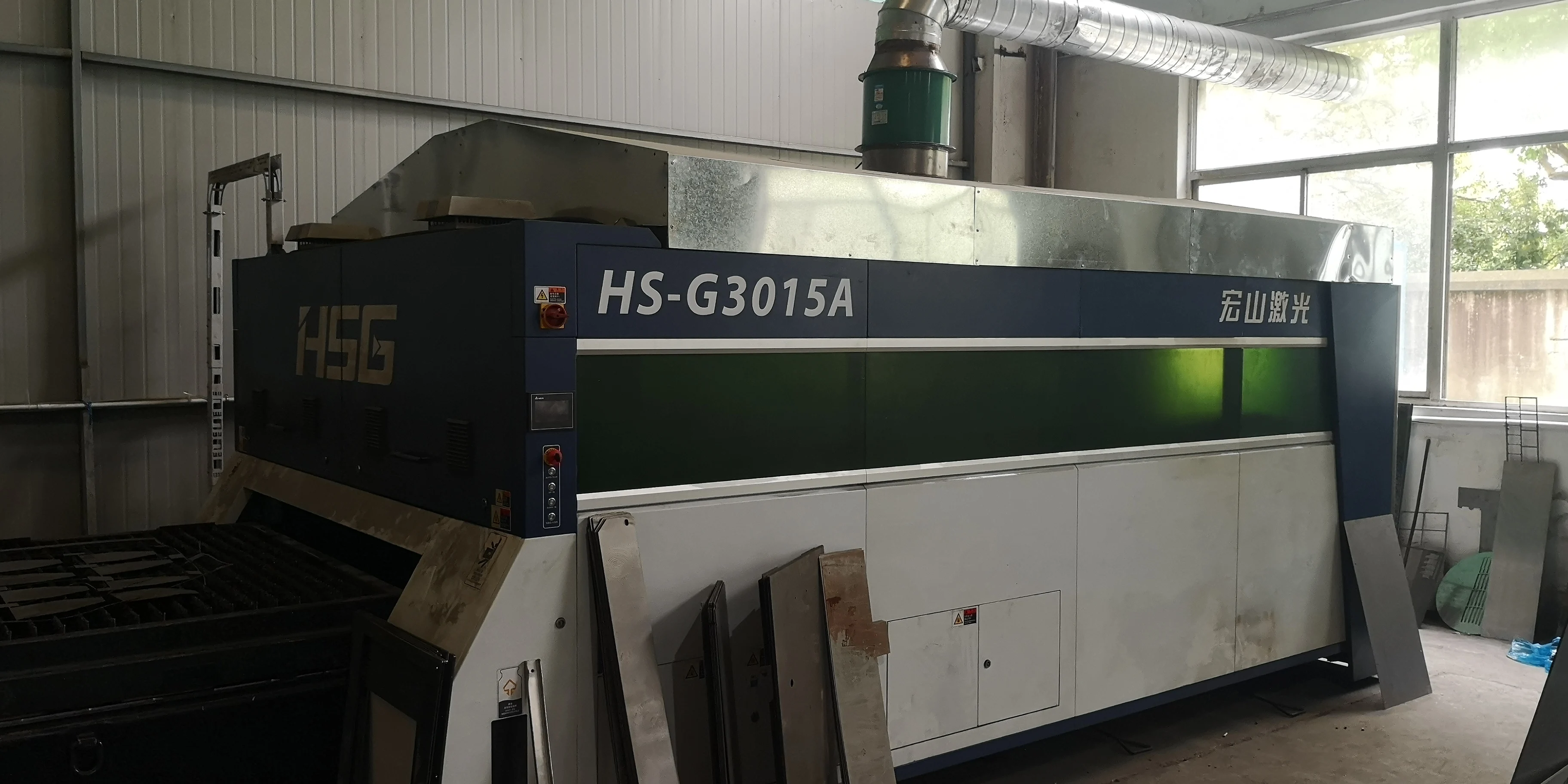

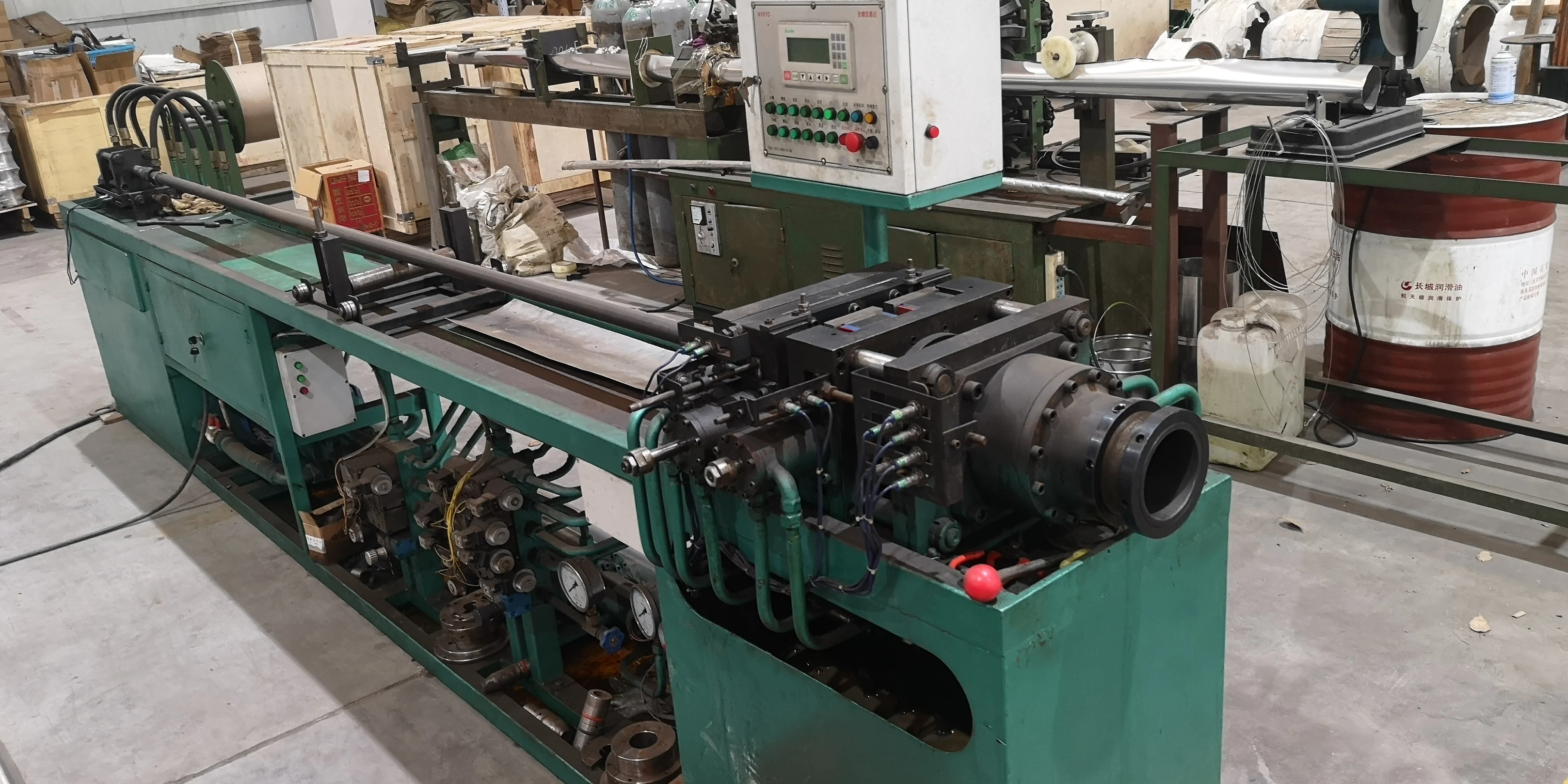

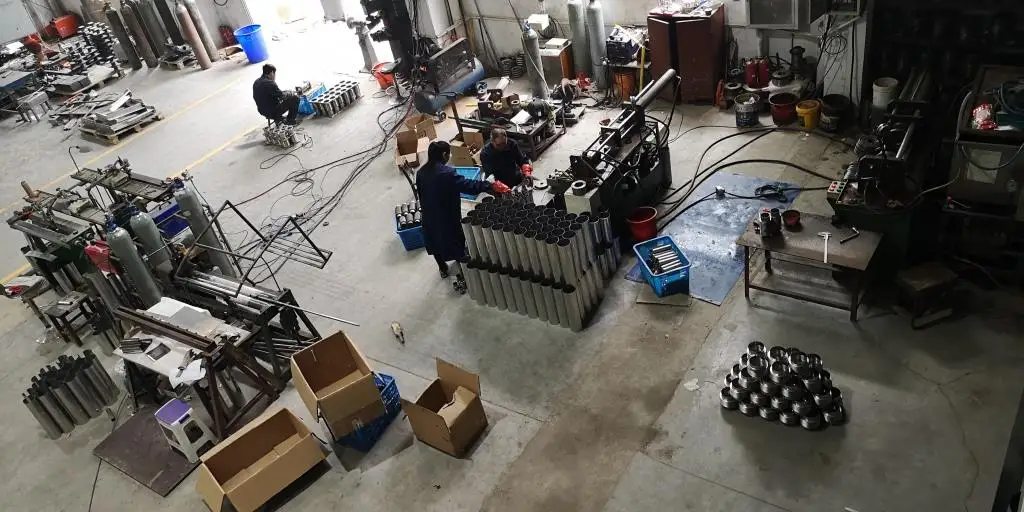

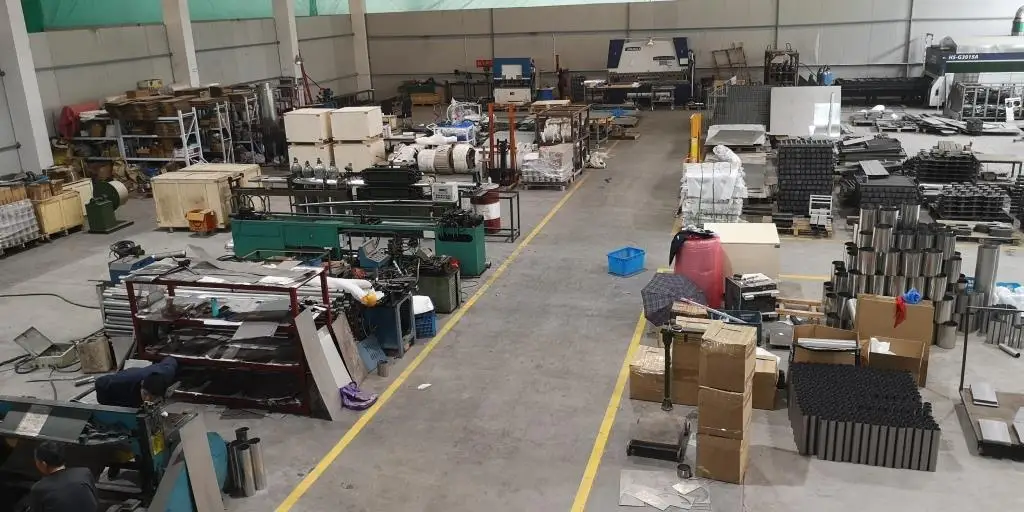

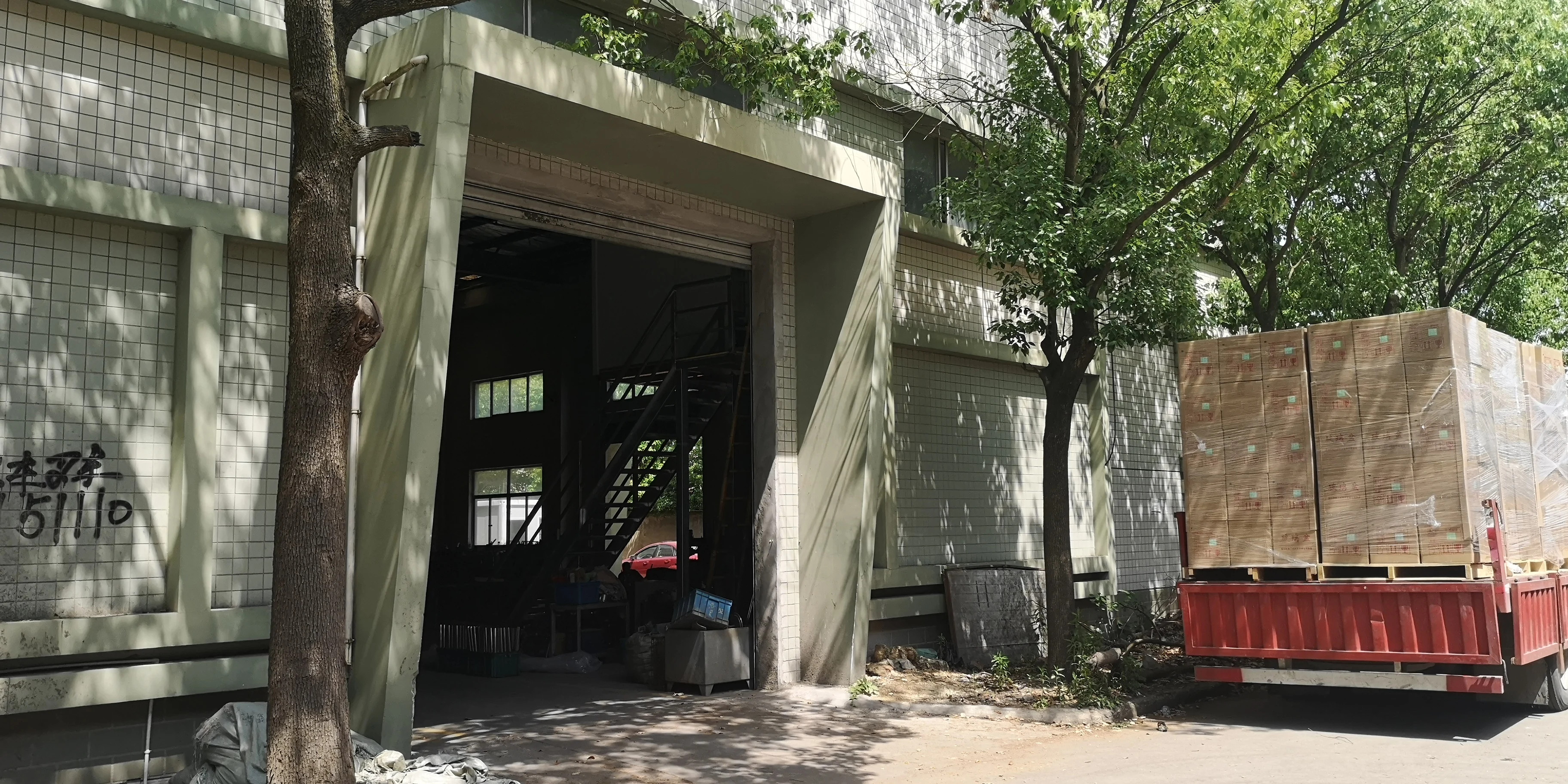

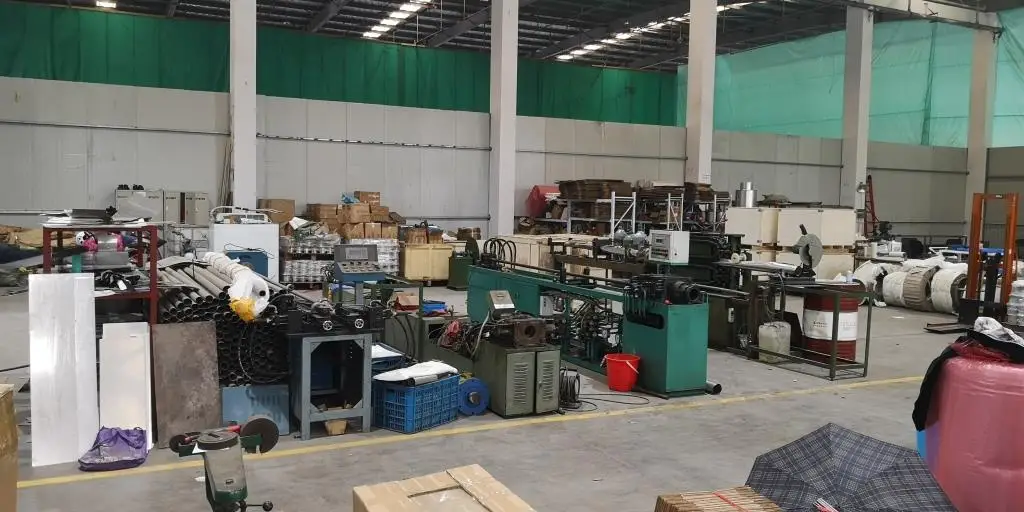

Production Workshop

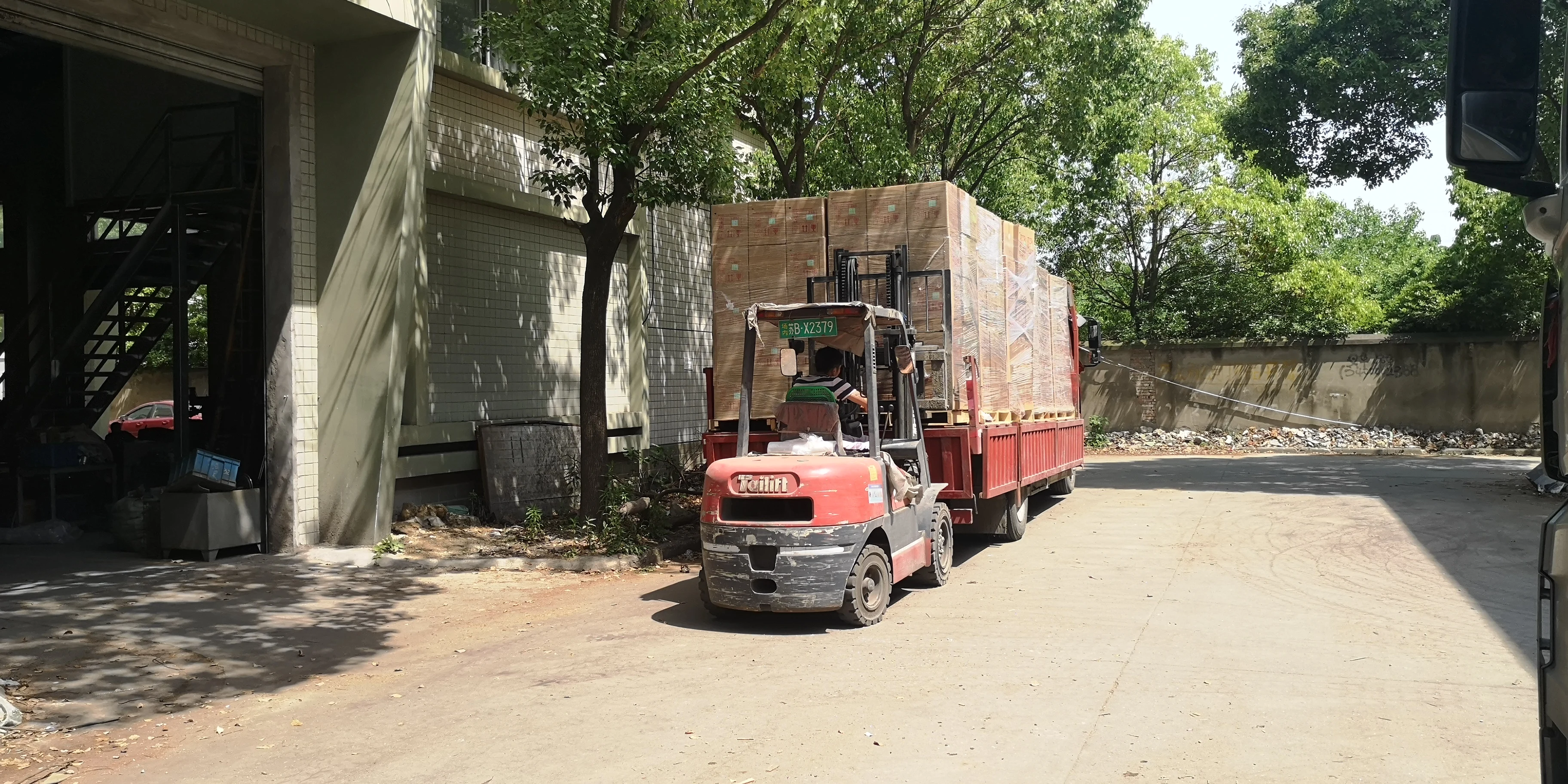

Package & Shipping
FAQ
1.Q : Are you trading company or manufacturer? A: We are manufacturer of lift check valve, expansion joint,rubber joint, bellow, dismantling joint, dresser coupling, flange adapter and flange with more than 13-year experience. 2.Q: Do you have products catalog? A: Yes, we have. Please tell me your email or instant messager, we will send our catalog. 3.Q: Can you provide drawings and technical data? A: Yes, our professional technical department will design and provide drawings and technical data. 4.Q: Do you provide samples? Is it free or charged? A: Yes, we can offer sample free but shipping charges covered by customer. 5.Q: Have your products been exported? A: Yes, they have been exported to USA, Canada, Australia, Russia, Chile, Panama, Nicaragua, UAE, Saudi Arabia, Egypt, Sri Lanka, Nigeria,Vietnam, Indonisia, Singapore, Greece, Netherland, Georgia, Romania, Ireland, India, Thailand, Pakistan, Philippines... 6.Q: Can the products be manufactuered by customer's requirement? A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
