T3 T4 T04E Universal TurboCharger Kit For All 1.5~2.5L Engine Boost Up to 400HP+Wastegate + 2.5" Turbo Intercooler+BOV+ Piping
- $478.50 / 2 - 9 sets
$444.40 / 10 - 99 sets
$400.40 / >=100 sets - 2 sets
- Chongqing Guoyu Technology Co., Ltd.
- Chongqing, China
- Ms Yoli Hua
PRODUCT DETAIL
| Engine Code: | GGT04E-KIT; | Size: | 86*43*43; |
| Turbine A/R: | 0.63; | Single gross weight: | 38.500 KG; |
| Year: | Universal; | Exhaust Outlet (Downpipe) Flange: | 5 Blot Turbo; |
| Certification: | CE; | Compressor A/R: | 0.5; |
| SKU: | GGT04E-KIT; | Engine: | Universal; |
| Exhaust Inlet (Turbo Manifold) Flange: | T3/T4 Flange; | This universal kit adjusttable psi'': | 7.5-14.5 PSI; |
| Turbo Cooling Type: | Oil Cooled; | Warranty: | 2 year; |
| Condition: | New; | Car Model: | Universal; |
| OE NO.: | GGT04E-KIT; | Company Type: | TurboCharger manufacture; |
| Package Preview: | ; | Horse Power: | Capable of Boosting Horse Power up to 500HP; |
| Car Fitment: | Universal; | Single package size: | 94X46X45 cm; |
| Application: | Hybrid T3 T4 T3T4 TO4E Turbo Turbocharger; | Model: | Universal; |
| Brand Name: | maXpeedingrods; | Place of Origin: | Chongqing, China; |
| Selling Units: | Single item; |
Product Description

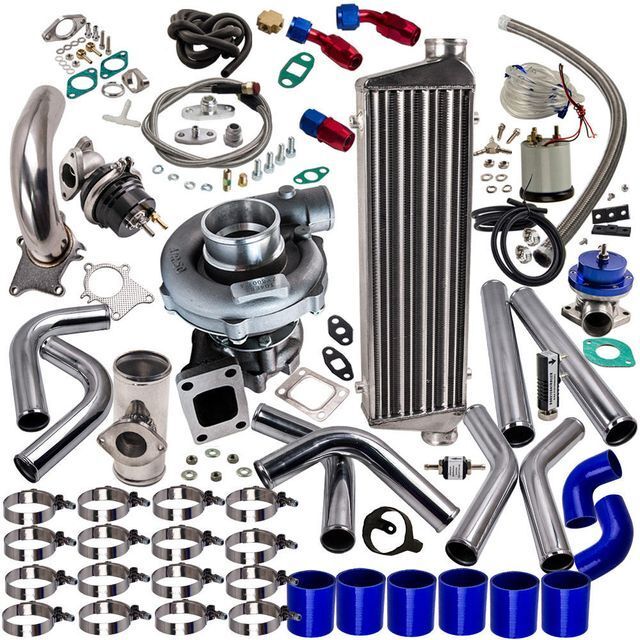

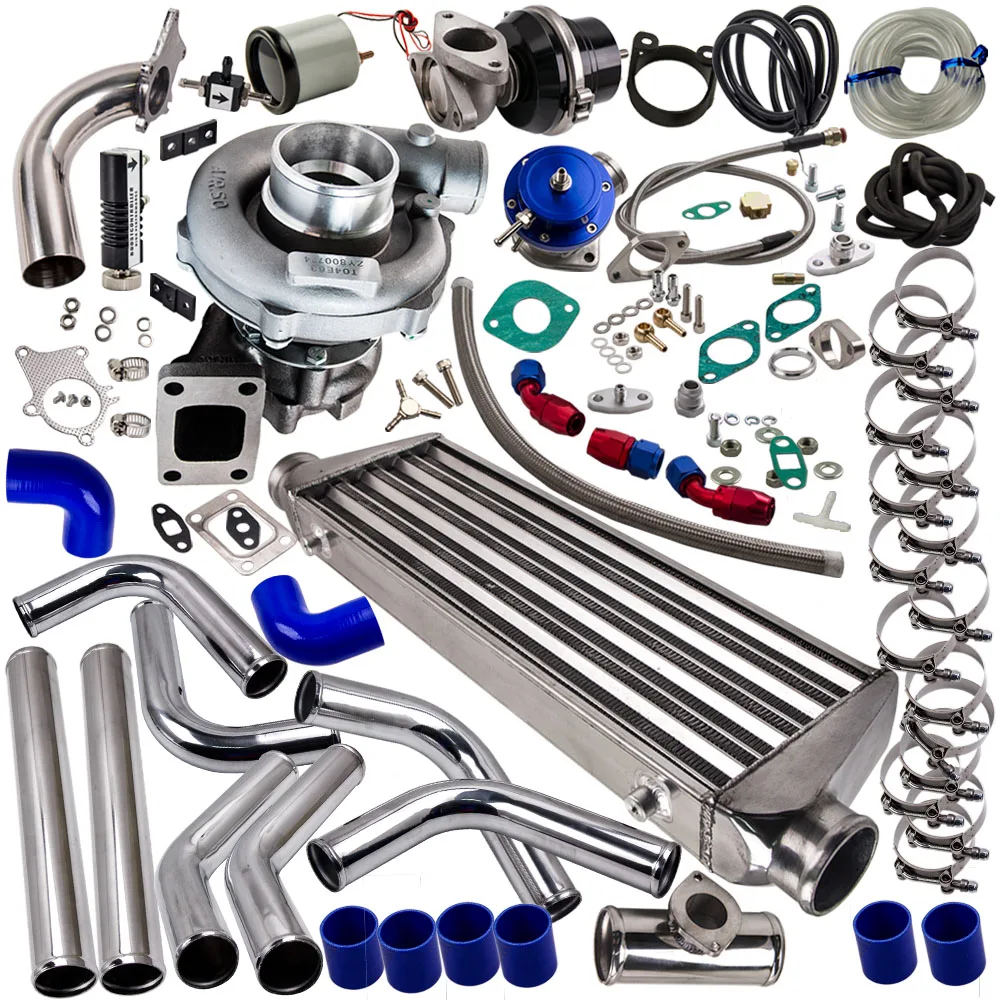

Package Include:
1x T3/T4 Turbocharger
1x Oil Feed Line
1x Oil Return Line
1x 35/38mm Wastegate (Random Color)
1x 5 Bolt Turbo Downpipe
1x Turbo Boost Gauge
1x Turbo Intercooler
1x Tubo Boost Controller
1x Type-S Blow Off Valve (Random color)
1x BOV Adapter
1x Turbo Piping Kit
（You will get exactly as shown in the picture）
1x Oil Feed Line
1x Oil Return Line
1x 35/38mm Wastegate (Random Color)
1x 5 Bolt Turbo Downpipe
1x Turbo Boost Gauge
1x Turbo Intercooler
1x Tubo Boost Controller
1x Type-S Blow Off Valve (Random color)
1x BOV Adapter
1x Turbo Piping Kit
（You will get exactly as shown in the picture）
this is a universal turbo kit, usd for 1.5-2.5L engine，and it boosts up to 400HP
Specification
item | value | |
T3/T4 Hybrid Turbo Charger | 7psi(.5 Bar) to 21psi(1.5 Bar), and 400+HP on B series swaps, standard t3/t4 flange, perfect for any 4-6 cylinder applications. Power performance output capability = 7.5-14.5psi. CNC machined flanges. | |
Turbo Specification | Inlet Diameter: 3" Outlet Diameter: 2" Oil Inlet: 1/8 NPT Compressor Wheel: .55 Trim A/R Compressor: .50 A/R A/R Turbine: .63 A/R Turbine wheel: Trim: 74.2 A/R: 0.63 Inducer: 64.8 Exducer: 55.8 Compressor wheel: Trim: 48.1 A/R: 0.5 Inducer: 52.7 Exducer: 76 | |
1.Turbo charger: * Capable of Boosting Horse Power up to 400+ HP * Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 ℃ * Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 ℃ * Cast aluminium blades with good gas tightness and corrosion resistance. Fit for ： for 2.5L to3.5L engine up to 400+HP Perfect for 3.2L-5.0L engines in twin turbo application, capable to 800HP Boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar) * core size:21*7*2.5 cools down the turbocharged air efficiently * Lightweight aluminum racing intercooler， * Strong TIG welds will support high PSI levels 3.Boost controller * Can be setup to adjust boost PSI on the fly * Can be adjusted for any PSI level desired * Control your boost with a precise click * Includes complete install kit * Anodized aluminum finish * CNC machined design 4. Intercooler piping kit * Made of 6061 aluminum * Lightweight yet strong aluminum piping * High pressure silicone couplers and T-bolt clamps 5. Turbo Oil returen /Feeding line kit * Stainless Steel Braided * Includes complete install kit * It helps circulate oil from the turbo charger to the oil pan. * The kit provides a anodized look * gives a best cooling performance on your turbo and long lasting life. 6.Blow Off Valve Kit * CNC Billet Aluminum Type RS Style Blow off Valve * Easy Mount Piping Set Included For Bolt-On. * Including all necessary hardwares. * easily adjustable to prevent both permature boost leakage and compressor surge. * Fast response One For Low And High Boost Pressure. * Performance design produces a powerful and aggressive sound * Quality design will not leak under high boost conditions * Flanges can be installed at user discretion 7. 38MM Wastegate * Most reliable wastegates For competition vehicles. * accurate boost control * high quality appearance features Dual port design * comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi. 8. 5 Blot Turbo Downpie * CNC machined surface * Fits all of our turbo kits that feature a turbocharger with a 5-bolt exhaust housing. 9. BOV pipe/Adapter * can install anywhere suitable 10.Turbo Boost Gauge * Red LED Illuminated Needles. * Comes with All the Wiring Necessary for Installation. * All Accessories are Included for Installation. * Accurately monitor boost pressures from the turbo system * Back lit for use at night time | ||
Package Include: | ||
1x T3/T4 Turbocharger 1x Oil Feed Line 1x Oil Return Line 1x 35/38mm Wastegate (Random Color) 1x 5 Bolt Turbo Downpipe 1x Turbo Boost Gauge 1x Turbo Intercooler 1x Tubo Boost Controller 1x Type-S Blow Off Valve (Random color) 1x BOV Adapter 1x Turbo Piping Kit （You will get exactly as shown in the picture） | ||
Car Model | Universal | |
Engine Code | GGT04E-KIT | |
Application | Hybrid T3 T4 T3T4 TO4E Turbo Turbocharger | |
Type | Turbo Charger | |
Turbo Cooling Type | Oil Cooled | |
Condition: 100% Brand New Warranty: 2 Year Notice: * Professional installation is highly recommended (No Instruction Included) * For any needs please contact us | GGT04E-KIT | |
Our Advantages
Trade Show
Customer Feedback
Company Profile
Packing & Shipping
FAQ
Q1. What is your terms of packing?
Generally, we pack our goods in neutral color boxes . If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3.Can we get sample for testing?
We can provide you with free sample,but you need to bear the freight
Q4.Where is the delivery place?
A. A small mount of products will delivery from nearest oversea warehouseB. Larger mounts of whole sale will delivery from China
Q5. What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU.
Q6. Do you test all your goods before delivery?
Yes, we have 100% test before delivery
Q7. How about your delivery time?
Generally, it will take 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
