TC-5PRO More Channels 500M Dj Foldable Wireless Stereo Mute Disco Headphones and Transmitter
- $85.00 / 1 - 29 pieces
$80.00 / 30 - 99 pieces
$70.00 / >=100 pieces - 1 piece
- Shenzhen Diyin Electronics Co., Ltd
- Guangdong, China
- Ms Tina Xie
| brand: | Quiet | Measuring range: | 500M |
| Accuracy class: | One | Certification: | CE/ROHS/FCC |
| channel: | 3 channels | port: | Yantian, Shenzhen, China |
| Packaging Preview: | Warranty: | 1 year | |
| Key words: | transmitter | model: | TC-5PRO |
| Supply capacity: | 60000 pieces/month | Material: | Aluminum alloy |
| payment terms: | wire transfer | custom made: | Yes |
| wireless: | Yes | Model: | TC-5 |
| place of origin; place of origin: | Guangdong, China | color: | grey |

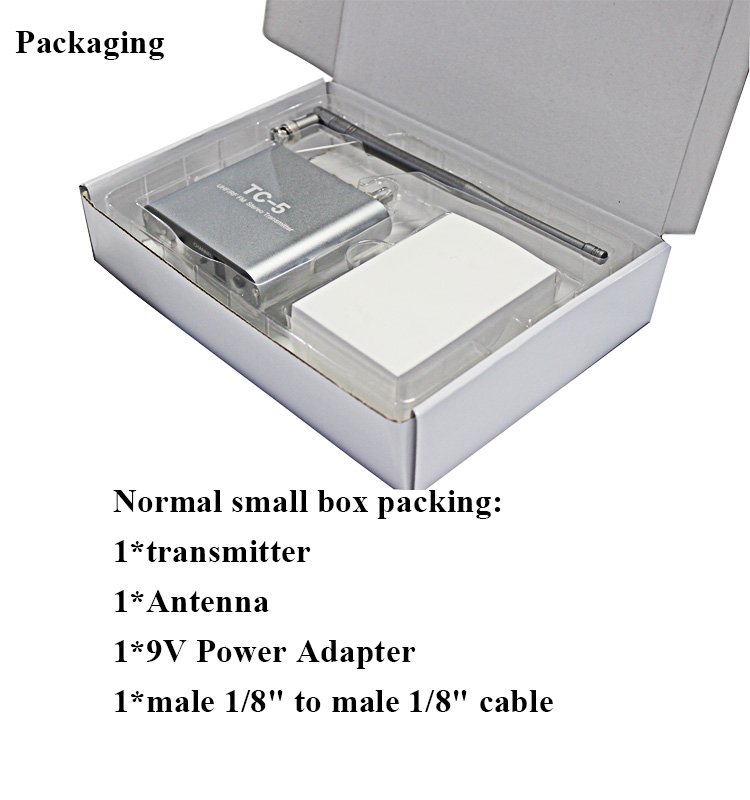

| type: | transmitter | Packaging Details: | Detailed packaging information: 1.) Ordinary small box packaging: * 1*Transmitter* 1*Antenna* 1*9V Power Adapter* 1*Male 1/8" to Male 1/8" Cable* 1*Male RCA to female 1/8" cable |

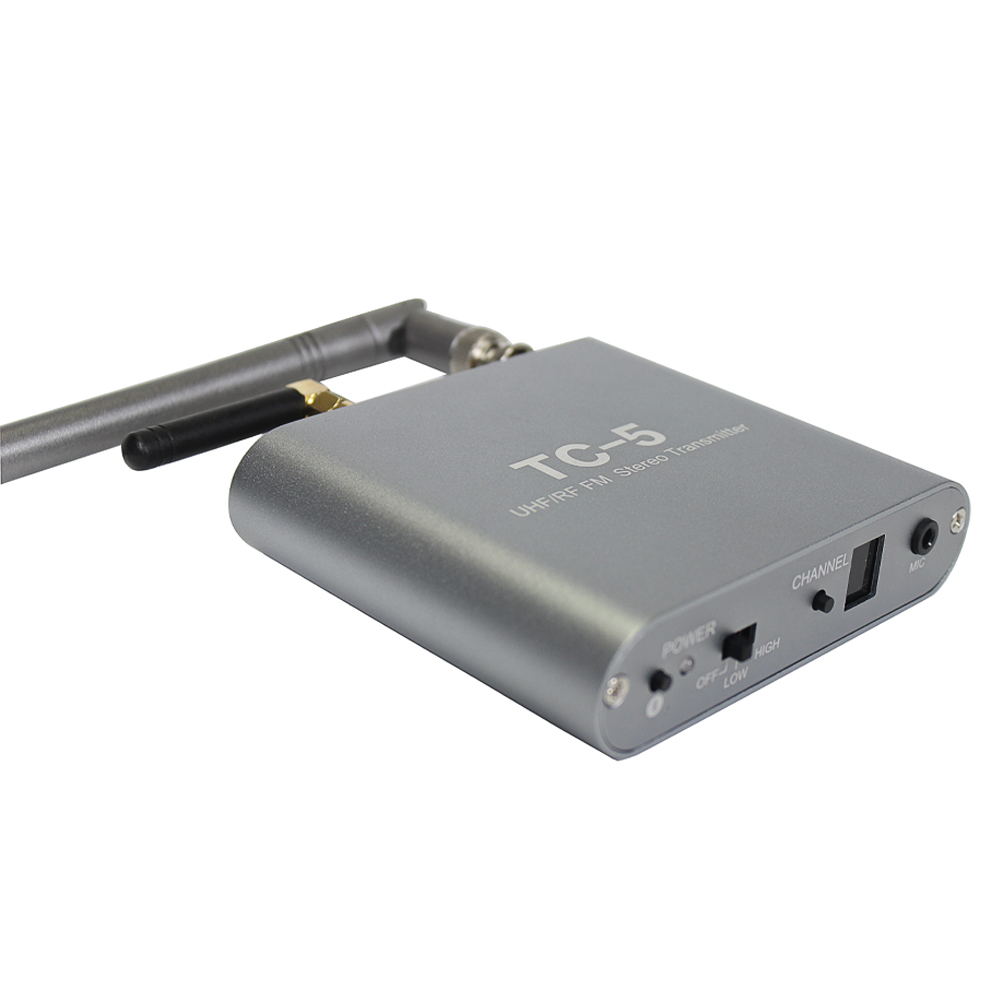

TC-5PRO Transmitter
|
product name |
TC-5PRO HiFi Silent Disco Transmitter |
|
Material |
Aluminum alloy |
|
Function |
1. The TC--5PRO transmitter is a UHF high-power transmitter, professionally designed, 5dBi omnidirectional antenna, built-in 3.7V/1000mA lithium battery, and has a battery life of up to 4 hours. 2. The general frequency of the transmitter is 433Mhz/863Mhz/915MHz; however, the actual frequency can be determined according to the needs of customers. 3. The use of advanced high-power valves makes the transmitter work for a long time, and the signal is strong and powerful. 4. With our professional FM/UHF headphones, the operating distance can reach 500 meters 5. With BT function |
|
pack |
Small carton packaging |
Specification
|
modulation |
FM |
|
Modulation frequency offset |
50KHZ/600mVrms |
|
Voltage |
9VDC |
|
Built-in battery |
Class A 1000mAh rechargeable battery, charging time-2-3 hours, power charging current-350mA (TYP) |
|
Electron current |
Low: 90mA (typ.) HI: 300mA (typ.) |
|
frequency |
433MHZ / 863MHZ / 915MHZ |
|
strength |
Low: 10dB High: 29dBm |
|
Antenna gain |
5dBi |
|
boot sensitivity |
60mVp-p (typ) |
|
Auto Level Control Sensitivity |
Typical 700mVp-p |
|

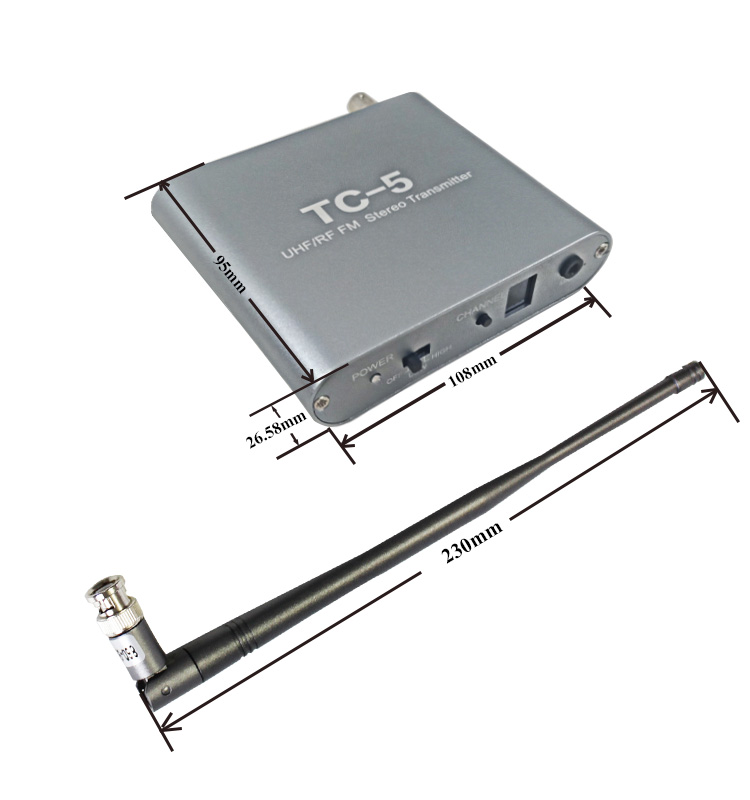

size |
108mm*95mm*26mm |
|
Wide area effective distance |
over 500 meters |
|
Package |

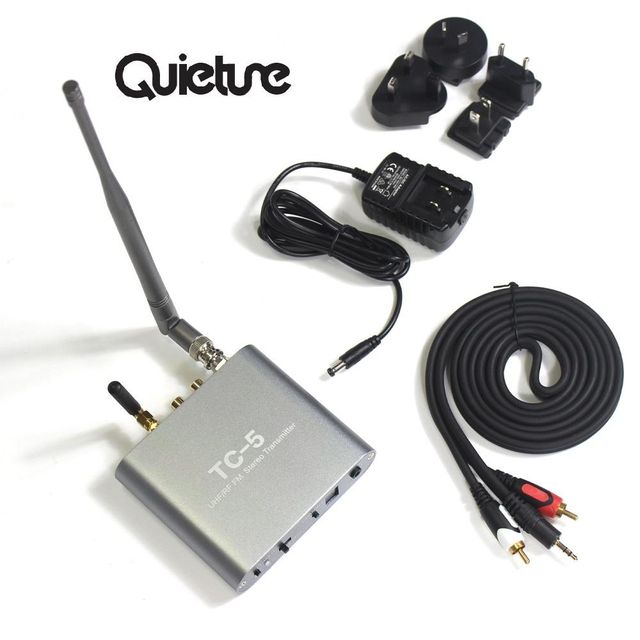

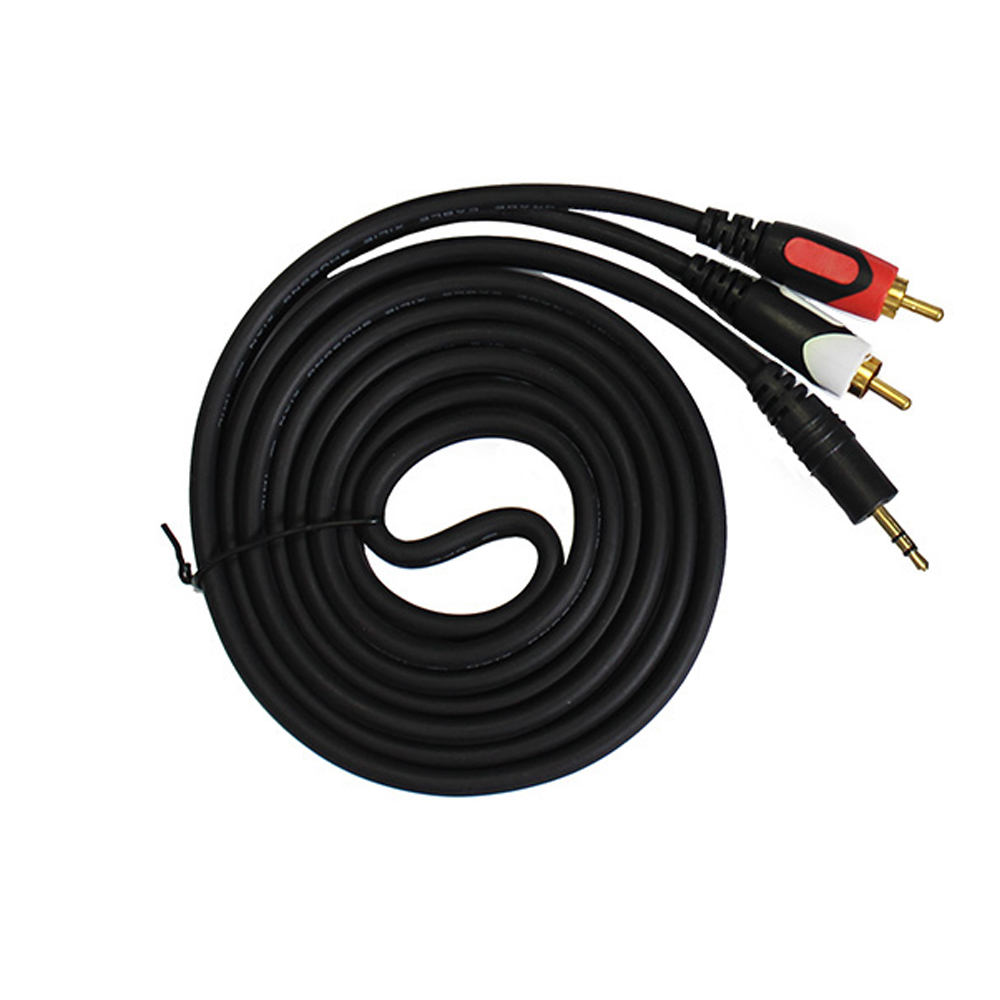

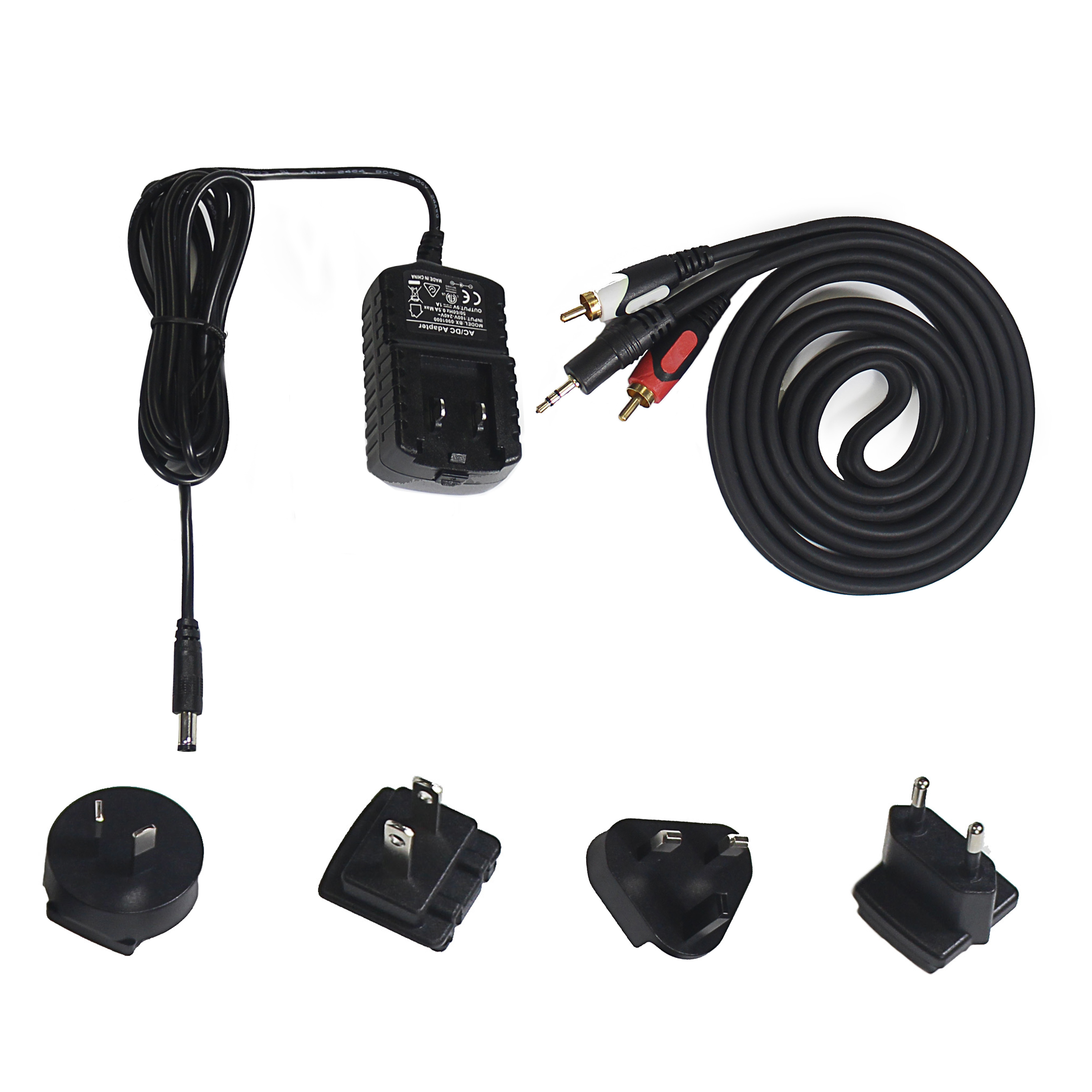

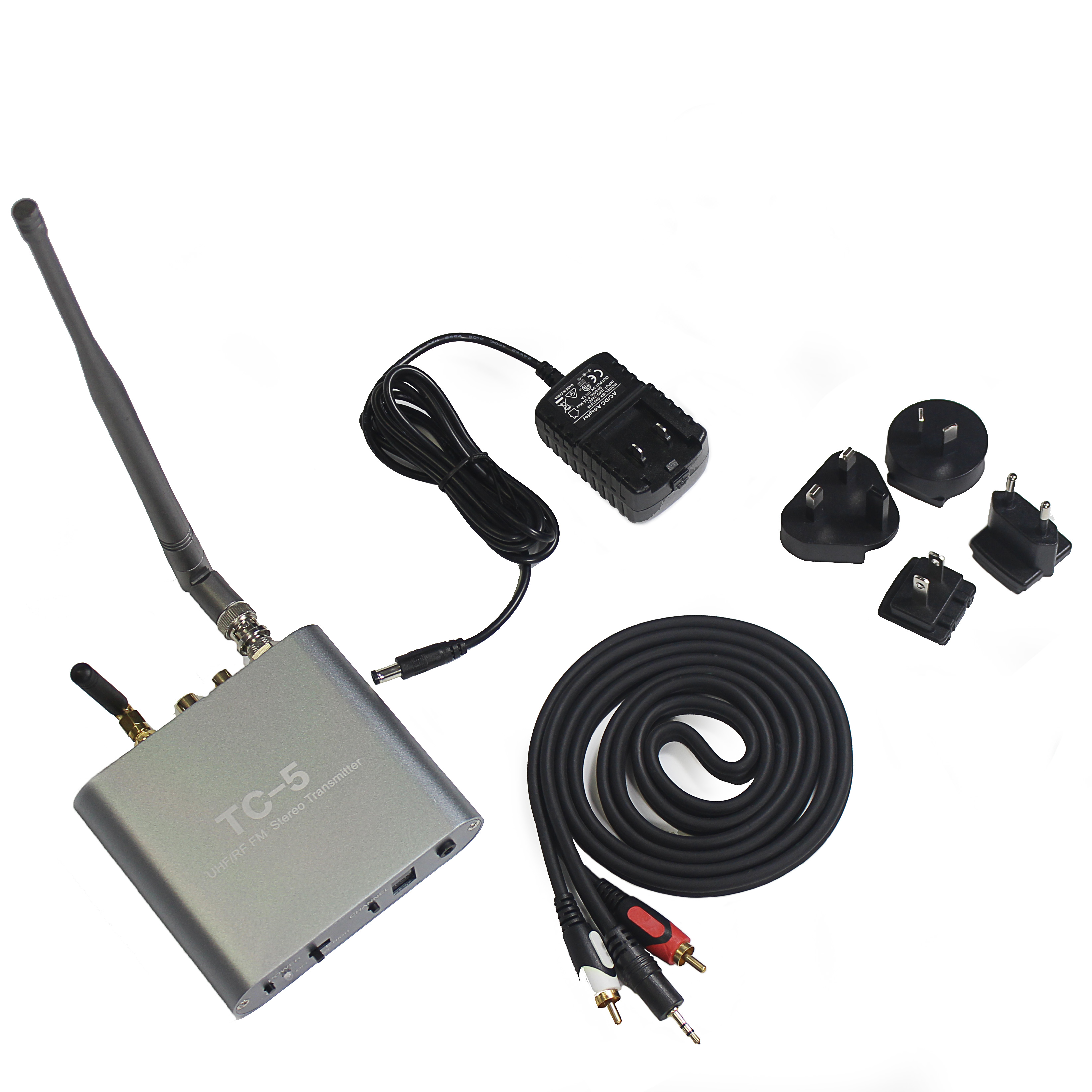

1*Transmitter 1*Antenna 1*9V power adapter 1*Male 1/8" to Male 1/8" Cable 1*male RCA to female 1/8" cable
|
