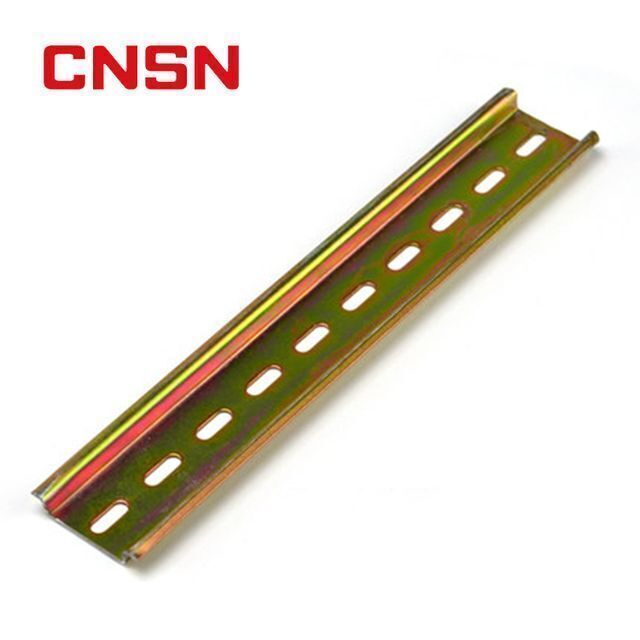

TH35 Standard 35mm stainless steel DIN Rail Aluminum Din Rail Mounted
- $0.10 /piece
- 1 piece
- Shanghai Shinuo Electric Co., Ltd.
- Zhejiang, China
- Ms Lisa Wan
PRODUCT DETAIL
| Place of Origin: | Zhejiang, China; | Model Number: | TH35; |
| Head Width: | 32~35; | Port: | Shanghai or Ningbo; |
| Packaging Detail: | A. Common Packing:50pcs /carton+ export carton B. Customized Packing: OEM Label, PDQ etc; | Application: | Guide Rail; |
| Grade: | stainless steel and aluminum; | Bottom Width: | 27~32; |
| Rail Heigth: | 7.5mm; | Web Thickness: | 1.0mm; |
| Length: | 1M~2M; | Others: | Can be customed; |
| Standard: | DIN; | Payment Terms: | L/C,T/T,Western Union; |
| Bolt Hole Diameter: | other; | Secondary Or Not: | Non-secondary; |
| Weight: | 17-42g; | Type: | Heavy Rail; |
| Brand Name: | CNSN; |
Application
Could be installed in various jack boxes, control cabinets, and switch cabinets,Also is suitable to install breaker, contactor, surge protector, relay, connecting terminal, PLC, module socket, module electric appliance and favorable to circuit design of electric appliance and maintenance . It will improve the installation speed and lower the manufacturing cost and use-cost.
Materials:Made from carbon constructional steel plate and passivated by yellow chrome acid after zincification

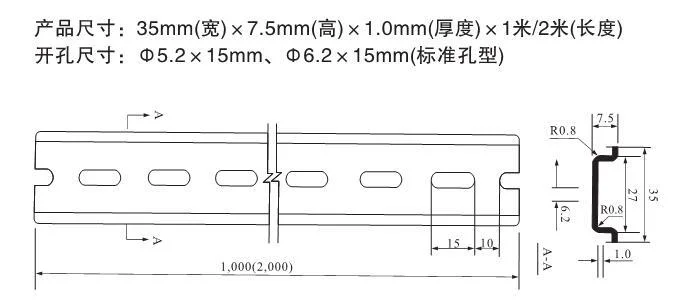

Size
Product Description
According IEC/EN 60715
35x7.5x1.0 mm DIN Rail
Width: 35mm
Height :7.5mm
Thickness: 1mm
Length :1 meter or 2 meters or customized
