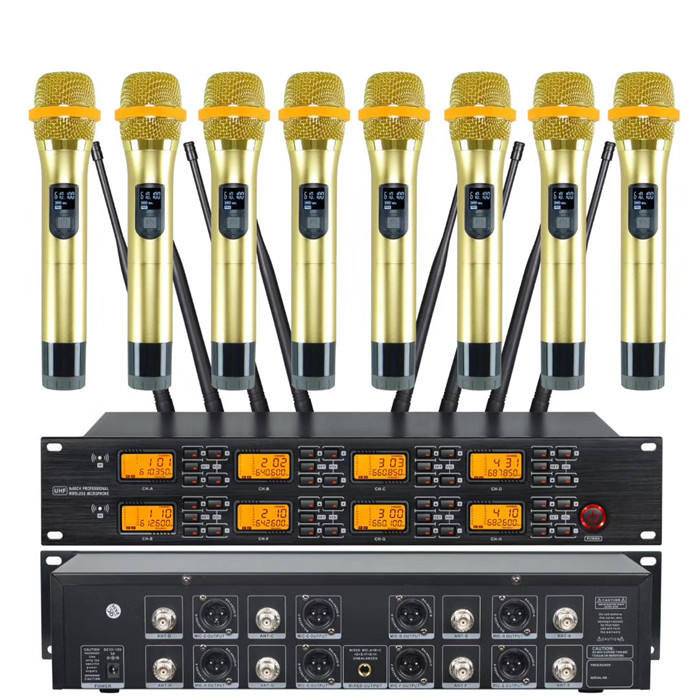

TKG UR-8000-S 640-690mhz UHF professional wireless uhf microphone 8 wireless microphone system

PRODUCT DETAIL
Single package size:54X34X22 cmPackaging Details:1. The first layer of packaging: produce your own box. (Different designs have different packaging) 2. The second layer of packaging: an outer kraft carton.
delivery time:within 5 daysmodel:UR-8000-S
With or without data cable:Do notWith or without rack:Do not
brand:TKGCountry of Birth:Enping, China
Input voltage:110-240VFrequency Range:640-690MHz
Sales unit:single productWarranty:6 months, 3 months - 1 year
in stock:Yescustom made:Yes
smart:otherShipping method:Air China/DHL/EMS/Ship
Gross weight per piece:5.000 kgpack:Box
Original Equipment Manufacturer:usableplace of origin; place of origin:Guangdong, China
Set Type:Transmitter group

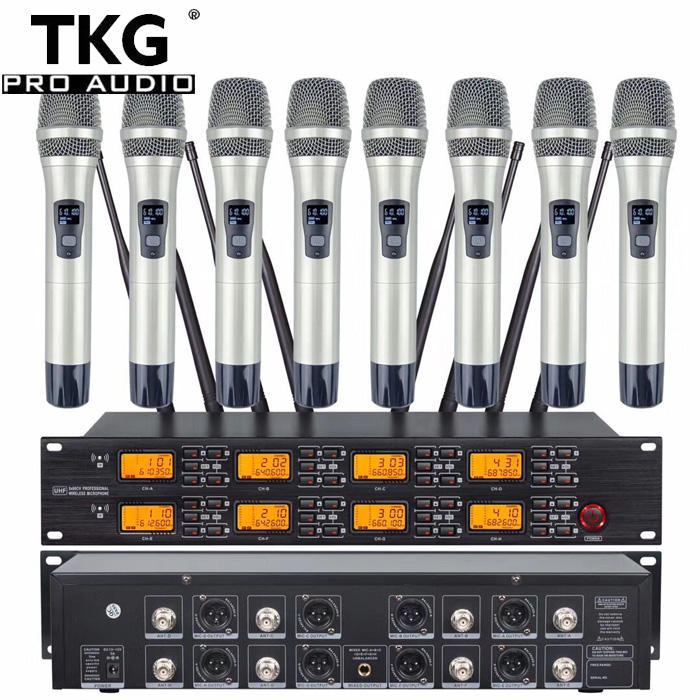

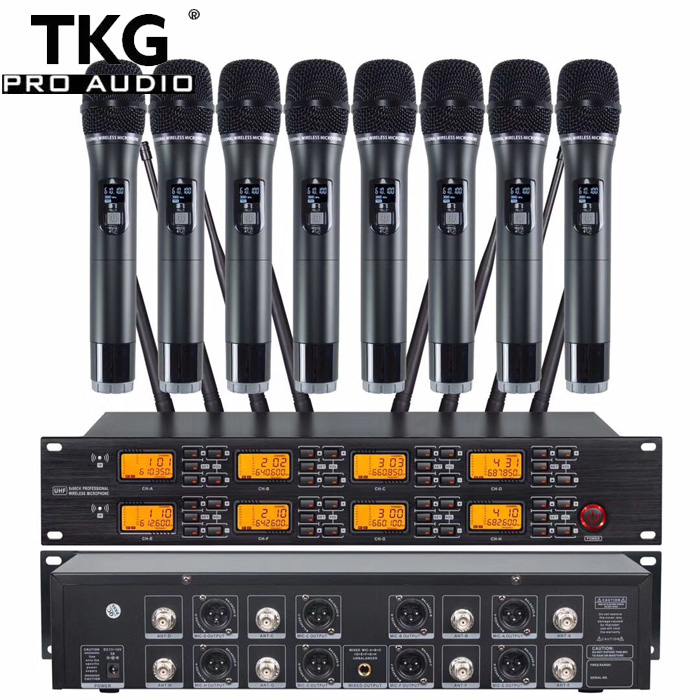

TKG UR-8000-S 640-690mhz UHF Professional UHF Wireless Microphone 8 Wireless Microphone System





Carrier frequency band: UHF640~690MHz (optional)
Number of channels: eight channels
Modulation method: FM
Sensitivity: When inputting 6dBv, S/N>60Db
Bandwidth: 30MHz
Maximum offset: ±45KHz
Comprehensive signal-to-noise ratio: >105dB
Comprehensive THD: <0.7% @1KHz
Comprehensive frequency response: 45Hz~18KHZ ±3dB
Power supply: DC 12V 10W
Output sockets: XLR parallel and 6.3 non-parallel sockets
Receiving distance: about 300 meters


Transmission technical parameters:

Carrier frequency band: UHF640~690MHz (optional)
Oscillation mode: PLL phase-locked frequency synthesis
Harmonic radiation: <-65dBm
Maximum offset: ±45KHz
Frequency response: 45Hz~18KHZ ±3dB
Bandwidth: 120MHz
Head: Capacitive
RF power output: 15MW
Battery: AA*2
Current consumption: <90mA
Continuous working time: 12 hours

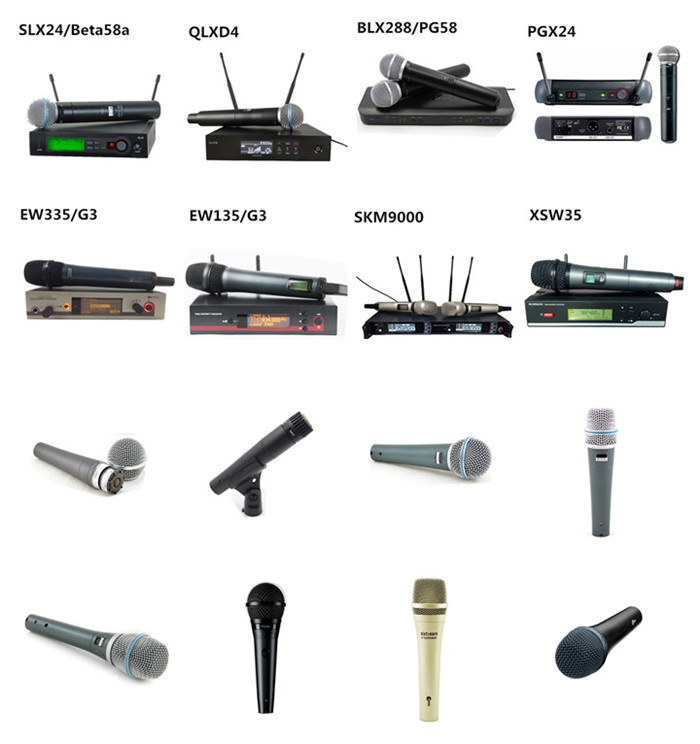

Please contact us for more styles!

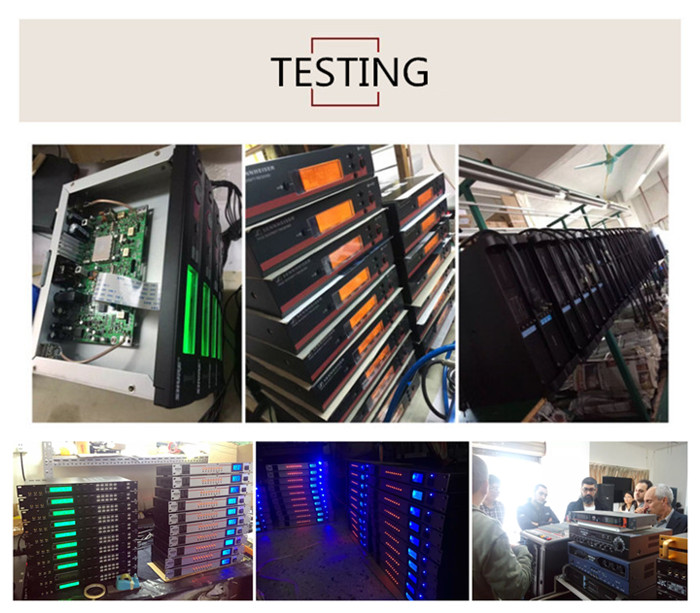

With advanced imported testing equipment, professional technical research and development team, and in line with the business philosophy of "quality & service & innovation", we provide OEM & ODM projects for customers from all over the world.

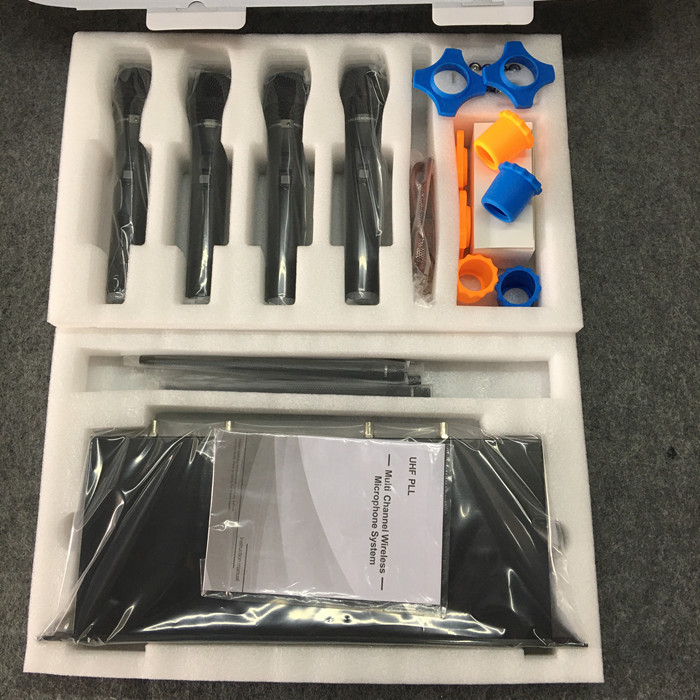

Packaging Details:

1. The first layer of packaging: produce your own box. (different designs have different packaging)

2. The second layer of packaging: an outer kraft carton.
