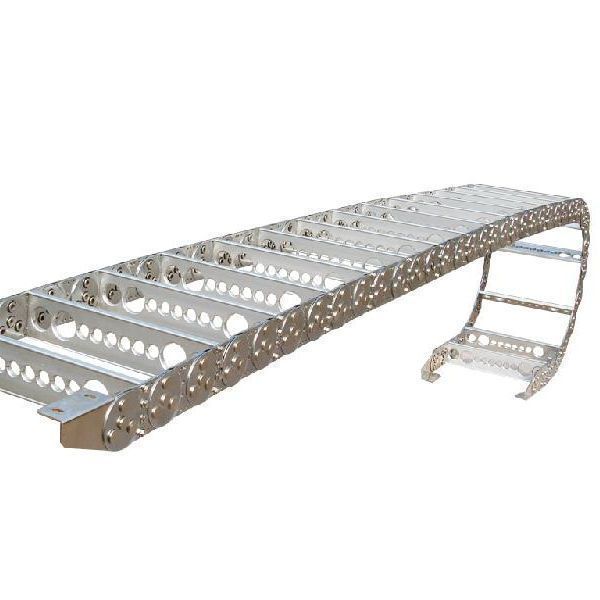

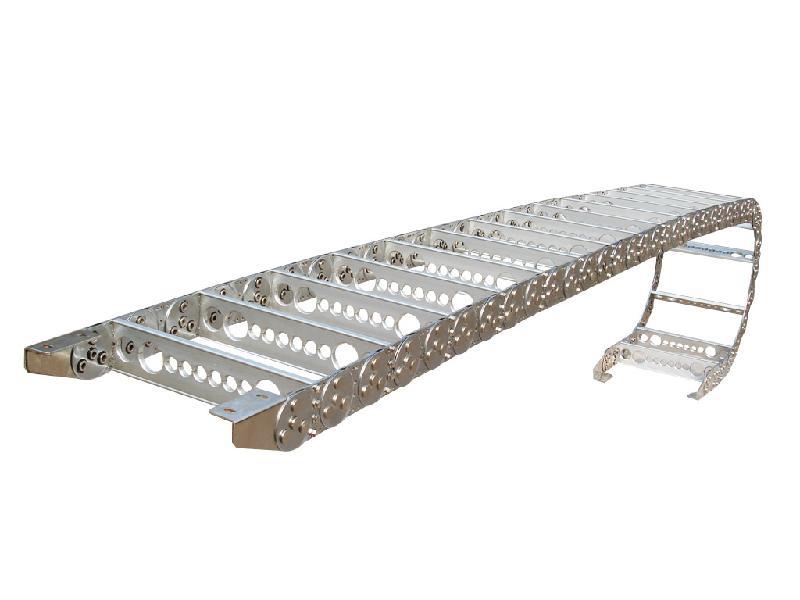

TL series steel cable drag chain drag chain metal drag chain
- $10.00 / 1 - 49 meters
$9.50 / 50 - 99 meters
$9.00 / >=100 meters - 1 meter
- Hebei Huayuan Machine Tool Accessories Co., Ltd.
- Hebei, China
- Mr XIAOLEI YANG
PRODUCT DETAIL
| Applicable industries: | manufacturing plant | Certificate: | CE ISO9001 |
| Purpose: | Protection wire\cable\pipe | Showroom location: | not any |
| temperature range: | 40C-130C | Weight (kg): | 1 |
| payment terms: | Western Union, T/T, Paypal | port: | Tianjin |

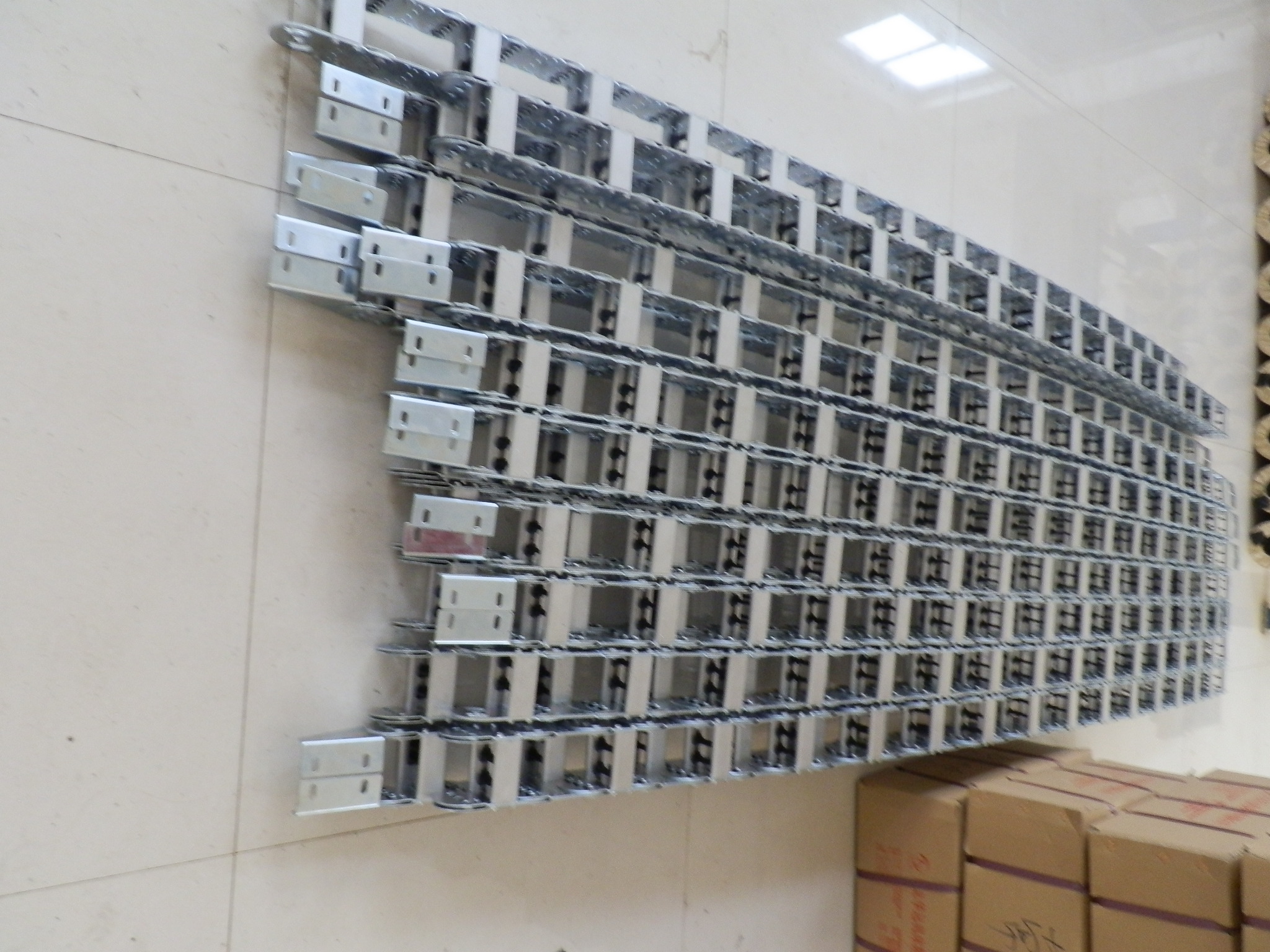

| Packaging Details: | TL Series Steel Cable Tray Drag Chain Drag Chain Metal Chain 1 Small order we will pack it in carton. 2 We will pack big orders in pallets. | Package preview: | |
| Material: | Stainless steel | Video shipment inspection: | Not available |
| type: | drag chain | Supply capacity: | 1000 meters per month |
| Mechanical test report: | Not available | Core components: | brackets |
| Bending radius: | 75-650 | Marketing Type: | New Products 2020 |
| Model: | TL, TLG | Warranty: | 6 months |
| application: | CNC machine tool | Health status: | new |
| structure: | combination chain | product name: | TL series steel cable drag chain drag chain metal drag chain |
| Card: | Huayuan | title: | TL series steel cable drag chain drag chain metal drag chain |
| brand: | Huayuan, Huayuan | color: | silver |
Product Description

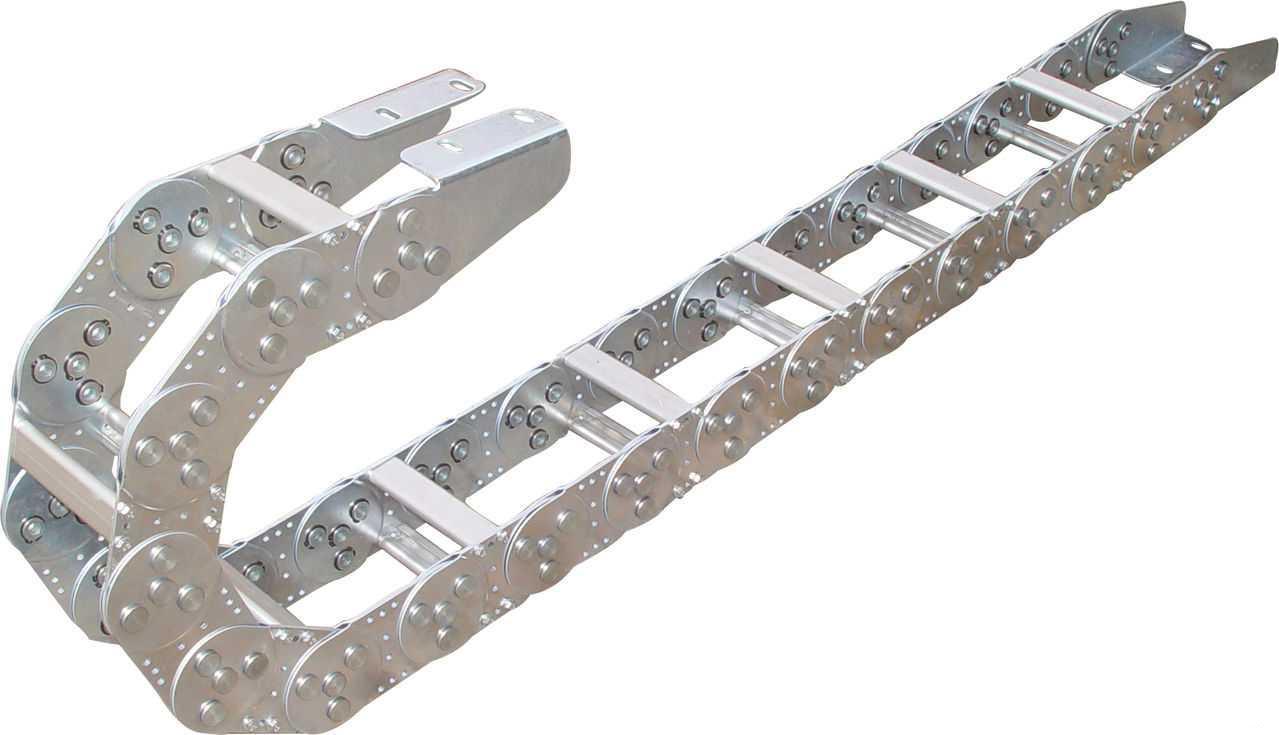

TL drag chain is mainly composed of chain plate (high-quality stainless steel chrome-plated) and supporting plate
(extruded aluminum alloy) and pin (alloy), etc. There is no relative movement between the cable/rubber hose and the energy chain, no deformation or twisting. The chrome-plated chain plate has beautiful appearance, reasonable structure, flexibility and high strength. It is reliable and easy to operate, install, disassemble or assemble. It is worth mentioning that due to the use of wear-resistant materials and alloy pins, the wear resistance has been greatly improved.
The product has flexible bending, small resistance and low noise. it lasts a long time
Nothing deforms or spreads.
(extruded aluminum alloy) and pin (alloy), etc. There is no relative movement between the cable/rubber hose and the energy chain, no deformation or twisting. The chrome-plated chain plate has beautiful appearance, reasonable structure, flexibility and high strength. It is reliable and easy to operate, install, disassemble or assemble. It is worth mentioning that due to the use of wear-resistant materials and alloy pins, the wear resistance has been greatly improved.
The product has flexible bending, small resistance and low noise. it lasts a long time
Nothing deforms or spreads.
type | Minute width(mm) | height (mm) | Bending radius(mm) |
TL30 | ..40-100 | 25 | 20 |
TL45 | 35.. | 32 | 50/75/90/114/145 |
TL65 | 50.. | 49 | 75/90/115/125/145/185 |
TL80 | 55 | 56 | 100/115/125/145/185/200/250/300 |
TL95 | 60 | 75 | 114/145/200/250/300 |
TL115 | 70 | 86 | 145/200/225/250/300/350 |
TL125 | 80 | 96 | 200/250/300/350/470/500/575/700/750 |
TL155 | Post-90s | 120 | 200/250/300/350/450/500/600 |
TL180 | 100 | 144 | 250/300/350/450/490/600/650 |
TL225 | 160 | 200 | 400/450/600/750/800/850/1000 |
TL250 | 190 | 220 | 400/450/500/600/750/800/1000 |

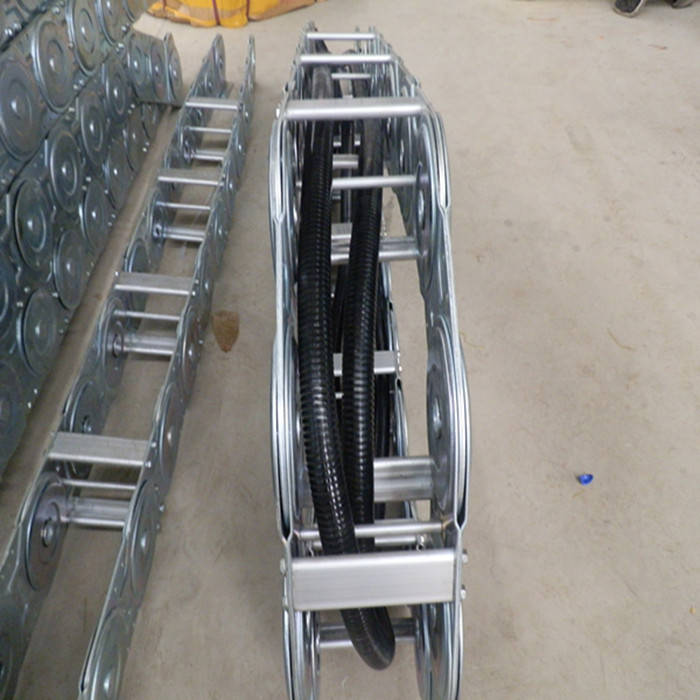

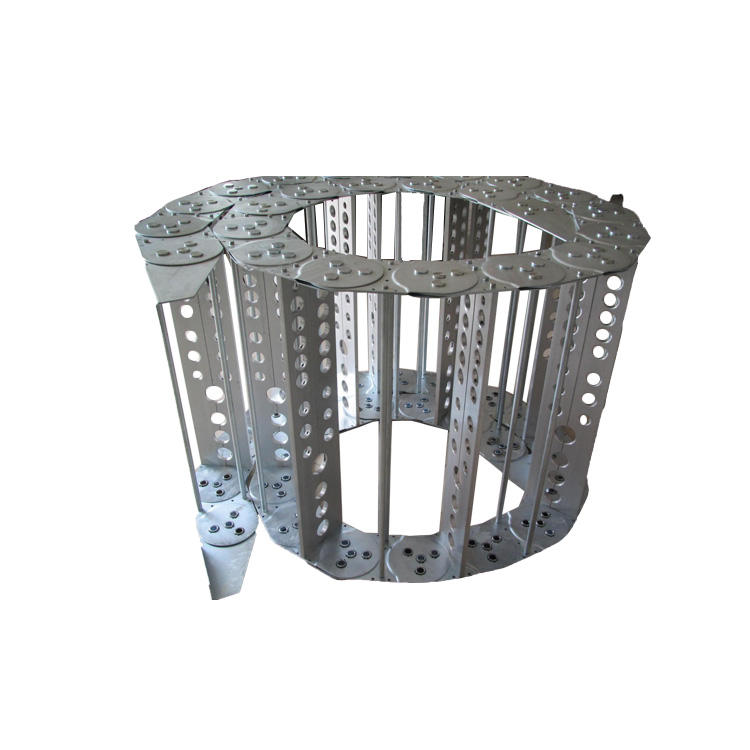

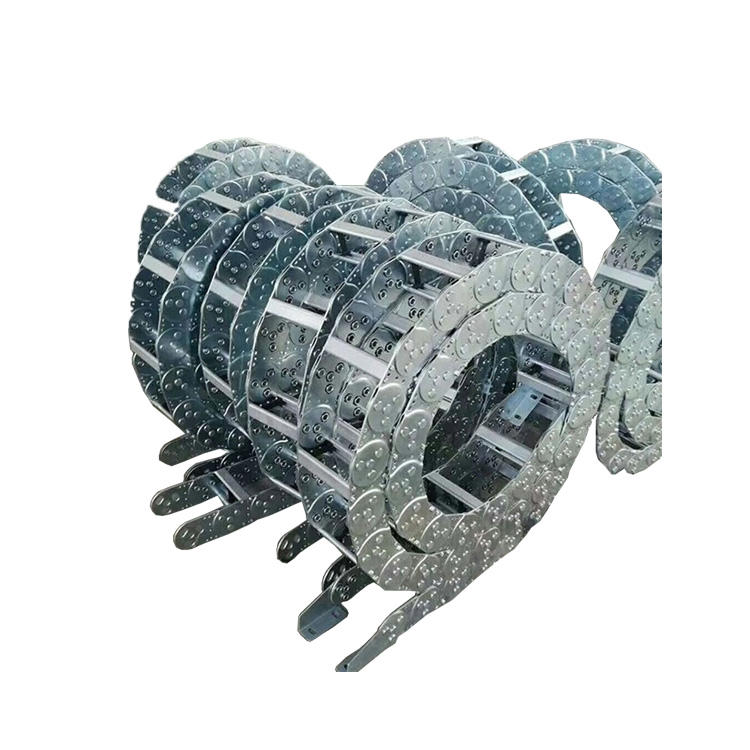

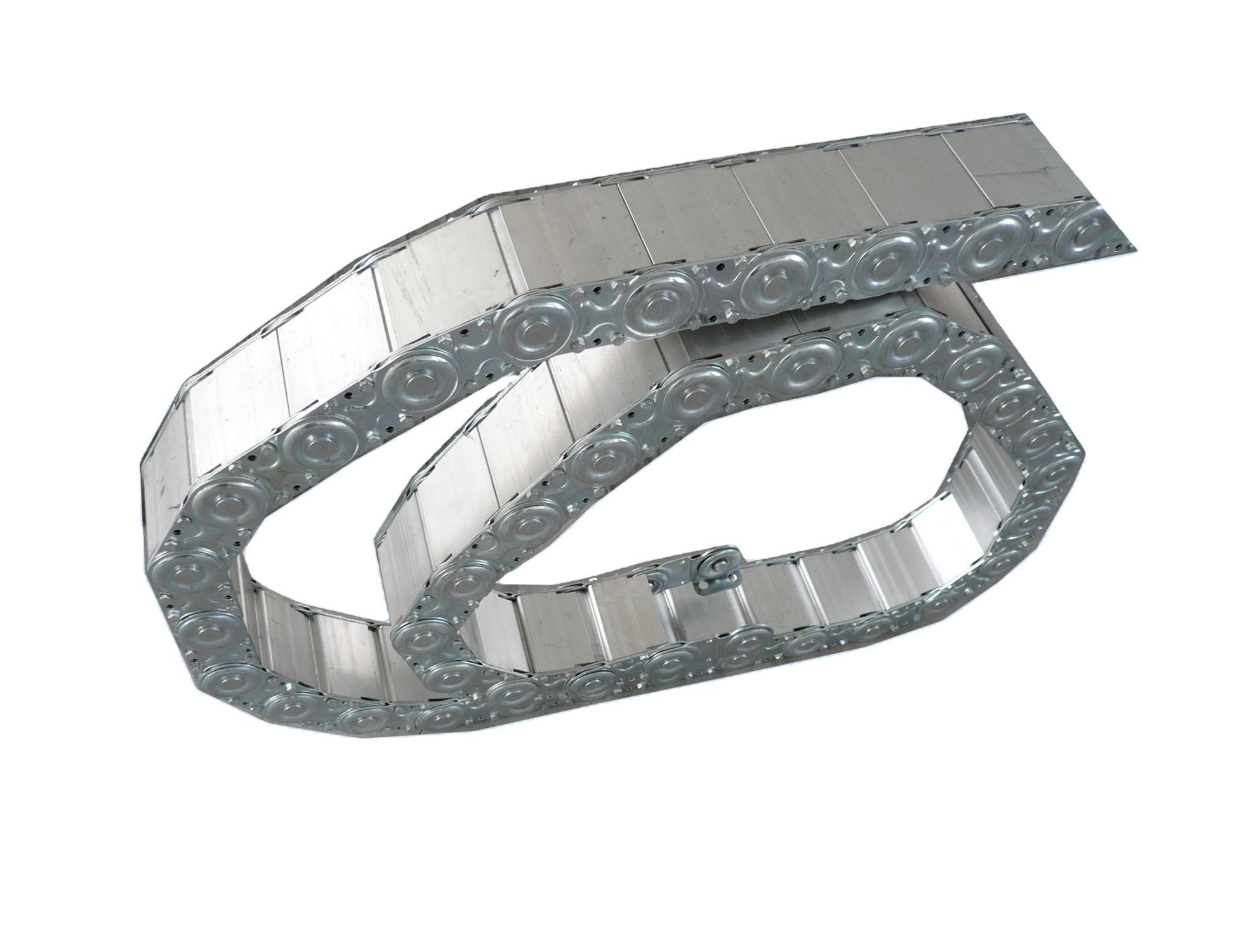

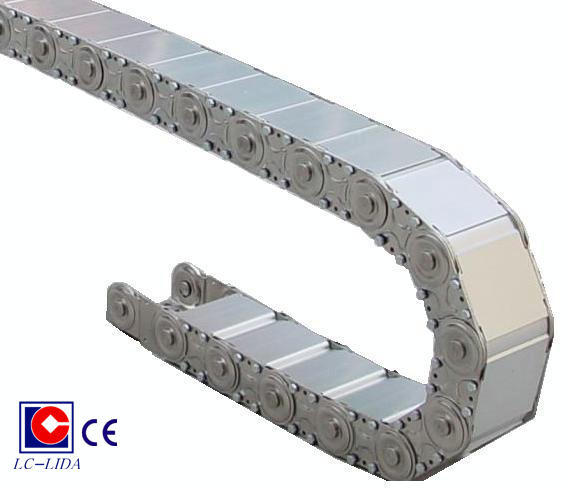

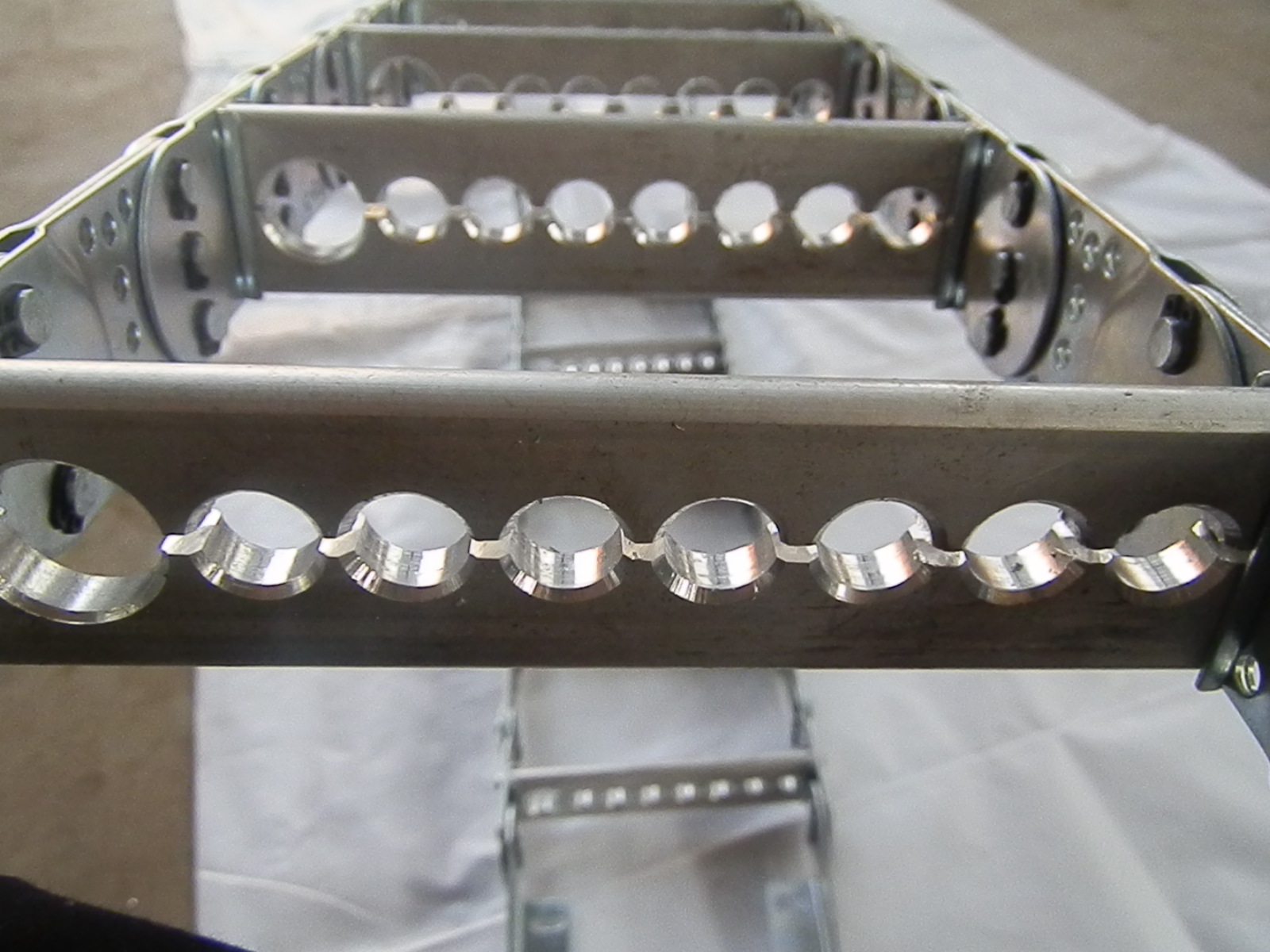

detailed image
The product is beautiful, making the overall beauty of the machine tool, making the machine tool and machinery
more competitive in the international market.
more competitive in the international market.
1. The maximum adaptability of the drag chain. Movement speed 40m/sec.
2. At the maximum driving speed, the noise sound pressure shall not exceed 68 decibels.
3. The service life of the drag chain is not less than 1 million times (reciprocating).
2. At the maximum driving speed, the noise sound pressure shall not exceed 68 decibels.
3. The service life of the drag chain is not less than 1 million times (reciprocating).
The product has flexible bending, small resistance and low noise. it lasts a long time
Nothing deforms or spreads.
Nothing deforms or spreads.
