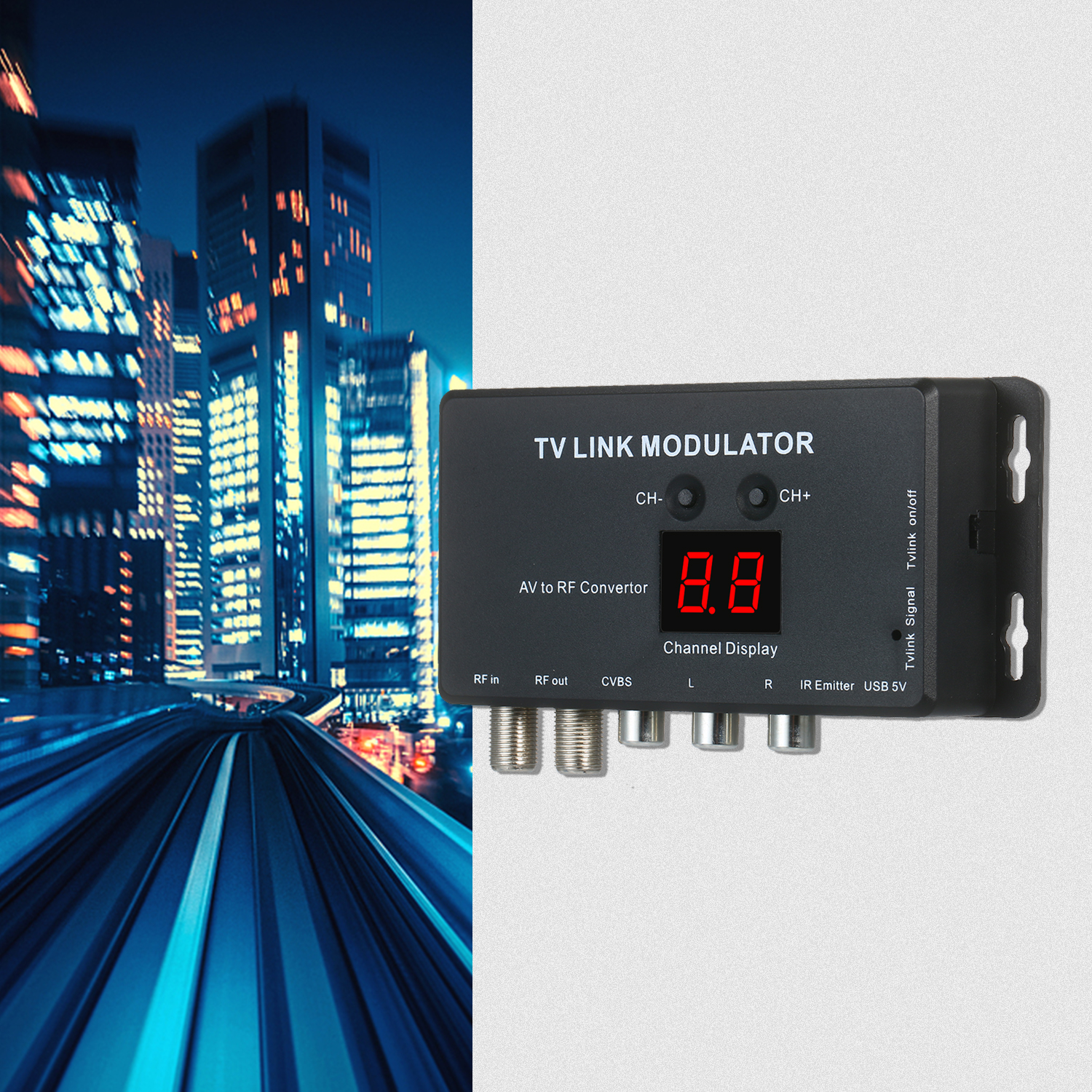

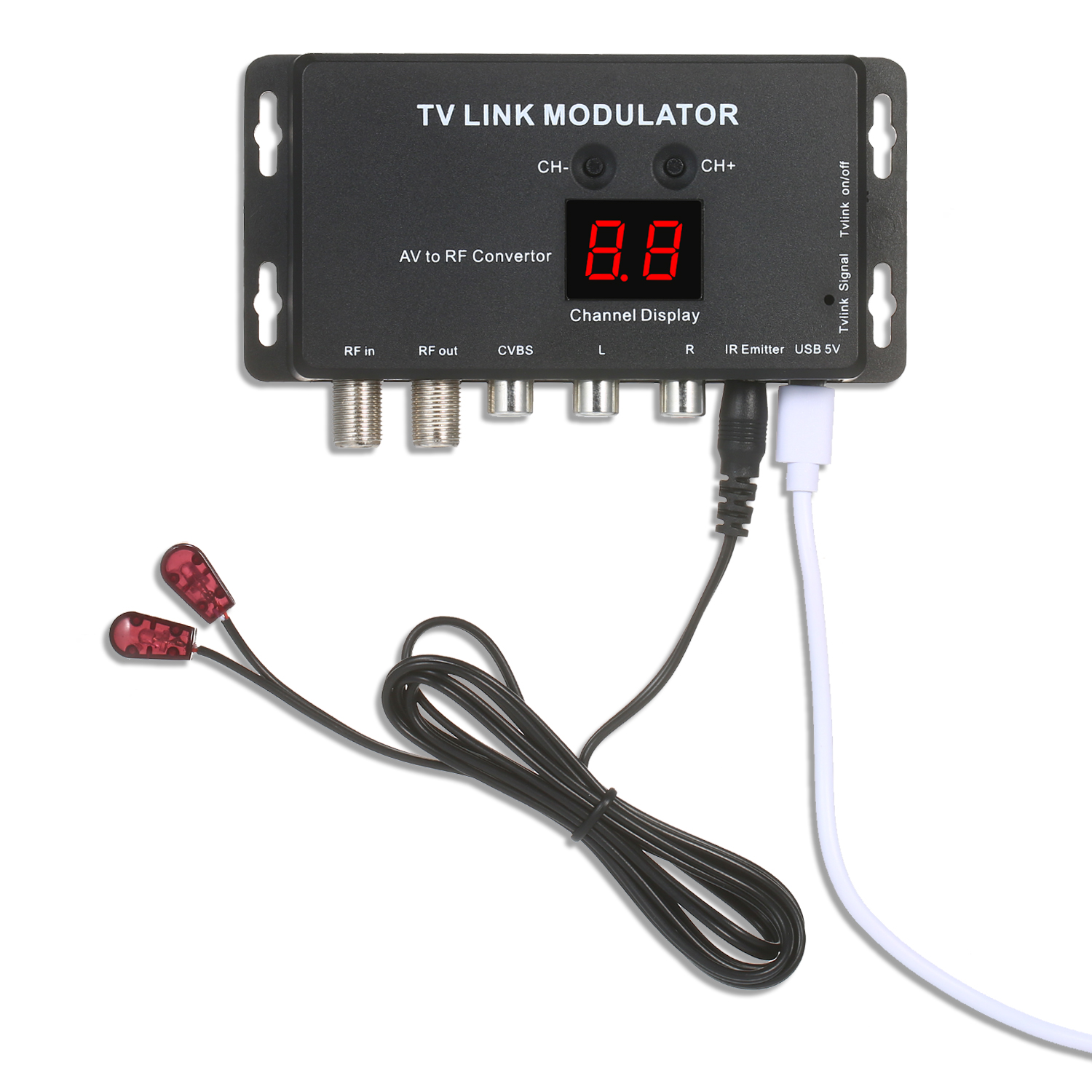

TM70RV Modulator TVLINK AV to RF Converter & IR Extender RF Modulator
- $19.00 / >=5 pieces
- 5 pieces
- Xinxiang Chaosheng Electric Equipment Co., Ltd.
- HeNan, China
- Mr Jack Xue
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | type: | C |
| Origin: | Afghanistan | brand: | CS |
| model: | TH | custom made: | No |
| Certification: | CE certification |
TM70RV TVLINK Modulator AV to RF Converter and IR Extender RF Modulator

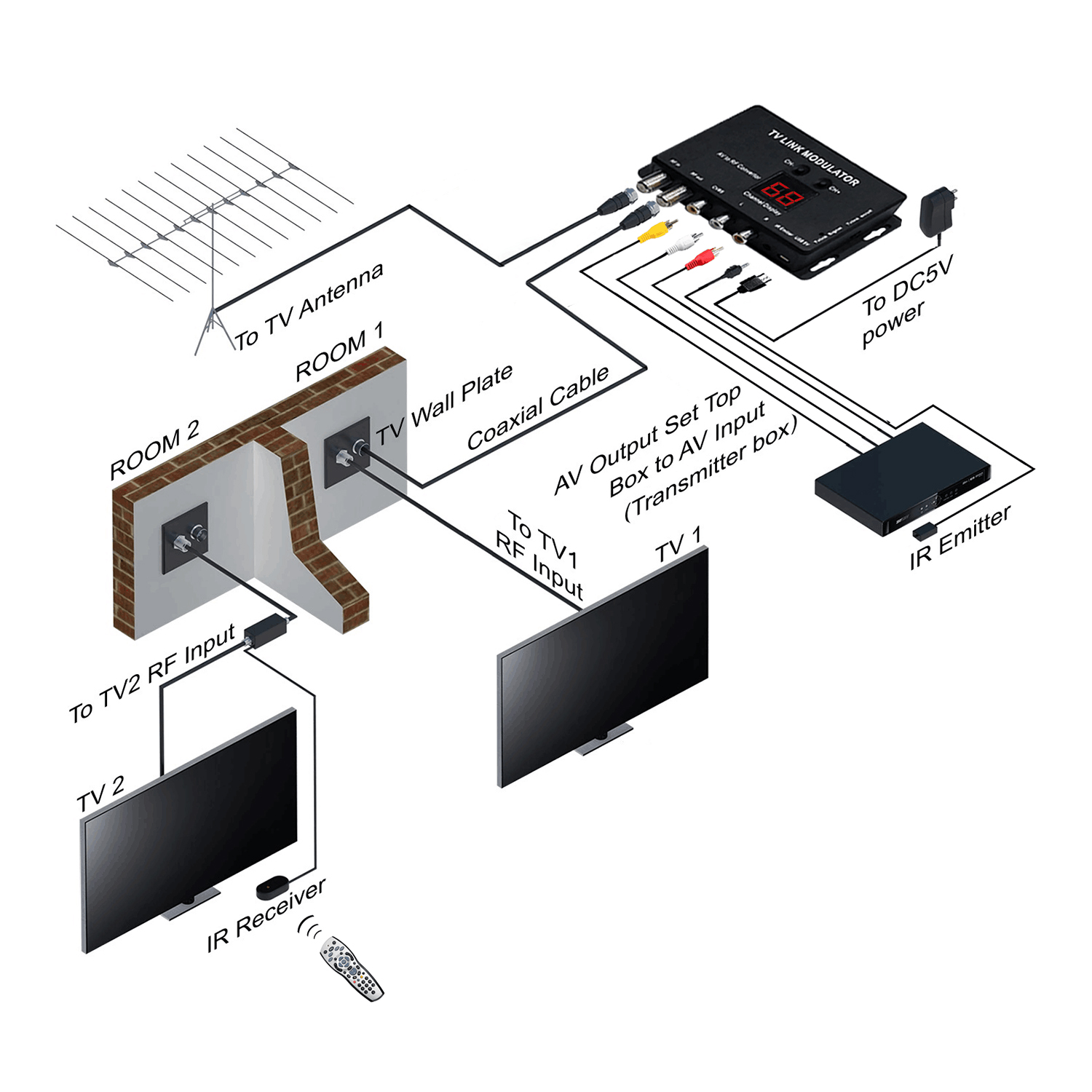

Use existing radio frequency circuits in general households. Remote control signals and power can be transmitted via radio frequency.

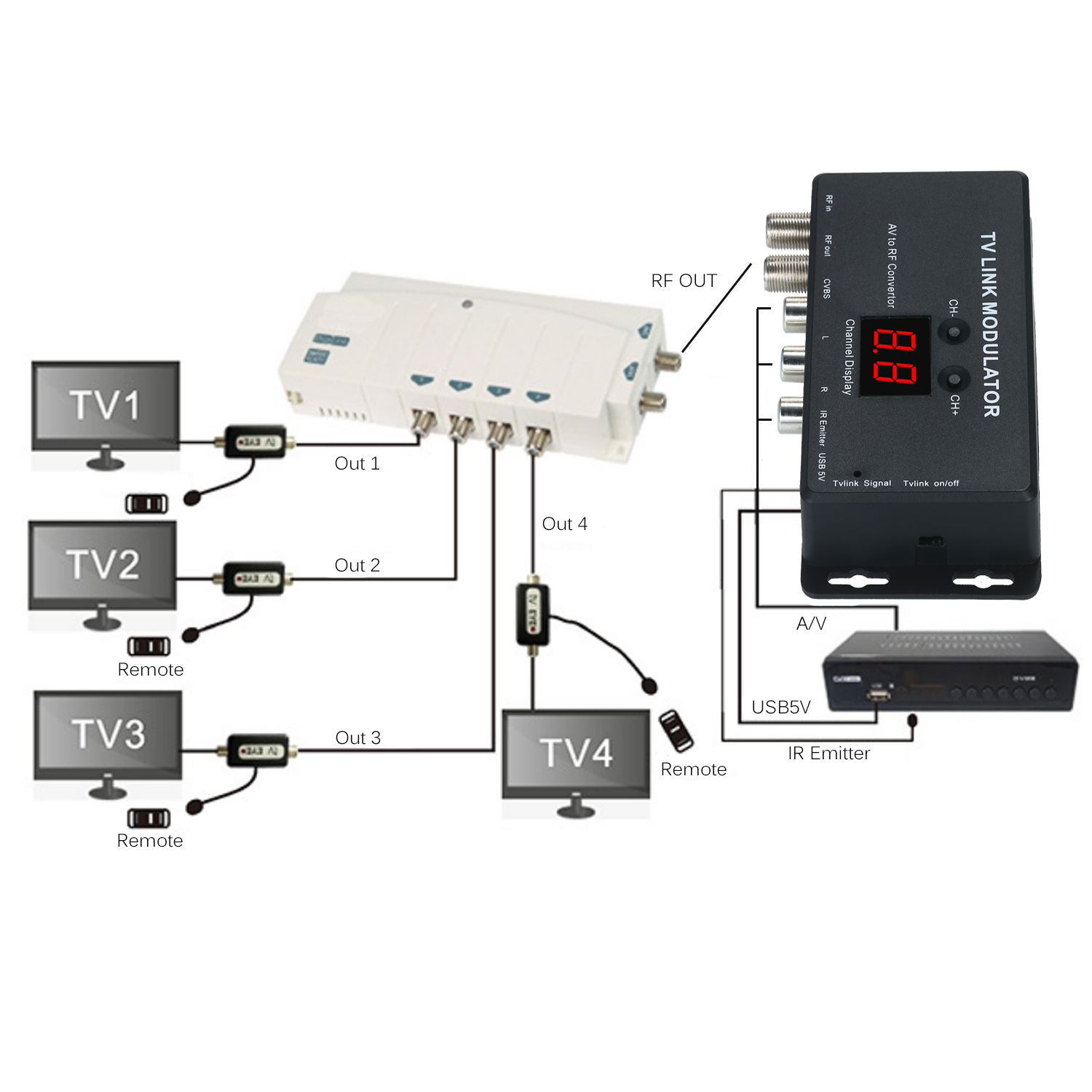

Set top box shared, DVD has several rooms. At the same time, it has the function of remote control of the living room set-top box, DVD, and DVR in the room.
Flexible setting of TV formats such as PAL/NTSC and Sound IF to suit users from all over the world.
Wide frequency range of 471.25MHz~885.25MHz, both VHF and UHF can be used. Selectable transmit frequency and corresponding frequency display and built-in memory will minimize and avoid interference.
The broadcast-level standard PCB circuit design is adopted to further enhance the stability and better picture quality.
External setting for NTSC/PAL B/G, I, D/K, L. M/N TV system for worldwide use.
Specification:
Material: ABS
RF frequency range: 471.25MHz~855.25MHz
Channel range: 21~69
Default factory setting: Channel 21 (471.25MHz). PAL I, 38KHz
RF output impedance: 75Ω unbalanced
Video input impedance: 75Ω
TV system: PAL/NTSC
Voice carrier frequency: 4.5/5.5/6.0/6.5MHz
Remote control distance: ≥10m
Launch distance: ≤30cm
Remote control frequency: 38/56KHz
Power supply: USB 5V
Power consumption: ≤500mW

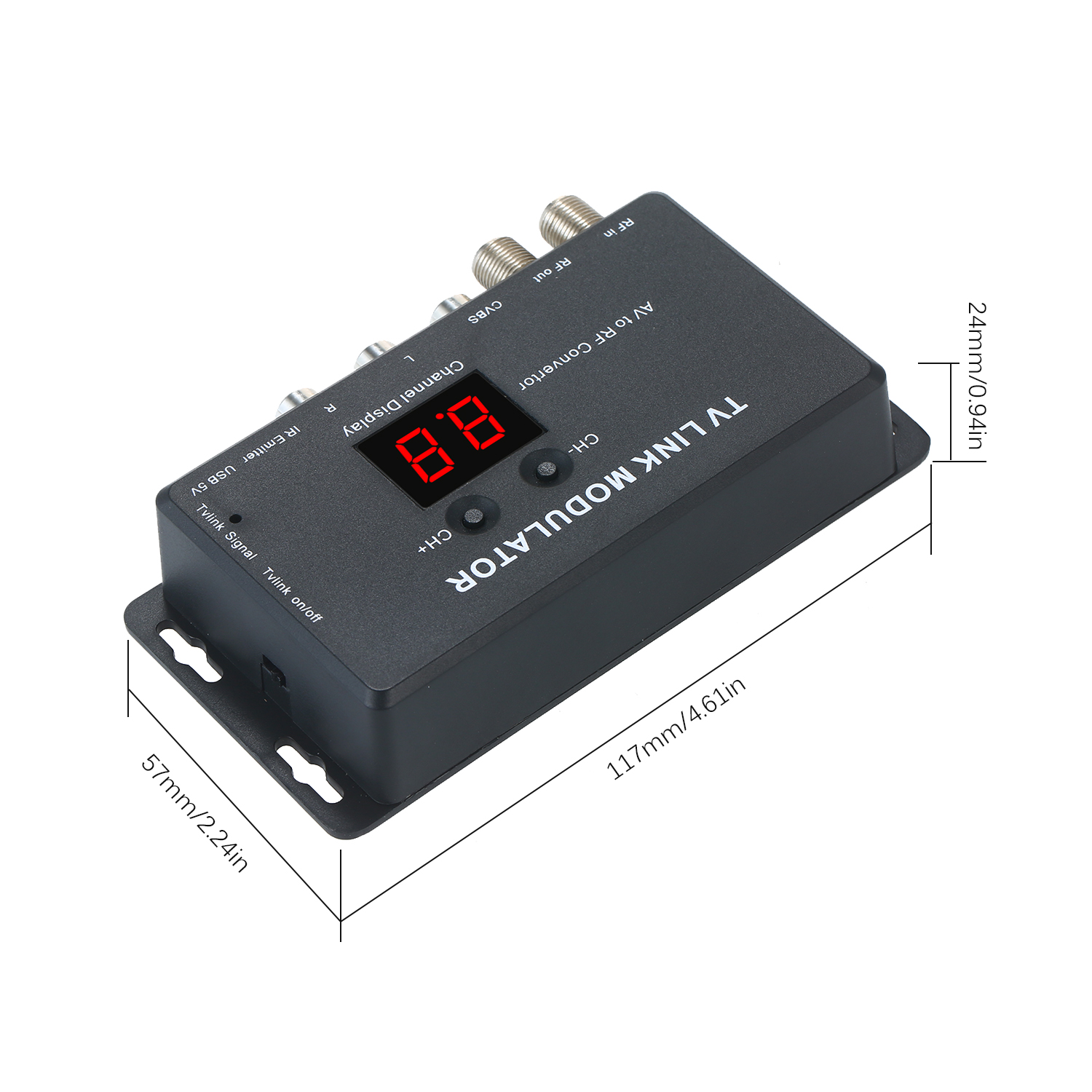

Item size: 117 * 57 * 24 mm/4.61 * 2.24 * 0.94 inches
Item Weight: 107g/3.79oz
Package Weight: 124g/4.38oz
Package size: 12 * 9.5 * 2.5cm / 4.72 * 3.74 * 0.98in

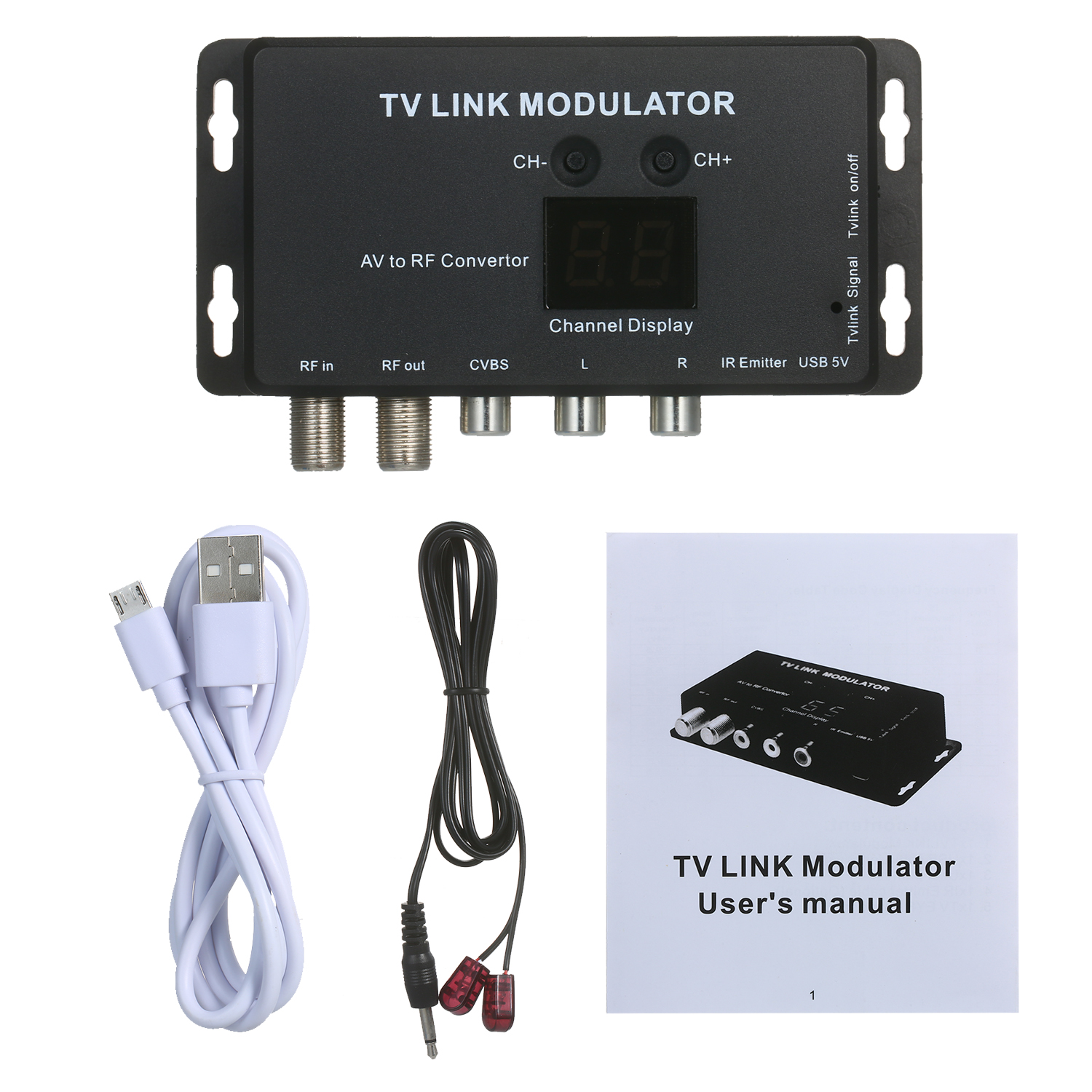

packing list:
1 * modulator
1 * USB data cable

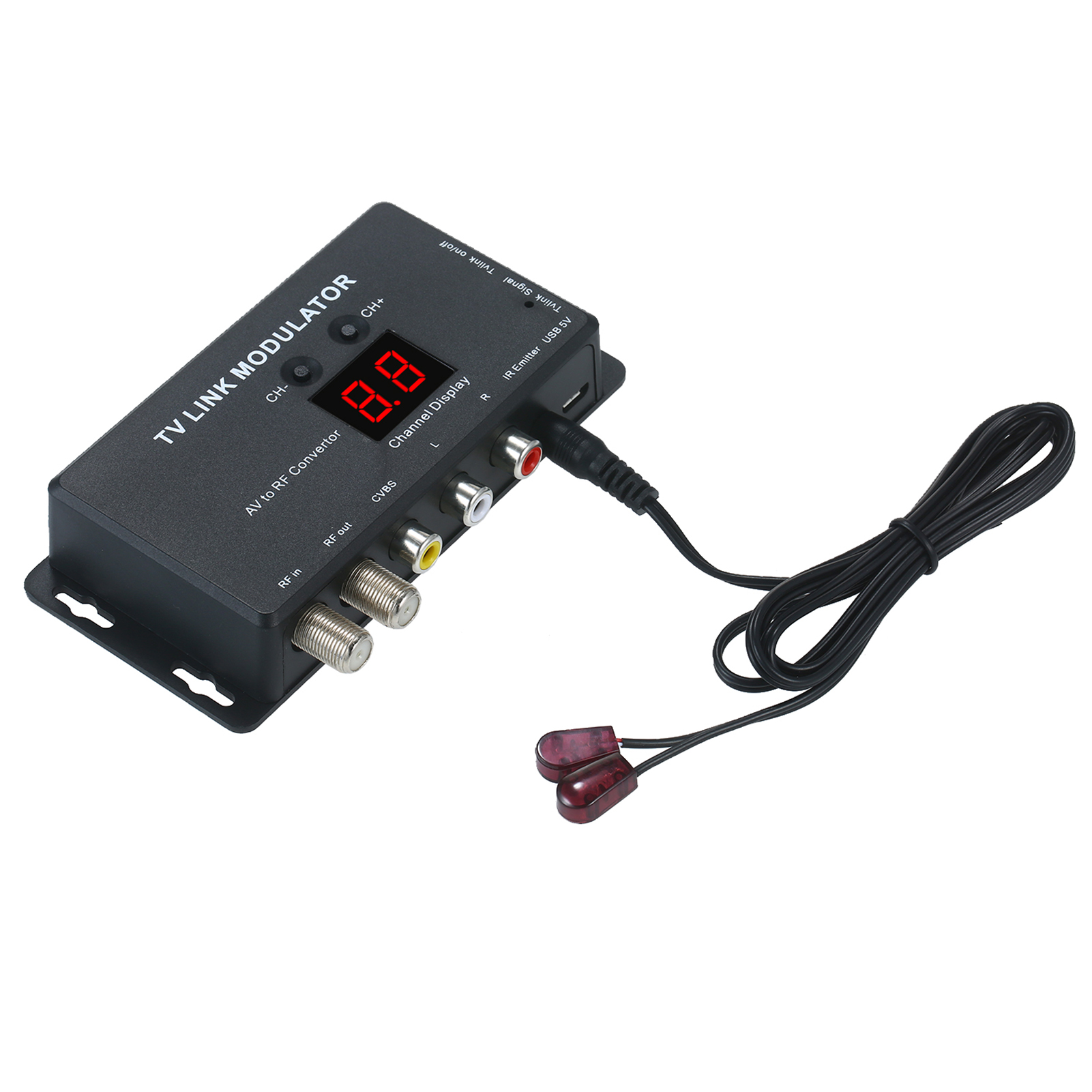

1 * IR Emitter Cable
1 * Manual (English)
