TPBS Sieve Bend Screen Filter

PRODUCT DETAIL
Diameter:20~1200 mm;Support rods:1*2, 2*3, 2.5*3.5, 5*6...;
Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Retail,Construction works ,Food & Beverage Shops;Payment Terms:L/C,T/T,Western Union;
Wire type:V-Shape;Supply Ability:300 Pieces per Month;
Packaging Detail:TPBS Sieve Bend Screen Filter Wooden case or Customized;Materials:SS304/316/Duplex stainless steel;
Port:Shanghai/Shenzhen/Tianjin;Brand Name:TOP;
Place of Origin:Sichuan, China;Warranty:6 months;
Length:50~6000 mm;Application:Liquid & Solid Filter,Water Treatment Industry;
Wedge Wire Size:1*2, 2*3, 2.5*3.5, 5*6...;Filter Precision:0.010, 0.015, 0.02, 0.05, 0.1, 0.15, 0.2, 0.3, 0.5......;
Package Preview:;

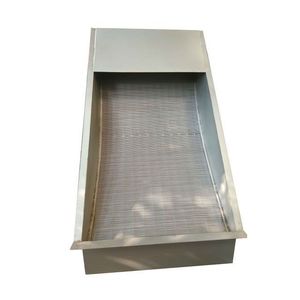

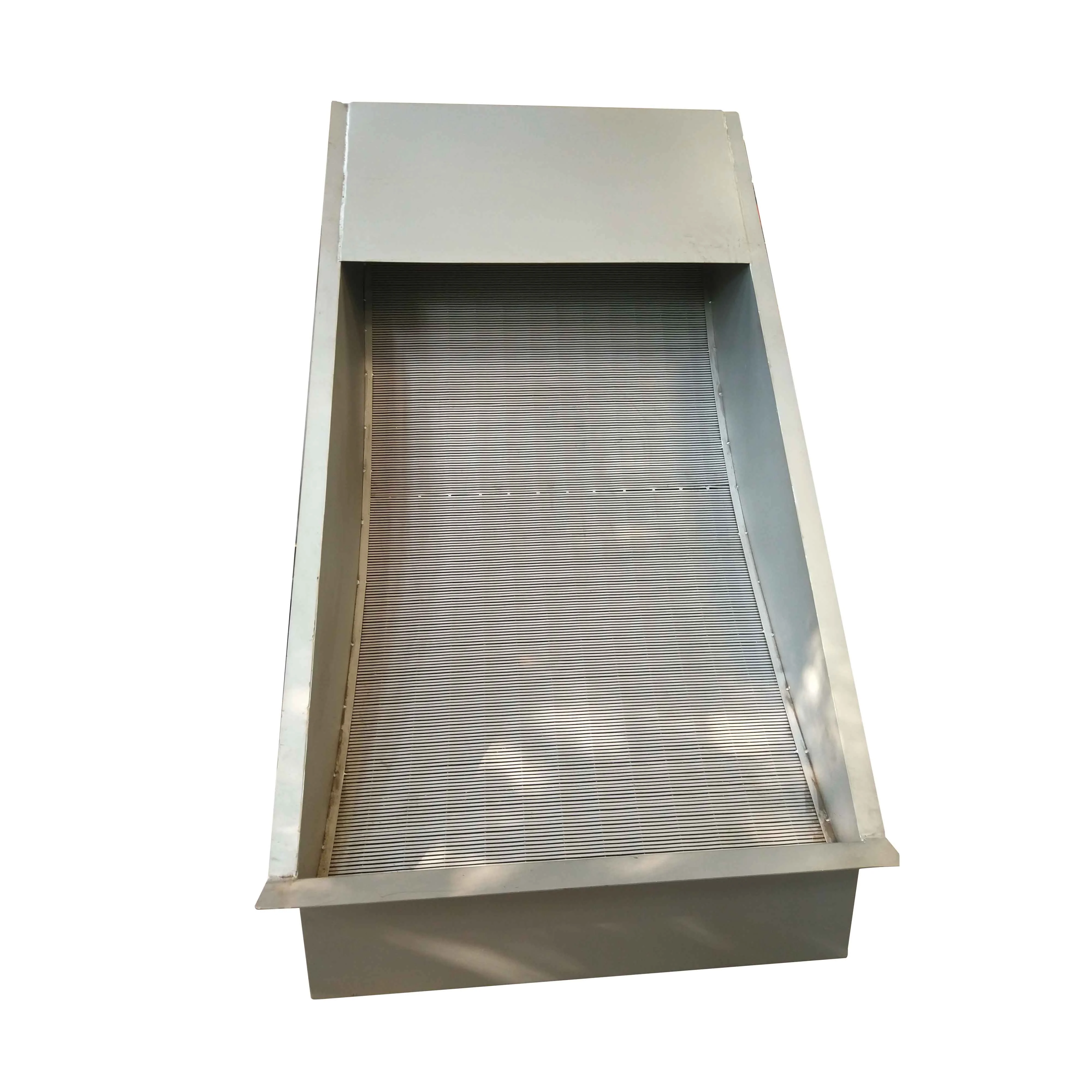

TPBS Sieve Bend Screen Filter





Sieve plate is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.
  Application: mining, coal separation, drilling, fertilizer, food, environmental protection, metallurgy, medicine and other industries.



Specifications


Diameter (mm)

Φ20, Φ50, Φ53, Φ57, Φ60, Φ65, Φ70, Φ75, Φ80, Φ100, Φ125, Φ200, Φ245, Φ300, Φ320, Φ360, Φ400, Φ450, Φ500, Φ550, Φ600, max. 1200

Slot (mm)

0.010, 0.015, 0.02, 0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.5......15 ...

Length (mm)

50~6000

Material

stainless steel (AISI 304, 316, 316L...), low carbon steel, low carbon steel galvanized zinc, steel treated with plastic spraying

Note

Non-standard offer, can be produced as per request

Advantages :
1. High opening rate, big filter area, fast filtering speed.
2. Good corrosion resistance and wear resistance.
3. Low using cost and long life span
4.Homogeneous slot size, smooth surface, strong permeability, minimum gap precision can be up to 8 microns.


Specification:

1. Material: Carbon steel, Low carbon steel, Stainless steel (304,316L,1Cr18Ni9Ti,0Cr18Ni9,00Cr17Ni14Mo2,321) Duplex stainless steel,Hastelloy, Titanium alloy,etc
2.  Minimum slot size: can be up to 8 microns.
3. Wrap and support rod: Wrap type: V1,V2,V3,V4; Rod type: V4,V5,V6,T1,T2,U1,U2
4. Note: The length and width can be customized.

Pressure bend sieve is a kind of high efficient sieve, relying on pressure screening the wet, which is composed of screen surface, sieve box, feeding device and outlet. The screen surface is the key component. It is made of stainless steel shape screen. When operating the wet material ejected from the nozzle under pressure from 0.2 to 0.4 Mpa, high ejection speed produces tangential force, triangular mesh wedge forms blade to scrap the material into a thin layer, then the water and fine material evenly dispersed,and the entire screen surface get essential self-cleaning. The material on the sieve discharged from the taphole,The material under the sieve get into the stock inlet. As it adopted the multistage countercurrent washing process, it can effectively improve powder extraction rate and starch quality, having an obvious economic benefits. It becomes an replacement of the screening process in starch industry.
Application: germ washing and fiber separation in starch industry.


Arc vibrating screen(sieve bend) is a certain curvature radius and angle of slotted screen. As required, it can be made of different radii and different angles. Common angle 45 °, 60 °, 90 °, 180 ° and 270°.Mainly used for coal preparation plants, iron ore mines, food processing and other industries.



Certificate

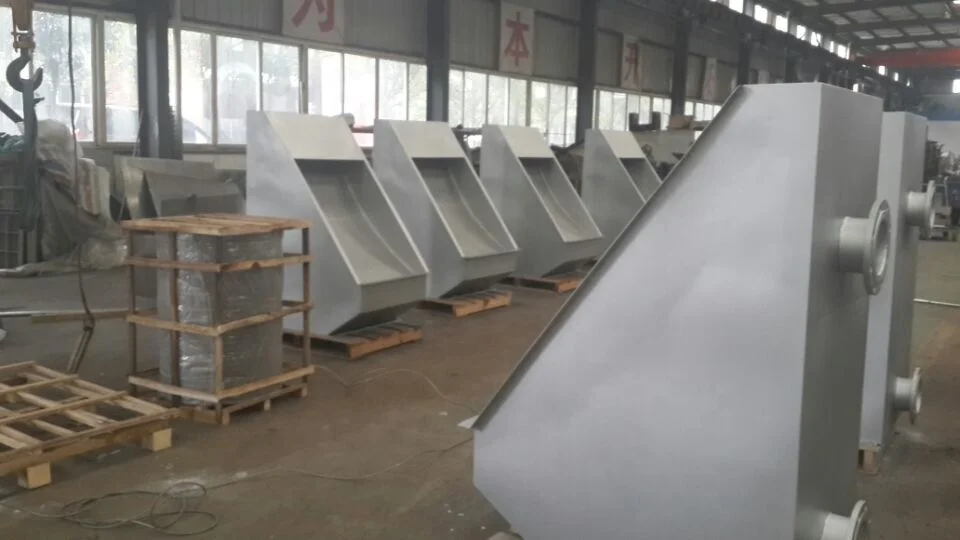

Client Visit





Packaging & Shipping

Plastic film or wooden boxes package or  as per customers' requirements.





Company Information

Top Machinery is located in Chengdu, being with convenient traffic, developed communication, vast territory and a good space for development. We are professional manufacturer and exporter of accessories for water, oil, gas and environmental industries. The products mainly including filter elements like Johnson screen mesh , water well screen, V shaped wire welded screen pipe, strainer pipe, spiral screen tube, wire-wrap screen pipe, wedge wire screen tube, mine screen mesh, arc screen, flat wedge wire panel, as well as automatic washing filter, backwashing filter, drum filter, ion exchanger, etc. Since the company established, we insist on good quality, making the business range extend continually.


All of production lines are provided on a turnkey basis including design, program, installation, commission, and complete technology transfer and personnel training, which are backed by our extensive experience. Complete spare parts/components and engineering services are provided according to customers' requirements. We sincerely hope to establish cooperation with you. We sincerely welcome all clients to contact us for details.
