PRODUCT DETAIL

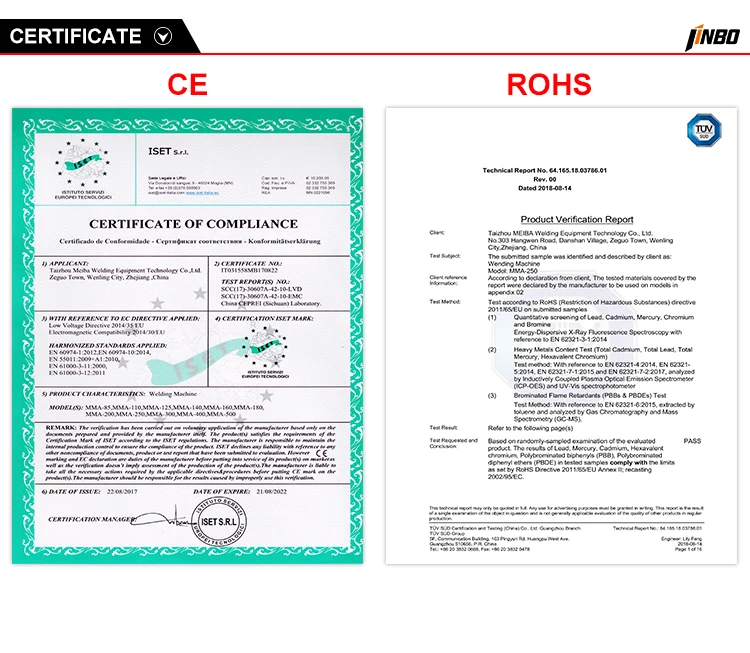

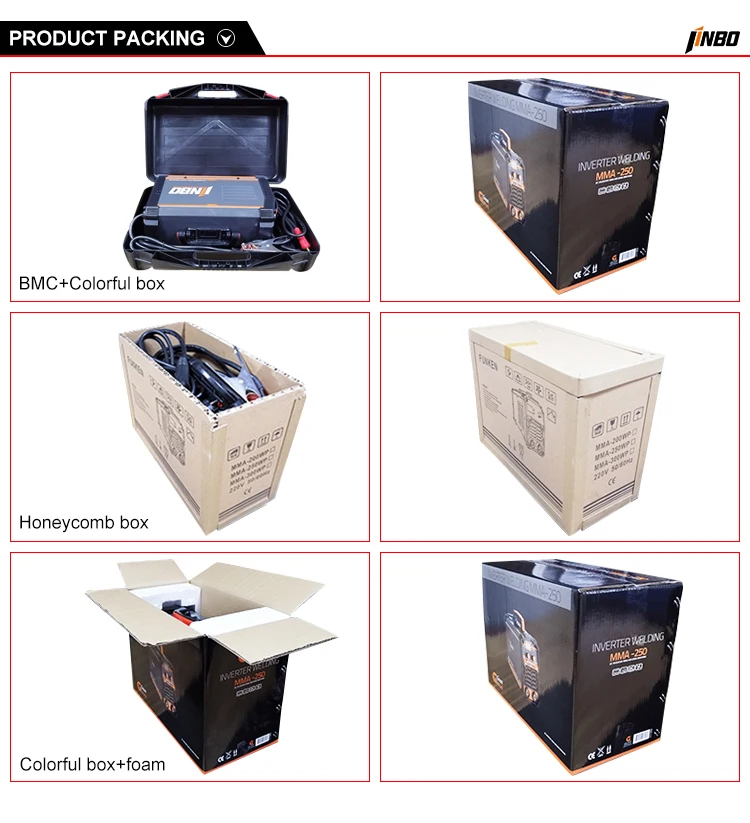

Packaging Detail:color box+foam;Certification:CE,ROHS,INTERTEK;
Package Preview:;Rated Duty Cycle(%):60%;
Type:IGBT 1PCB;Non-load Voltage(V):60;
Warranty:1year;Weight:2.75KG;
Shell protection grade:IP21;Class of Insulation:F;
Rated input power(KVA):3.5;Customized support:OEM;
Efficiency:85%;Brand Name:JINBO;
For Material Type:Steel,Mild Steel,Cast Iron;Rated input voltage(V):220(110V can do );
Payment Terms:L/C,Western Union,T/T,MoneyGram;Dimension (L x W x H):220*90*140mm;
Model:MMA-180A;Place of Origin:Zhejiang China;
Supply Ability:200000 Piece/Pieces per Year;Rated Output Current:20-180A;
Phase:single phase;Output current rang(A):20-180;
Welding Process:Stick;Model Number:MMA-180A;

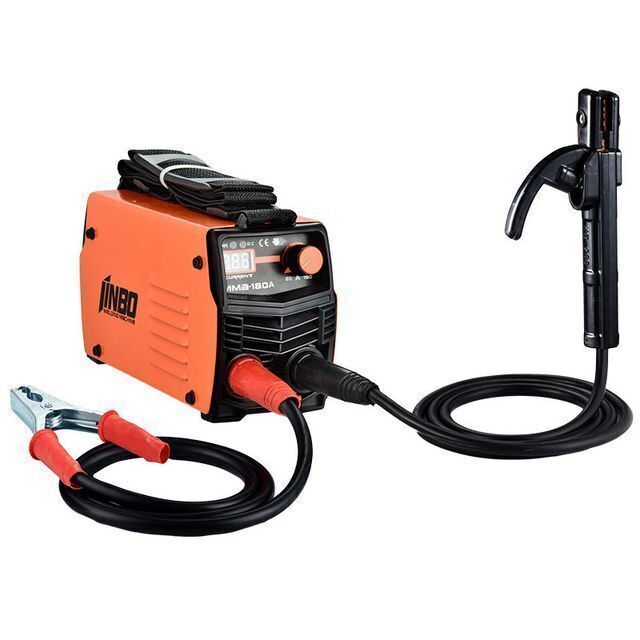

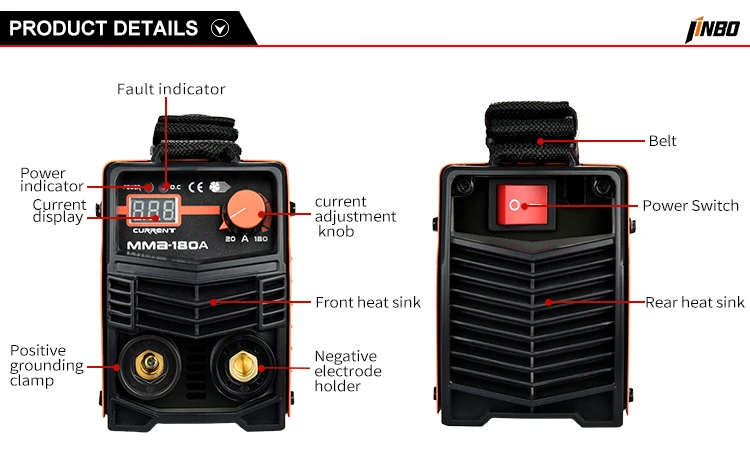

Model MMA-180A
Type IGBT 1 PCB
AC Input Voltage(V) 220V
Rated Input Power Capacity(KVA) 3.5
Input Frequency(Hz) 50/60
Non-load Voltage(V) 60
Output current range(A) 20-180
Rated Duty Cycle(%) 60%
Efficiency(%) 85%
Class of Insulation H
Protection class of case IP21S
Electrode diameter(mm) 1.6-2.5
Quick joint Size 10-25mm
N.W./G.W.(kg) 1.87/2.75
Machine Size(LxWxH mm) 220*90*140
Package Dimension(LxWxH mm) 290*175*175 color box

Package Dimension(LxWxH mm) 370*305*375 kraft paper box
Accessories 1. 1.5m 16mm 200A holder
2. 1m 16mm 200A clamp
3.  Brush,Mask, Belt,Manual
