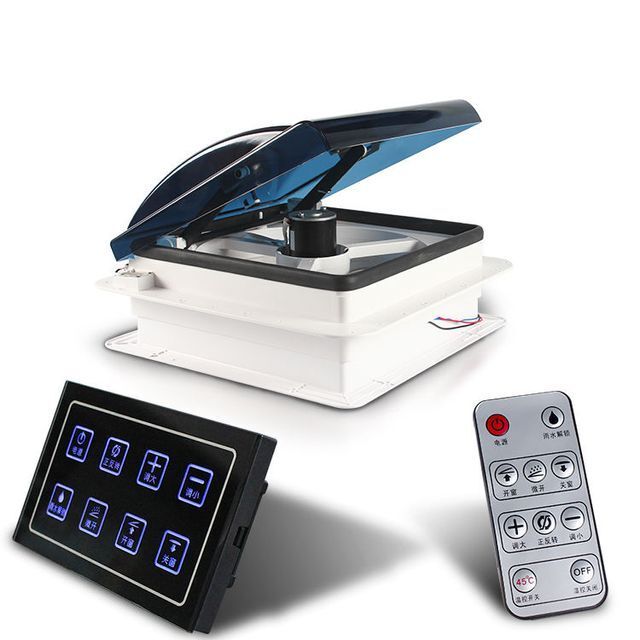

TYTXRV Motorhome 340-380mm 12V Air Vent with LED Light and Touching Screen Panel RV Roof Vent
- $149.00 / 2 - 199 pieces
$140.00 / 200 - 2999 pieces
$99.00 / >=3000 pieces - 2 pieces
- Shenzhen Tianya Tongxing Technology Co., Ltd.
- Guangdong, China
- Ms TYTXRV Tina
PRODUCT DETAIL
| Voltage: | 12V; | Selling Units: | Single item; |
| Warranty: | 1 Year; | Combo Set Offered: | 0; |
| Single package size: | 45X45X20 cm; | Material: | Anti-yellow plastic; |
| Product name: | RV Roof Vent Fan; | Dimensions: | 420 x 420 x 182 mm; |
| Size: | 420 x 420 x 182 mm; | Packaging Detail: | Carton box + bubble bag; |
| Single gross weight: | 8.500 KG; | Brand Name: | TYTXRV; |
| Place of Origin: | Zhejiang, China; | Power: | 5-30W adjustable; |
| Certificate: | CE; | Type: | RV ROOF VENT FAN; |
| Package: | Carton box + bubble bag; | Cut-out Dimensions: | 340 x 340 mm (max: 380 x 380 mm); |
Product Description
Product Specifications | ||
Brand | TYTXRV® | |
Product ID | 0100483 | |
Dimensions | 420 x 420 x 182 mm | |
Cut-out Dimensions | 340 x 340 mm(max: 380 x 380 mm) | |
Installation Thickness | 38-95 mm | |
Voltage | 12V | |
Power | 5-30W adjustable | |
Current | 0.5-2.5A | |
Air Flow Volume | 10-22 CBM/Min | |
RMP | 1000-1800/Min | |
Fan Blade | 10 | |
TYTXRV® roof vent fan is dedicated to high-class and smart RVs, with the functions of both supplying and exhausting air. The vent fan cover in gray black color allows the light to enter the van compartment. It brings your RV with light and fresh air.
RV Roof Vent Fan FEATURES:
1. Casing made of imported plastic raw material, long-lasting and anti-yellowing
2. Motor made of pure copper core, reliable and highly efficient
3. Fan with 10 blades, running more stable and more quiet
4. Equipped with stainless steel / anti-rust insect screen
5. Intake and exhaust
6. Controller, rain sensor
7. Thermostat
8. Stepless Speed Adjustable(Push button)
WIRING:
1.5 m2 or above electric wires are required
Red wire connects the battery positive terminal
Black wire connects the battery negative terminal
Blue wire connects the brake line. When the parking brake lever is released, the sunroof is closed. When the parking brake lever
is engaged, the vent fan will exhaust air as soon as the temperature is high.
High voltage protection. When the voltage exceeds over 16V, beep sound every second and all keys disabled.
Low voltage protection. When the voltage is lower than 8V or not enough power, buzzer keeps ringing.
6-level speed adjustment. On Level 0, fan is not working. The fan will first stop still before switching to either air supply or
air exhaust mode
v Level 1, Power: 4W, quiet, suitable for night sleep
v Level 2, Power: 8W, quiet,
v Level 3, Power: 14W, Low noise
v Level 4, Power: 22W, Little noise
v Level 5, Power: 30W, Strong, fast air refreshing and cooling
v Level 6, Power: 40W, Super strong, fast cooling
RV Roof Vent Fan FEATURES:
1. Casing made of imported plastic raw material, long-lasting and anti-yellowing
2. Motor made of pure copper core, reliable and highly efficient
3. Fan with 10 blades, running more stable and more quiet
4. Equipped with stainless steel / anti-rust insect screen
5. Intake and exhaust
6. Controller, rain sensor
7. Thermostat
8. Stepless Speed Adjustable(Push button)
WIRING:
1.5 m2 or above electric wires are required
Red wire connects the battery positive terminal
Black wire connects the battery negative terminal
Blue wire connects the brake line. When the parking brake lever is released, the sunroof is closed. When the parking brake lever
is engaged, the vent fan will exhaust air as soon as the temperature is high.
High voltage protection. When the voltage exceeds over 16V, beep sound every second and all keys disabled.
Low voltage protection. When the voltage is lower than 8V or not enough power, buzzer keeps ringing.
6-level speed adjustment. On Level 0, fan is not working. The fan will first stop still before switching to either air supply or
air exhaust mode
v Level 1, Power: 4W, quiet, suitable for night sleep
v Level 2, Power: 8W, quiet,
v Level 3, Power: 14W, Low noise
v Level 4, Power: 22W, Little noise
v Level 5, Power: 30W, Strong, fast air refreshing and cooling
v Level 6, Power: 40W, Super strong, fast cooling
