Taialu High Quality Clad Aluminum Fin Strip For Radiators

PRODUCT DETAIL
Temper:O - H112;Brand Name:Taialu;
Alloy Or Not:Is Alloy;Payment Terms:L/C,T/T;
Packaging Detail:export standard packing;Model Number:3003;
Grade:3000 Series;Package Preview:;
Surface Treatment:Coated;Width:16mm-1000mm;
Port:Qingdao;Place of Origin:Shandong, China;
Application:radiators, condensers, etc.;Supply Ability:1000 Tons per Month;

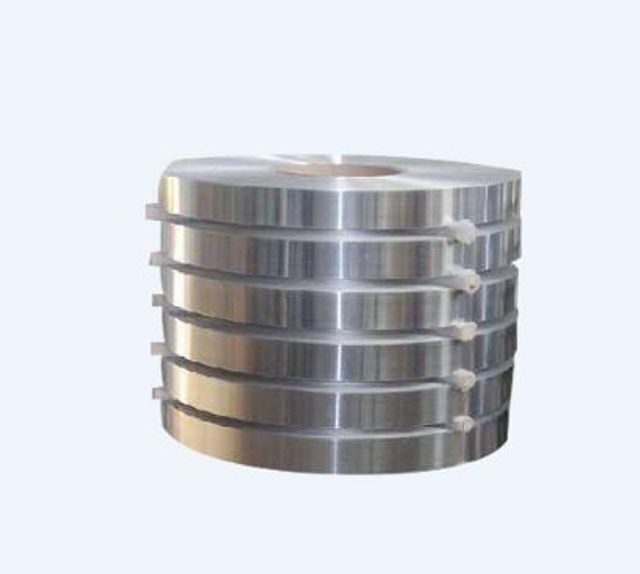

Taialu High Quality Clad Aluminum Fin Strip For Radiators

Supply clad aluminum strip with alloy such as3003, 1060, 1100, and 3003 clad 4343(4343+3003+4343), 3003 clad 4045(4045+3003+4045)/(4043/3003/7072) etc, high quality at competitive price.

Clad aluminum fin strip

Clad aluminium fin strip

Clad aluminum fin tape

Clad aluminium fin tape

Core Alloy: 3003

Cladding Alloy: 4343 4045 7072 etc.

Thickness: 0.09mm-0.6mm

Width: 30mm-900mm

Clad Rate: 8%-12% per side or customer requested

ID of Coil: 152mm, 200mm, 505mm ,etc

OD of Coil: 1000mm-1350mm

Application: the material widely used for manufactuer heat exchangers such as radiators, condensers, evaporators, air-conditioner ,heater core, engine cooling, engine/transmission oil coolers, charge air coolers/intercoolers, etc.

Min Order: 3 ton per size as trial

Packing: export standard packing

Delivery Time: within 15-25days after receipt of your deposit

Packing : export standard wooden box or pallet

We can gurantee product quality and offer very good service, another, our have many years experience of coating and export. If your have any question in the future time, your can freely contact us!











Clad Aluminium Sheet/Strip for Heat Transfer
Material AlloyCore Material3003, 3003+1%Zn, 3003+1.5%Zn, 3003+1.5%Zn+Zr, 3003+0.5%Cu, 3005, etc
Cladding Material4343, 4343+1%Zn, 4045, 4045+1%Zn, 4004, 7072, 5005, etc
Clad Level4~18% (±1.5%)
TemperO, H14, H16, H18, H22, H24 , etc
SizeAs following specs sheet, or made on request
TypeSheet, Coil, Strip
Tensile StrengthDepending on temper, 95Mpa~235Mpa
Yield StrengthDepending on temper, 35Mpa~160Mpa
ElongationDepending on temper, 1%~15%

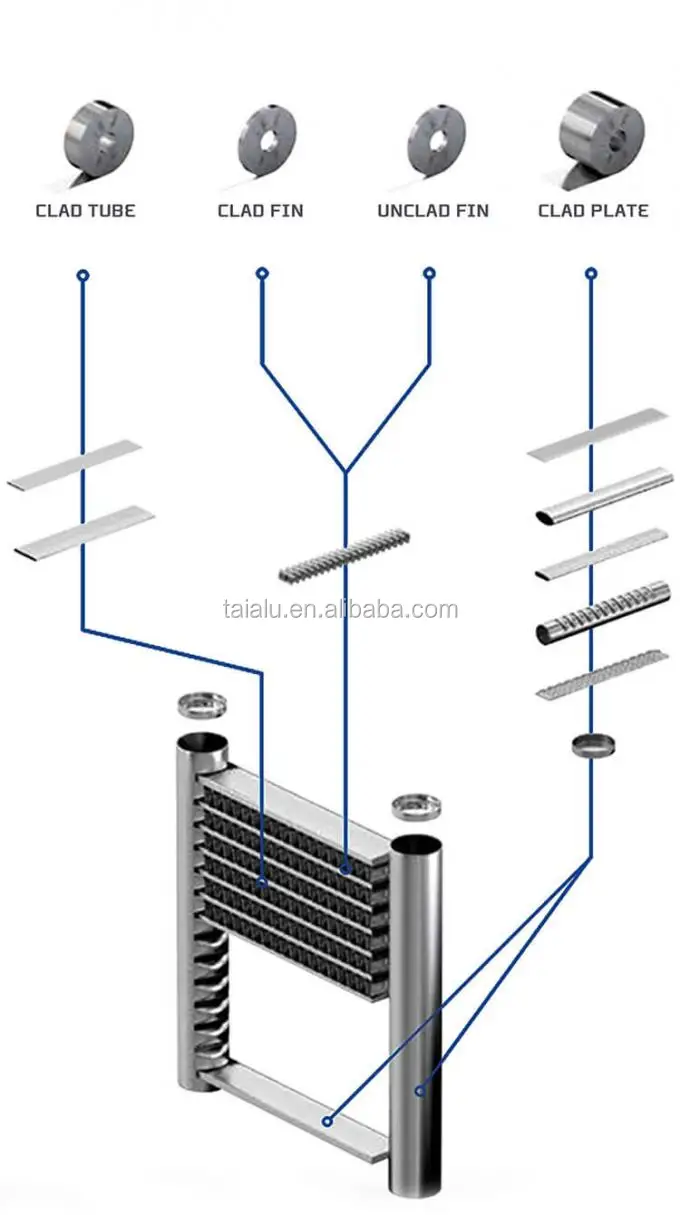

Main Application

Heat exchanger, auto radiator, charge air cooler, evaporator, condenser,

aluminium fin, header plate, HF welded pipe/tube, etc
