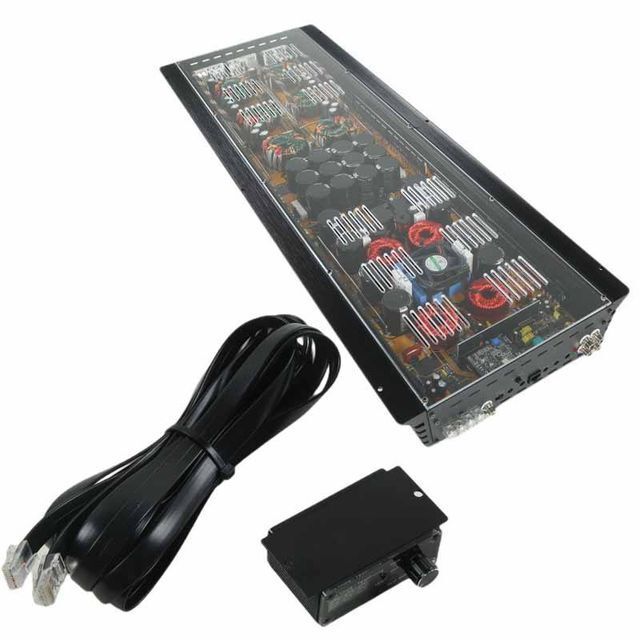

Teampie Tp-7500.1D Channel 1 Acrylic Cover car amp car amplifier 1 channel car sound amplifiers
- $710.00 / 1 - 2 pieces
$690.00 / 3 - 10 pieces
$660.00 / 11 - 20 pieces
$630.00 / >=21 pieces - 1 piece
- Guangzhou Teampie Electronics Co., Ltd.
- Guangdong, China
- Mr Mike Zeng
PRODUCT DETAIL
| Brand Name: | TEAMPIE; | Combination: | Crossovers; |
| OEM: | Support; | Single gross weight: | 22.000 KG; |
| Warranty: | 5 monthes; | Model Number: | TP-7500.1D; |
| Number Of Channels: | mono; | Selling Units: | Single item; |
| Packaging Detail: | Module in Bubble Bag , Pack in Carton Box; | Size: | 850*303*77MM; |
| Voltage: | 9-15V; | Type: | class D; |
| Color: | Black; | SNR: | 91 - 100dB; |
| Product name: | Car Amplifier; | Place of Origin: | Guangdong, China; |
| Package Preview: | ; | Frequency Range (Hz): | 15 - 270 Hz; |
| Single package size: | 97X45X21 cm; |
Products Description
PRODUCT SPECIFICATIONS | ||
MODEL NO. | TP-7500.1D | |
TYPE (FREQUENCY) | LOW RANGE | |
CHANNEL | 1 | |
OPERATING VOLTAGE (DC) | 9-15V | |
OUTPUT POWER (@14.4V/1 OHM) | 7500W * 1CH | |
OUTPUT POWER (@14.4V/2 OHM) | 4800W * 1CH | |
OUTPUT POWER (@14.4V/4 OHM) | 2600W * 1CH | |
INPUT SENSITIVITY | 0.2-6V | |
SIGNAL TO NOISE RATIO | ≥ 95 dB | |
FREQUENCY RESPONSE | 15 - 270 Hz | |
LOW PASS FILTER | 35-250Hz | |
SUBSONIC FILTER | 10-50Hz | |
PHASE REGULATION | 0 - 180° | |
MINIMUM LOAD ON SINGLE CHANNEL | 1 OHM | |
MINIMUM LOAD IN LINK MODE (MASTER/SLAVE) | 2 OHM | |
SIZE (CM) | 85*30.3*7.7 | |
N.W(KGS) | 19.5 | |
G.W(KGS) | 22 | |

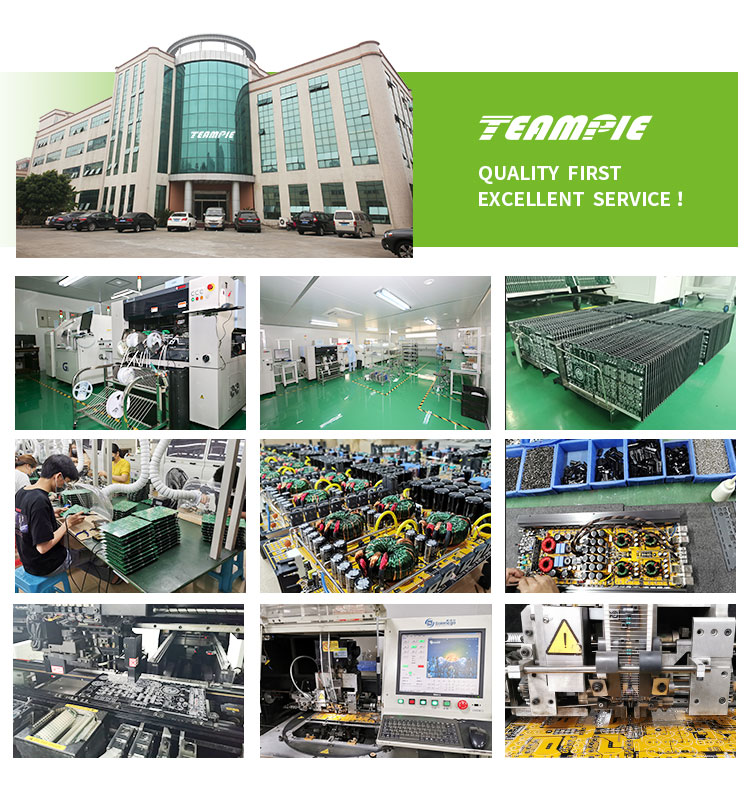

Company Profile
Our Advantages
Product packaging
Transportation

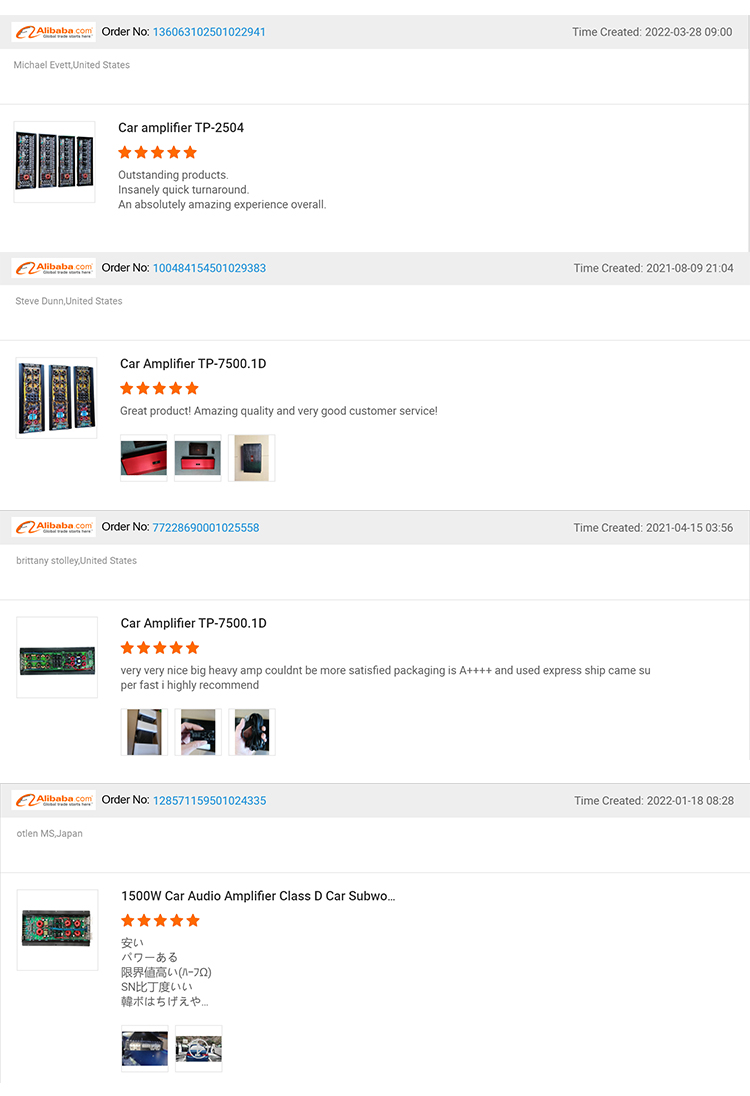

Customers' Feedback
FAQ

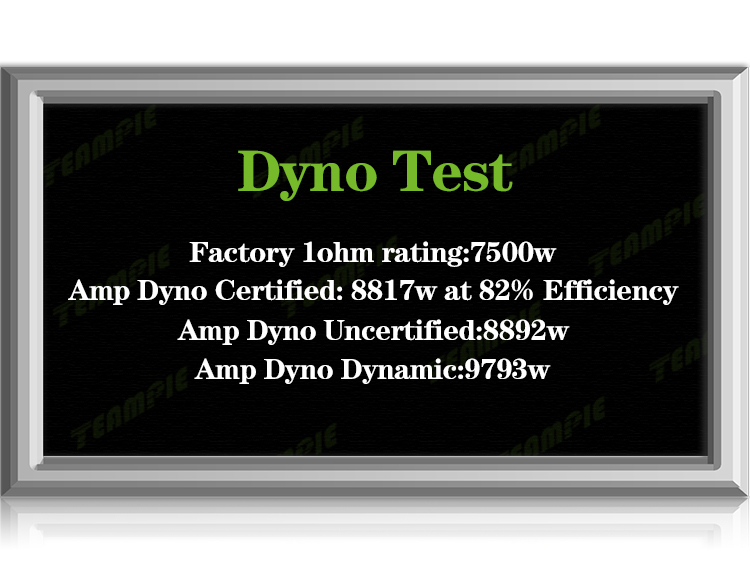

Q: Can you offer Dyno Test?
A: We can share the Dyno Test videos. The amps we make are RMS power output.
Q： Do you test all your goods before delivery?
A:Yes, we 100% test them before delivery.
Q: Can you make custom logo?
A: Yes, we can laser engrave your logo on the amps.
A: We can share the Dyno Test videos. The amps we make are RMS power output.
Q： Do you test all your goods before delivery?
A:Yes, we 100% test them before delivery.
Q: Can you make custom logo?
A: Yes, we can laser engrave your logo on the amps.
Q: Is there any warranty?
A: For SPL amps we provide 5 months’ warranty, but only if the amps are wired and run properly. We have some associated repairshops in the US.
Q: Can the amps handle 0.5ohm ?
A: For mono block amps, it’s 1 ohm stable. We can not guarantee the stability of wiring at 0.5ohm, it depends on the electrical. Some customers did wire at 0.5ohm or0.67ohm, but at their own risks.
Q: Can the amps handle 0.5ohm ?
A: For mono block amps, it’s 1 ohm stable. We can not guarantee the stability of wiring at 0.5ohm, it depends on the electrical. Some customers did wire at 0.5ohm or0.67ohm, but at their own risks.
Q: Does the amp come with a bass knob?
A: Model TP-7500.1D, TP-5500.1D, TP-4000.1D, TP-2000.1D, TP-2500.1D, TP-1500.2D have a same bass knob.
A: Model TP-7500.1D, TP-5500.1D, TP-4000.1D, TP-2000.1D, TP-2500.1D, TP-1500.2D have a same bass knob.
