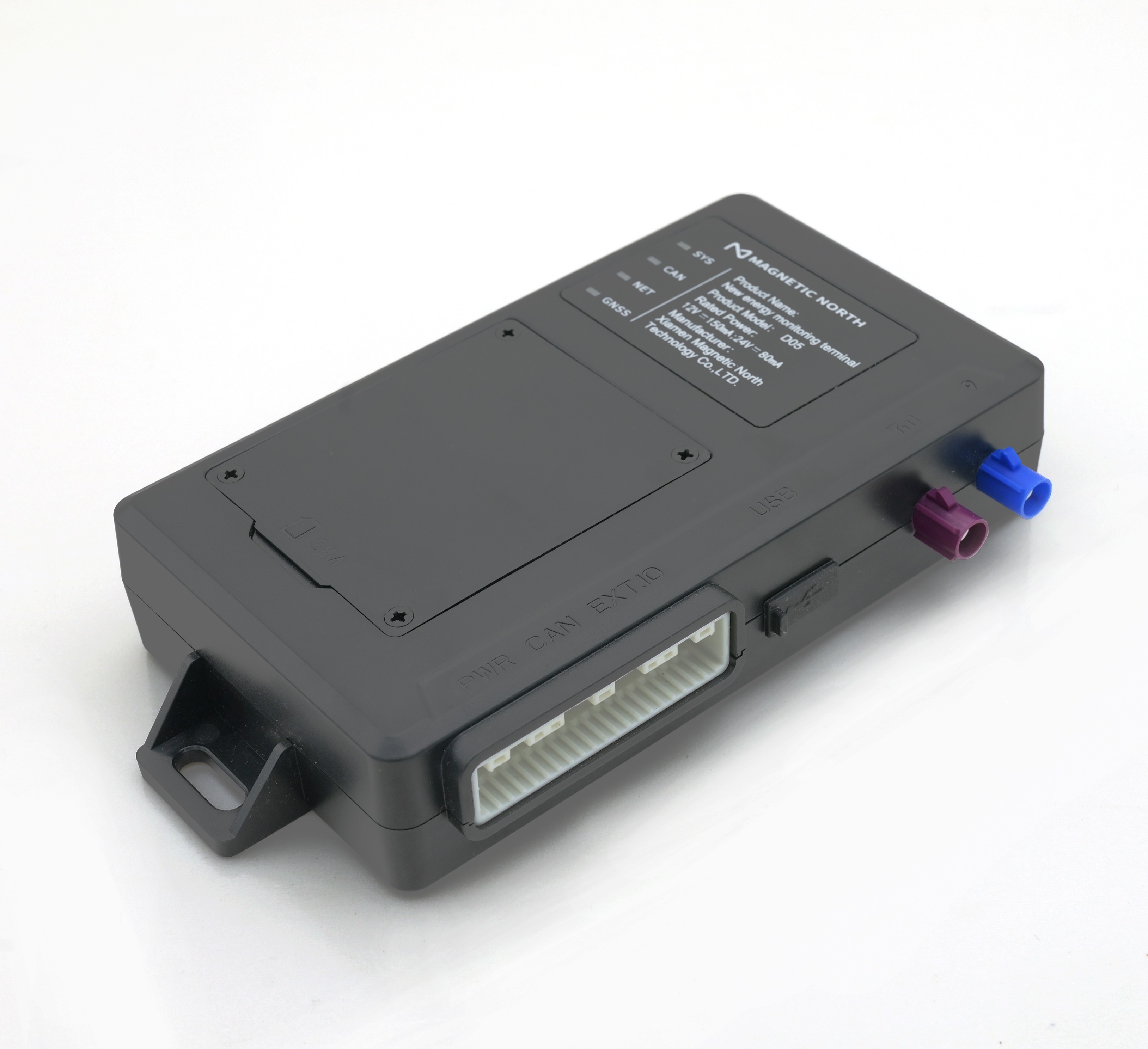

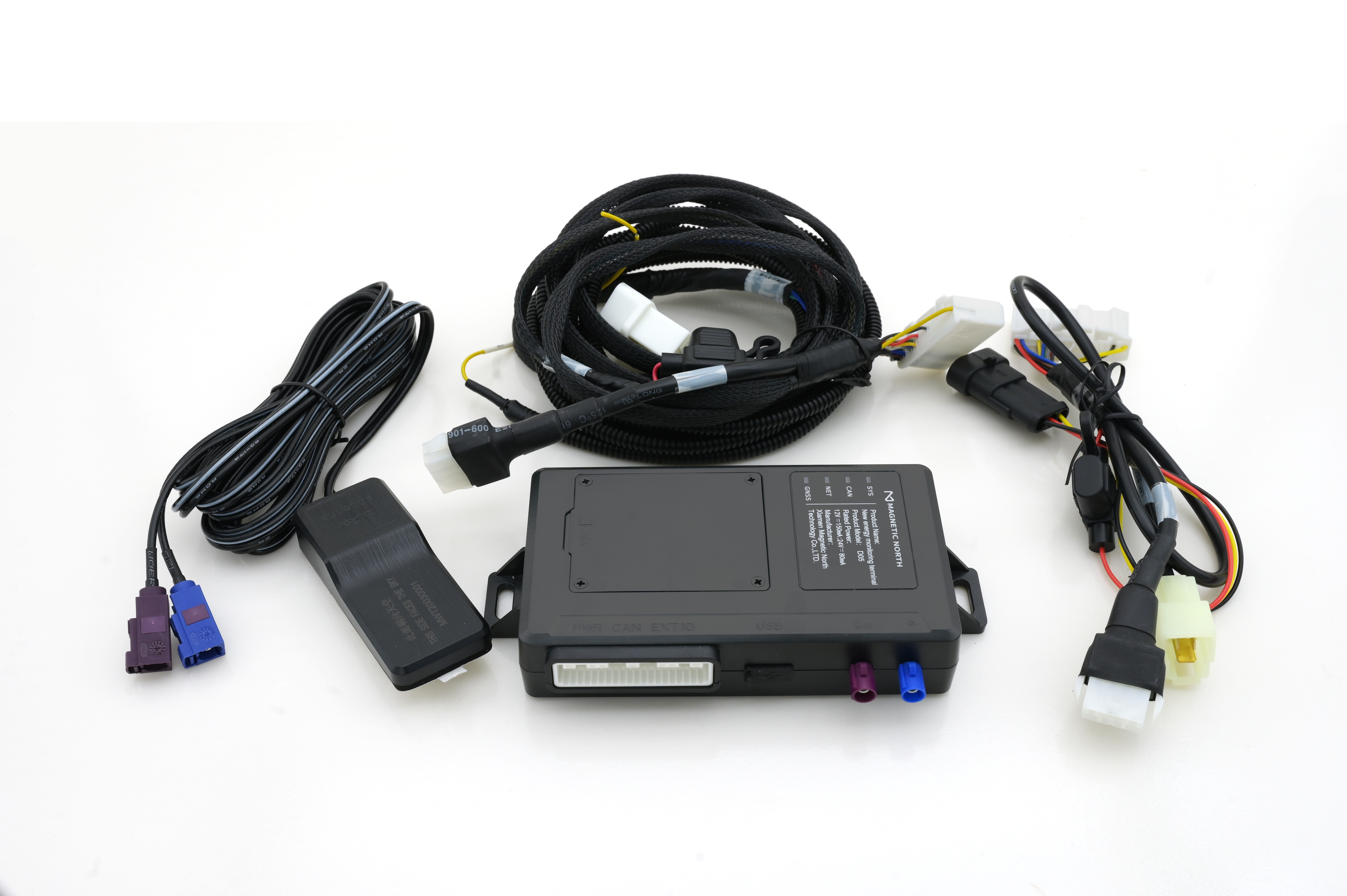

Telematics box for electric buses to detect battery data
- $285.00 / 1 - 99 pieces
$250.00 / 100 - 999 pieces
$220.00 / >=1000 pieces - 1 piece
- Xiamen Magnetic North Technology Co., Ltd.
- Fujian, China
- Mr xinfu Wang
| able: | dual port | Global Navigation Satellite System: | GPS, BD |
| Year: | common | Warranty: | 1 year |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Chip type: | China |
| Package preview: | frequency band: | - | |
| Voltage: | DC: +9V～+36V, typically 12V/24V | Model: | common |
| Function: | fleet management | Telematics: | 4G |
| Auto Parts: | common | Supply capacity: | 50000 pieces per month |
|
thing |
describe |
|
|
communicate module |
Network Type |
Compatible with 4G/3G/2G |
|
SIM card |
Standard SIM card |
|
|
GNSS module |
Cold start |
≤30 seconds |
|
Hot Start |
≤2 seconds |
|
|
take back time |
≤2 seconds |
|
|
GPS accuracy |
CEP≤2.5m |
|
|
Measurement accuracy |
Speed≤1.0m/s |
|
|
sensitivity |
Capture -144dBm, Tracking - 159 decibels |
|
|
GNSS frequency |
BD1 B1/GPS L1 |
|
|
navigation Data Format |
National Marine Environment Administration 0 183 |
|
|
communication port |
RS232 |
2 ports |
|
input signal |
1-5 port, high effective (range: 6~32V), 6 port low effective (range: 0~1V) |
|
|
able |
2 ports |
|
|
USB host |
USB2.0 Type-A port |
|
|
storage module |
local storage |
8GB memory supports more than 7 days historical data records. |
|
encryption module |
security chip |
With EAL4+ level encryption chip |
|
power module |
operate Voltage |
DC: 9-36V, typical 12V/24V |
|
strength |
Working voltage: 12V/150mA; 24V/80mA Idle current: 12V/10mA; 24V/4mA Shutdown current: 10uA |
|
|
power output |
+5V, maximum current 300mA |
|
Package
Inner packing: carton, cardboard or according to customer requirements
Outer packing: carton
shipping
3 days for sample order, 7-10 days for bulk order
Shipping method: DHL, FedEX, UPS, EMS. By sea, by air or according to customer's suggestion
