Tenda O3 Wireless Outdoor 5km 2.GHZ 300Mbps Outdoor Bridge Switch 12dBi Antenna Range Wifi Bridge Router Repeater Access Point
- $23.00 / 1 - 19 pieces
$22.00 / 20 - 9999 pieces
$19.00 / >=10000 pieces - 1 piece
- Yiwu Jujiu Digital Technology Co., Ltd.
- Zhejiang, China
- Mr Jonda Mr
PRODUCT DETAIL
| product status: | in stock | Packaging details: | Packaging: Size: 61*40*41 CM/carton weight: 0.8KG/PCS, 18KG/CTN Packing: 20PCS/CTN - Wireless CPE *1 - PoE box *1 - Power adapter *1 - User guide *1 - Ethernet cable *1 - strip*2 |
| Model: | O3 Repeater Access Point | Warranty: | 1 year |
| Single piece packaging size: | 20X8X8cm | Place of origin: | Zhejiang, China |
| Wireless network security: | 64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) | Package preview: | |
| interface: | 2*10/100BaseTX interface | type: | wireless |
| Equipment type: | wireless access point | Sales unit: | Single product |
| Dimensions (length, width and height): | 193*109*61mm | product: | Wireless AP |
| Private mold: | No | antenna: | Built-in 12dBi dual polarized antenna |
| brand: | Tengda | Operating mode: | Access Point - Repeater Mode - Client Mode - WISP Mode |
| Gross weight of single piece: | 0.800kg |
|
flow control |
support |
|
internet control |
Internet-based MAC address control |
|
aspect |
270*94.86*67.5mm |
|

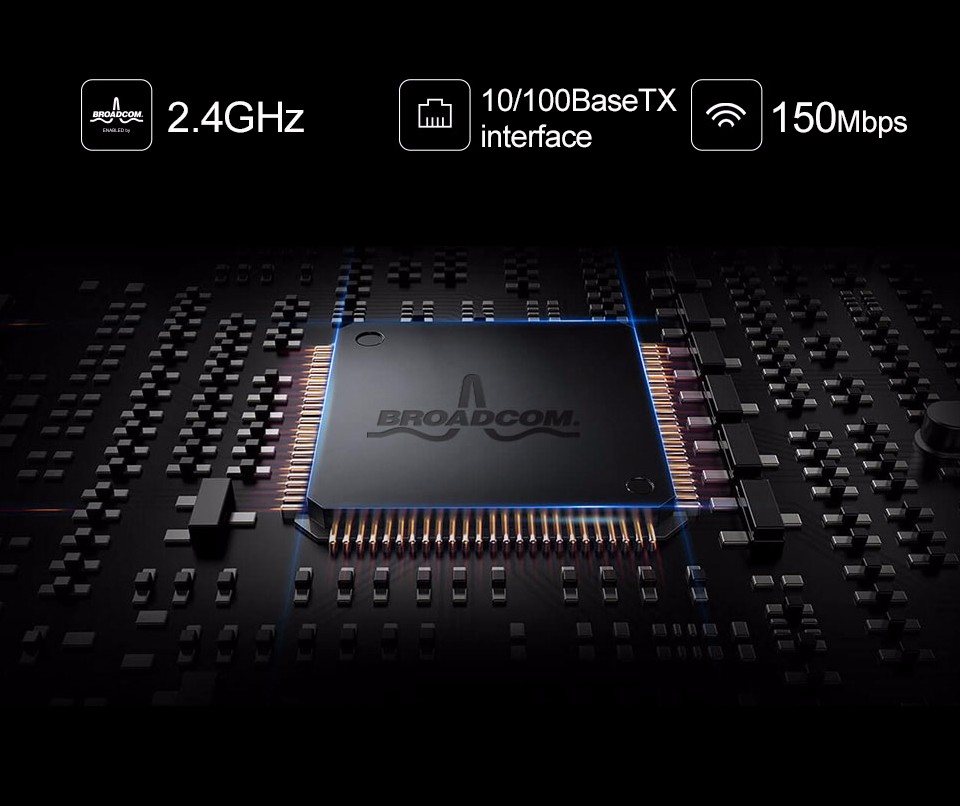

speed |
150Mbps
|
|
frequency |
2.4GHz |
|
protocol standards |
IEEE 802.11b/g/n |
|
Ethernet interface
|
2*10/100BaseTX interface
|
| Reset button |
1 *Reset button |
| lead |
1*SYS light, 1*PoE/WAN/LAN shared light, 1*LAN light, 1*bridging light |
| antenna |
12dBi directional antenna |
|
DHCP server |
support
|
| AP isolation |
support |
|
Client access restrictions |
Support wireless client RSSI threshold setting
|
|
Certification |
FCC/CE/RoHS |
An Xiaobao_3
product description

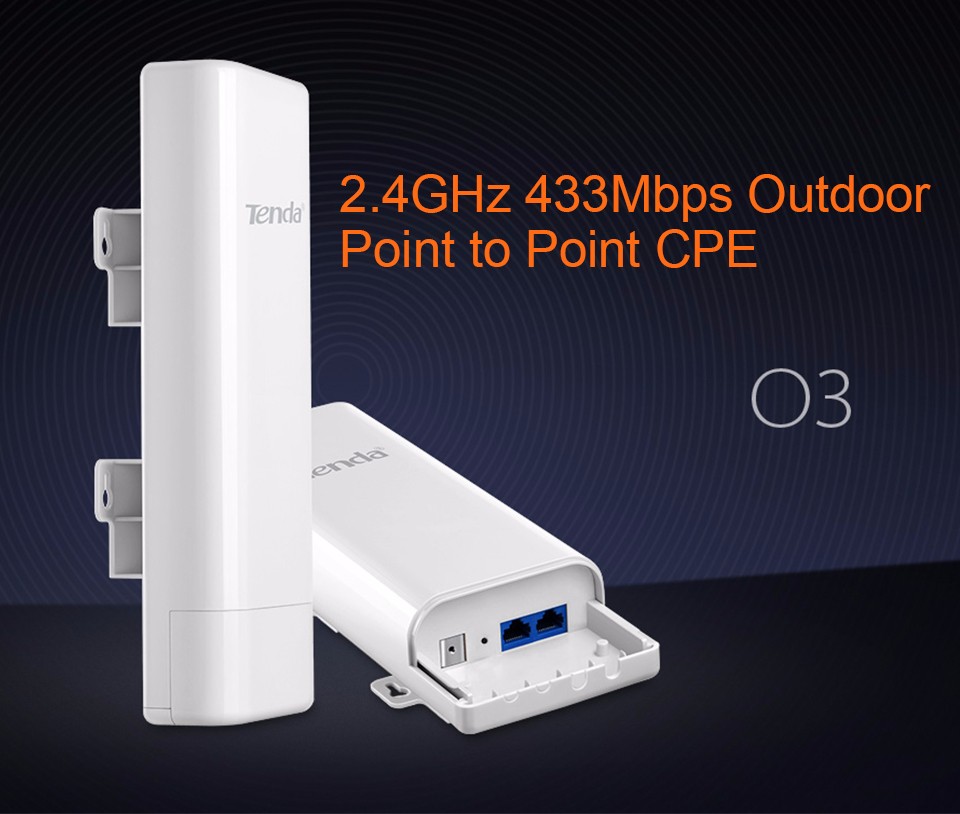

Tenda O3 5km outdoor point-to-point CPE is specially designed for WISP CPE solutions and long-distance wireless network solutions for video surveillance and data transmission. It has up to 800mW wireless transmission power and built-in 12dBi directional dual-polarized antenna, providing an effective way to pick up and maintain stable signals for wireless network connections in multiple locations.
main feature
- 2.4G 150Mbps
- IP64 waterproof housing
- 12dBi directional dual polarization antenna
- Support AP, Station, WISP and other working modes

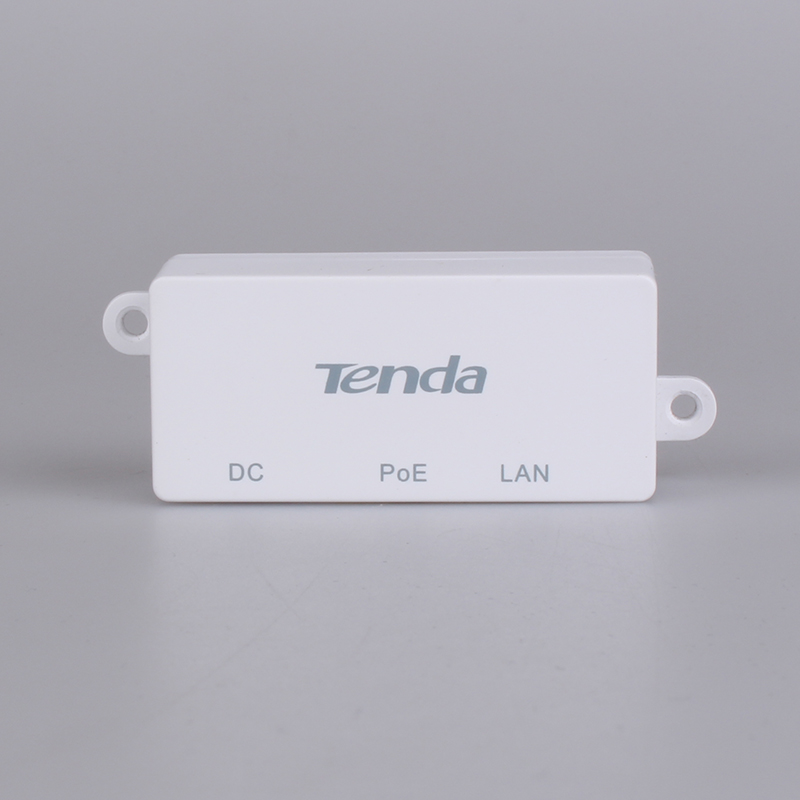

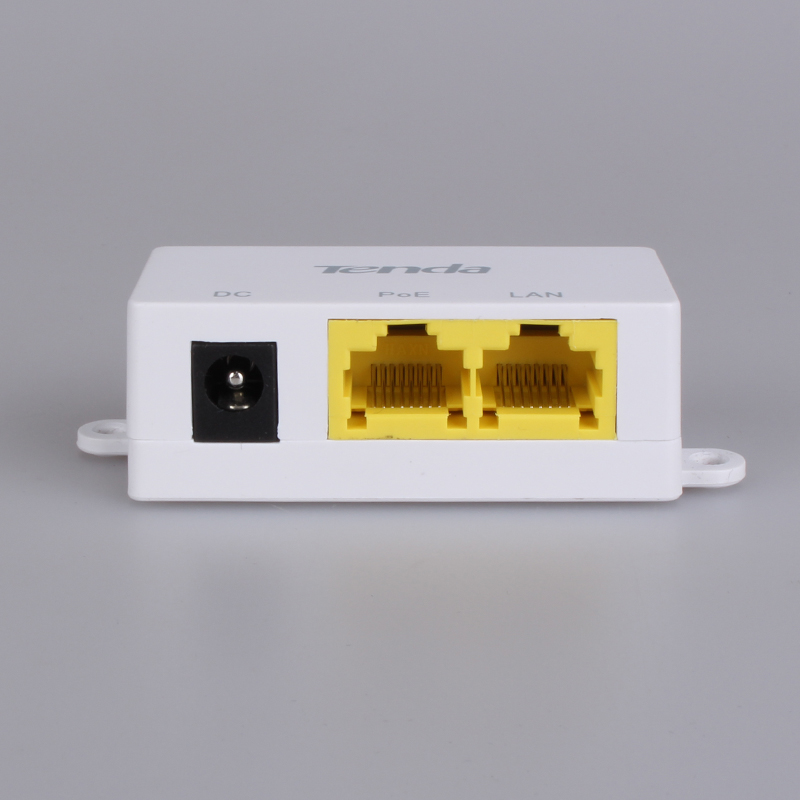

- Flexible deployment up to 60 meters using included PoE injector

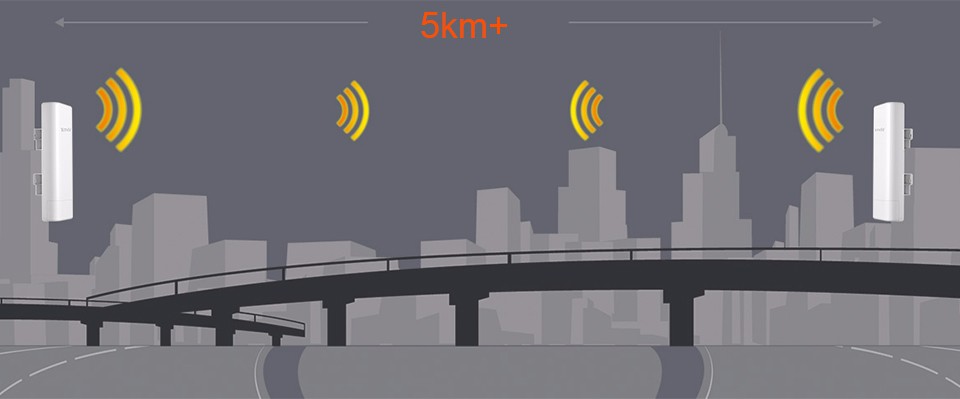

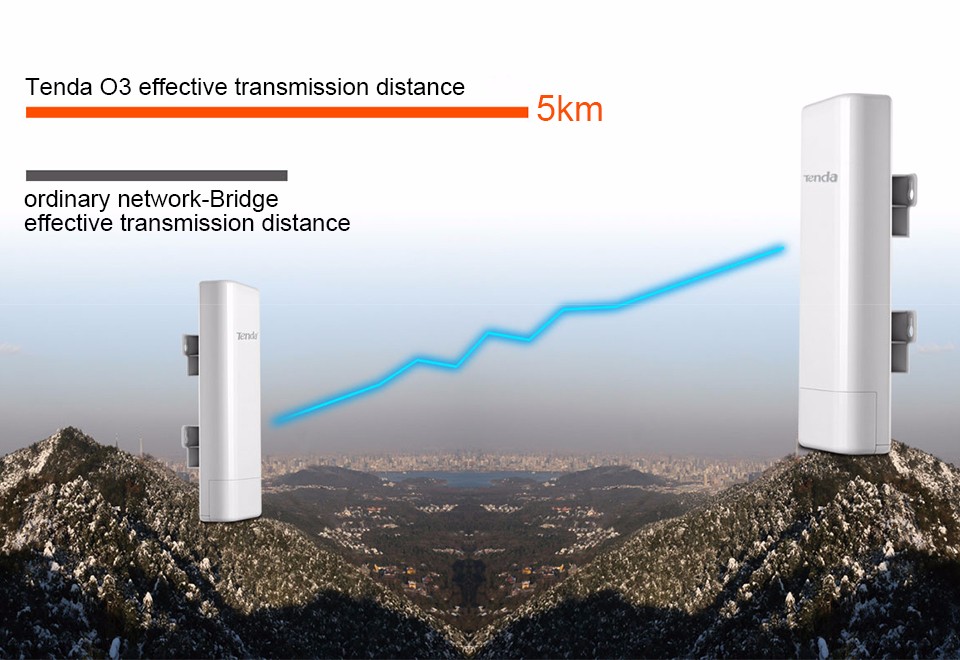

5km+ data transmission
O3 is specially designed for outdoor long-distance wireless data transmission. It uses an 800mW external power amplifier and 12dBi directional antenna to achieve a 5km+ transmission range.

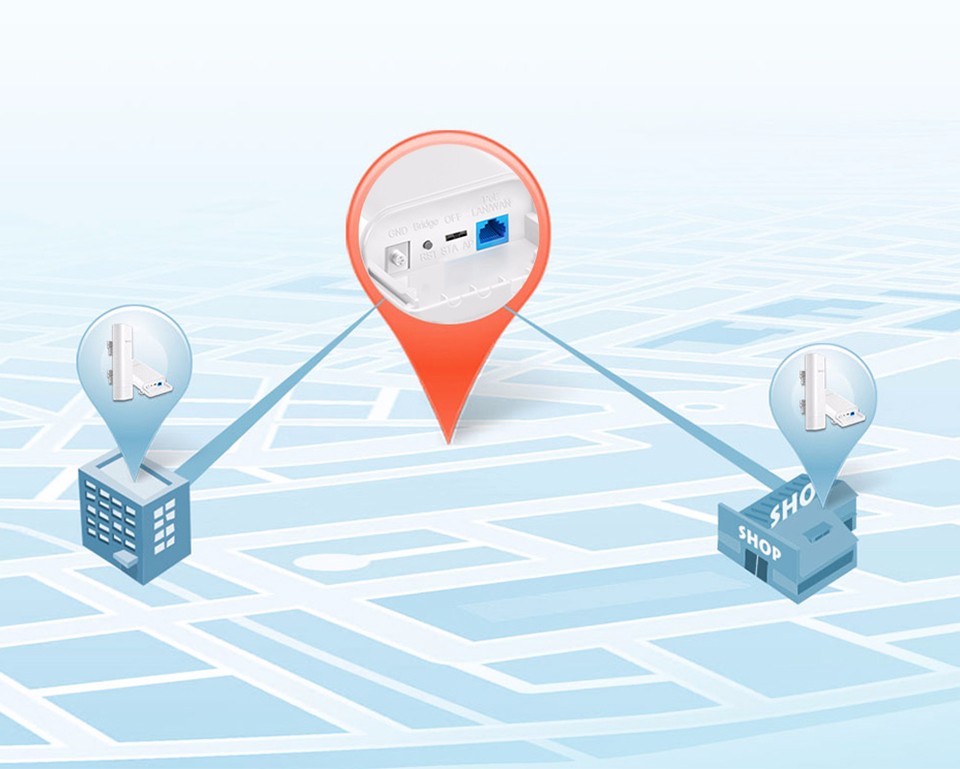

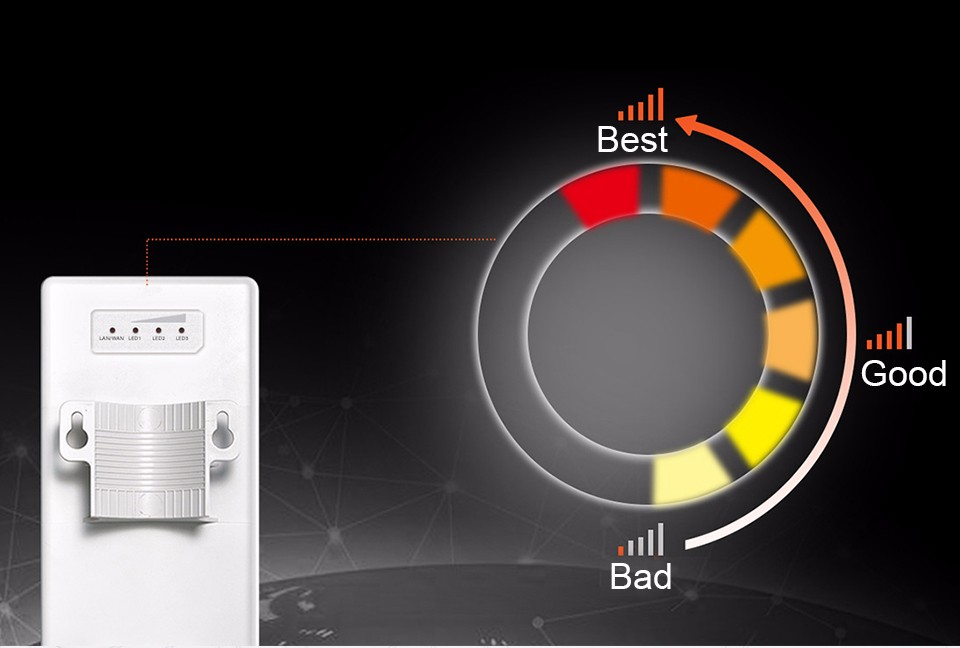

Intelligent signal indicator LED
The 3 signal LED lights represent the signal strength currently received by O3 from the peer device. This helps find the right location to deploy the device and get better performance.

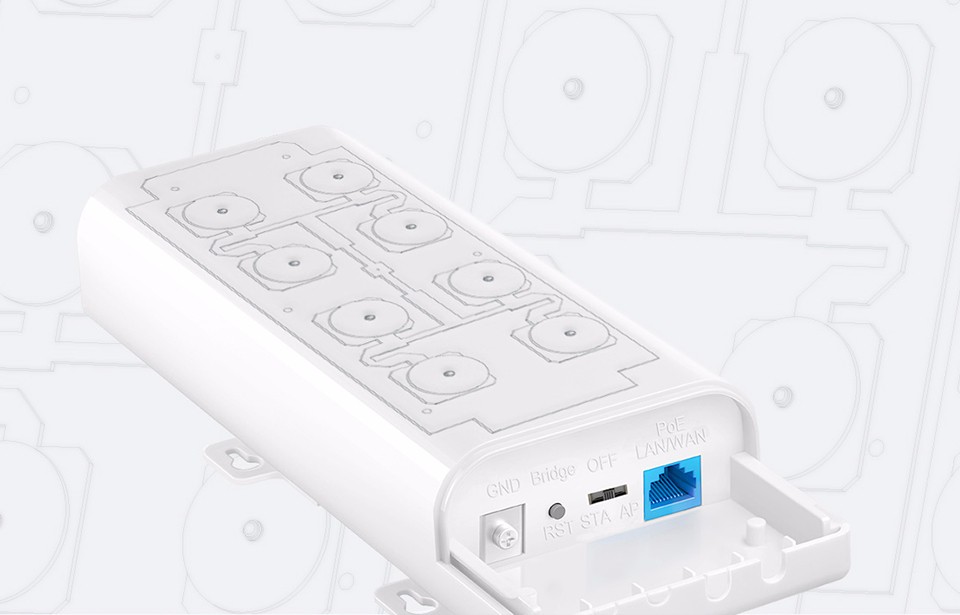

Advanced antenna system

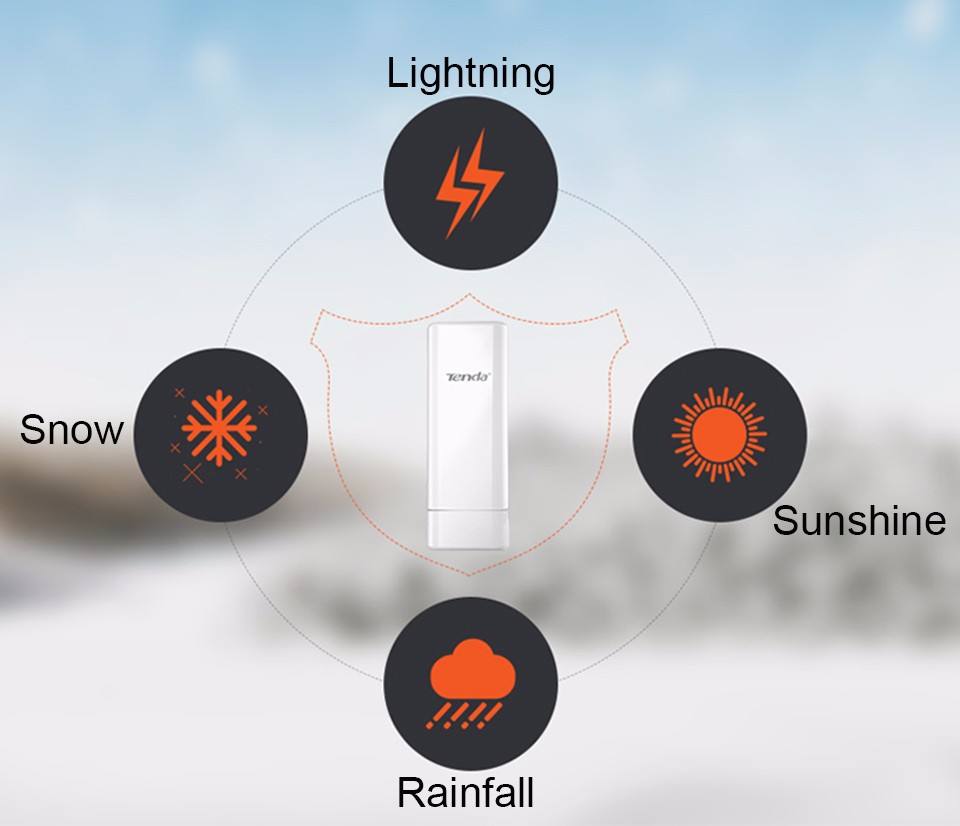

Professional outdoor design
Equipped with IP64 waterproof housing and 6kV lightning protection, O3 can work in various weather conditions, such as sunshine, rain, wind, snow or extremely low/high temperature environments.

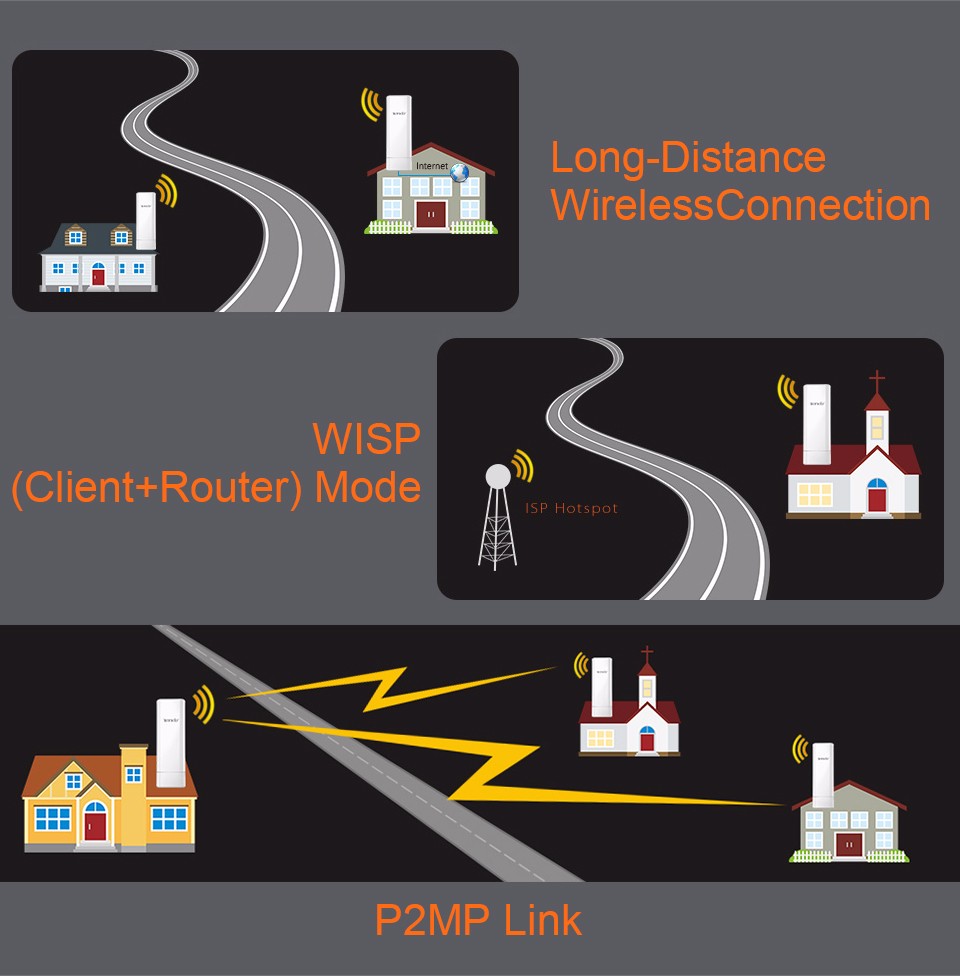

Various application scenarios
- Long distance wireless connection
One acts as AP mode and the other acts as Station mode to create long-distance wireless connections for video surveillance and data transmission.
- WISP (client + router) mode
Wirelessly connect to WISP stations/hotspots to share internet to local wireless and wired networks.
- point-to-multipoint link
By linking multiple APs in a network, all associated clients can communicate with each other.

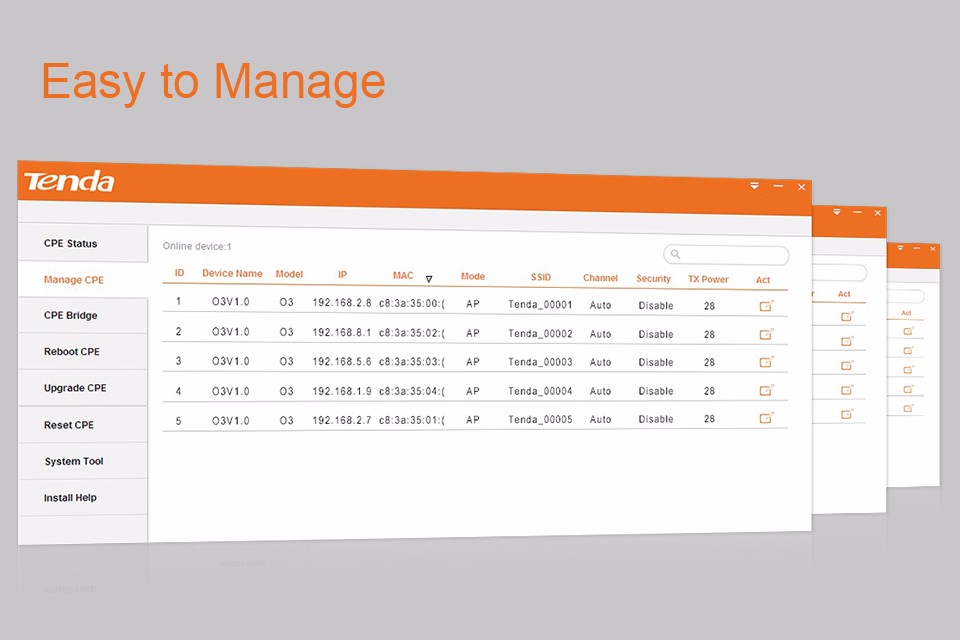

Easy to manage
O3 also comes with centralized management software that helps users easily manage all devices in the network from a single computer -Continuing Education Assistant

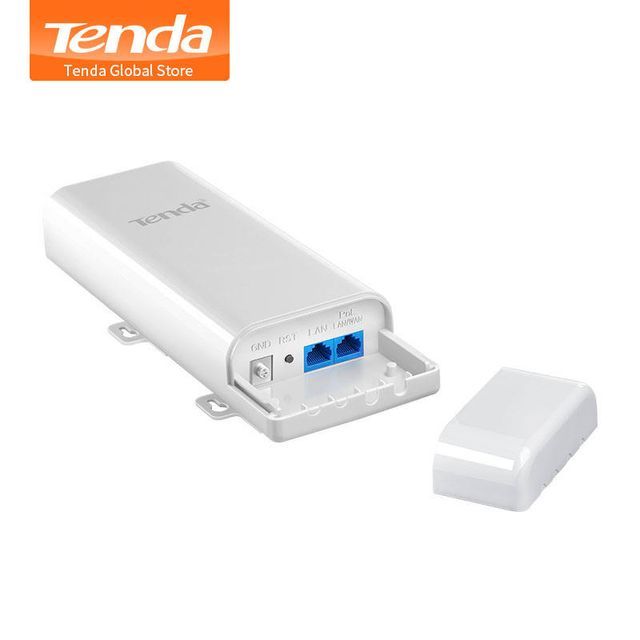

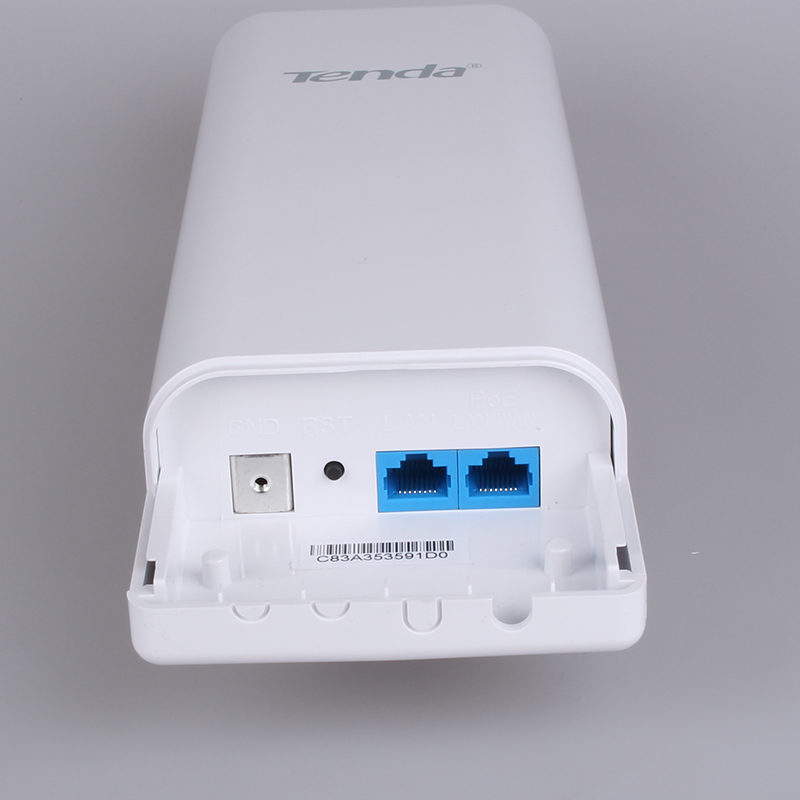

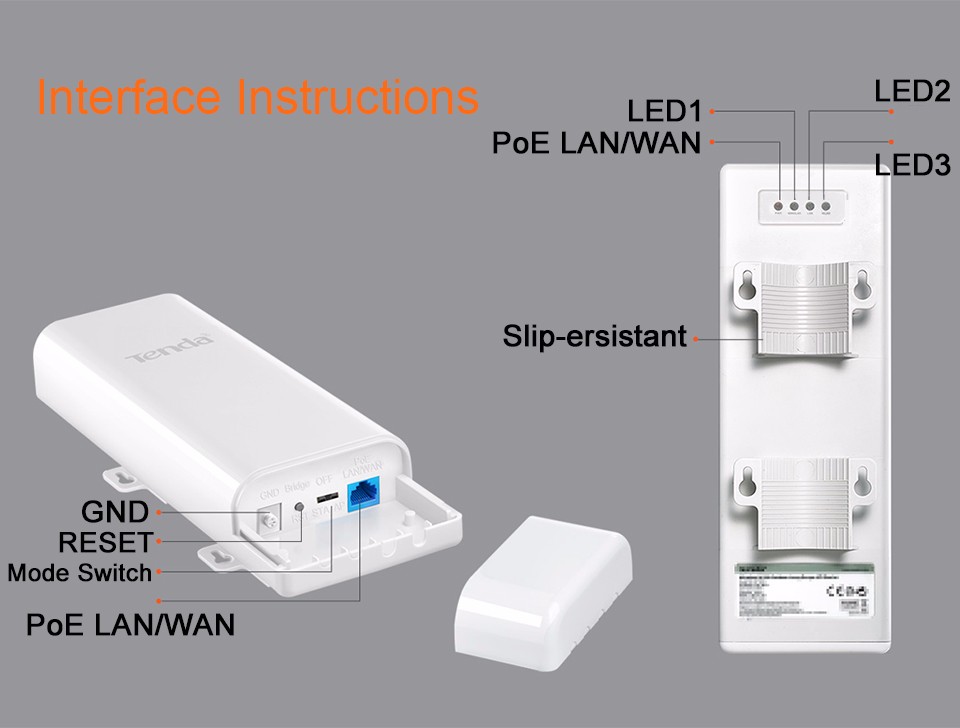

Interface Description

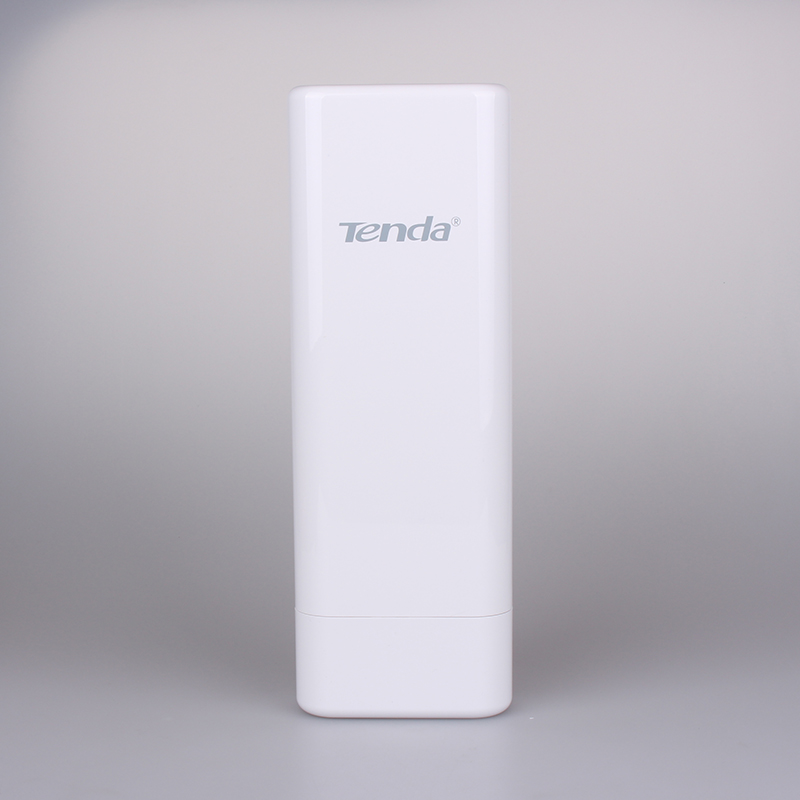

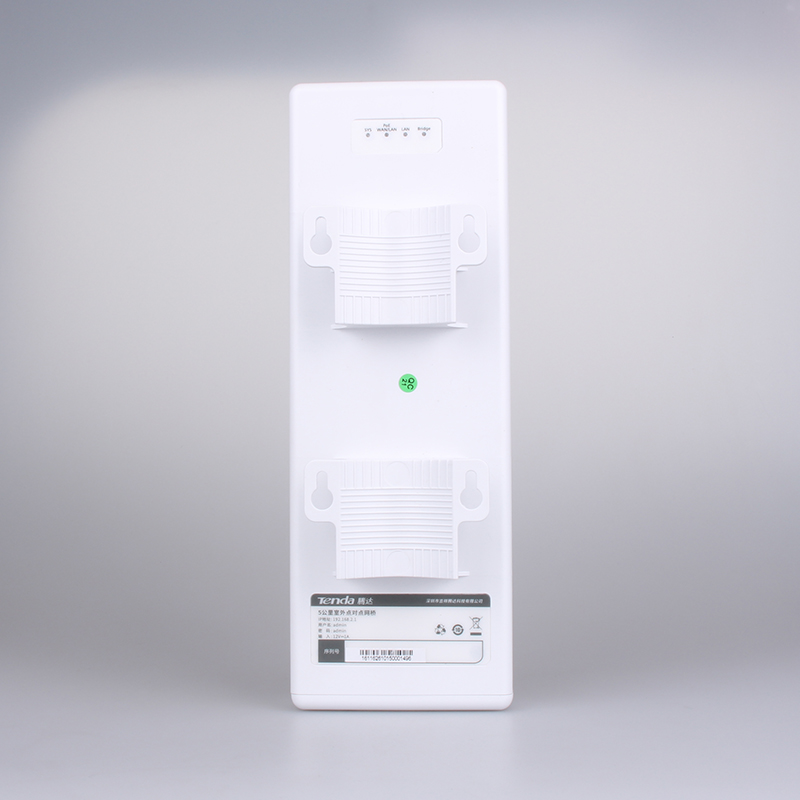

Product display
