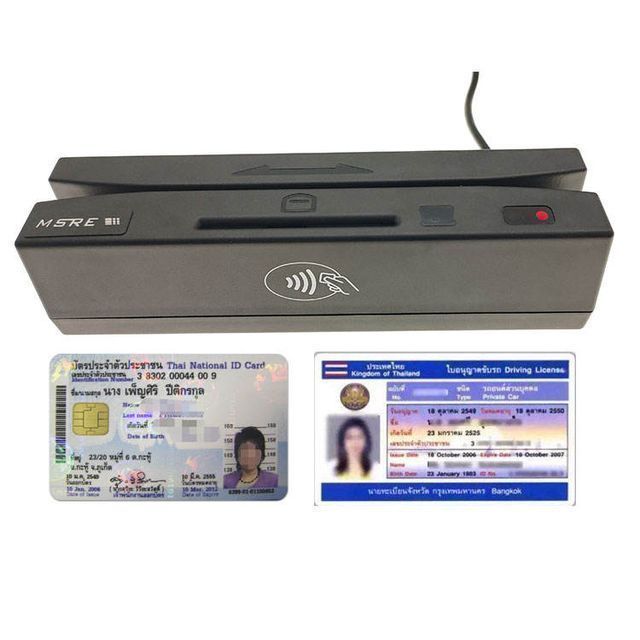

Thailand Thai National ID Card Chip Card and Magnetic Driver License Card Reader F730
- $35.00 / 1 - 9 units
$32.00 / 10 - 99 units
$30.00 / 100 - 499 units
$27.00 / >=500 units - 1 unit
- Shenzhen Prova Tech Co., Ltd.
- Guangdong, China
- Mr Ryan Tsao
PRODUCT DETAIL
| Packaging Details: | 50pcs/carton, 11.5kgs/carton | Model: | F730 |
| Card Standard: | ISO/IEC7811/AAMVA, ISO7816 | Origin: | Guangdong, China |
| brand: | Prova | interface: | USB / RS232 optional |
| product name: | Thailand Driver's License Card and ID Chip Card Reader | aspect: | 171mm x 43.5mm x 42mm |
| port: | Shenzhen | payment terms: | wire transfer |
| Package preview: | power supply: | DC 5V | |
| color: | Black | Supply capacity: | 10000 pieces per month |
| Function: | Read Thai Driver's License Card, National ID Card |
Product Usage
Connect to GPS for driver authentication;
Read Thai driver's license card magnetic data (ISO & AAMVA);Automatically read the chip field of the Thai ID card by simply inserting it;
Product Description
Overview:

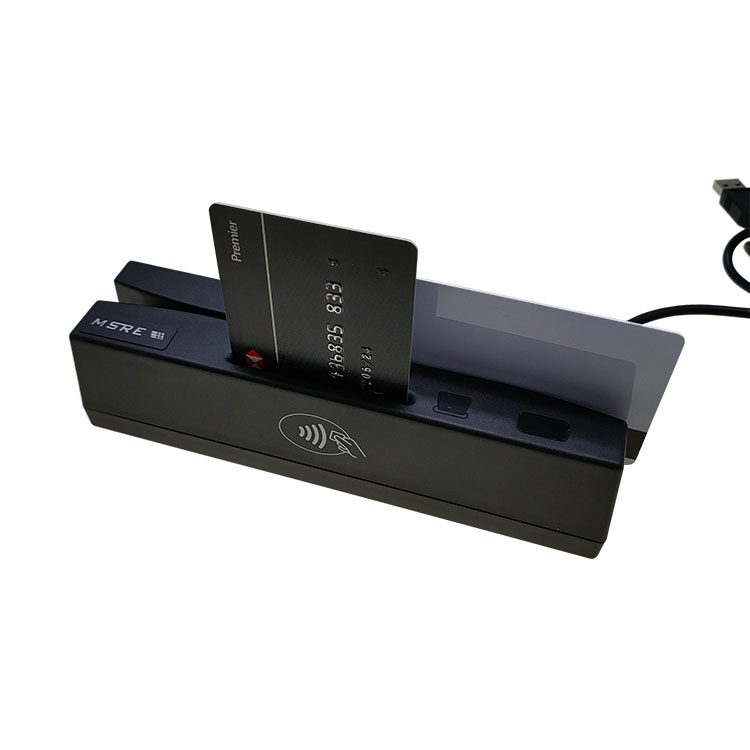

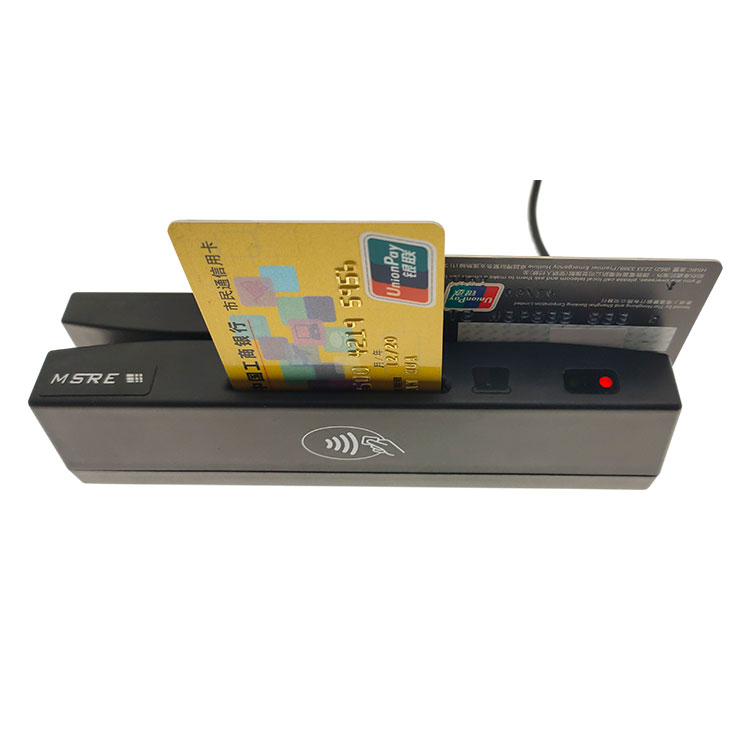

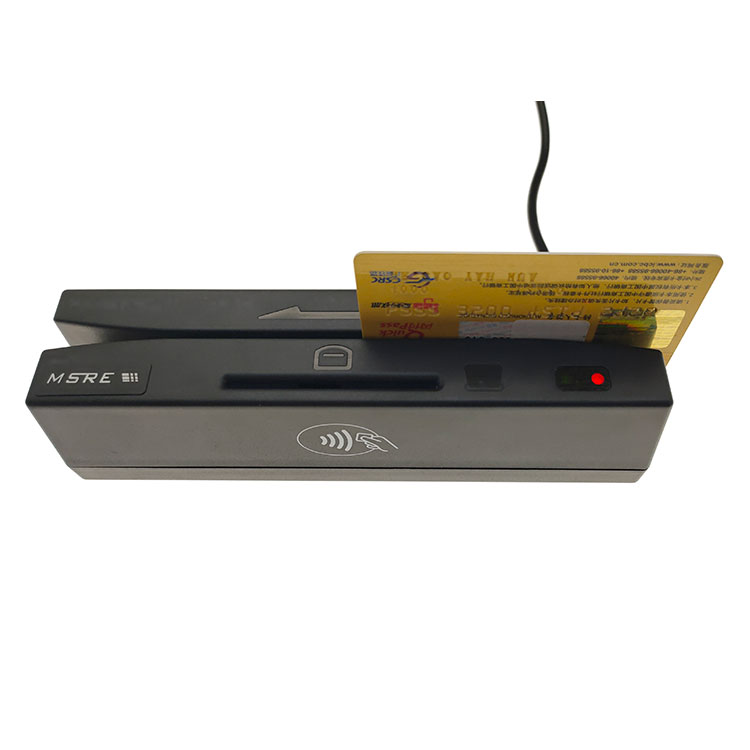

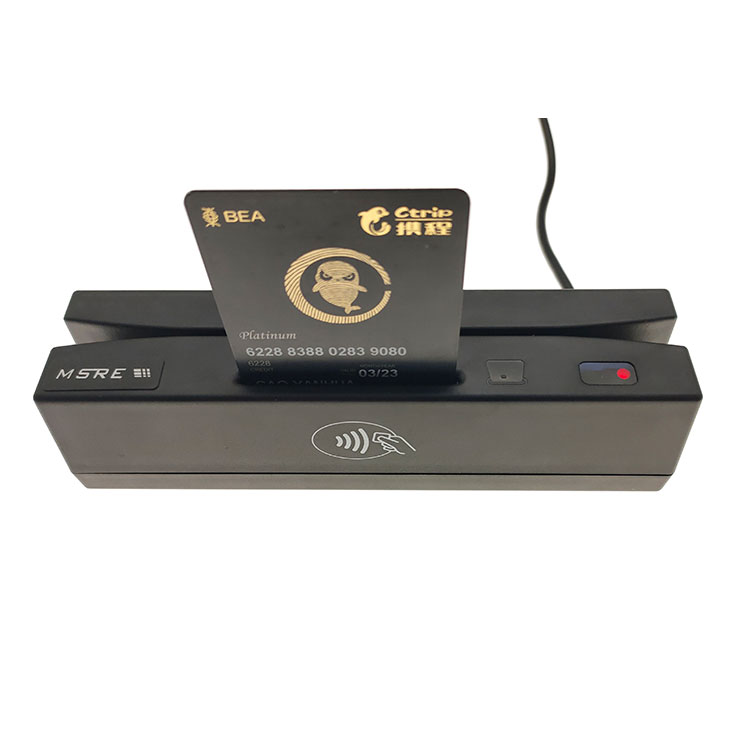

F730 is a multi-functional four-in-one card reader, which supports magnetic card and contact IC card, contactless and PSAM card are optional. Developed under the ARM Cortex M1 platform, the card reading speed is fast, the efficiency is high, and the use is convenient.
F730 complies with ISO/IEC7811, ISO/IEC7816 standards and EMV2000 standards.
F730 complies with ISO/IEC7811, ISO/IEC7816 standards and EMV2000 standards.

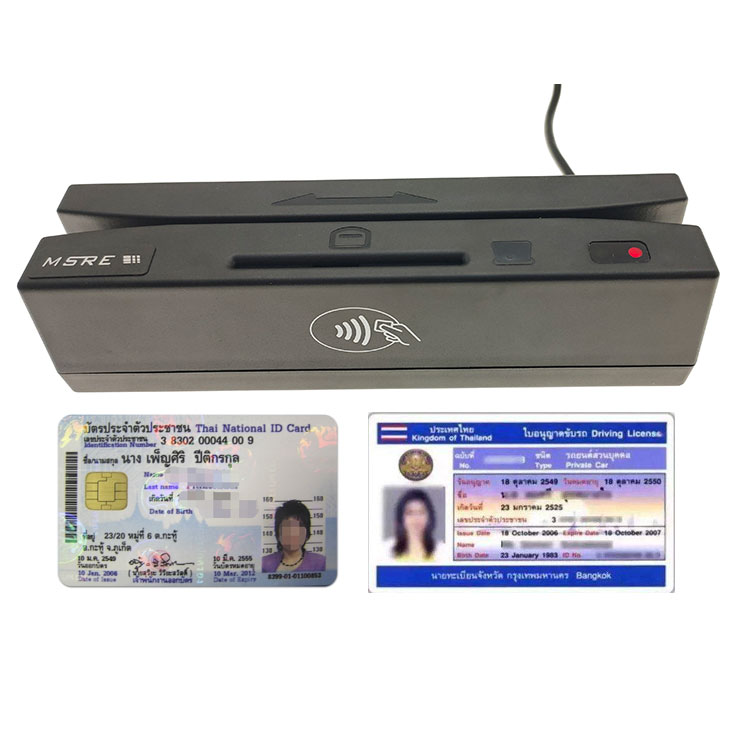

F730 can automatically read Thai ID card. It can be widely used in traffic management, Thai ID card recognition, driver's license card recognition and other fields. It can be connected to PC, tablet, GPS or other terminals.
project | Specification | |
interface: | RS232: Baud rate9600/115200 bps, (9600/115200, 8, None, 1) | |
USB: The chip card is CCID (USB-PC/SC) mode; Magnetic card supports HID keyboard mode & HID compatible mode | ||
power supply: | RS232: External power supply can support DC 5V~24V ±10%, 100mA; 12V and 24V available for buses and trucks; | |
USB: USB 5V power supply, 100mA | ||
cable length: | 1.5m | |
working environment: | 0℃～50℃, Humidity: 15%～85% | |

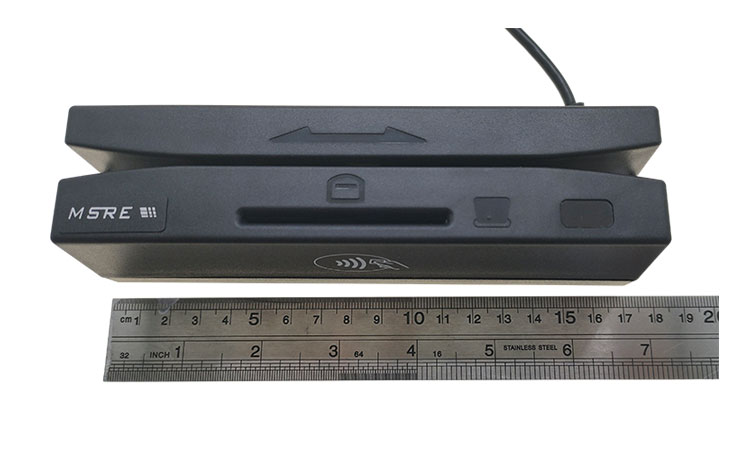

Dimensions (length x width x height): | 171mm×43.5mm×42mm | |
Magnetic card module (Support customized output of Thai driver's license card) | ||
standard: | ISO/IEC 7811 | |
Swipe speed: | 10cm/s ~ 120cm/s | |
Swipe times: | > 600,000 swipes | |
Magnetic stripe data standard: | Compatible with IBM/ISO/AAMVA | |
Data Density: | Track 2 75BPI/210BPI, Track 3 210BPI | |
Contact Chip Card Module (Support customized reading of Thai national ID card) | ||
Supported card types: | Logic encryption card and CPU card conform to ISO/IEC7816 standard; T=0, T=1 CPU chip card conforms to EMV2000, PBOC2.0 standard | |
Chip card supply voltage: | 5V/3V/1.8V, current <50mA | |
Baud rate: | 9600bps~38400bps | |
Chip card contactor: | 8 contactors, support short circuit protection, contact force 0.4N±0.1N | |
Contactor life: | >300,000 plugs | |
detailed drawing

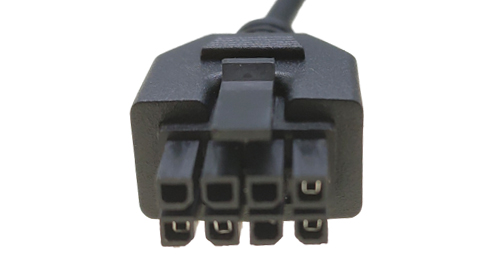

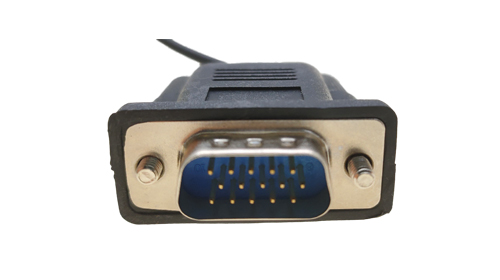

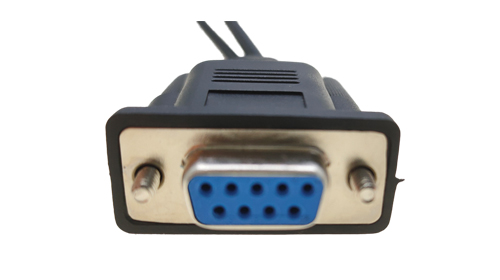

Multiple connectors available for different terminals (GPS).
Connectors can also be customized by customers according to different projects.

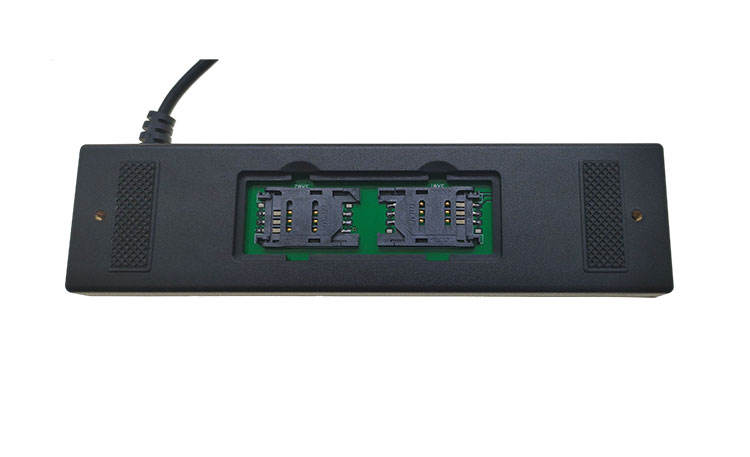

Support 2 SAM card slots
Wider housing accommodates full-size chip card slots
