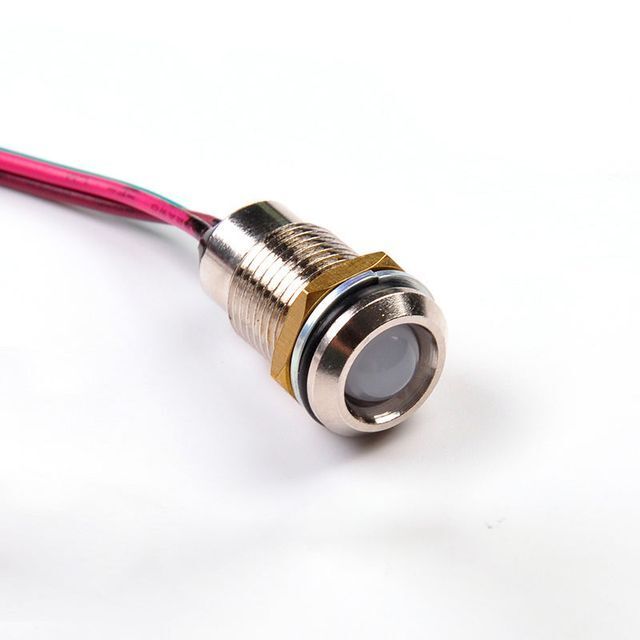

Toowei Metal led indicator light ip67 panel mount 12mm 6V 12V 24V 110V 220V Lamp Indicator Green
- $1.10 / 100 - 2999 pieces
$1.05 / 3000 - 4999 pieces
$1.01 / 5000 - 9999 pieces
$0.96 / >=10000 pieces - 100 pieces
- Zhejiang Toowei Electronics Co., Ltd.
- Zhejiang, China
- Mr Ray Jin
PRODUCT DETAIL
LED color: | Green; | Supply Ability: | 30 Cartons per Week; |
Body material: | Metal; | Terminal type: | Wire Leads; |
Package Preview: | ; | Model Number: | Z8121.92; |
Payment Terms: | Western Union,T/T,PayPal; | Port: | ningbo/shanghai; |
Place of Origin: | Zhejiang; | Brand Name: | Toowei; |
Mounting hole diameter: | 12mm; | Led voltage: | 12/24/36V/48V/110V/220V; |
Wire length: | 200MM; | Packaging Detail: | 500PCS/Carton; |
Products Description
Brass alloy shell, surface electroplated bright nickel treatment, corrosion resistance, vibration resistance, impact resistance. High-brightness LED illumination, basic light color 5 (red, green, yellow, blue, white) other colors can be customized.Waterproof, oil-proof and dust-proof grade IP67 above the installation. Small size, exquisite appearance, economical andcost-effective. From the diameter of 6MM to 16MM specifications, rated voltage 2 ~ 220VDC, widely used in a variety ofelectronicand electrical equipment.

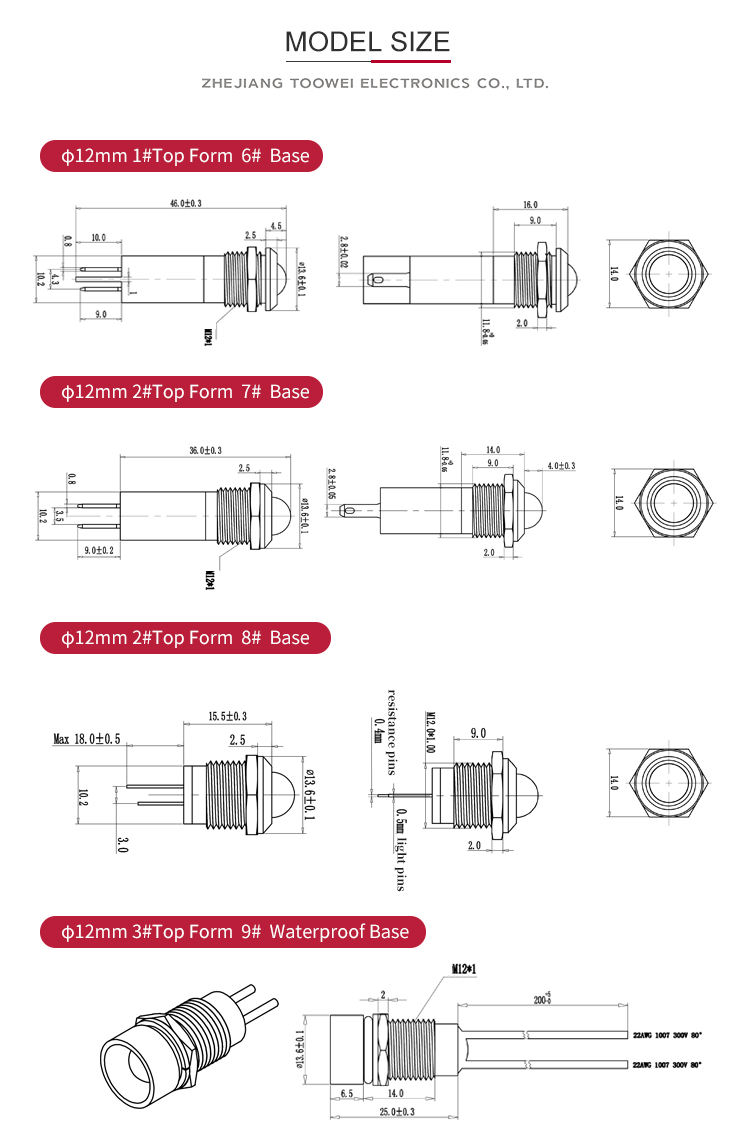

Part Number | 8121.92 |
Dimensions | 12MM |

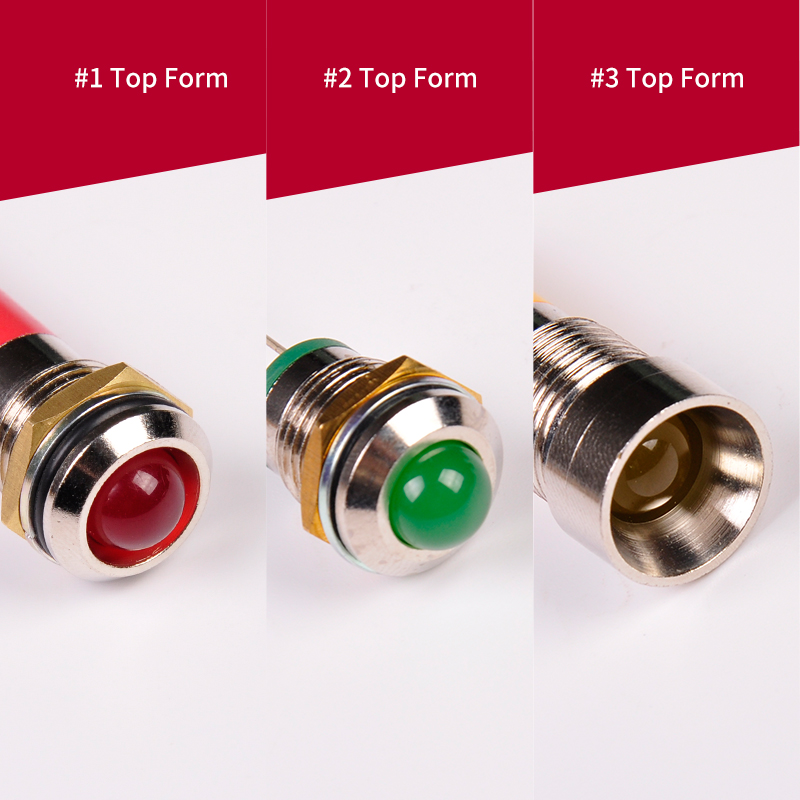

Top form | 1# Top form |

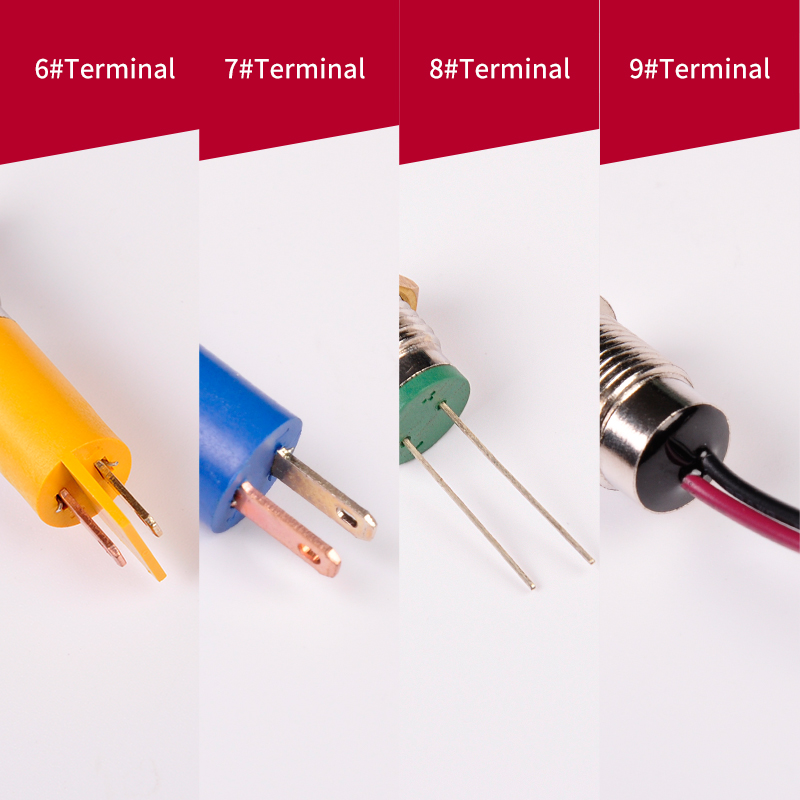

Base form | 9# Base form |
Colors can be selected | Red, Green, Yellow, Blue, White |
Rated vpltage | 2.4-220VAC/DC |
Insulation resistance | 100MΩ (Minimum value) |
Dielectric strength | 1000V RMS (Minimum value) |
Base material | DuPont Nylon |
Details Images
1. Rating Current:20mA ; Rating voltage: 2.4v-220v
2. 500VAC/Min between pins and housing . Insulation resistance ≥100M Ω
3. Withstand voltage: 1000-1500V 50/60Hz min Leakage current: 3mA
4. Bright nickel plating on the outer surface of the casing
5. Waterproof degree: IP67
6. Environment temperature: -25 ~ 85 ℃
7. Light bulb: 8mm
Light colour: Green
8. Use life: ≥ 50,000 hours ( weeken by 30% after half a year of use )
9.Wiring methode: Red line, green line represent red and green lights, black is public line (negative electrode)
10. Installation size: 12mm
