Two-channel DC motor encoder with Hall sensors

PRODUCT DETAIL
brand:Futectheory:Hall sensor
Matching motor shaft:Diameter 2mmpayment terms:Letter of Credit, Wire Transfer, Paypal
output:digital sensorplace of origin; place of origin:Guangdong, China
usage:speed sensorport:Shenzhen
output signal:3ppr/12ppr/16pprMagnetic wheel diameter:14mm
Supply capacity:100000 pieces/monthPackaging Details:custom made
model:FT-E20Board diameter:20mm

5V - 24V 2-Channel DC Motor Encoder with Hall Sensors

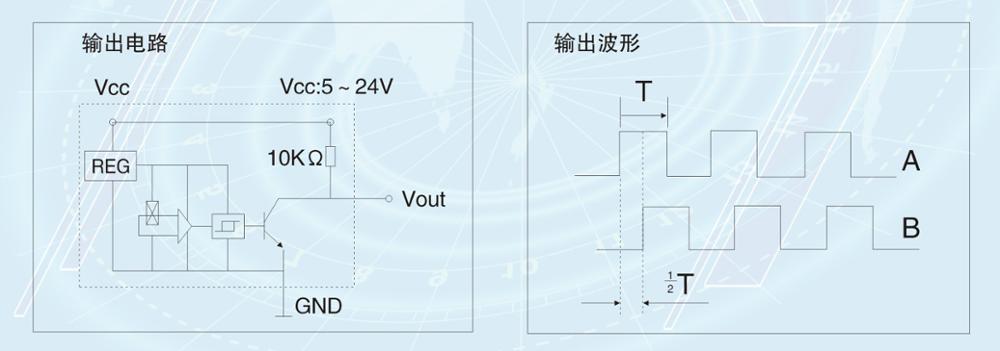

Output circuit and waveform

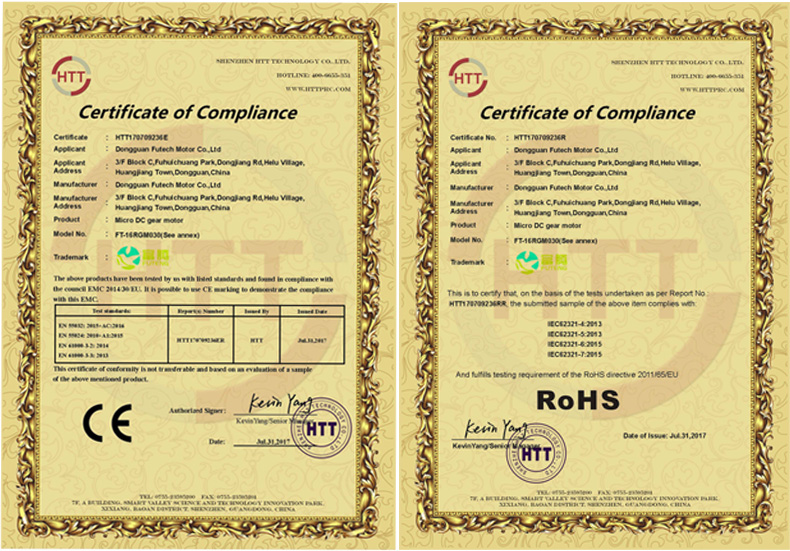

Certificate: CE and ROHS



FAQ

Q: Can you make motors to custom specifications?

A: Yes, in fact, this is what we are good at.

Q: Can the output shaft of the motor be changed?

A: Yes, no problem.

Q: Does the motor rotate in both directions (CW and CCW)?

A: Yes, it does.

Q: What is the main difference between a spur gear motor and a planetary gear motor?

A: Generally speaking, planetary gear structures are much stronger than spur gears. Therefore, a planetary gear motor can withstand higher torque than a spur gear motor of the same size.

Q: What is the lead time for samples?

A: It depends on the situation, usually 1~2 weeks.

Q: What is the lead time for mass production?

A: 3~4 weeks if there are no additional requirements.

Q: What is the minimum order quantity?

A: There is no MOQ! Any amount is acceptable.

Q: Do you have quality control?

A: Yes, it is required. We do 100% inspection of all motors.

Q: Do you have a warranty?

A: Yes, one year.

Q: Are you a real factory?

A: Yes, we are.

Q: How much does the sample cost?

A: We don't expect to get any profit from samples. Please contact us and we will notify you.

Q: What are your payment terms?

A: 30% deposit, balance paid before shipment or according to shipping documents.

Q: Do you accept PayPal?

A: Yes, but only for samples and a small fee.

Q: How do you handle the goods?

A: a) For samples and small quantities, we recommend FedEx and UPS express door to door. It's very fast, safe and convenient.

b) For mass production, we recommend shipping by sea and air and using FOB/CIF/CFR terms.

Q: I don't know much about motors, can you recommend me a motor?

A: Of course. Usually we will ask you some questions about application, size, rated voltage, load/no-load speed, load/stall torque. That is, a robot motor with a diameter of 37mm, 12V, 100rpm, and a load of 2Kgf.cm.

Q: How can I contact you?

A: Contact me via Skype, call me or email me directly by scanning a QR code.



Or please fill out the form below.
