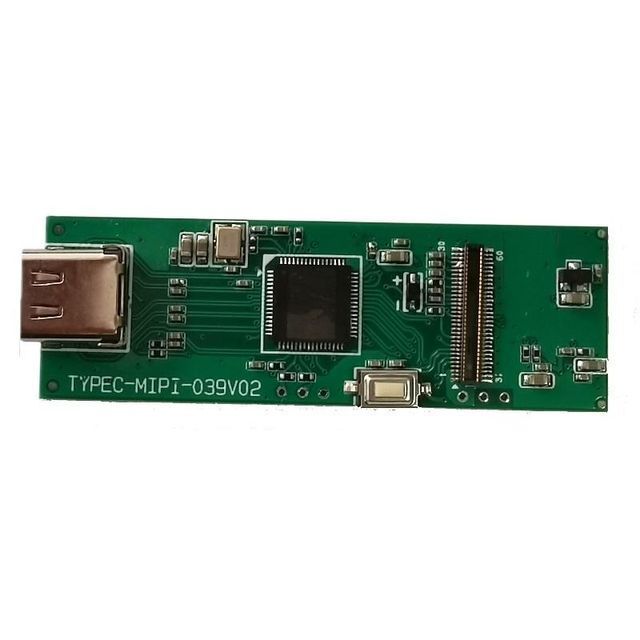

Type C controller board for BOE OLED 0.39inch micro display 1080P
- $29.80 /piece
- 1 piece
- Shenzhen Control Electronic Co., Ltd.
- Guangdong, China
- Ms Beryl Zeng
| Input: | USB-C; | NTSC: | 84%; |
| Lighting Source: | Self; | Board Size: | 55*18*6 (mm); |
| Port: | SZ; | Supply Ability: | 2000 Pieces per Month; |
| Brightness: | 1500 cd/m² (Typ.); | Brand Name: | BOE; |
| Model Number: | B039FH8A0-USBC; | Display Screen Interface: | MIPI; |
| Warranty: | 1 year(board only); | Supported Devices: | Huawei, Samsung, Smartisan, OPPO, PC; |
| Application: | VR, AR, Thermal Imaging,HMD,Camera; | Packaging Detail: | Anti-static bag Carton; |
| Payment Terms: | Western Union,T/T,MoneyGram; | Frame Rate: | 60Hz; |
This is a Type C controller board for BOE OLED 0.39inch micro display 1080P. Display screen can also be provided.
It comes with very small size and that makes it easier to be used in many products like AR,VR, smart glasses/helmet etc.
High brightness make it useful in outdoor devices like smart helmet etc.

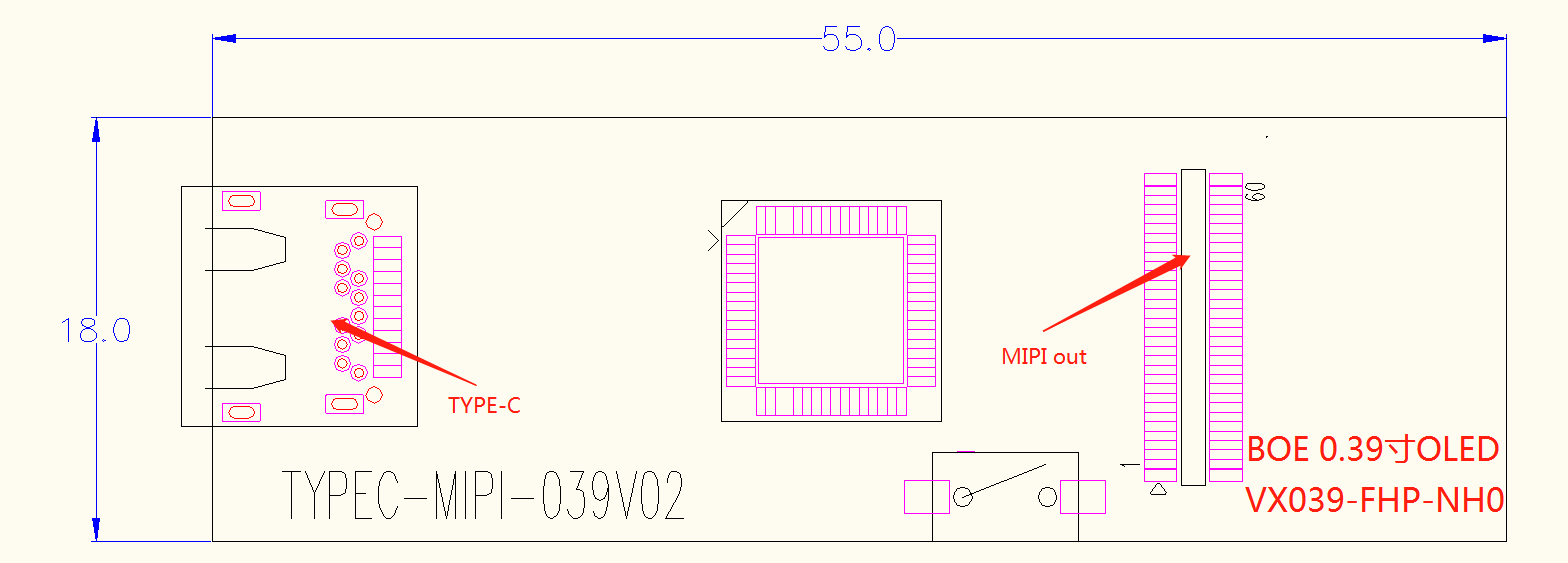

The following picture shows the USB-C control board's drawing:

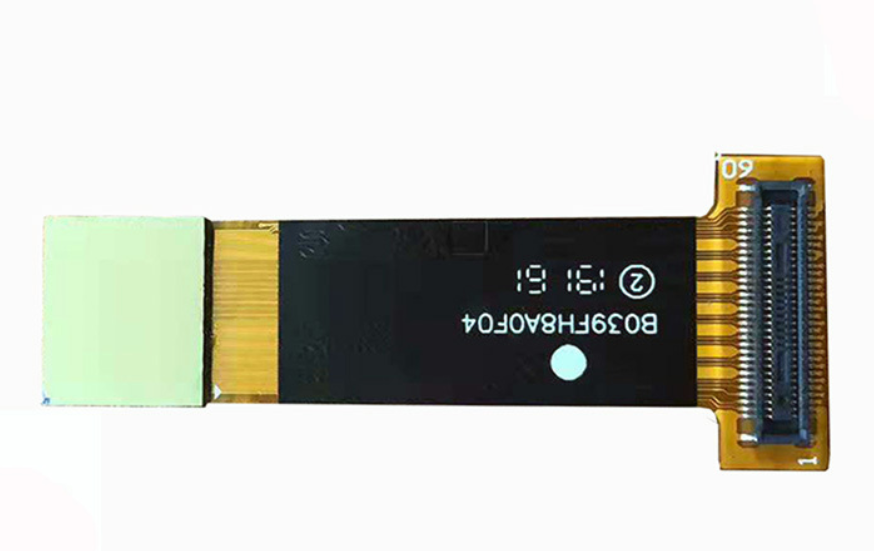

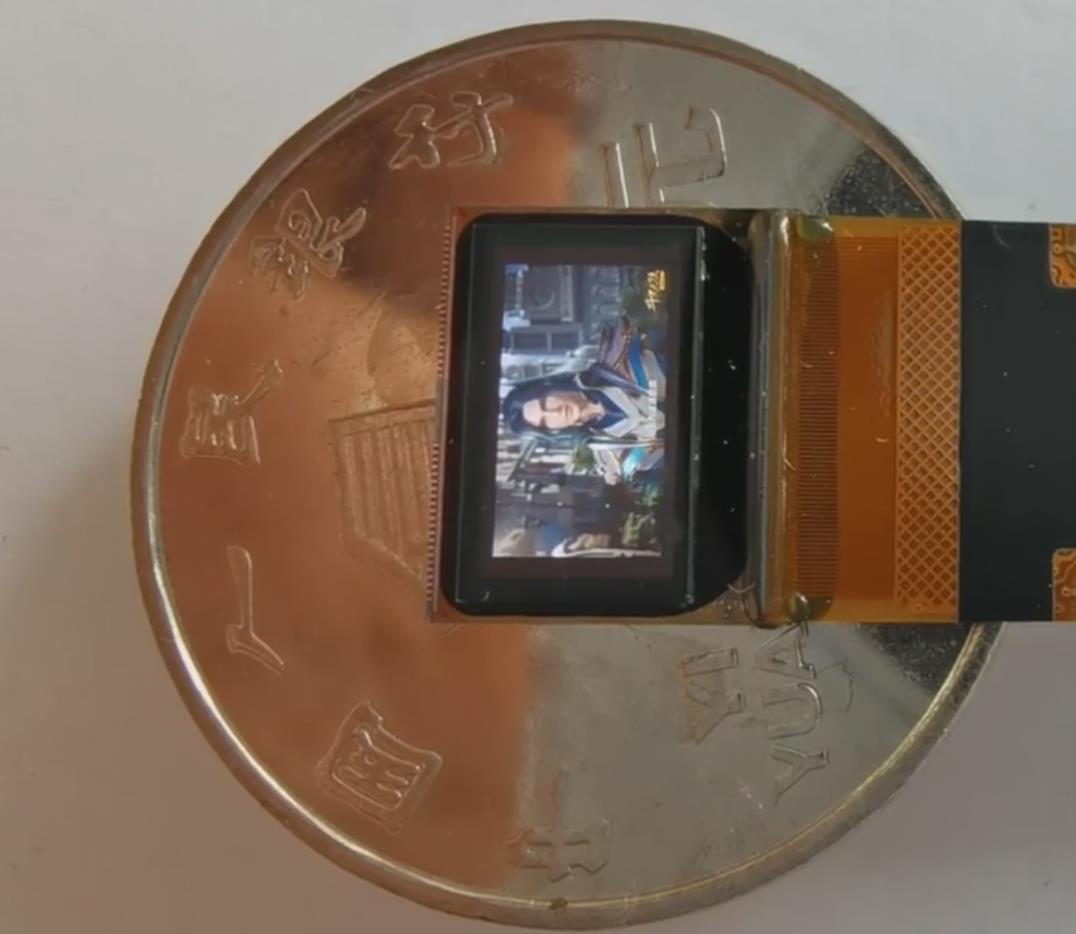

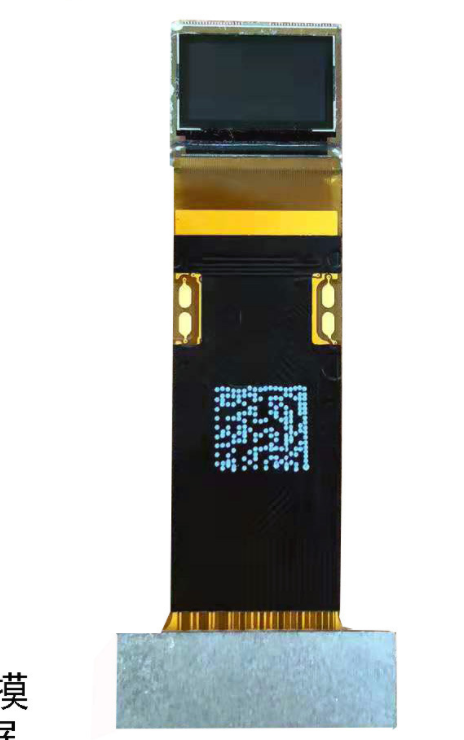

And the following picture shows the micro 1080P OLED screen:
We also have another BOE 0.39inch 1080P micro display with normal brightness for indoor use and matching controller board is larger.
We don't accept any return on the display screen and optical lens because of their features.They can not be repaired either so they don't have a warranty. Only the driver board comes with one year warranty after delivery. We will test each sample before delivery and you can ask us to provide a testing video.
Foam, packing plate and then carton box.
We do EX Work or DAP trade terms.
Shipping methods:
(1) Packing---Forwarder---HK Port---DHL---Tracking number
(2) Packing-Customer's Express Account
(3) To be arranged by customer
We supply all kinds of display modules products: TFT, LCOS, OLED, touch,controller board etc.
Touch screen LCD assembly, smart HMI display, OLED,FLCOS,micro display modules are popular product now.
We advise our customers:
1)Please contact us for detailed specifications and check them carefully before choosing a LCD module, touch screen or driver board.
2)Please do let us know if quantity and presentation quality are OK within 1 week after signing the goods.
3)Please share information as much as possible when you meet a problem in using our products. That will do us a great favor to find a solution.
4)We are responsible for our products but joint responsibility is not included.
Control Electronic Co.,Ltd. was founded in 2008 in Shenzhen.
Before that,the leaders had been in LCD panel industry for more than 6 years.
We mainly supply A grade new LCD panels from InnoLux and AUO.
Our engineer has 9 years' experience working in InnoLux.
Matching touch panels and driver boards are also available.
To spread our business,we had a new office in Shanghai this year.
We can trade in China mainland,HK or send goods to your destination.
Products are mainly used in industry control,security system,medical device,tablets,advertising machine and other instruments about display.
We look forward to cooperations and comments from you.
For more products and information, please contact us directly.
