UBNT Rocket M2/M5 RM2/RM5-Ti high-power wireless bridge wireless AP engineering wifi coverage
- $103.00 /piece
- 1 piece
- Shenzhen Toptoday Network Co., Ltd.
- Guangdong, China
- Ms helen lin
| brand: | UBNT | place of origin; place of origin: | Guangdong, China |
| port: | size | Package preview: | |
| payment terms: | L/C, Western Union, D/P, T/T, MoneyGram | Warranty: | 1 year |
| Supply capacity: | 50 pieces per week | product name: | RM2/RM5-Ti |
| model: | RM2/RM5-Ti | Types of: | Enterprise Wireless Access Point |
| Packaging Details: | The new one is in the box. |
UBNT Rocket M2/M5 RM2/RM5-Ti high-power wireless bridge wireless AP engineering wifi coverage

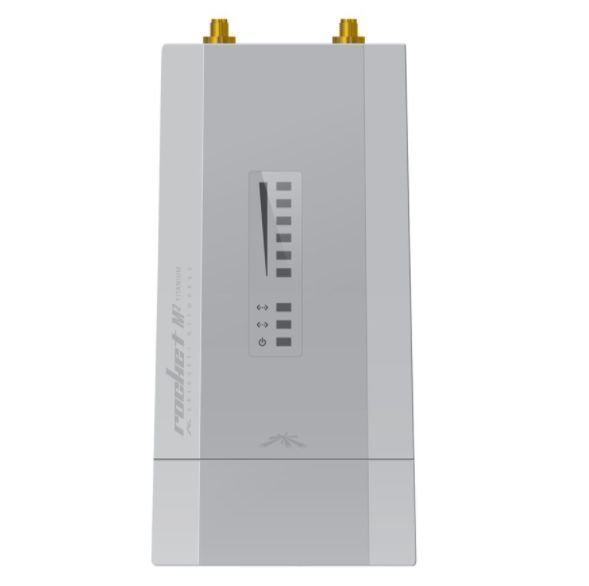

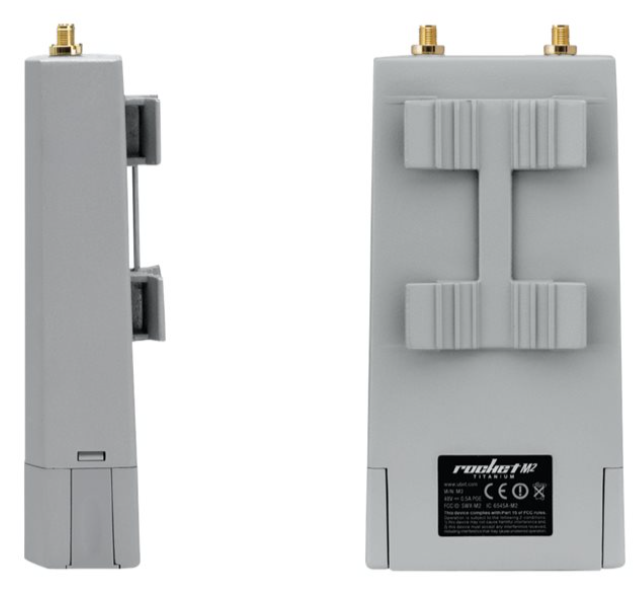

Ubnt Rocket M2 Titanium (RM2-Ti) Description
The Ubnt Rocket M2 Titanium is a Ubiquiti product featuring Mimo technology and industrial design, supporting true TCP/IP output speeds of 150 Mbps. Ideal for point-to-point (PtP) bridging or point-to-multipoint (PtMP) airMAX applications. The rocket radio, airMAX antenna are designed to work together seamlessly.

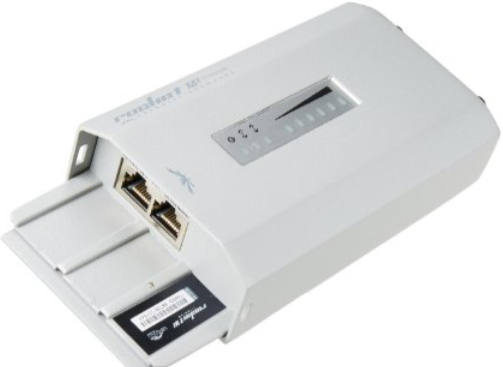

hardware overview
1. RP-SMA antenna connector |
|---|
|
For connecting RF cables (not included). |
|
2. Traffic lights |
|
In airOS®, you can modify the wireless signal strength thresholds for each LED on the Advanced tab under Signal LED Thresholds, or you can configure the LEDs to show GPS connection quality (RM5-Ti only). The default values are as follows:
|
|
3. GPS indicator light |
|
(RM5-Ti only) GPS LED indicates airSync™ activity. Three or more satellite connections are required. |
|
4. Auxiliary Ethernet LED |
|
The Aux Ethernet LED will be solid green when there is an active Ethernet connection to the Aux Ethernet port and blink when there is activity. |
|
5. Main Ethernet LED |
|
The Primary Ethernet LED will be solid green when there is an active Ethernet connection to the Primary Ethernet port, and blink when there is activity. |
|
6. Power Indicator |
|
The power LED will glow green when the device is connected to a power source. |
|
7. Reset button |
|
To reset to factory defaults, press and hold the reset button for more than 10 seconds while the device is powered on. |
|
8. Major ports |
|
The Gigabit Ethernet port is used for power connection and should be connected to a LAN and a DHCP server. |
|
9. Secondary ports |
|
10/100 Ethernet port for bridging. |
|
10. GPS SMA connector |
|
(RM5-Ti only) Used to connect GPS antenna. |
Specification
|
RocketM titanium alloy |
|
|
aspect |
160 x 80 x 44mm |
|---|---|
|
weight |
350 grams |
|
Network Interface |
(1) 10/100/1000 Ethernet port (primary) (1) 10/100 Ethernet port (auxiliary) |
|
RF connector |
|
| RM2-Titanium | 2 RP-SMA (waterproof) |
| RM5-Ti | 2 RP-SMA (waterproof), 1 SMA (GPS) |
|
shell |
die cast aluminum |
|
maximum. energy consumption |
|
| RM2-Titanium | 6.5 watts |
| RM5-Ti | 8 watts |
|
power supply |
48V, 0.5A PoE adapter (included) |
|
power method |
Passive PoE (pair 4, 5+; 7, 8-) |
|
Operating temperature |
-30 to 75°C |
|
Working humidity |
5% to 95% condensing |
|
ESD/EMP protection |
30KV Contact/Air for Ethernet |
|
Shock and Vibration |
ETSI300-019-1.4 |
|
certified |
CE, FCC, CCC |
|
RM2-Ti operating frequency (MHz) |
|
|
worldwide |
2412 - 2462 MHz |
|---|---|
|
RM5-Ti operating frequency (MHz) |
||||
|
worldwide |
5150 - 5875 |
|||
|---|---|---|---|---|
|
United States |
U-NII-1 |
5150 - 5250 |
||
|
U-NII-2A |
5250 - 5350 |
|||
|
U-NII-2C |
5470-5725 |
|||
|
U-NII-3 |
5725 - 5850 |
|||
