UWET S2000 Series 5kw UV EPS for UV Lamp Replacement Transformer and Capacitor

PRODUCT DETAIL
model:S2000The output voltage:100V-420V
RS485:standardOutput Power:1KW-5KW
Packaging Details:wooden packing/carton/as customer's requestcooling method:forced air cooling
Input voltage:340-440V/200-220VProtection/alarm function:More than 20 alarm/protection functions
Protocol:MODBUS protocolOutput current:10A-14A
place of origin; place of origin:Guangdong, ChinaControl Method:power vector
Supply capacity:1000 pieces per monthMatching Tubes:Mercury, metal halide, gallium or other
port:Shenzhenbrand:University of Wisconsin
usage:UV light dimmingOutput frequency:50HZ/60HZ
High pressure mode:Non-isolated step-up transformerPackaging Preview:
payment terms:wire transfer

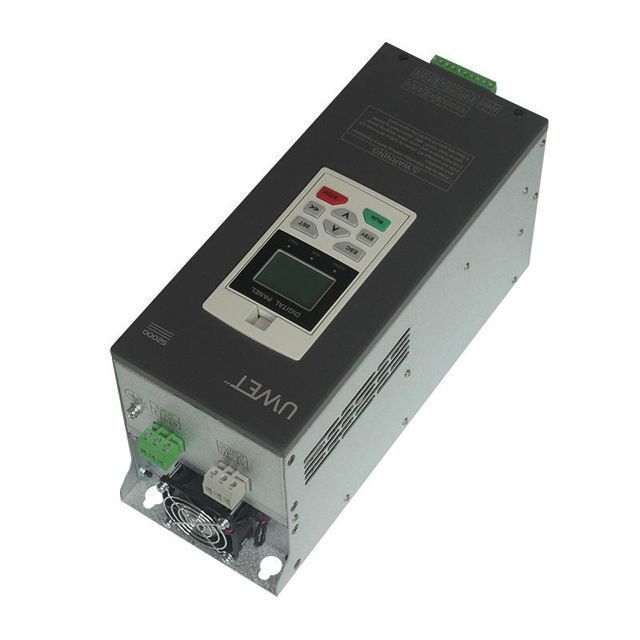

UWET S2000 Series 5kw UV Lamp Electronic Ballast Replaces Electromagnetic Transformer



product description

The S series is a mini model based on the H series machine platform. The S-series machines have the same performance as the H-series machines, but they are much smaller than the H-series machines. It has strong lighting ability, large output current and rich expansion functions.



feature

1) Output characteristics: 1KHz low frequency fixed square wave
2) High voltage mode: non-isolated step-up transformer
3) Flexible power adjustment methods: digital panel, external analog, RS485 communication, multi-segment power supply, expansion board, etc.
4) Support light intensity probe closed-loop control
5) Rich expansion boards: TCP/IP network board, CANOPEN board
6) Automatically match the tube pressure: automatically match the tube pressure according to the situation of the lamp (within the allowable range)
7) Automatic voltage hold function: When the equipment is in standby mode of strong pump, it can start to use automatic voltage hold to ensure fast power recovery
8) Multiple programmable IO, AO, AI channels, real-time transmission of machine status
9) Built-in lamp exhaust control, built-in optimized PID control fan frequency conversion

10) Control mode: power vector



Specification



enter

Rated voltage, frequency

Three-phase (4T# series) 380V / single-phase 220V 50/60Hz

Voltage allowable range

Depends on model

output

Voltage

Depends on model

frequency

1K Hz~5K Hz

overload capacity

110% 10 minutes

control method

Vector control



Control characteristics

Power settings

Resolution

1%

current limit

Power Allow Setting

Voltage limit

110% of rated lamp voltage

power limit

The maximum rated output power of the lamp

Undervoltage Suppression During Operation

Especially for users with low grid voltage and frequent grid voltage fluctuations, even if it is lower than the allowable voltage range, the system can maintain the longest running time according to the unique algorithm and residual energy distribution strategy.

Typical function

support

Set standby power consumption when the device is intermittent for energy efficient applications

working time record



Can read the working hours of lamps in operation

RS485 communication

Standard configuration RS485 communication interface, run and stop commands and machine status reading

Operation

Controlled start and stop using external dry contacts

Failure analysis



With fault record query and fault cause analysis functions

exhibit

Operation panel display

Operation

status

Monitor output voltage, output current, set power, output power, etc.

parameter settings

Set relevant parameter values ​​according to actual needs.



Protection/Alarm

Overcurrent, overvoltage, undervoltage, overtemperature, short circuit, memory fault protection/alarm

surroundings

ambient temperature

-10ºC--+50ºC (non-frozen)

environment humidity

Below 90% (no frost)

surroundings

Indoor (no direct sunlight, no corrosion, no flammable gas, no oil mist, no dust, etc.)



high

Below 1000m

structure

Protection class

IP52

cooling method

Independent air duct design forced air cooling





model. Input Current energy level Output voltage range maximum. Output current Recommended tube voltage
S2000-2SC010 4.6 1KW 100-220V 10A 200V
S2000-2SC020 9 2KW 160-220V 13A 200V
S2000-2SC025 13.6 2.5KW 190-220V 16A 200V
S2000-4TB030 4.6 3KW 300-420V 12A 400V
S2000-4TB040 6.1 4KW 300-420V 14A 400V
S2000-4TB040 8.0 5KW 300-420V 14A 400V

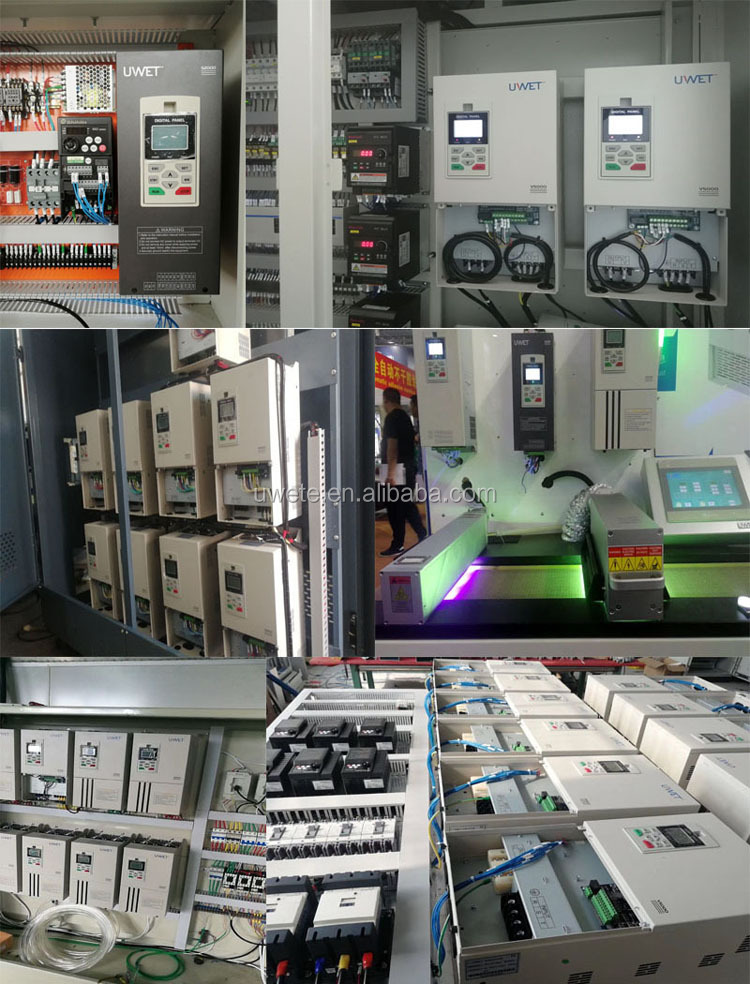

trade show

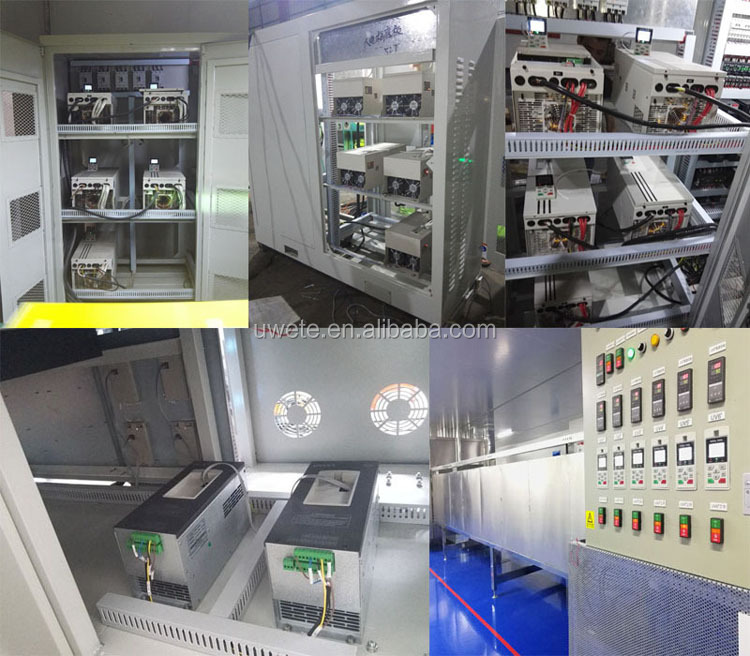

application


1. UV fast ink curing in printing industry

2. Woodworking UV fast paint curing

3. UV fast surface coating curing of rubber and plastic products

4. UV fast surface coating curing of metal products

5. UV fast surface coating curing of electronic products

6. UV fast surface coating curing for various coating production lines

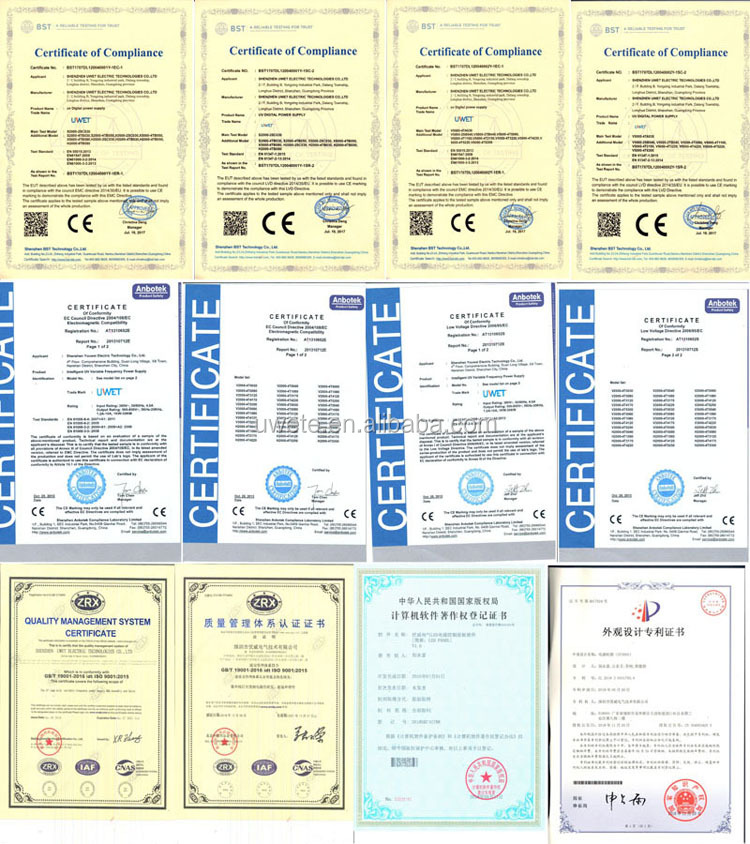

Certification





Payment and Shipping

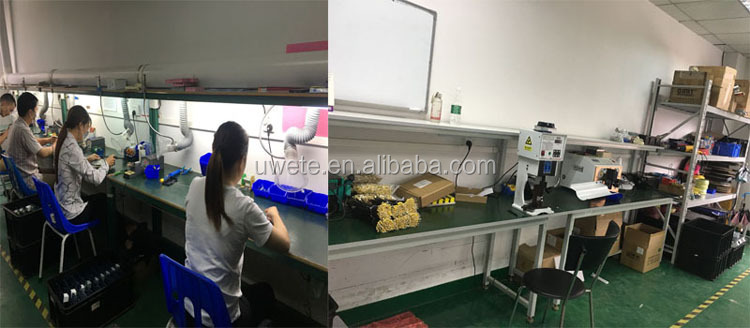

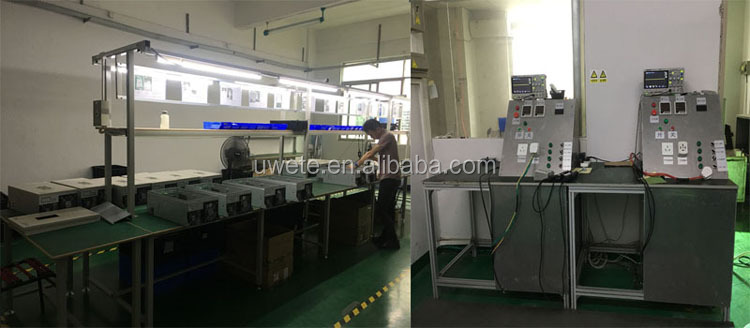

about us

Shenzhen Uweite Electric Technology Co., Ltd. is a high-tech private enterprise specializing in the research and development, production, sales and service of UV intelligent power supply. It is located in Longhua District, where there are many high-tech industries. The company's R&D team is strong, and most of the R&D personnel have R&D experience in foreign companies. More than ten top experts in the industry have absorbed advanced technologies from Italy, Austria, Germany, Japan, etc., combined with the principle of frequency converters and the development of the domestic UV industry, and developed the company's latest product: UV intelligent frequency conversion power supply in three years. The products have completely independent intellectual property rights, and many technologies are at the leading level in the industry and even in the world.
