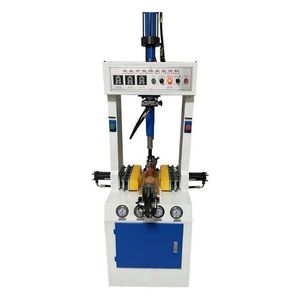

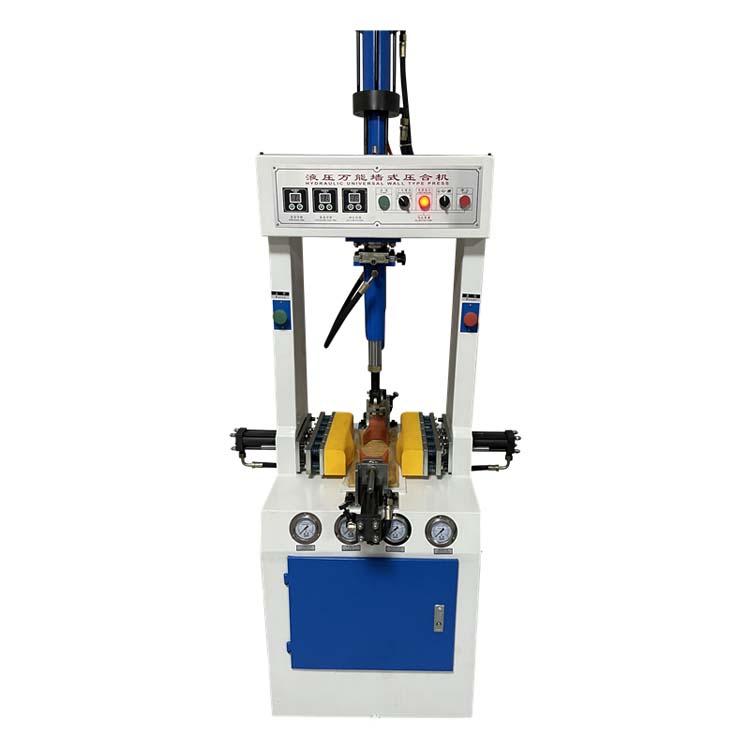

Universal hydraulic sole press machine high quality shoe sole press sole press machine
- $1730.00 /set
- 1 set
- Wenzhou Dida Machinery Co., Ltd.
- Zhejiang, China
- Mr Lu Tomy
PRODUCT DETAIL
brand: | Dida | Health status: | new |
Automatic level: | automatic | Core components: | motor |
Marketing Type: | New Products 2020 | weight: | 1080 |
Mechanical test report: | if | Core component warranty: | 1 year |
Video shipment inspection: | if | payment terms: | L/C, T/T |
Showroom location: | Egypt, America, Russia | Applicable industries: | factory, shoes |
Voltage: | 380v | Warranty: | 1 year |
Dimensions (L*W*H): | 115*138*175 | place of origin; place of origin: | Zhejiang, China |
product name: | Universal hydraulic bottom press machine |
Product Description
product name | Universal hydraulic bottom press machine |
Material | iron |
color | grey |
Voltage | 380V, 50Hz |
Machine size | 115*138*175 |
Net weight/Gross weight | 650/680 kg |
production capacity | 1000 pairs/8 hours |
application | Shoes of all kinds, especially sneakers |
feature:

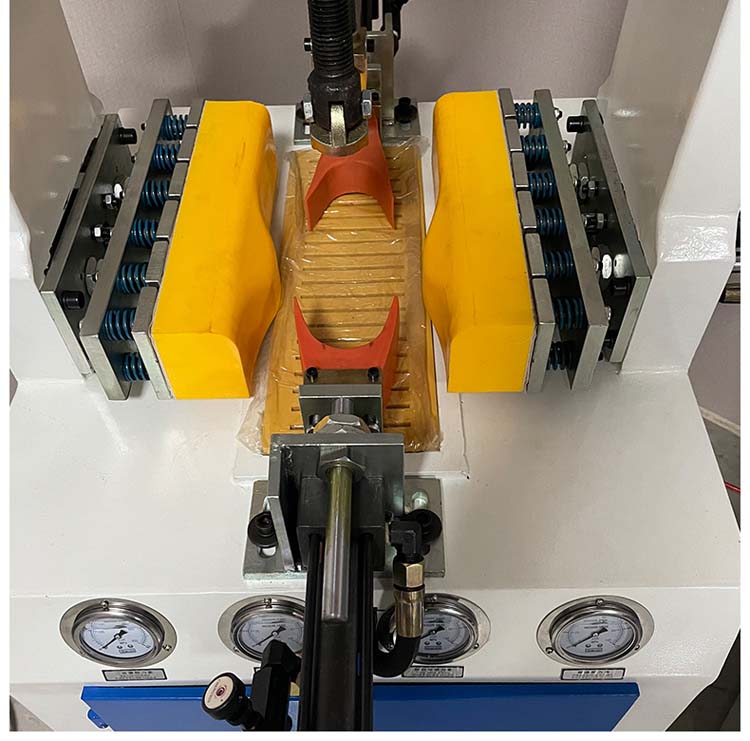

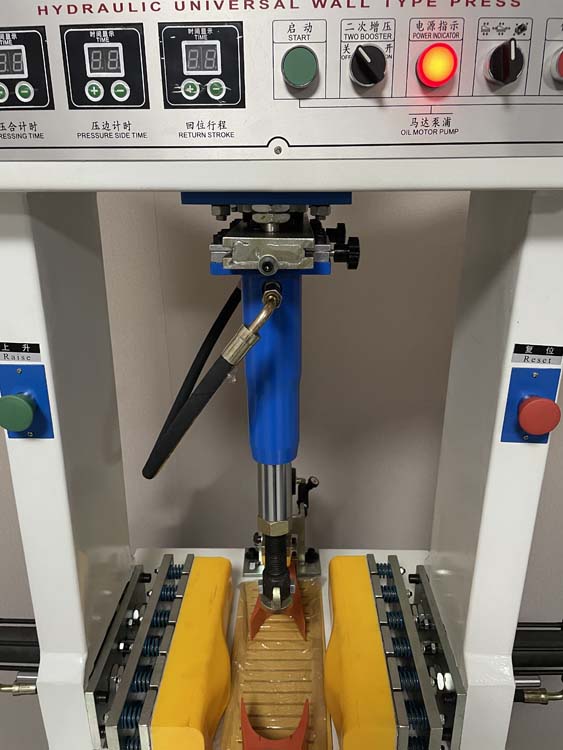

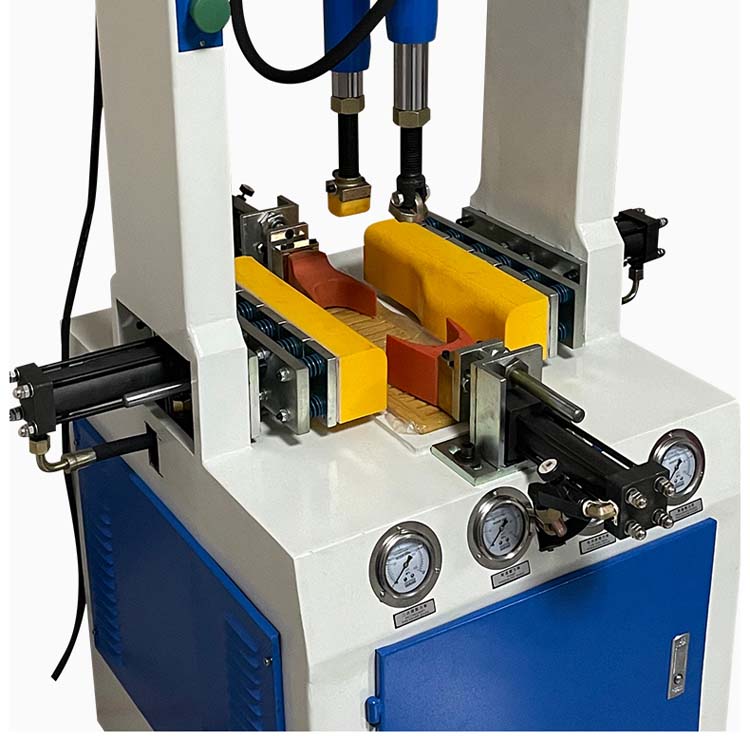

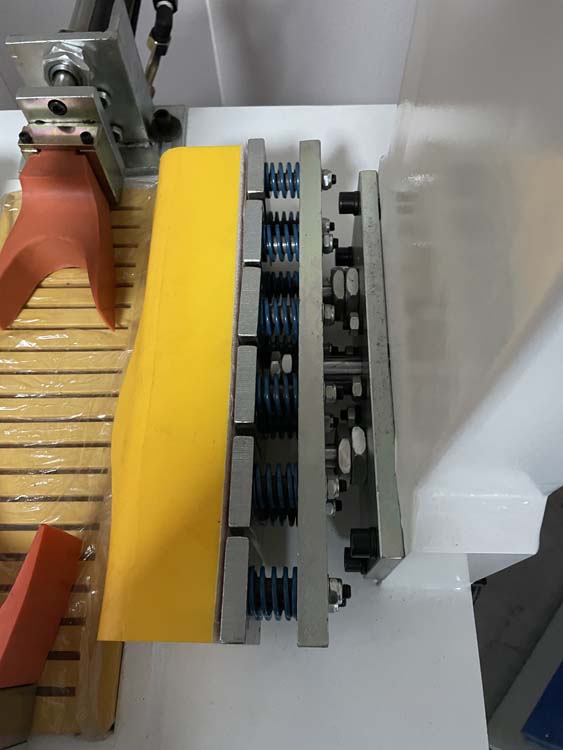

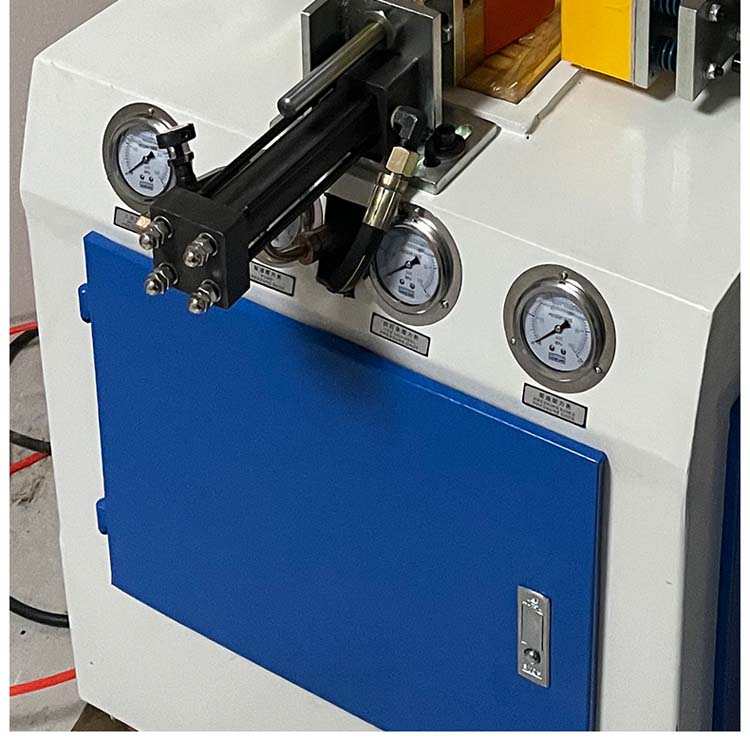

1. The computer control center is the machine circuit control unit, which is operated through the function buttons displayed on the touch screen 2. There are pressure bars on the front and rear to adapt to different shoe lasts, the latter is installed with screws to adjust the device, while the former has replaceable pressure heads . Highly self-adaptive to different shoe lasts 3. The large seat is a mechanical structure for tightening the sole, side, and front and rear parts. It consists of front and rear compression hydraulic cylinders and front and rear parts. 4. Longitudinal and side pressure rubber , Rubber pad 5. Adopt high-quality pressure oil gauge, pressure system, clear numerical indication, simple debugging and maintenance, and the adjustment lever can adjust the pressure value.

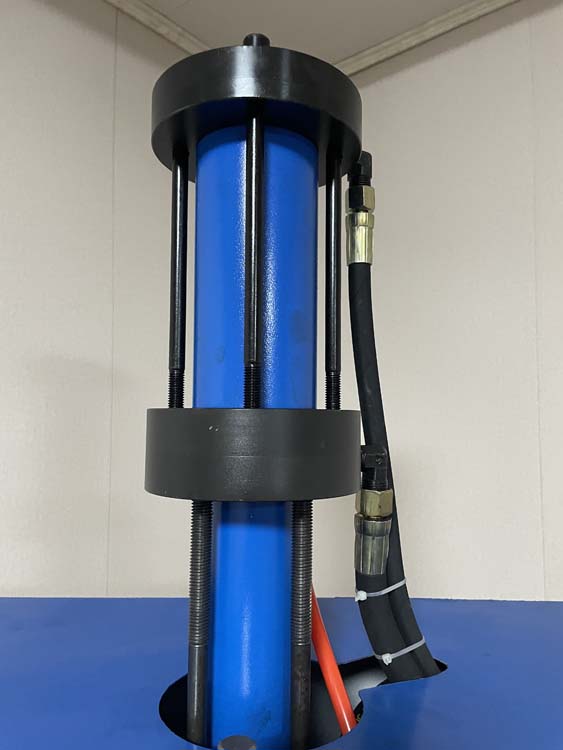

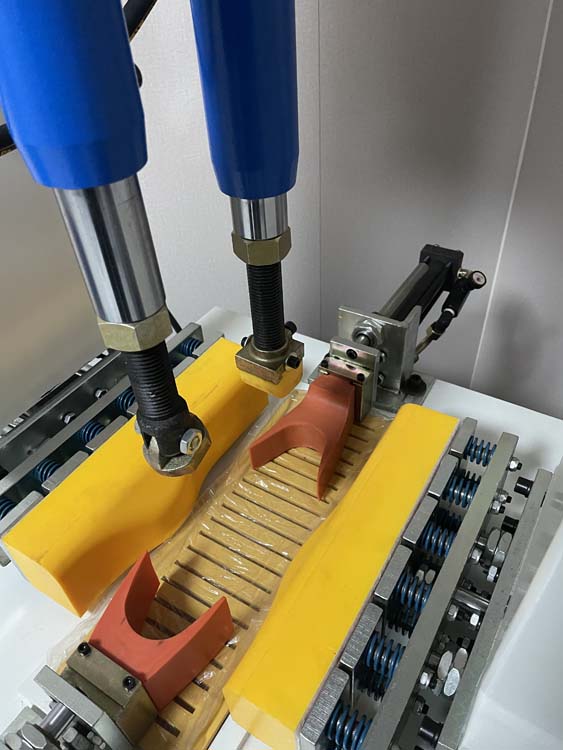

6. This machine is suitable for pressing the uppers and soles of leather shoes, travel shoes and sports shoes. The machine is equipped with 5 hydraulic arms. The upper is firmly bonded. 7. The hydraulic arm on the machine automatically balances the pressure, which is convenient for various final heights in the production process. 8. The pressure of the surrounding small hydraulic arm is controlled by the hydraulic flow valve. The mold is made of high-elastic EVA material, which surrounds and presses the sole in all directions. Make sure the soles are firm. 9. EVA mold diversity, suitable for all kinds of children's shoes or special-shaped trendy shoes. It is an essential machine for high-quality shoe factories.
Brief operation process:
1. The power cord should be connected to a 380v magnetic switch socket that meets the ECC standard. 2. Add 90-100 liters of 46# hydraulic oil to the oil tank. 3. Turn on the main power, then turn on the pump switch, then select the mode, then adjust the pressing time. 4. Put the shoe last into the large seat, and adjust the relevant parts appropriately. 5. Adjust the distance between the front and rear rods, and adjust the distance between the top and bottom of the rear pressure head by twisting the rods. 6. Step on the foot switch or press the two green buttons at the same time to start the machine for pressing operation.
If you are interested in our products, please feel free to contact us for details
