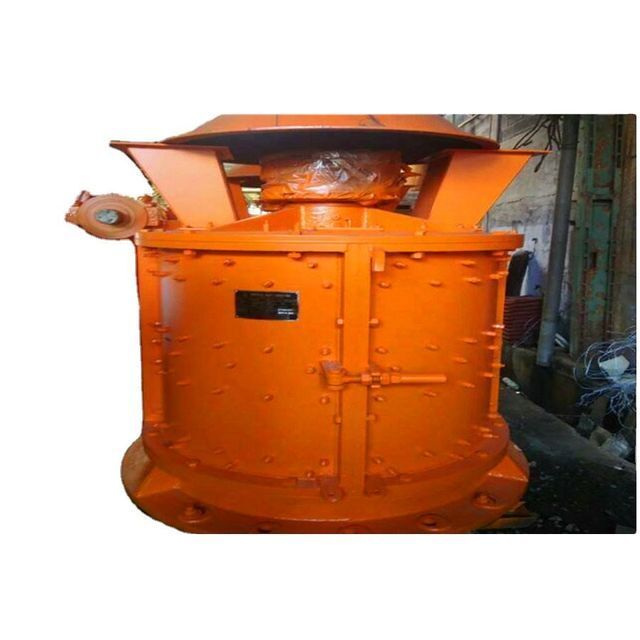

VERTICAL SHAFT CRUSHER PLFC 1250

PRODUCT DETAIL
Applicable Industries:Energy & Mining;Certification:CE/ISO;
Packaging Detail:standard exporting packing,;Dimension(L*W*H):depend on model;
Core Components:PLC;Single package size:10X10X10 cm;
Voltage:220/380;Video outgoing-inspection:Provided;
Single gross weight:65.000 KG;Weight: kg;
Showroom Location:Indonesia;Machinery Test Report:Provided;
Power:30-160KW;After Warranty Service:Video technical support;
Selling Units:Single item;Key Selling Points:High Productivity;
Marketing Type:Hot Product 2019;Warranty of core components:1 Year;
model:PLFC 750 PLFC1000 PLFC1250 PLFC1500 PLFC1750;Warranty:1 Year;
Place of Origin:Shanghai, China;Condition:New;
Brand Name:YIKE;

PLFC Vertical Shaft Hammer Crusher shanbao sand making machine PLFC 750 PLFC1000 PLFC1250 PLFC1500 PLFC1750

Brief Introductions

PLFC vertical shaft crusher is widely used in all kinds of rock, refractory material, cement, quartz, iron ore, concrete aggregate, such materials are with features of very hard and anticorrosion. It is more appropriate for crushing sand and stones for building and road.

Features
1.The structure is simple, and the operating cost is low;
2.Have fine and coarse crushing function, few impellor wear down, easy to be maintained;
3.It is slightly influenced by the humidity of material, and the max humidity can meet 8%;
4.Product shape is cubic, and density of pilling up is high and the iron pollution is low.

Technical Parameters

Model

PLFC-750

PLFC--1000

PLFC--1250

PLFC--1500

PLFC--1750

Capacity

Ore

10-15

20-30

30-45

50-60

65-90

Sinter cake

8-12

15-25

25-40

40-55

55-75

Power(kw)

30

45-55

75-90

110

132-160

Max. Feed size(mm)

80

100

120

140

160

Discharge size(mm)

3-5

3-5

3-5

3-5

3-5



Certifications



Why choose us?

1. We are trust supplier in this fied  for 25 years and have good reputation.

2. We treat quality as life and have a strict quality control in each produce progress.

3. We do long time cooperation and not 1 time business.

4. We are 10 years golden and trade assurance supplier with A&V vitified certification.



 Shanghai Yike Road & Bridge Machinery Co., Ltd



PLFC Vertical Shaft Hammer Crusher shanbao sand making machine PLFC 750 PLFC1000 PLFC1250 PLFC1500 PLFC1750



HAMMER HEAD,IMPACT PLATE, CRUSHING BAR HIGH,MAIN SHAFT PULLEY,UPPER SEAL

FLANGE,RING,UPPER PROTECT PLATE,LOWER BASEMENT BEARING SEAT,CRUSHING BAR

HIGH,MAIN SHAFT PULLEY,ROTOR LOWER,COVER BODY LOWER,BEARING 22324,RING

FOR MAIN SHAFT,PRESS BAR,LINER PLATE,CRUSHING FALL PLATE,TRIANGULAR

GUARD,EXCITER,ENFORCE BAR,
