VM100 VM100A High Precision Valve Grinding Machine Valve Grinder Grinding Machine

PRODUCT DETAIL
CNC or not:normalAfter-sales service provided:Online support, video technical support
Power (kW):0.37 kWPackaging Details:plywood case
Origin:Shaanxi, ChinaMechanical test report:if
Video shipment inspection:ifmaximum. Grinding diameter:14mm
Health status:newVoltage:220V
Weight (kg):160port:Shanghai
maximum. Grinding length:315mmAfter warranty service:Video technical support, online support
Surface roughness (μm):666 microns micronsbrand:prime machine
Supply capacity:30 sets per monthCore component warranty:1 year
Showroom location:not anyMain selling points:high accuracy
Warranty:1 yearApplicable industries:Manufacturing plants, machinery repair shops
Marketing Type:2019 Hot Productstype:Cylindrical grinder
Core components:engineCertification:ISO9001
payment terms:L/C, T/T, we choose different payment methods accordinglyLocal service location:not any
Dimensions (L*W*H):930*710*690mm
MASS_APP4_510_BEGIN

MASS_APP4_510_END

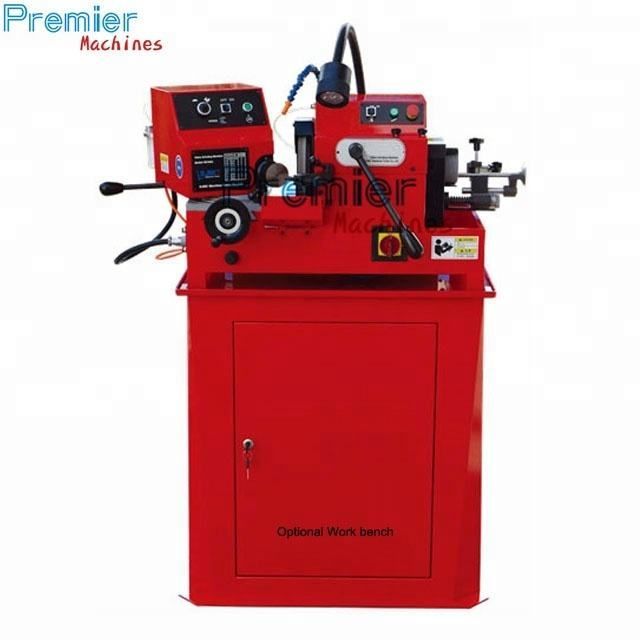

High precision valve grinder
Model: VM100/VM100A

Product Description

Valve grinder model: VM100 series can complete the following tasks within five minutes: Clamp the valve stem to maintain instant high-precision positioning; Finely grind the valve cone surface, the roundness can reach 0.005mm, and the smoothness can reach Ra0.32. The whole process is simple and perfect, very easy to use the machine, no special training is required, you can do that perfect job, depends on the 2×3 ball high precision pneumatic chuck. The VM100 series is the new standard in valve grinding speed and precision.

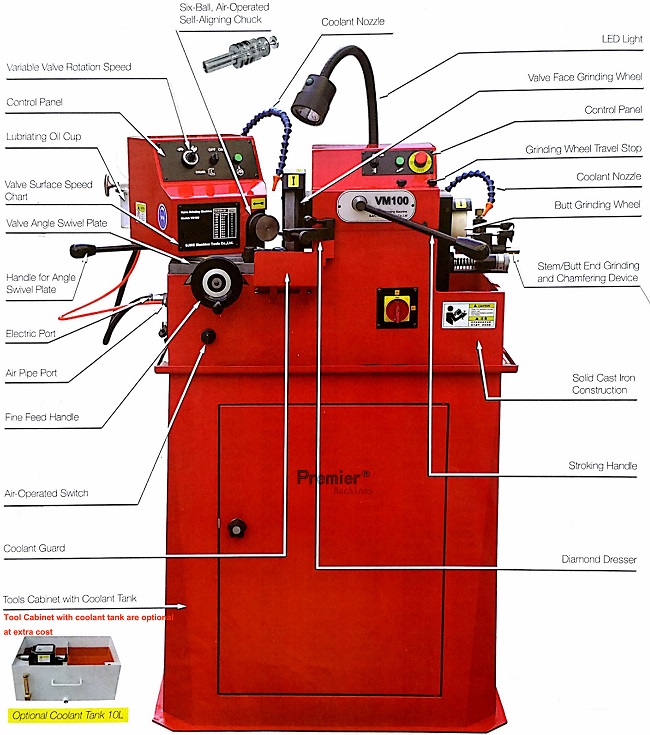

feature

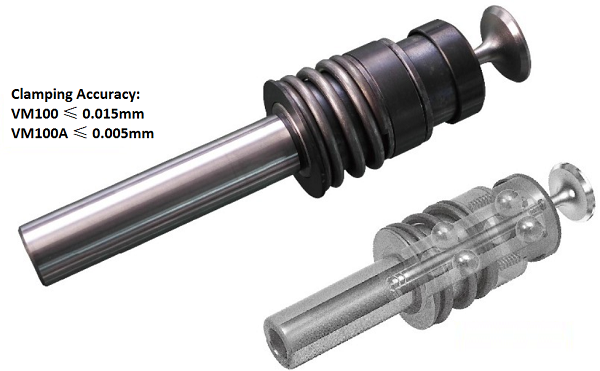

1) Pneumatic, six-ball chuck design, perfect centering grinding, it only takes 5 minutes from clamping to fine grinding, and can get very good roundness and smoothness.
2) Variable valve speed allows the operator to adjust surface speed when using different sized valves.
3) The grinding wheel moves on a high-precision dovetail guide rail, making manual scraping super smooth and absorbing vibration effectively.
4) The Valve Steam Depth Stop is a practical device, especially when you need to machine multiple identical valves and have the valves milled to the exact same length.
5) The cast iron base reduces vibration and is durable.

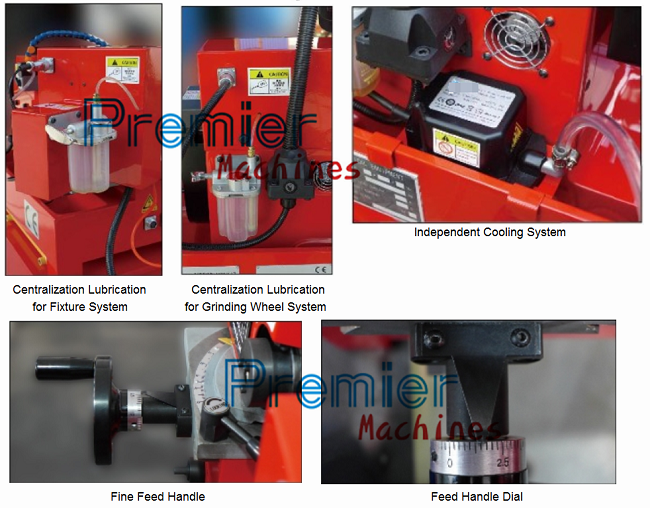

6) Centralized lubrication system to avoid cumbersome manual multi-point refueling.

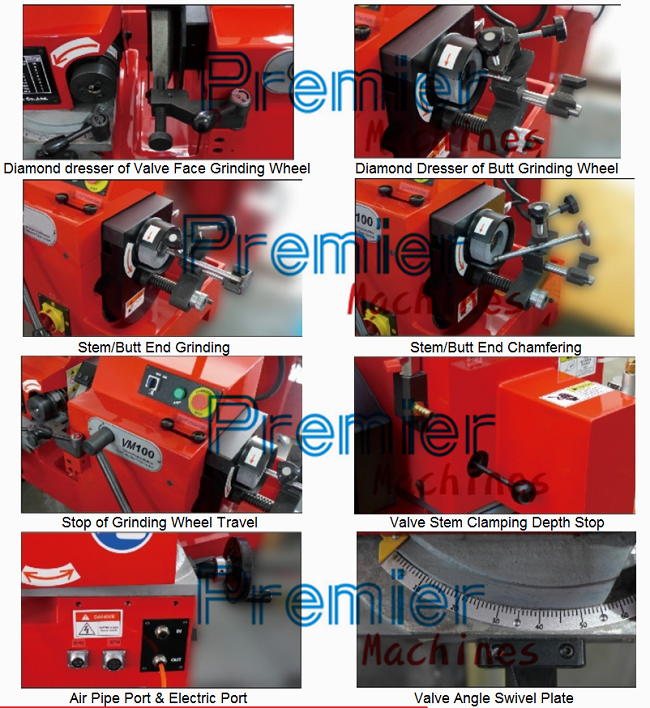

7) The valve head grinding wheel and valve steam grinding wheel are equipped with a diamond dresser, which is very convenient for dressing the grinding wheel.
8) The optional tool cabinet has an extra 2-liter coolant tank. Of course, the space is large enough to change to a larger coolant tank if you want more cooling water.
9) The V-bracket of the stem end/butt end lapping unit allows all valves in a group to be lapped to the same distance from the valve seat to the stem end - critical for overhead cam cylinder heads. The exact amount of material removed from the end of the valve stem can be measured using a micrometer adjustment system.

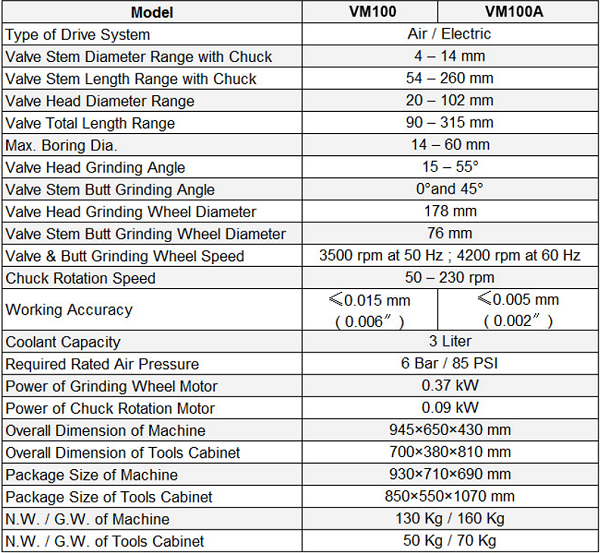

Specification

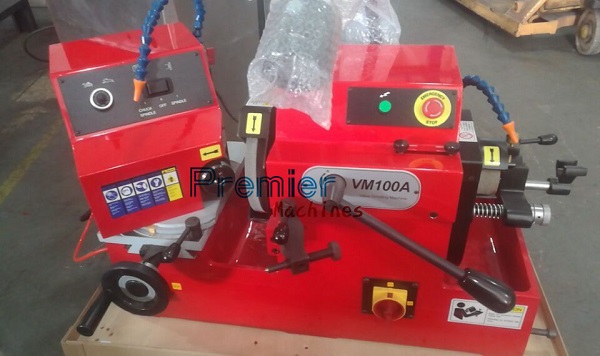

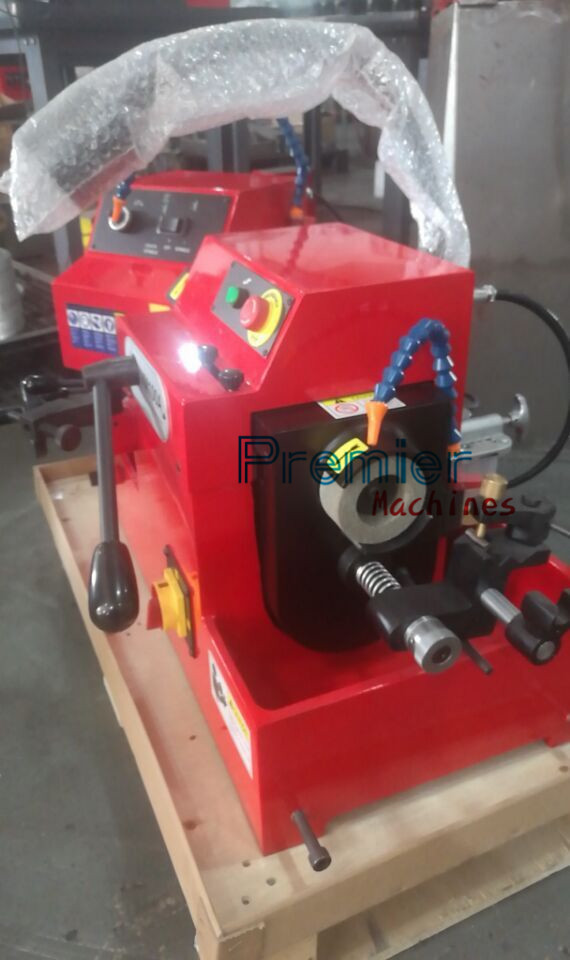

detailed image
