Various flanges/carbon steel flanges/sorf/wnrf/blind flanges
- $0.10 /piece
- 1 piece
- Hebei Shengtian Pipe-Fitting Group Co., Ltd.
- Hebei, China
- Ms sophie zhou
| standard: | American Standard, American Standard | Standard or non-standard: | standard |
| payment terms: | T/T or L/C | product name: | sorf/wnrf/blind flange |
| port of loading: | Tianjin Xingang | Supply capacity: | 100,000 tons/year |
| payment terms: | L/C, T/T | Material: | A105 |
| Origin: | Hebei china | transportation: | maritime |
| delivery time: | 5-60 days | model: | DN15-DN1200 |
| port: | Tianjin harbor | Package: | wooden box or pallet |
| brand: | Yingshi | Packaging Details: | Wooden case or pallet or according to customer requirements |
| go through: | ISO9001:2008 |

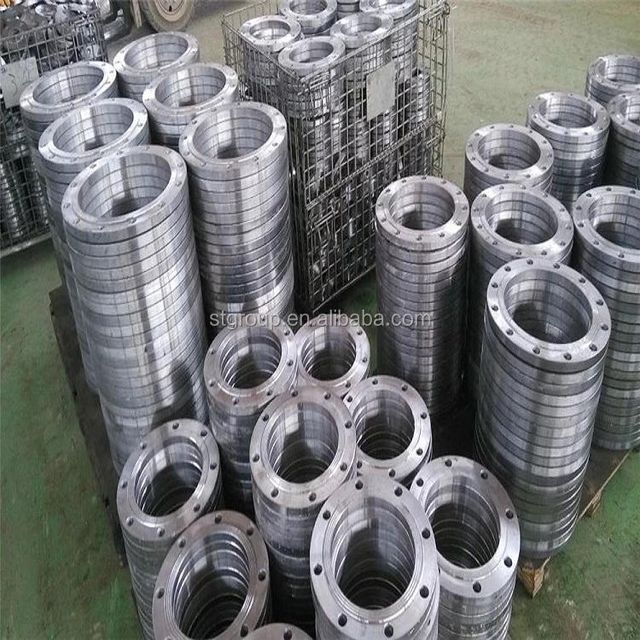

sorf/wnrf/blind flange
Hebei Shengtian Pipe Fittings Group has advanced high-quality steel flange equipment
1) ANSI B16.5, ASME B16.47 flange
Size range: 1/2" to 80" DN15 to DN2000
Designs: Weld Neck, Slip, Blind, Socket, Threaded, Lap
Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#
Butt welding flange wall thickness: STD, SCH40, SCH80, SCH160. SCHXXS
Material: carbon steel A105, stainless steel 304/304L, 316/316L
Coating: black paint, yellow transparent paint, hot and cold galvanized
Packing: seaworthy plywood case, wooden pallet
2) EN1092-1 flange
Size range: DN15 to DN2000
Design: Type 01 Plate Flange, Type 02 Loop Flange, Type 05 Blind Flange, Type 11 Welding Neck
Type 12 slip-on flange, Type 13 threaded flange
Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100
Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L
Coating: black paint, yellow transparent paint, hot and cold galvanized
Packing: sea plywood box, wooden pallet
3) Standard flange
Size range: DN15 to DN2000
Design: sliding flange DIN2573, 2576, 2502, 2503, 2543, 2545
Butt welding flange DIN2631, 2632,2633,2634,2635
Blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40
Threaded flange DIN2565, 2566, 2567, 2567
Loose flange DIN 2641,2642,2656,2673
Material: carbon steel ST37.2, stainless steel 1.4301, 1.4404
Coating: anti-rust oil, transparent paint, hot and cold galvanized
Packing: sea plywood box, wooden pallet
4) National standard flange
Size range: DN15 to DN 2000
Design: plate flange 12820-80, butt welding flange 12821-80
Pressure: PN6, PN10, PN16, PN25, PN40
Material: carbon steel CT-20, stainless steel 304/304L, 316/316L
Coating: anti-rust oil, hot and cold galvanized
Packing: sea plywood box, wooden pallet
5) Japanese flange
Specification ragne: 15A to 2000A
Design: SOP, BIND, SOH,
Pressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K
Material: carbon steel SS400, stainless steel SUS304, SUS316
Coating: anti-rust oil, hot and cold galvanized
Packing: sea plywood box, wooden pallet

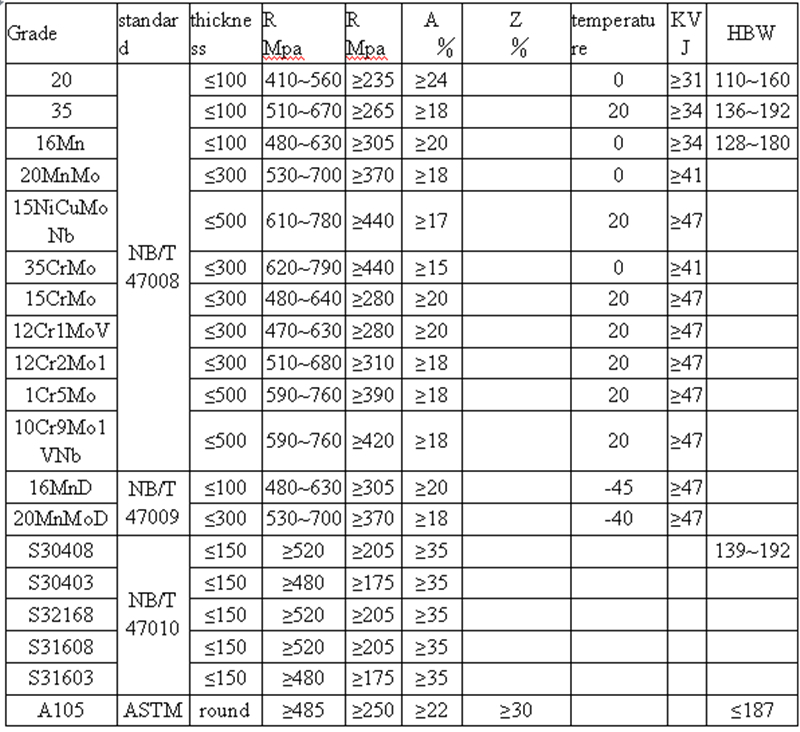

Material: Carbon steel: ASTM A105, A350 LF2, A694, etc.
Stainless Steel: ASTM A182 F304, 304L, , F304L, F316, 316L, AISI 304, AISI 321
Alloy steel: ASTM A182 A182 F12, F11, F22, F5, F9, F91, etc.
|
thing |
standard |
standard code |
pressure rate |
type |
size |
|
1 |
American Standard |
ANSI B16.5 |
Classes 150, 300, 600, 900, 1500, 2500 |
WN, SW, SO, BL, TH,LWN |
1/2"-24" |
|
|
ANSI B16.36 |
Classes 150, 300, 600, 900, 1500, 2500 |
WN, SO, TH |
1/2"-24" |
|
|
AWWA |
Class B DEF |
RING (HUB) flange |
3"-144" |
||
|
ASEM B16.47 |
Classes 150, 300, 600, 900 |
Western Front, Bill of Lading |
26"-60" |
||
|
2 |
british standard |
BS4504 |
PN6,10,16,25,40 |
WN, SO, PL, BL |
DN10-DN2000 |
|
3 |
European standard |
EN1092 |
PN2,5,6,25,40,100, 160,250,320,400 |
WN, SO, PL, BL |
DN10-DN4000 |
|
4 |
Japanese standard |
JIS B2210 |
5K, 10K, 16K, 30K |
SOP(PL,BL), SOH, (SO A,B,C), WN |
10A-1500A |
|
5 |
Italy |
UNI 6091-6099 Unified telephone 2280-2286 Unified telephone 2253-2257 |
PN6,25,40,100, 160,250,320,400 |
BL,WN,PL,SO |
DN15-500 |
|
6 |
Germany |
industry standard |
PN2,5,6,10,16, 25,40,64,100,160 |
So, BL, PL, WN, Loose, TH |
DN10-4000 |

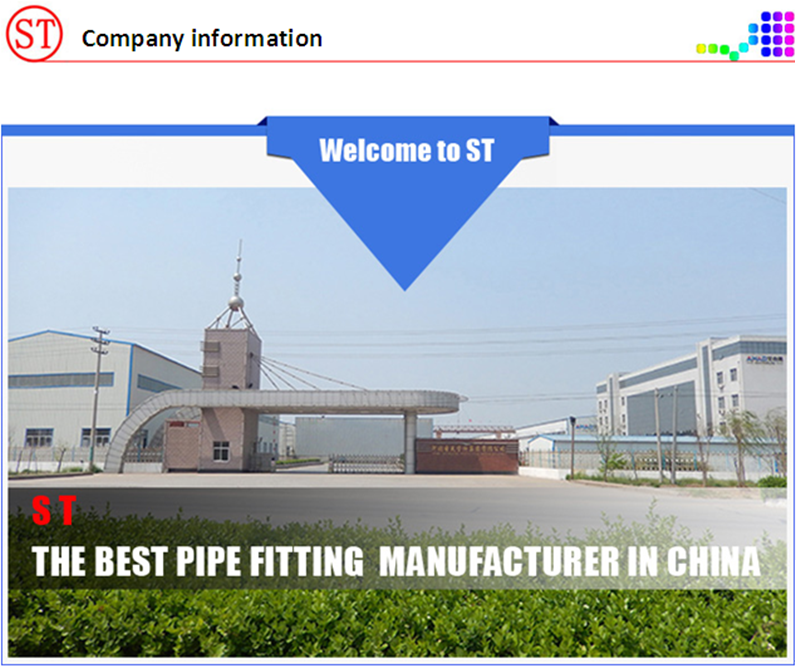

Hebei Shengtian Pipe Fittings Group Co., Ltd. was established in 1989. We have been in this line for over 25 years. It covers an area of 100,000 square meters, with a factory building of 25,000 square meters and a registered capital of 7.5 million US dollars.
There are more than 360 employees, including more than 30 professional and technical personnel.

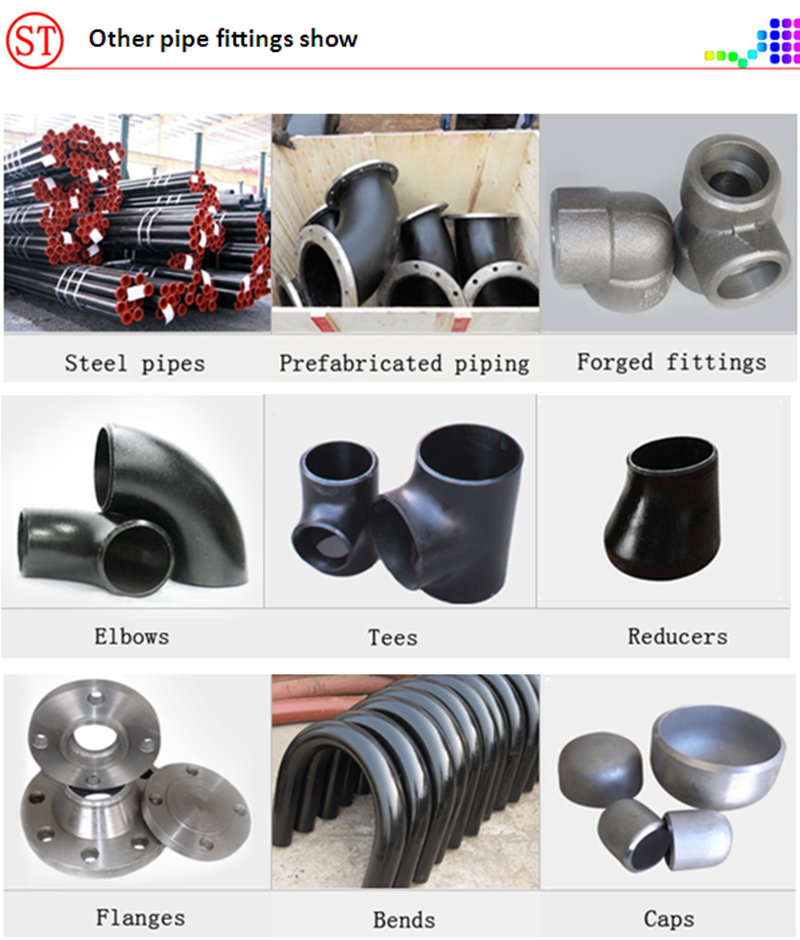

Main product range: steel elbows, tees, elbows, reducers, caps, forged flanges and sockets, threaded joints.
Exporting countries and regions: the United Kingdom, the United States, Russia, Germany, Turkey, Serbia, Bulgaria, Dubai, Canada, Egypt, Nigeria, South Africa, Vietnam, and Panama.
Our ultimate goal is to provide high quality products with more competitive prices and better services. Help our customers win more orders. So as to win-win future.

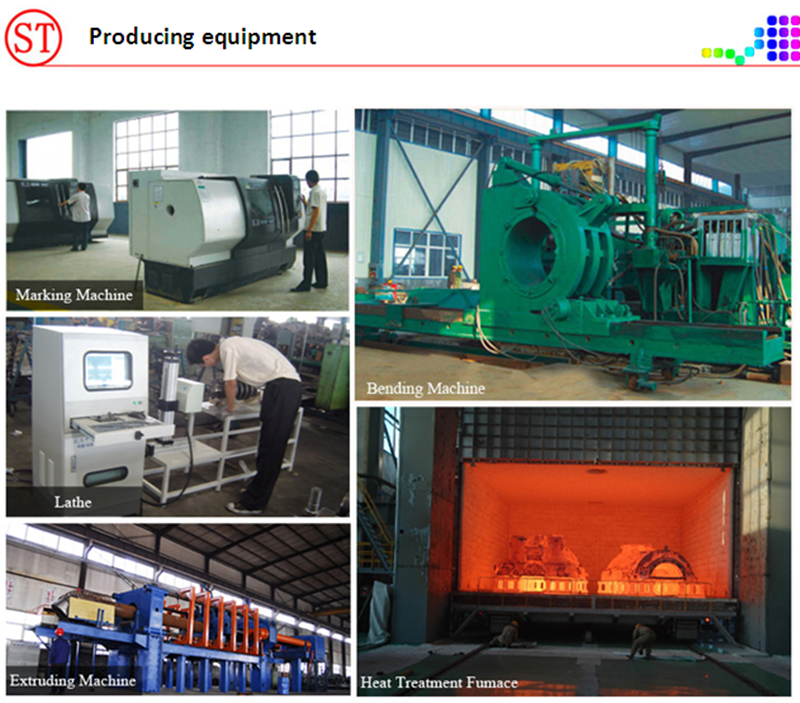

Online eddy current testing. X-ray fault detection, direct reading spectrometer, impact testing machine. Physical and chemical testing, manganese phosphorus silicon chemical analyzer, tensile test, hardness tester, etc.
Hebei Shengtian Pipe Fittings Group Co., Ltd. has a variety of advanced equipment with international standards, perfect quality equipment, reasonable testing methods, and a high-quality testing team, providing a good guarantee for each product leaving the factory.

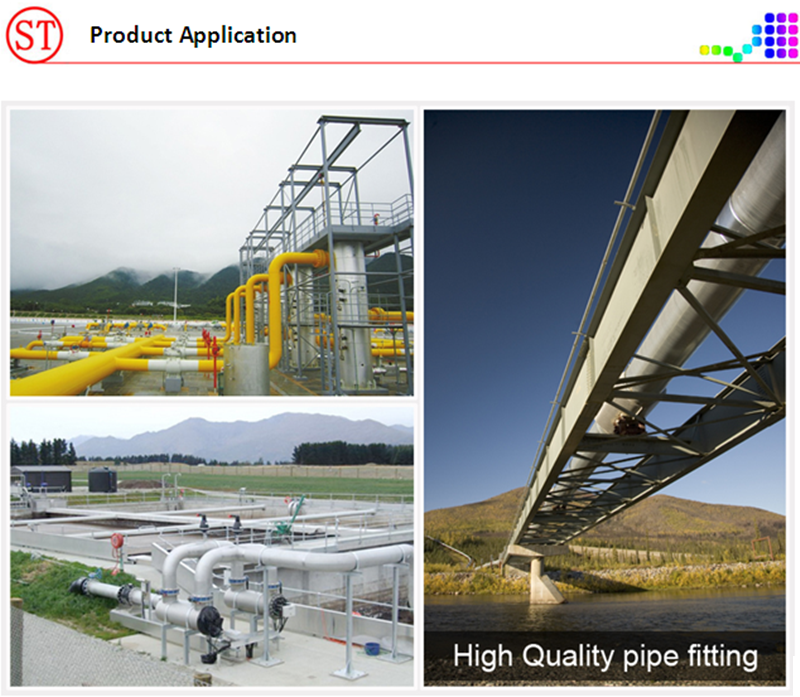

Used in petroleum, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction, etc.
Package:In wooden case, pallet or according to customer's requirement
Shipping:Tianjin Port, Ningbo Port, Shanghai Port and other major ports in China.
1. Q: Are you a factory or a trading company?
A: We are a factory. We also have brother factories for other steel business. Shentian is a group limited company.
2. Q: Where is your factory located? How can I get there?
A: Our factory is located in Cangzhou City, China, about 40 minutes from Cangzhou West Railway Station to our factory. 120 kilometers away from Tianjin International Airport. Warmly welcome you to visit us!
3. Q: Can I get some samples?
A: Yes, we are honored to offer you free samples.
4. Q: How does your factory do regarding quality control?
A: "Today's quality, tomorrow's market" inspection and traceability no. We strictly control the quality from raw materials to finished tubes. In this way we can be 100% sure that our goods are qualified.
5. Q: Is the price high?
A: Our price is workable. We have tried using automotive equipment to save labor costs. and control other costs. Such as Huaan supply, logistics and so on.
6. Q: After sales service.
A: The quality is guaranteed. If our product does not meet the contract requirements, we will send you the item free of charge.
