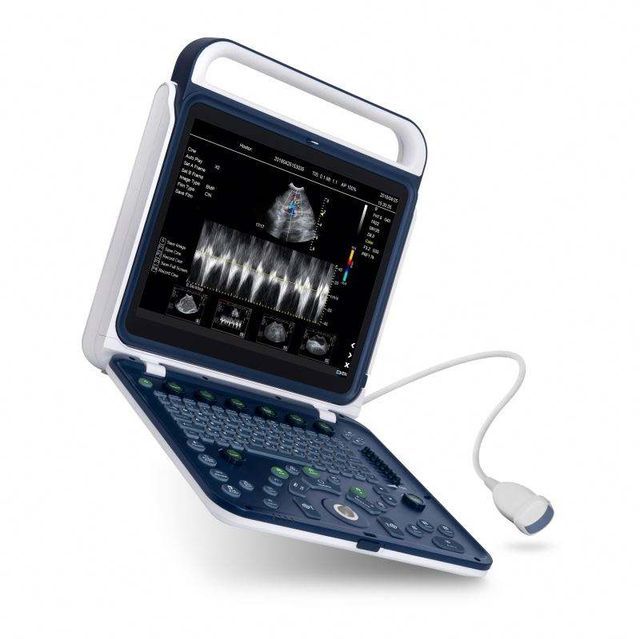

Vet OPU Portable Color Doppler Ultrasound Scanner Veterinary Machine
- $3599.00 /piece
- 1 piece
- Medsinglong Co., Ltd.
- Guangdong, China
- Ms Helen Xia
PRODUCT DETAIL
| Origin: | Guangdong, China | Battery run time: | 6 hours |
| port: | Guangzhou | model: | B, B/B, B/M, M, A |
| Instrument classification: | Class I | Energy source: | electrical |
| Shelf life: | 1 year | brand: | MSL |
| scanning method: | Convex & Linear, Slightly Convex, Rectal Probe | product name: | ultrasound veterinary |
| Monitor: | 15-inch high-resolution LCD monitor | Sensor element: | 128 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Quality Certification: | CE |
| Supply capacity: | 99 sets per month | Material: | plastic |
| Measurement: | Distance, area, OB, backfat, lean meat percentage, etc. | Warranty: | 1 year |
| northwest: | About 6.2 kg (including battery) | safety standard: | not any |
| aspect: | Height: 402mm Width: 385mm Depth: 98mm | System material: | Fireproof and anticorrosion ABS |
| Packaging Details: | Standard export packaging | After-sales service: | online technical support |
| model: | MSLVU41 |

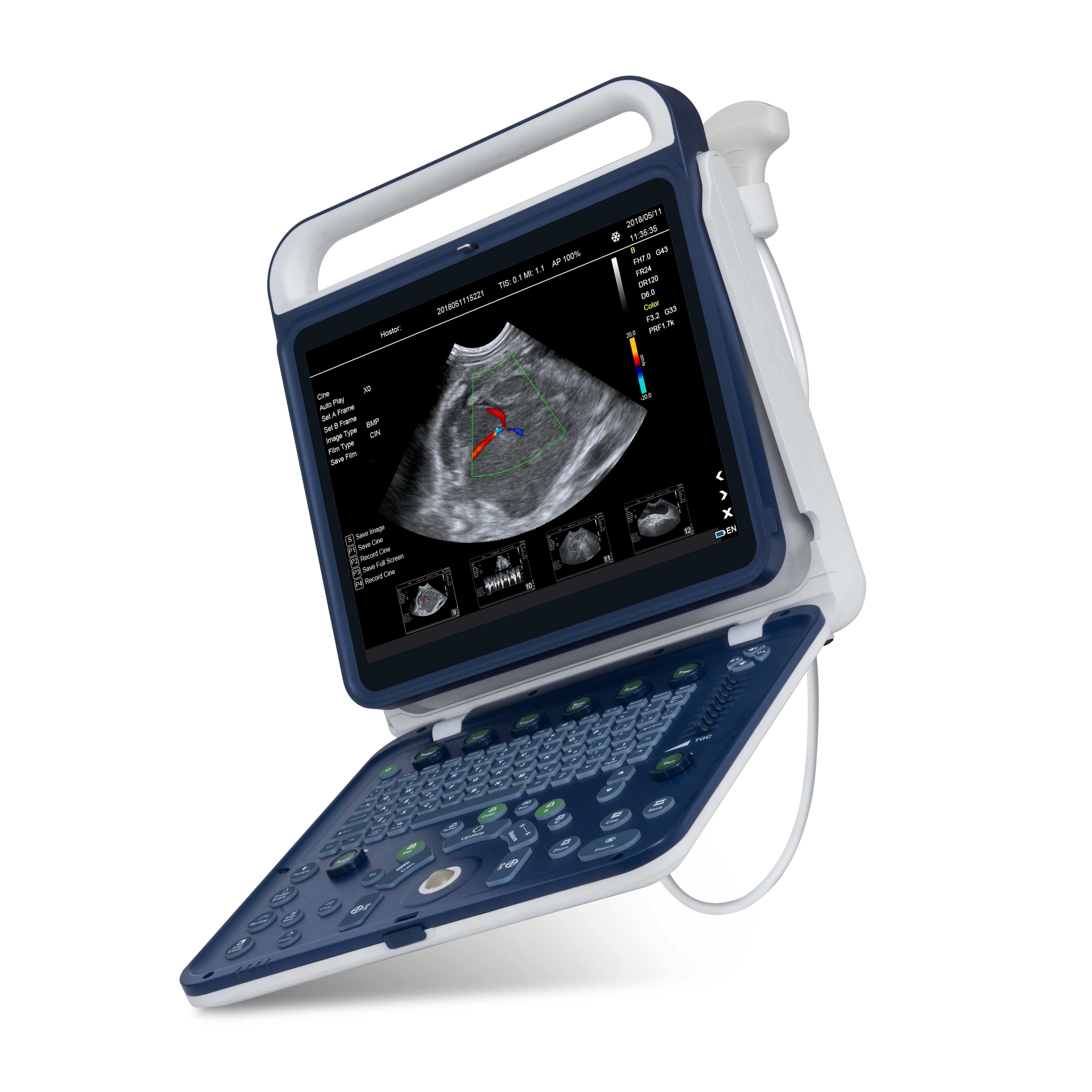

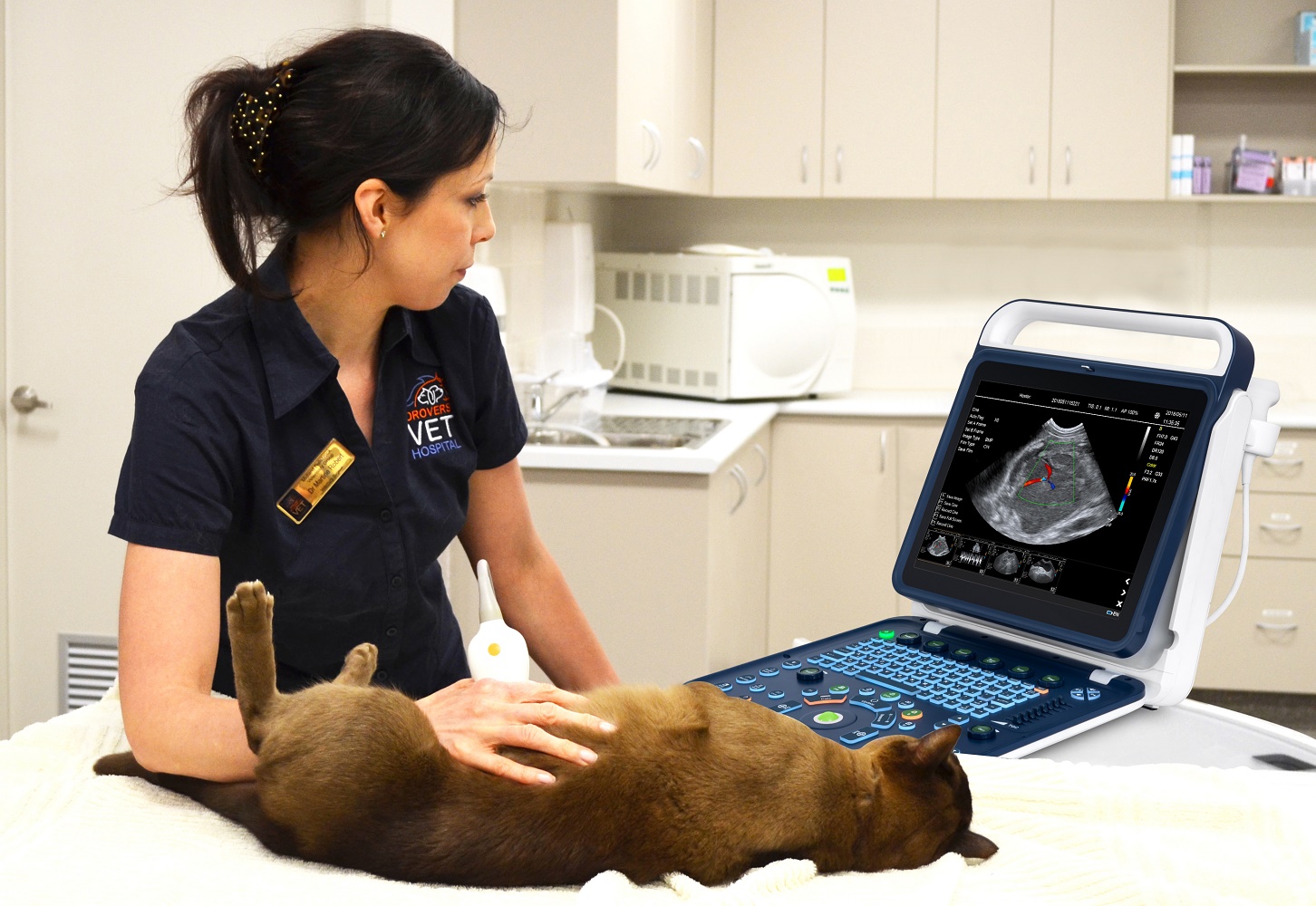

Vet OPU Handheld Portable Color Doppler Ultrasound Scanner Veterinary Machine
Product Description
feature
The MSLVU42 Vet OPU is a portable veterinary color Doppler ultrasound unit with excellent image performance and
Diverse applications. Based on advanced imaging technology and ergonomic design, BUP60 Vet OPU has excellent image quality, comprehensive functions, high cost performance and mobility, and can provide a very comprehensive imaging OPU solution.
Application scenario:
* Suitable for horses, large animals, small animals, zoo mammals, marine mammals medical full body scans such as abdomen, reproductive, gynecology, cardiology, small parts
* Veterinary clinical and research departments, animal farms, zoos, and ultrasound platforms are based on Linux, with stable performance and data security

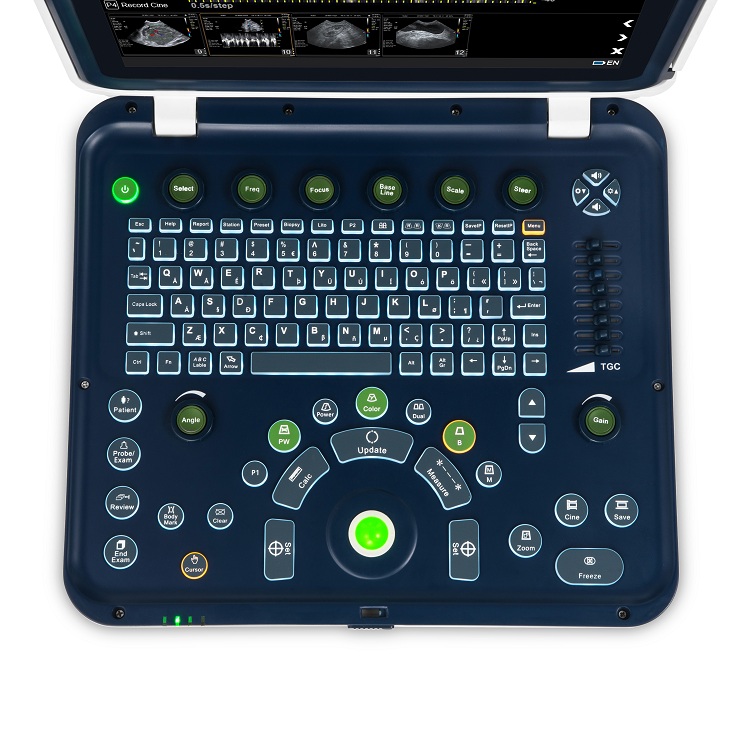

Keyboard: Fully backlit keyboard, easy to work in low light
Imaging Mode: B, B/B, B/M, M, 4B, C, PDI, PW
Gray scale: 256

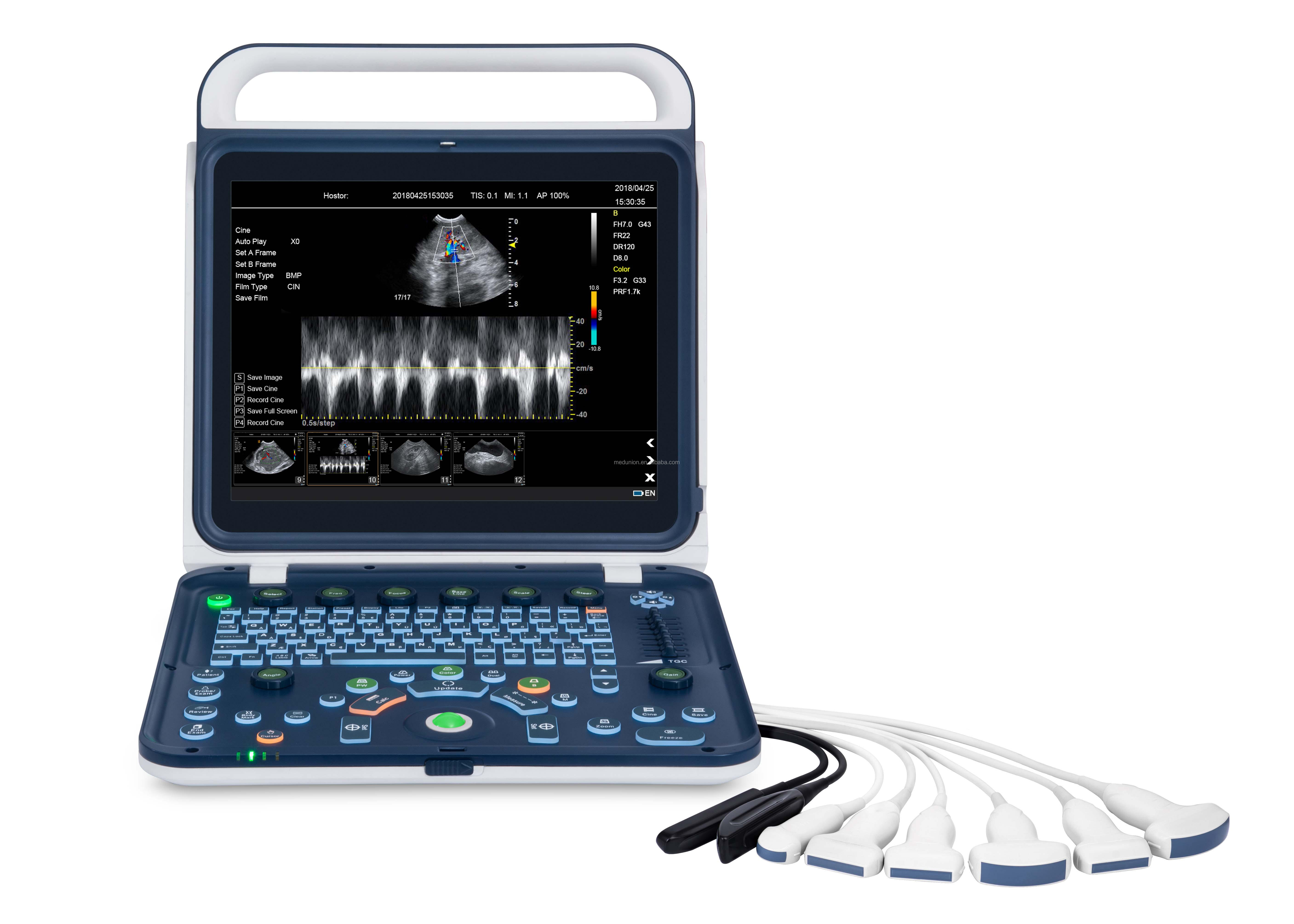

Transducer type: convex array, linear array, rectal array
Transducer frequency: 2‐15 Mhz

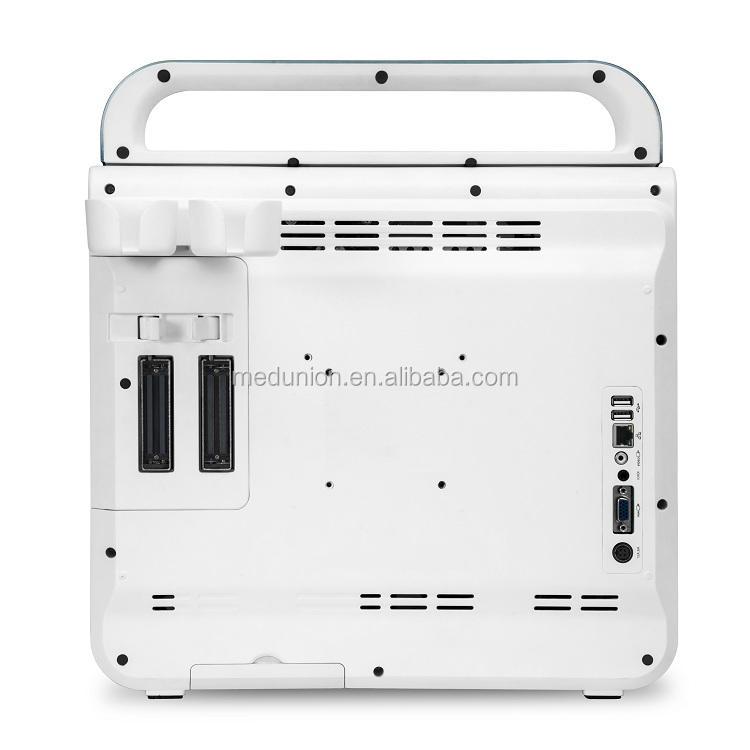

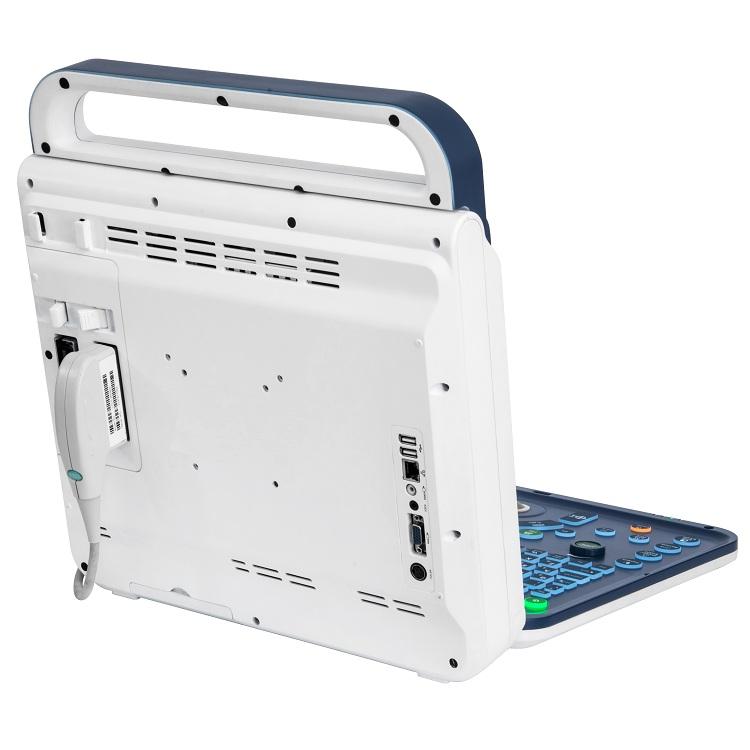

Sensor connectors: 2 active sensor connectors support quick switching between different probe needs
Scanning depth: up to 351mm
Software language: English, Chinese, Spanish, etc. (support ODM!) Keyboard input: English, Chinese, etc. (support ODM!)
User Manual: English, Chinese
Diverse applications. Based on advanced imaging technology and ergonomic design, BUP60 Vet OPU has excellent image quality, comprehensive functions, high cost performance and mobility, and can provide a very comprehensive imaging OPU solution.
Application scenario:
* Suitable for horses, large animals, small animals, zoo mammals, marine mammals medical full body scans such as abdomen, reproductive, gynecology, cardiology, small parts
* Veterinary clinical and research departments, animal farms, zoos, and ultrasound platforms are based on Linux, with stable performance and data security
Keyboard: Fully backlit keyboard, easy to work in low light
Imaging Mode: B, B/B, B/M, M, 4B, C, PDI, PW
Gray scale: 256
Transducer type: convex array, linear array, rectal array
Transducer frequency: 2‐15 Mhz
Sensor connectors: 2 active sensor connectors support quick switching between different probe needs
Scanning depth: up to 351mm
Software language: English, Chinese, Spanish, etc. (support ODM!) Keyboard input: English, Chinese, etc. (support ODM!)
User Manual: English, Chinese
Product parameters
Basic parameters | ||

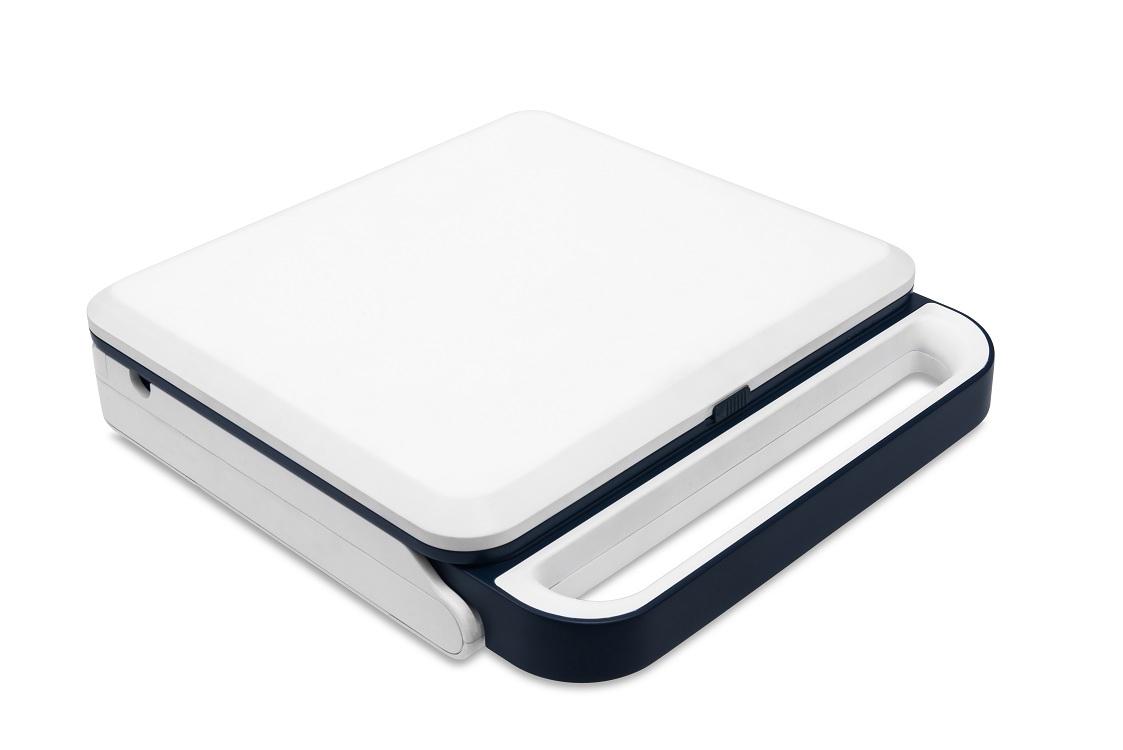

System Dimensions: | Height: 402mm Width: 385mm Depth: 98mm | |
weight: | About 6.2 kg (including battery) | |
physical channel | 64 | |
Transducer element | 128 | |
system material | Fireproof and anticorrosion ABS | |
strength: | System runs on AC power and batteries | |
AC adapter: | • Model: MANGO-BMV-15AD-C5 • Voltage: 100‐240VAC • Frequency: 50/60 Hz • Currency: 5A • Output: 15V | |
Battery: (optional) | • Model: LY606090 • Li-ion battery, 11.1V, 8000mAH • Full charge: 6 hours • Maximum duration: 120 minutes real-time scan* | |
General Measurements: | Distance, perimeter, area, (trajectory/ellipse), volume, etc. | |
Package: | Abdomen, Cardiac, Gynecology, Obstetrics, Urology, Small Parts (Thyroid), etc. | |
Dynamic Imaging Technology:
Digital Beamforming Digital Frequency Scanning
High-precision dynamic focusing imaging dynamic receiving apodization
Multi-beam Parallel Processing Technology for Pulse Inversion Tissue Harmonic Tissue Doppler Imaging
SRI Speckle Noise Suppression Technology SCI Spatial Composite Imaging Real-time Dynamic Aperture
8-segment TGC adjustment
Dynamic range (0-100)
Frame dependency (0-7)
Edge Enhancement (0‐7)
Linear density (high/medium/low)
Post-processing: Grayscale (0‐14)
Scanning angle up to 150° left/right reverse up/down reverse
Post-processing: Grayscale (0‐14)
Scanning angle up to 150° left/right reverse up/down reverse
Monitoring parameters | ||
LCD | 5-inch high-resolution LCD screen, tiltable for free and comfortable viewing | |
solve: | 1024×768 | |
brightness | adjustable | |

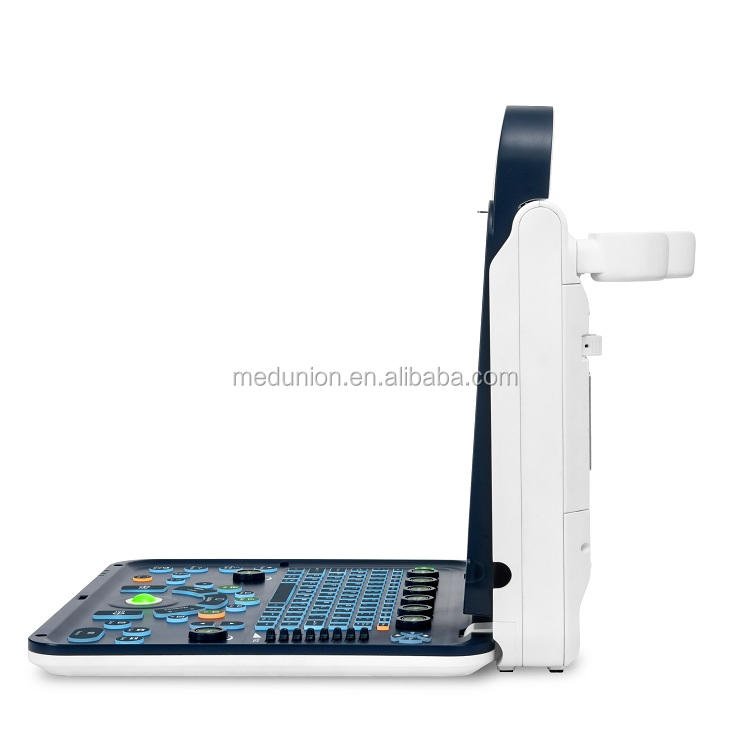

Maximum opening angle | 45° | |
detailed picture
