Wanna metal recycling scrap copper cable wire recycling granulation shredder
- $3499.00 /set
- 1 set
- Xi'an Vaner Machinery Co., Ltd.
- Shaanxi, China
- Ms VANER-Arya Choi
PRODUCT DETAIL
Core component warranty: | 1 year | Main selling points: | multifunctional |
Machine size: | 1.85*1.65*2.24m | capacity: | 80kg/hour |
Supply capacity: | 500 sets per month | Weight (kg): | 165 |
Package preview: | Origin: | Zhejiang, China | |
Marketing Type: | New product | Core components: | engine, motor |
Applicable industries: | Scrap Metal Recycling, Copper Cable Wire Recycling, Cable Manufacturers | Warranty: | 1 year, 1 year |
Power (kW): | 3.4 | Voltage: | 110V/220V/380V/custom 1 phase |
Certification: | CE certification | Packaging Details: | Packing: 1) Inner packing: the machine is covered with plastic film; 2) Outer packing: plywood box |
Health status: | new | Mechanical test report: | if |
Showroom location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia | Stripping range: | 1~30mm |
weight: | 1500 kg | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
strength: | 13 kW | port: | Ningbo/Shanghai |
Name: | Cable recycling machine | Video outbound inspection: | if |
Model: | V-C06 | brand: | Vana |
Product Description

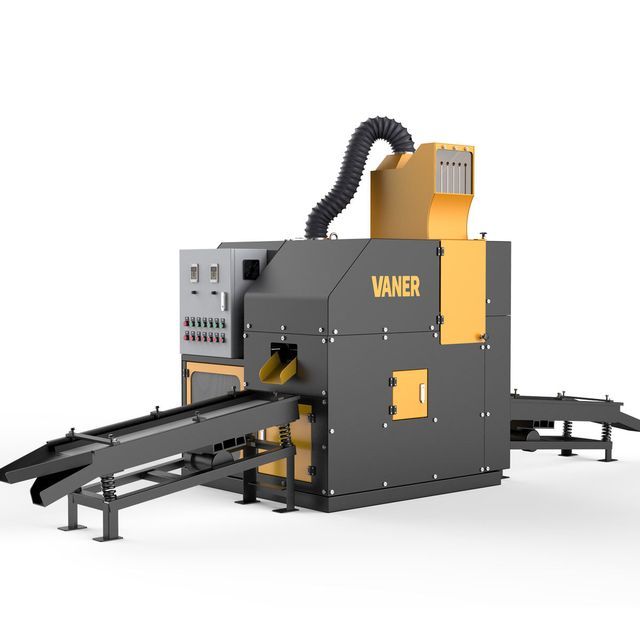

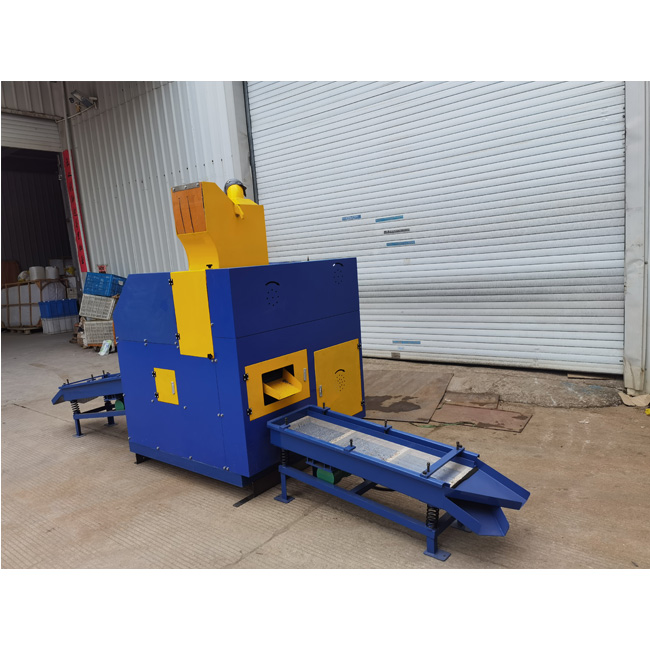

The VANER C06 copper wire granulator is designed for home and small factory use, also suitable for small scrap yards. If you are looking for a machine with a processing capacity of 50-80 kg/hour, small footprint and easy to move, C06 copper wire separator is your best choice. C06 copper wire granulator can process various cables below 30mm, such as household cables, square wires, electric wires, etc. Best price for maximum profit. Very good option for small business and wholesale.

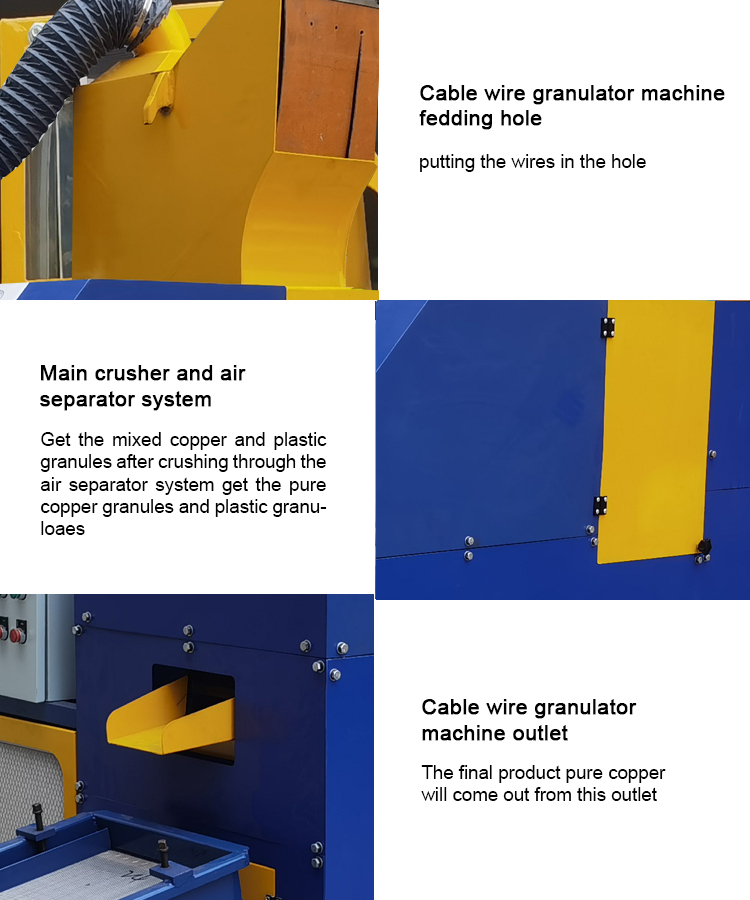

work process

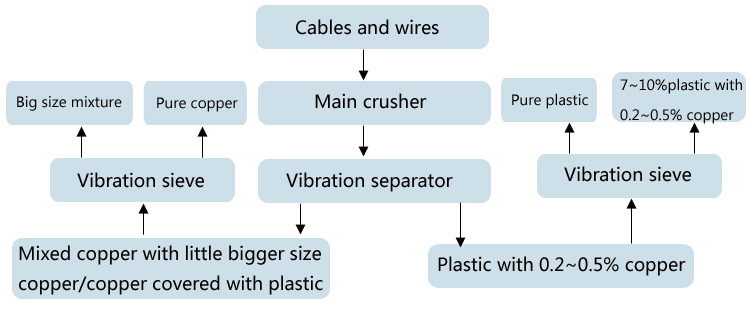

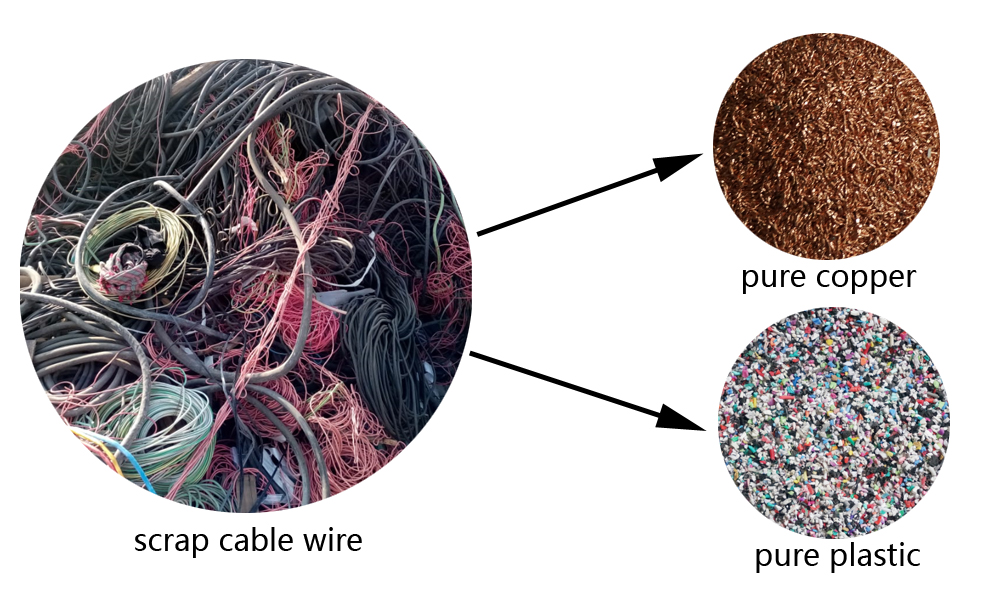

Copper wire splitter process:1. Put the cable into the feed hole, the strong and powerful copper wire grinder will crush the cable into mixed particles. 2. The airflow gravity separation system separates the copper and plastic in the crushed mixed particles. 3. Vibration sorting table for secondary sorting of pure copper. 4. At the same time, a self-cleaning dust collection system is used to collect dust.
Advantages of copper wire separator:1. The latest and smallest mini copper wire recycling machine; 2. Support household electricity (single-phase electricity), very suitable for household use; 3. Small size, small capacity, about 50-80 kg per hour; 4. The cheapest and most affordable , suitable for wholesale; 5. It can also be customized as a push wheel type for easy movement.

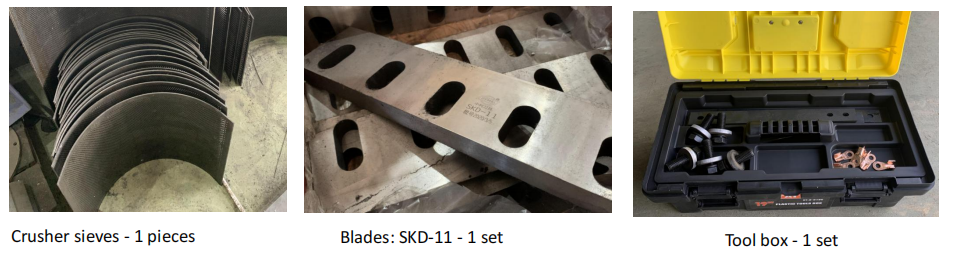

Standard spare parts
Specification
Model | capacity | scope | strength | weight | mia |
V-C02 | 20-40kg/hour | 0.1-30mm | 4.2 kW | 310 kg | 5*45*140cm |
V-C03 | 50-80kg/hour | 0.1-30mm | 5.18 kW | 515 kg | 100cm*58cm*170cm |
V-C06 | 50-80kg/hour | 0.1-30mm | 13 kW | 1200 kg | 136*136*191.5 cm |
V-C10 | 100-200kg/hour | 0.1-30mm | 24 kW | 1200 kg | 250*190*210cm |
V-S20 | 200-300kg/hour | 0.1-30mm | 26.8 kW | 1600 kg | 255*200*255cm |
V-S30 | 400-500kg/hour | 0.1-30mm | 49.1 kW | 3200 kg | 350*80*250cm |
V-S35 | 600-800kg/hour | 0.1-30mm | 75 kW | 5 tons | 5*6.5*3m |
V-S50 | 800-1200kg/hour | 0.1-30mm | 69.3 kW | 6 tons | 7.2*7.5*2.2m |
V-S55 | 1200-1800kg/hour | 0.1-30mm | 94.8 kW | 8.5 tons | 12*4.3*3m |

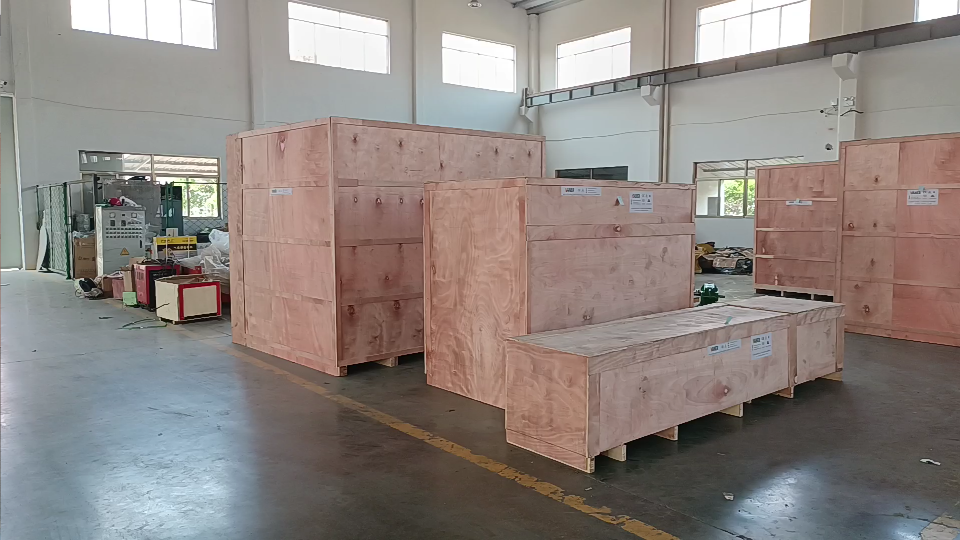

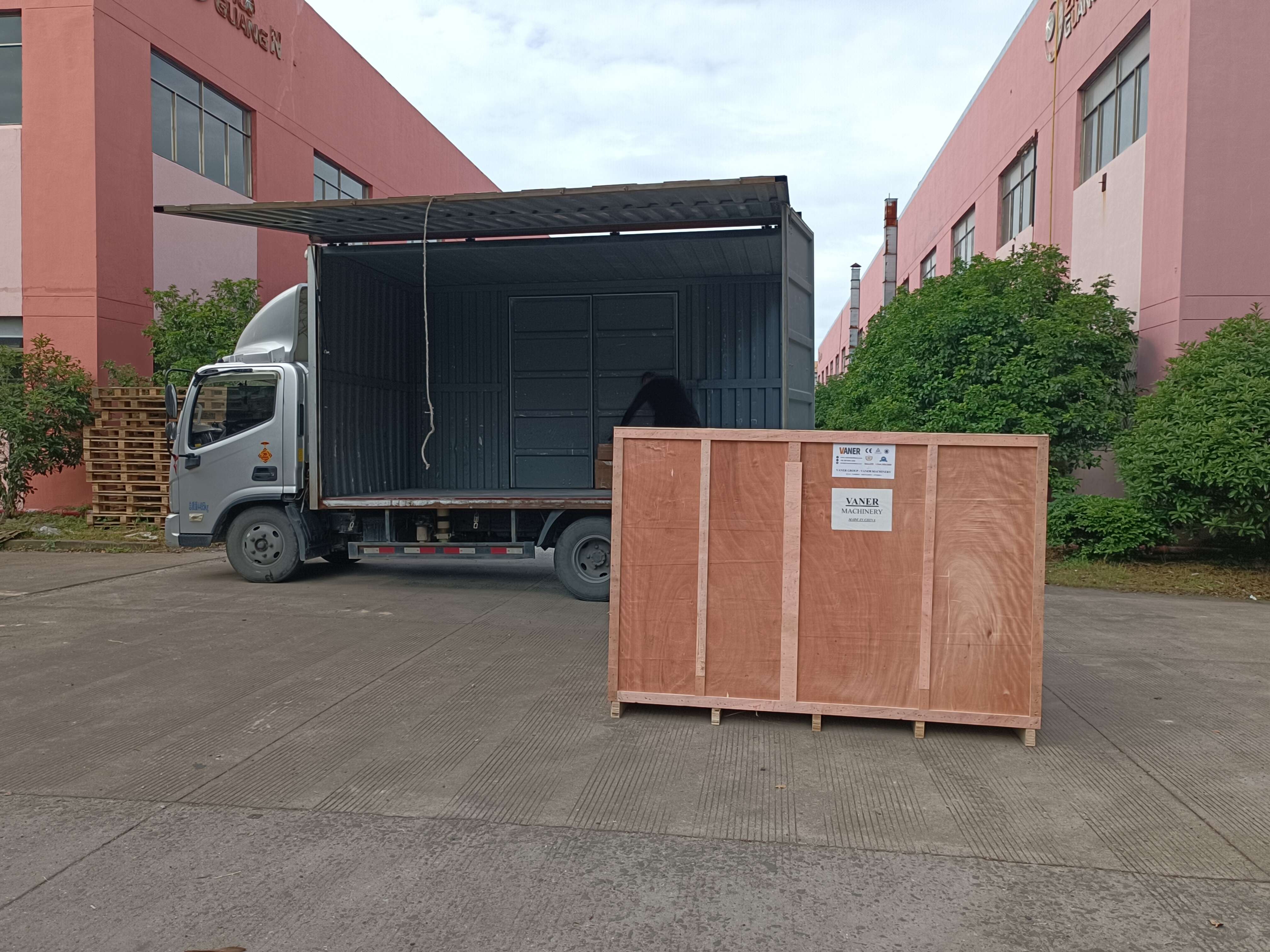

packaging and shipping
customer
This small copper wire granulator is pretty much the cheapest copper wire recycling machine you can buy in the market, but it has all the functions of crushing and sorting. Best choice for small wire scrap recyclers as well as start-up recycling companies.
