Waterproof ASA Pvc Synthetic Resin Spanish Roof Tiles 1050mm Width
- $3.68 / 50 - 999 square meters
$2.95 / 1000 - 3999 square meters
$1.82 / >=4000 square meters - 50 square meters
- PINGYUN INTERNATIONAL
- Shandong, China
- Ms Petra Wei
PRODUCT DETAIL
| application: | Farmhouses, chemical plants, wall cladding, factories, warehouses, office buildings | Project solution ability: | Graphic design, 3D model design, overall project solution |
| Supply capacity: | 2,500,000 square meters per day | width: | 1050mm, 1080mm |
| Packaging Details: | bulk | shape: | bamboo |
| brand: | Pingyun or OEM | After-sales service: | online technical support |
| length: | Maximum 11.8m | model: | 1050mm, 1080mm |
| thickness: | 2.2-3mm | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| design style: | modern | layer: | 1-4 floors |
| Package preview: | type: | curved tiles | |
| Material: | ASA+PVC | Warranty: | over 5 years |
| surface: | ASA layer | MOQ: | 300 square meters |
| Origin: | Shandong China | port: | Foshan |
| color: | White, blue, bright yellow, green, gray, brick red |

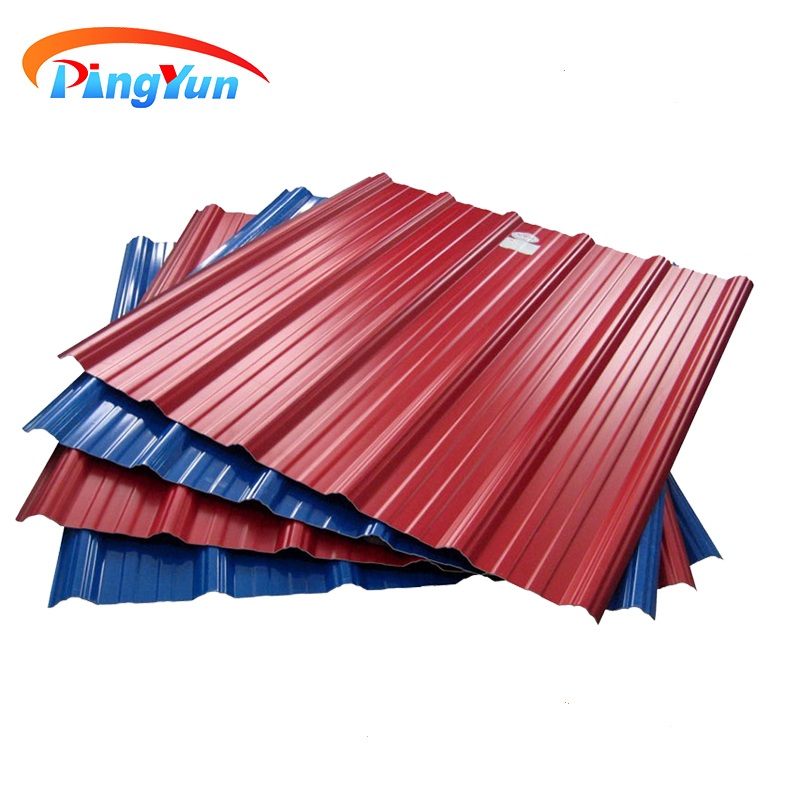

Wholesale UPVC European tile roofing material corrugated roof sheet
Product Description

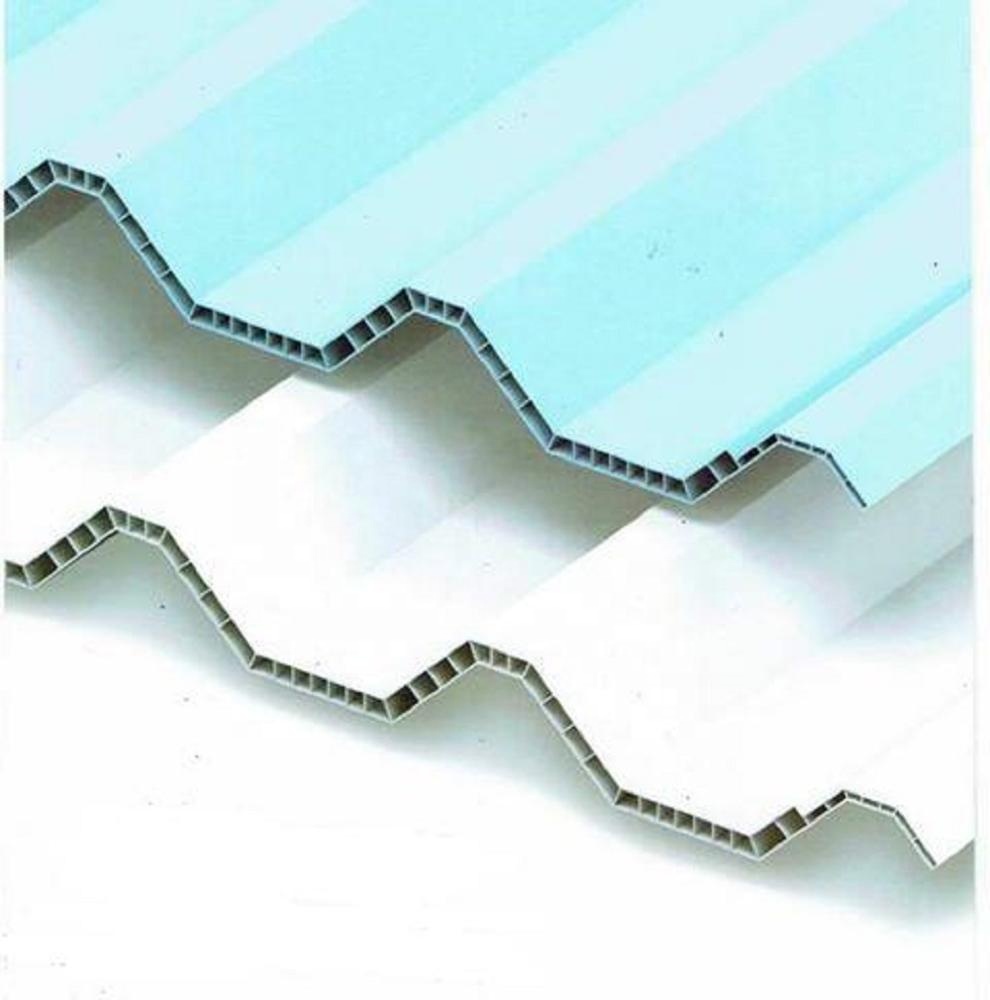

Our products cover a full range of plastic roof panels, including resin roof panels, pvc&upvc roof panels, pvc hollow panels, FRP roof panels, polycarbonate panels and various transparent roof panels. Based on these roof panels, we have the most complete wave designs all over China.
Cathy Sales Manager Email: [email protected] Whatsapp:+8618754119202

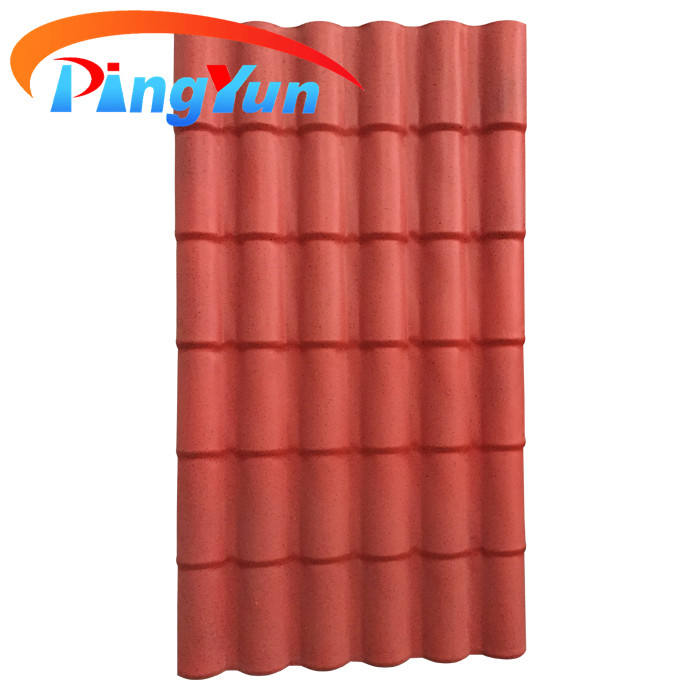

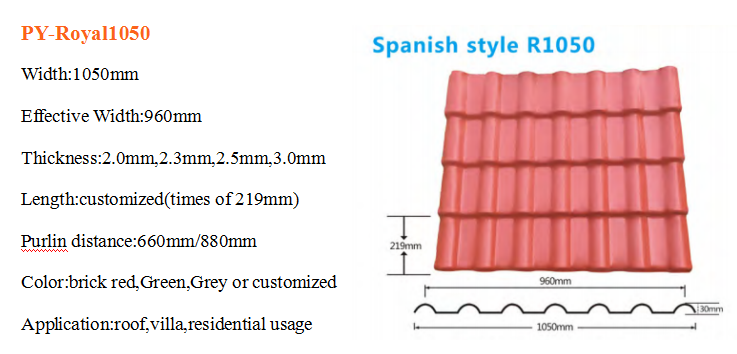

--Spanish style R1050
Pingyun R1050 is made of high weather-resistant ASA material, which has a stable color retention for more than 30 years. It is widely used in villas, houses, mobile homes, gazebos, etc.
raw material | PVC/PVC |
surface material | as a |
type | spanish |
overall width | 1050mm |
length | Maximum length of 40ft container 11.8m Maximum length for 20ft container 5.8m |
thickness | 2.2mm~3.0mm |
color | Orange, Brick Red, Dark Green, Falk Gray, Brown, etc. |
long lasting color | 30 years of cooperation with ASA |
warranty period | About 30 years, or even longer if there is no human destruction. |
feature | 1. Excellent heat resistance and corrosion resistance 2. Various colors and patterns 3. High strength, anti-corrosion, anti-aging 4. Fireproof, waterproof, environmentally friendly 5. Easy to set up and clean |
application | Projects such as villas, residences, prefabricated houses, gazebos, etc. |
Pingyun R1050 is made of high weather-resistant ASA material, which has more than 30 years of color retention and stability. It is widely used in villas, houses, mobile homes, gazebos, etc.

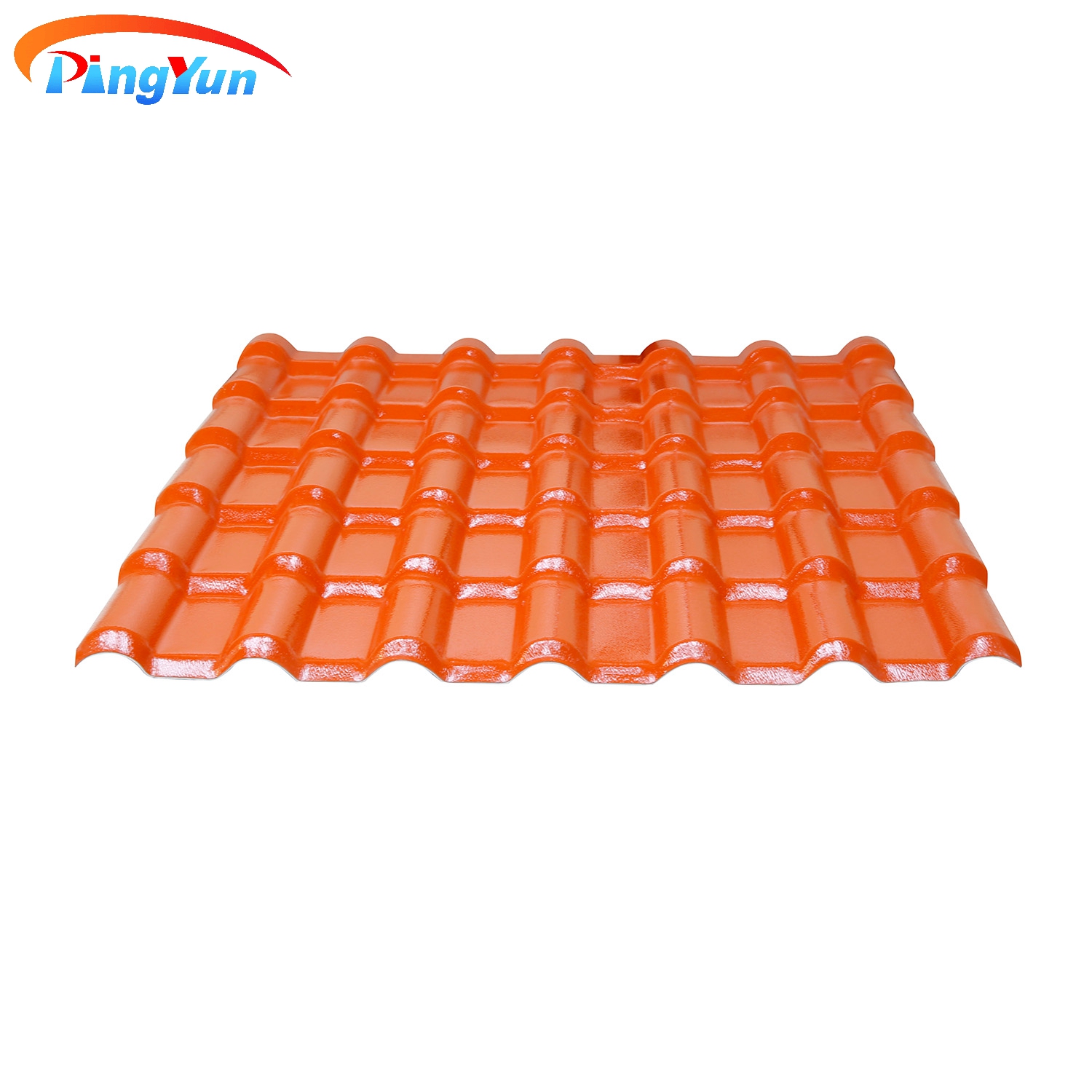

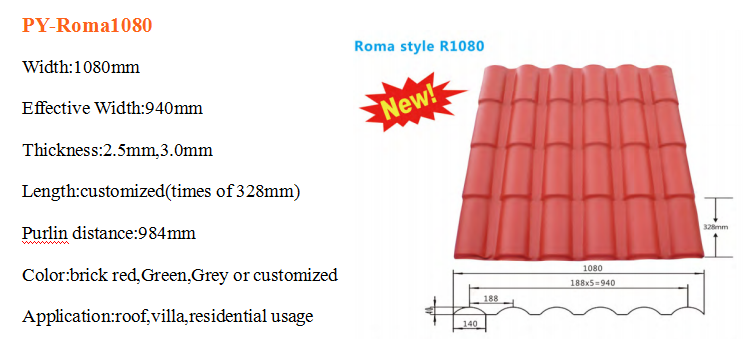

--Roman style R1080
PingYun R1080 is our new design, it is very popular all over the world, it is also widely used in villas, houses, mobile homes and gazebos.
product name | Roman style R1080 |
Warranty | 30 years |
After-sales service | Online technical support, on-site installation, on-site training, on-site inspection, free spare parts, return and exchange |
Project solving ability | Graphic design, 3D model design, overall project solution, cross-category integration |
application | walls, roof, armory, villa |
design style | roman steer |
brand | Pingyun or OEM |
model | R1080 |
Material | PVC+UPVC+ASA synthetic resin |
length | 2.0mm, 2.3mm, 2.5mm, 3.0mm |
thickness | Maximum length of 40ft container 11.8m Maximum length of 20ft container 5.8m |
width | 1080mm |
Certificate | ISO, CE, test report |
delivery time | within 7 days |
feature | Anti-corrosion, heat insulation, good sound insulation, light weight, fireproof |
color | Color can be customized |

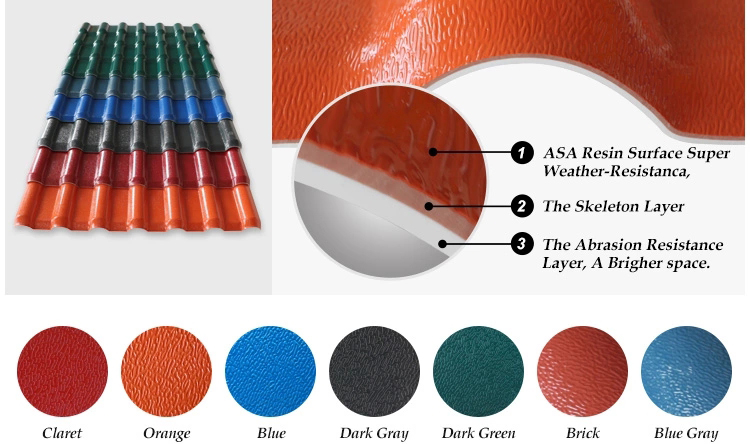

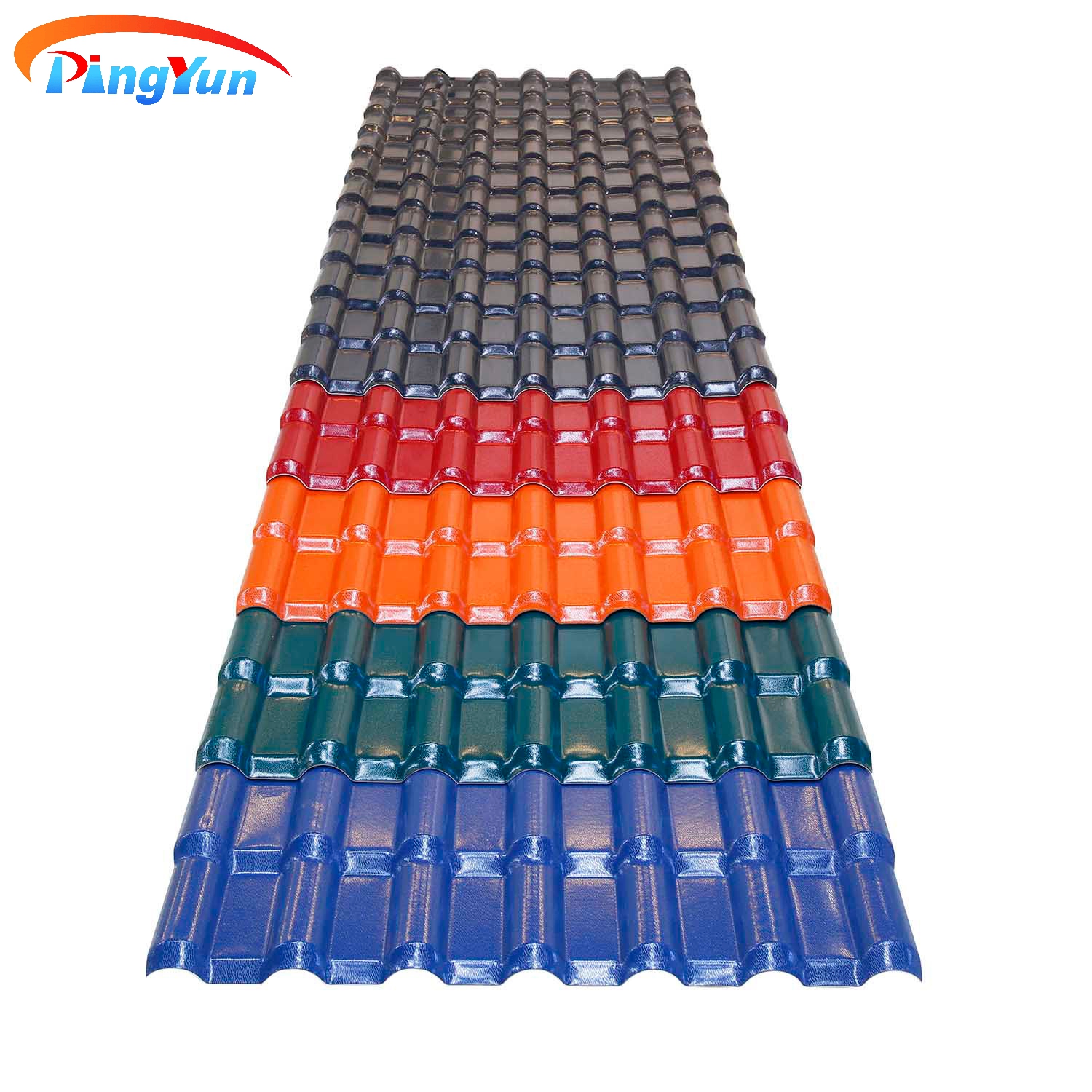

common color

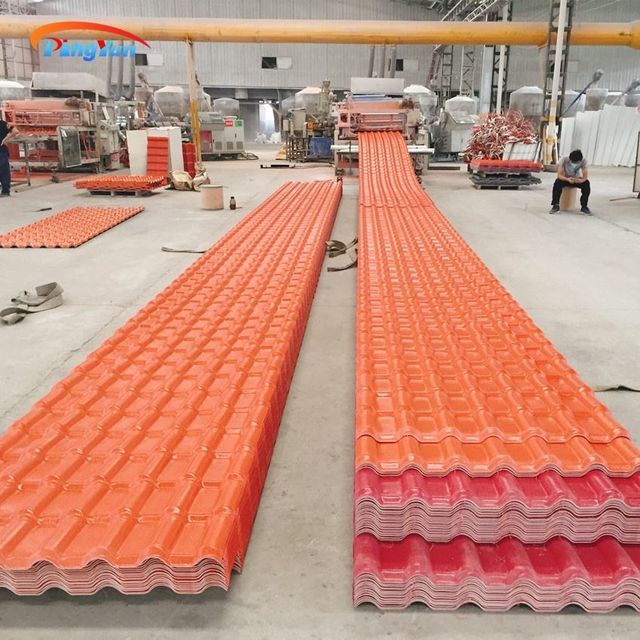

Physical map

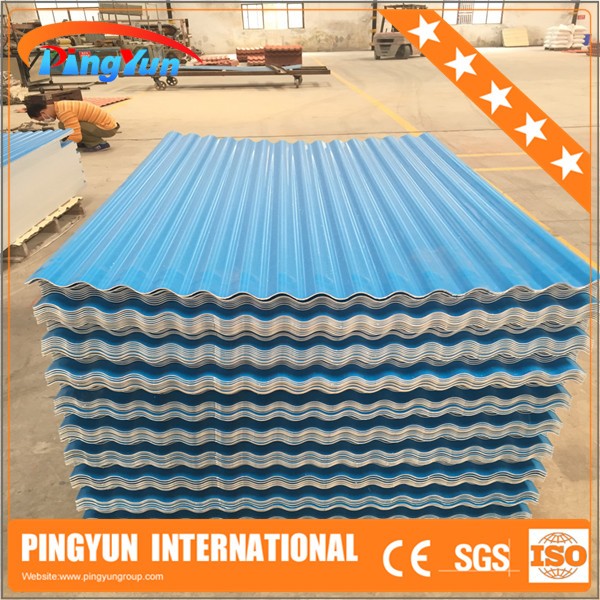

other products

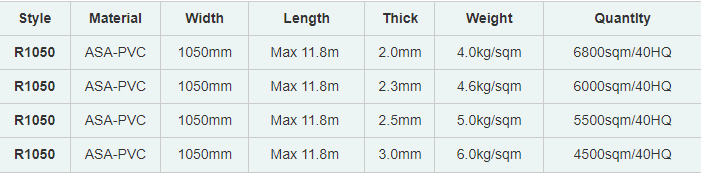

Specification

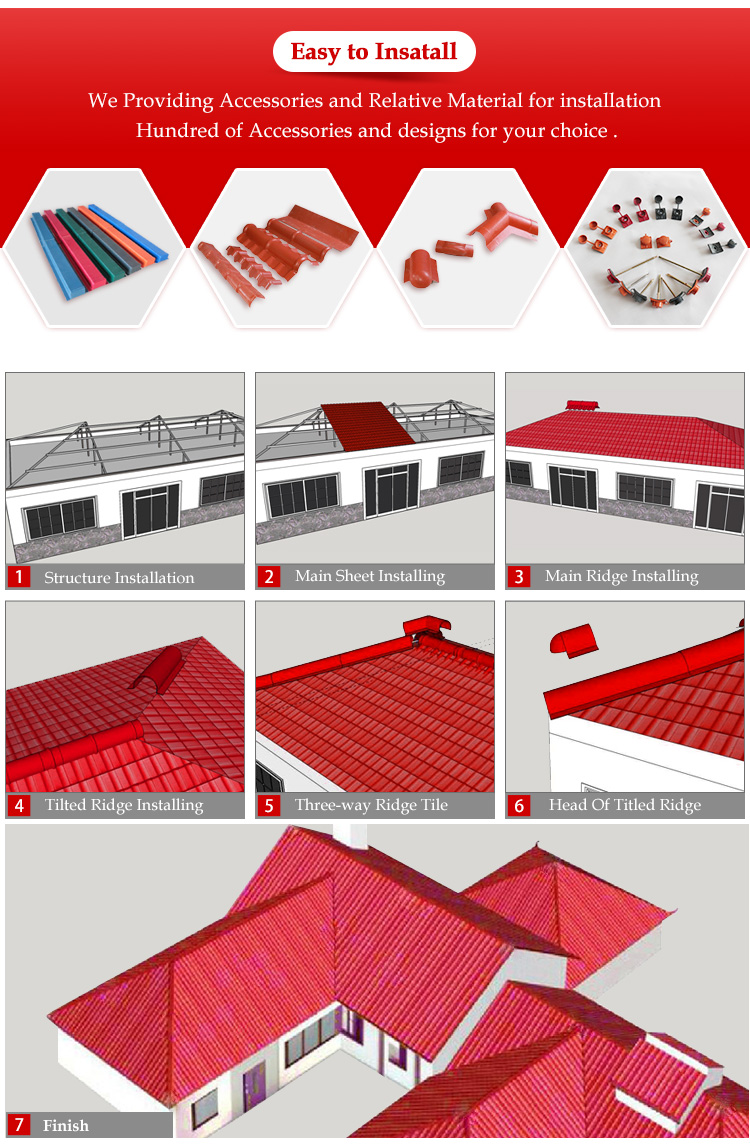

Installation Notes
(1) Three-way ridge: It is used as a connecting element between the straight ridge and the side ridge of the four-slope roof.
(2) Top Ridge Tiles: To install the top ridge from one side, cut the first tile in half to avoid four tiles crossing on top
overlapping.
(3) Roof tiles: overlap one wave, and each sheet should be assembled as close as possible to the overlapping one. cut out the first
The second row of paper is halved to avoid crossing of four sheets when overlapping.
(4) Side ridge: install side ridge tiles from bottom to top, overlap 50mm, and align the side ridges into a straight line.
(5) Purlins: 2.5mm purlin spacing is 800mm, 3.0mm purlin spacing is 1000mm.
(2) Top Ridge Tiles: To install the top ridge from one side, cut the first tile in half to avoid four tiles crossing on top
overlapping.
(3) Roof tiles: overlap one wave, and each sheet should be assembled as close as possible to the overlapping one. cut out the first
The second row of paper is halved to avoid crossing of four sheets when overlapping.
(4) Side ridge: install side ridge tiles from bottom to top, overlap 50mm, and align the side ridges into a straight line.
(5) Purlins: 2.5mm purlin spacing is 800mm, 3.0mm purlin spacing is 1000mm.

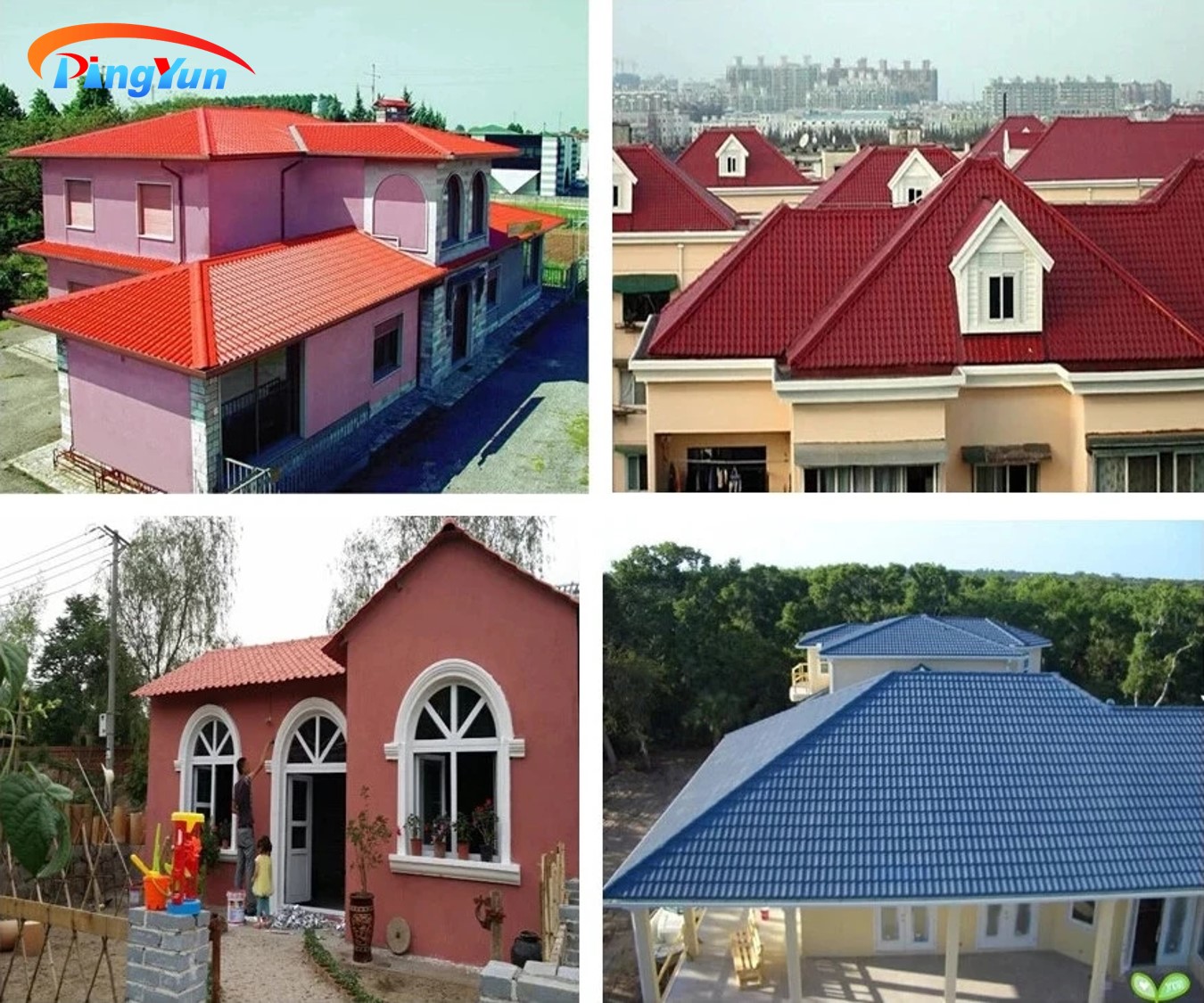

application
application:
1. Roofs of factories, warehouses, farmhouses, villas, shopping malls, etc.;
2. Gardens, greenhouses, indoor fish sheds;
3. Carports, corridors, aisles, balconies, etc.;
4. Modern railway stations, bus stations, ferry terminals, airports and other waiting rooms.
1. Roofs of factories, warehouses, farmhouses, villas, shopping malls, etc.;
2. Gardens, greenhouses, indoor fish sheds;
3. Carports, corridors, aisles, balconies, etc.;
4. Modern railway stations, bus stations, ferry terminals, airports and other waiting rooms.
Our advantage
1. Long-lasting color (at least 20 years)
The product is exceptionally durable in the natural environment, maintaining color stability even under harsh conditions of exposure to UV rays, heat, and severe cold.
3. Good waterproof performance
The synthetic resin tile is made of high weather-resistant resin, which is dense, non-absorbent, and non-porous.
question. This product is 45% wider than traditional tiles and has less contact with the roof, so the waterproof performance of synthetic resin is greatly improved compared with traditional tiles.
4. Strong fire resistance
Belongs to flame retardant materials, tested by the national authoritative department, fire rating ≥ B1
GBB8624-2006 standard.
5. Excellent thermal insulation performance
Thermal conductivity 0.325w/mk, about 1/300 of clay tile, 1/50 of cement tile, 1/2000 of thick color steel plate
watt. Therefore, without considering the insulation layer, the thermal insulation performance of synthetic resin tiles can still be optimized.
6. Good sound insulation effect
Tests have proved that synthetic resin tiles have excellent sound-absorbing properties when subjected to heavy rain and strong wind.
The product is exceptionally durable in the natural environment, maintaining color stability even under harsh conditions of exposure to UV rays, heat, and severe cold.
2. Excellent corrosion resistance
Synthetic resin tiles can resist acid, alkali and salt corrosion for a long time. Tests have proved that no chemical reaction will occur after soaking in less than 60% salt, alkali and various acids, which is very suitable for application in acid rain-prone areas. .
Synthetic resin tiles can resist acid, alkali and salt corrosion for a long time. Tests have proved that no chemical reaction will occur after soaking in less than 60% salt, alkali and various acids, which is very suitable for application in acid rain-prone areas. .
3. Good waterproof performance
The synthetic resin tile is made of high weather-resistant resin, which is dense, non-absorbent, and non-porous.
question. This product is 45% wider than traditional tiles and has less contact with the roof, so the waterproof performance of synthetic resin is greatly improved compared with traditional tiles.
4. Strong fire resistance
Belongs to flame retardant materials, tested by the national authoritative department, fire rating ≥ B1
GBB8624-2006 standard.
5. Excellent thermal insulation performance
Thermal conductivity 0.325w/mk, about 1/300 of clay tile, 1/50 of cement tile, 1/2000 of thick color steel plate
watt. Therefore, without considering the insulation layer, the thermal insulation performance of synthetic resin tiles can still be optimized.
6. Good sound insulation effect
Tests have proved that synthetic resin tiles have excellent sound-absorbing properties when subjected to heavy rain and strong wind.
