Waterproof Backpack Fabric TPU Laminated 420D Nylon Ripstop
- $4.50 / >=500 meters
- 500 meters
- Jiaxing Inch Eco Materials Co., Ltd.
- Zhejiang, China
- Ms Fanny Fei
| Type: | Nylon; | Thickness of TPU Film: | 0.15MM; |
| Thickness: | 0.25-0.50mm; | Weight: | 300-400g/㎡; |
| Package Preview: | ; | Brand Name: | YINGCHENG; |
| Supply Ability: | 5000 Meters per Day; | Supply Type: | Make-to-order; |
| Basic Fabric: | 420D nylon oxford fabric; | Port: | Shanghai/Ningbo; |
| Model Number: | YCW010; | Color: | Orange; |
| Place of Origin: | Zhejiang, China; | Payment Terms: | T/T,Western Union; |
| Width: | 145CM; | Packaging Detail: | Hard paper pipe + PE bags, as per costumers' demand; |
TPU:Thermoplastic Polyurethanes
The first application of TPU is as an environmental friendly replacement of PVC and performs better in low temperature properties, abrasion resistance, flex properties, plasticizer migration.
Specification

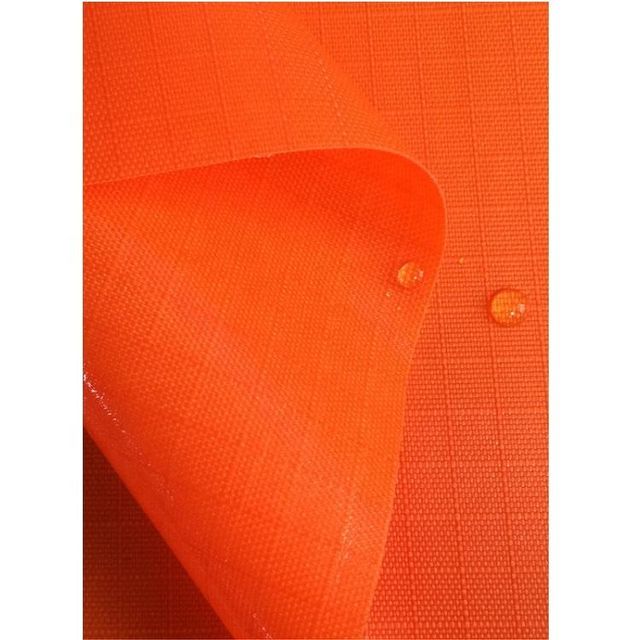

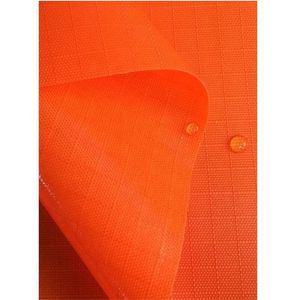

Item Name: 420D nylon 5MM ripstop fabric bonded TPU film with PU coated for waterproof bag
Basic Fabric: 420D nylon fabric with 5MM ripstop
Total Thickness: 0.25-0.50MM
Thickness of TPU Film: 0.15MM
Color of TPU Film: Transparent
Total Weight: 300-400 g/m²
Color: Orange
Width: 145CM
Contact with us, we'll send you the exact specififation.
Product features
1. Excellent low temperature flexibility, could be doubled up under -55℃without causing cracks.
2. Outstanding abrasion resistance, oil resistance and ageing resistance
3. Completely waterproof
4. Super airtightness for inflatable products
5. High tensile strength and tearing strength
6. Good flexibility and rebound resilience
7. Environmentally friendly and non-toxic, could be decomposed by microorganism within 3-5 years when buried.
8. Soft and smooth hand feeling

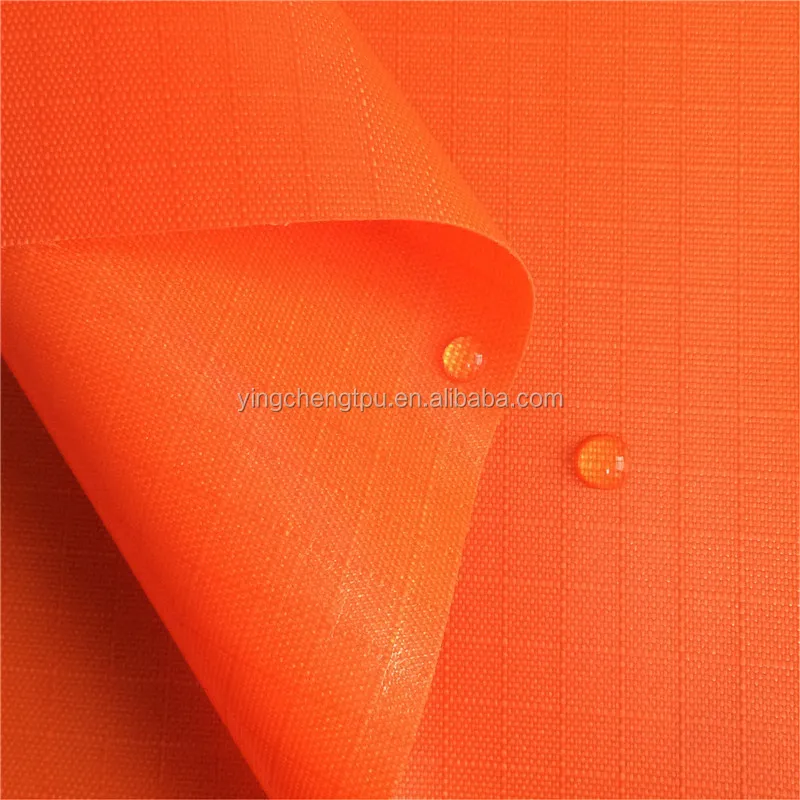

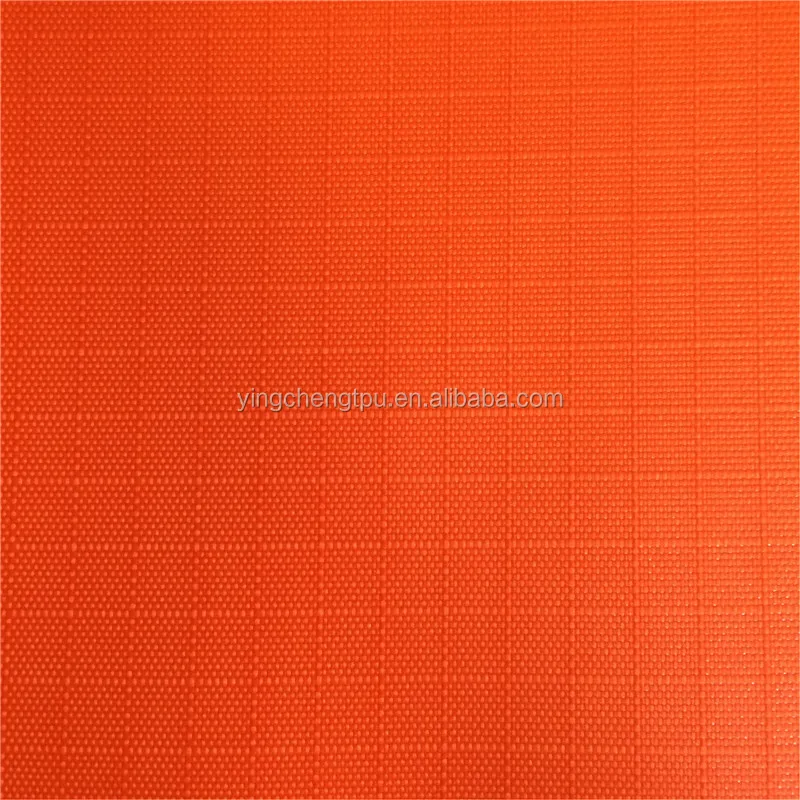

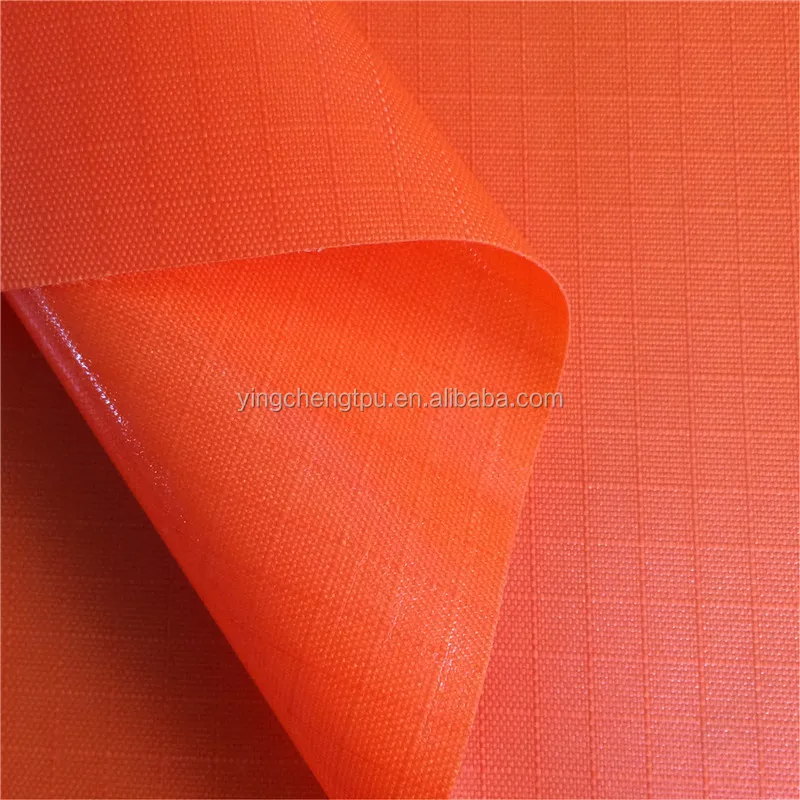

Detailed Images

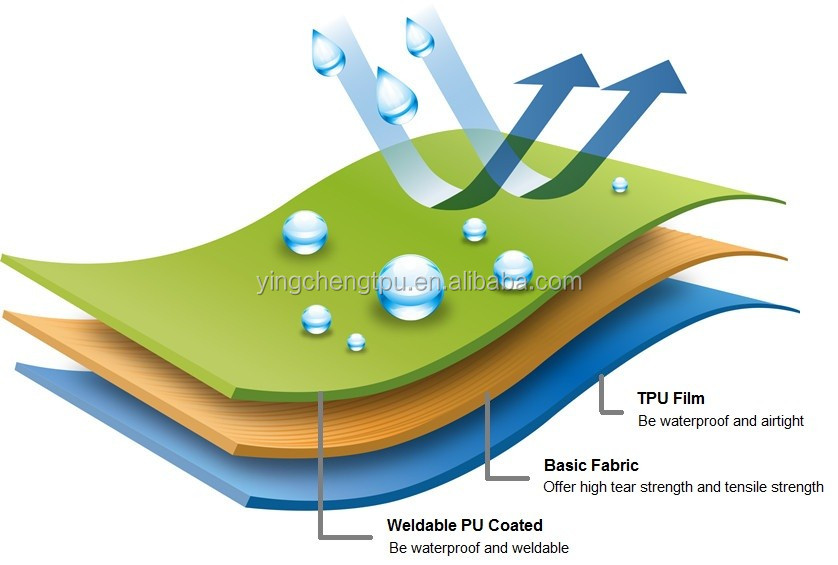

Product Structure
There are 3 layers in this TPU waterproof fabric.
The first layer is triple PU coated. It’s waterproof and weldable.
The middle one is basic fabric. It’s 420D nylon fabric with 5MM ripstop with good tearing strength and tensile strength.
The bottom layer is TPU Film. It makes the fabric to be completely waterproof and airtight. The soft and elastic TPU layer could increase the tearing and tensile strength of the fabric.
Application
This TPU waterproof fabric could be widely used in waterproof bags, outdoor backpack, map case,Ipad case,Phone case,water bucket, water bladder, dry bags, storage bag, tent, airbag, inflatable helium RC airship, hot-air balloon… etc.
The first application of TPU is as an environmental friendly replacement of PVC, so this TPU waterproof fabric could be used in anywhere is using PVC fabric.
Our Services
1. The specifications of this TPU waterproof fabric could be made according to the clients' requirements, including the basic fabric, color of basic fabric, total thickness, thickness&color of TPU film, PU coated, width and packaging.
2. Sample order and small order are acceptable
3. Free samples could be sent to you to check the quality, but you should pay for the postage
If you are interested in our products or have any questions, please contact us without hesitation

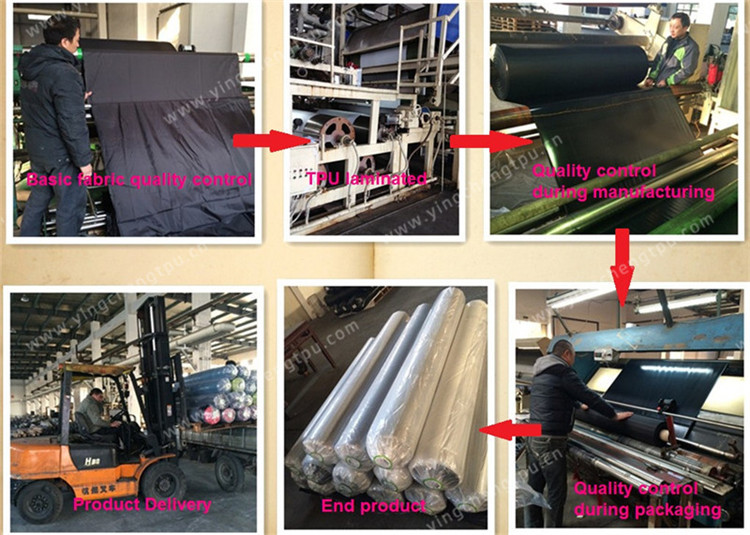

Production Process
Step1) Raw material inspection. All the basic fabric will be checked by quality inspector before manufacturing.
Step2) TPU laminated. During the mass production, our workers would pay attention to the product quality control all the time.
Step3) Package. When the workers package the finished fabric , they inspect every meter of the mass production.
Step4)Delivery.

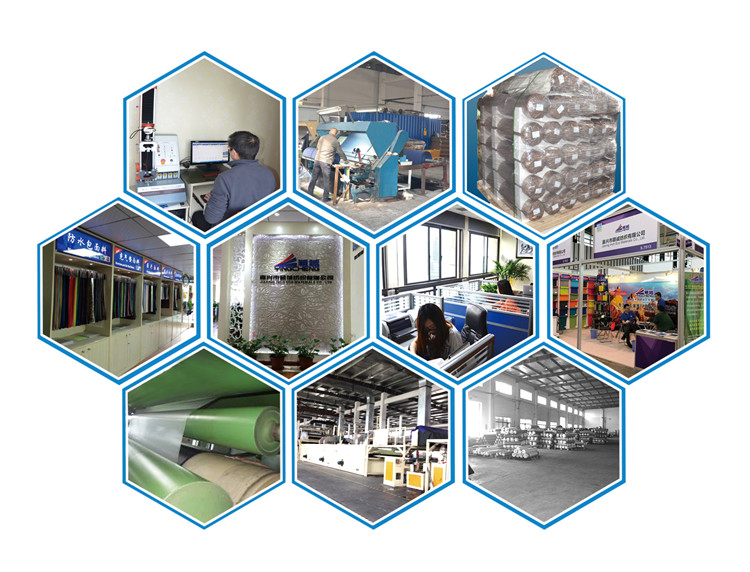

About Our Company
Jiaxing Inch ECO Materials Co, LTD is located in Jiashan of north Zhejiang Province, near Shanghai. We commit ourselves to supply our clients with “Green” and environment friendly products.
Our employees have more than 10 years experience in the R&D and production management of functional fabrics. Backed up by the experienced employees and strong fabric & TPU sourcing, we can offer high quality products with competitive price, especially waterproof and air tightness TPU laminated fabrics.
We commit ourselves to our values and business philosophy; offering better quality fabrics, giving more professional advice and advocating The ECO-friendly principles.
