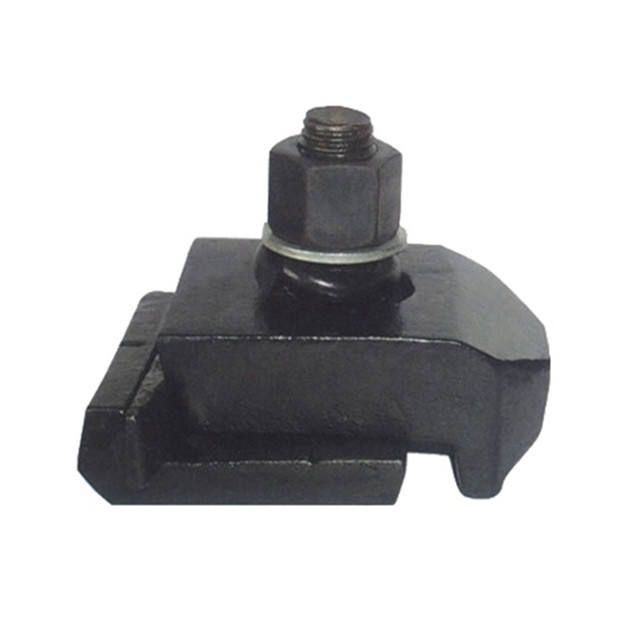

Weldable rail clamp for crane rail fastening

PRODUCT DETAIL
Origin:Chinabrand:Rika
sample:Samples availableProcessing:accepted
Fatigue life:5 million times without crackPackaging Details:Standard export packing wooden case/pallet
Serve:Manufacture, design, packaging, OEMpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Dimensions (LxWxH) (mm):According to customer requirementssize:According to customer specification
Processing:hot rolled, forgedsurface:Black Oxidized, Ordinary Oiled, Painted, HDG, Galvanized
Supply capacity:10000 tons per yearport:Tianjin
standard:UIC, DIN, JIS, AREMA, ISCR, GB, etc.usage:Railway maintenance, railway construction
Package preview:product name:Gantrex Gantrail Orbital Welding Fixtures
Material:20#,Q235type:track clamp
Product Description
Rail clamps, also known as rail clamps or rail fixing clamps, are devices used to maintain the lateral position of rails.
Especially crane rails, but allowing the necessary longitudinal movement. In a track fastening system, track clips secure the track to the
Through the mechanical locking position, at the same time, the longitudinal rail movement of the rail is accepted by the combination
Vulcanized bonded synthetic elastic nose. As a rule, rail clamps are always anchored to sleepers with anchors
bolt. In terms of types, there are mainly bolted rail clamps and welded rail clamps.
The characteristics of the rail clamp are as follows:*Scientific design and high quality*Best performance and low maintenance*High efficiency*High tensile strength and long service life*Various clamp types and custom designs are available.
Name
rail clip
type
custom made

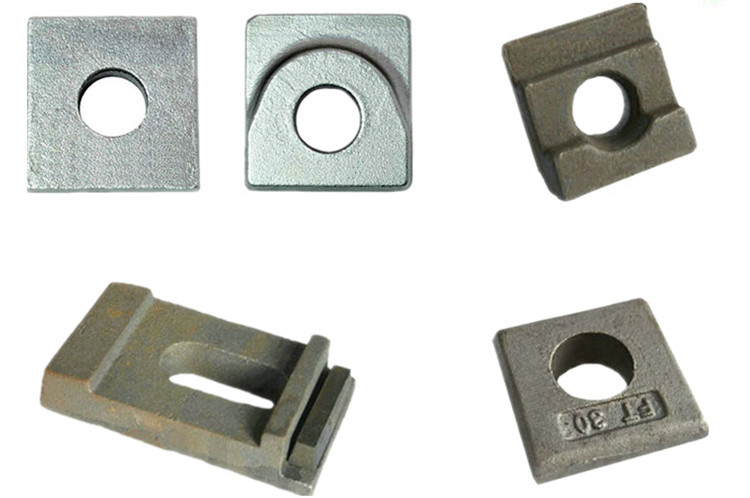

components
Base plate, cover plate, T-bolts, nuts, washers
Material
Bottom and cover: ductile iron, cast steel
Bolts, nuts, flat washers: Q235
Spring washers: 60Mn, 60si2Mn
surface
Plain, black, galvanized, HDG, etc.
usage
Rail Fixture

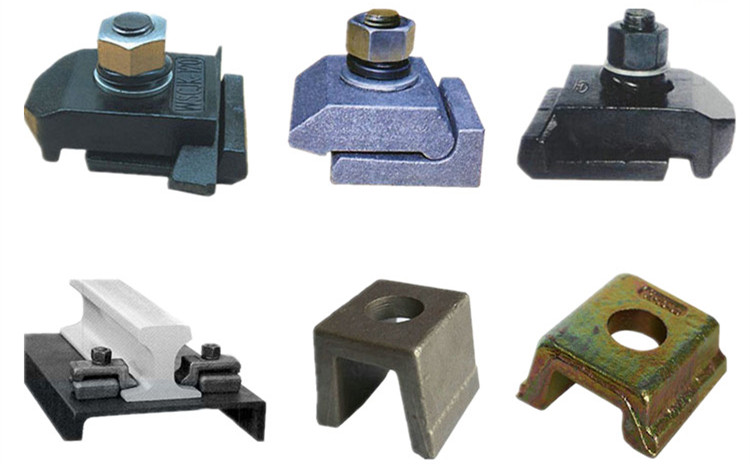

We can provide various track clamps or track clamps to meet customer needs, suitable for different track conditions, whether it is subway, main line or crane track. For rail clamp materials, according to past production experience, forged Q235, cast steel ZG35, and QT500-7-cast iron are the top three choices.1. Crane clamp 21/050 AN/BNCrane clamps allow the rails to be fitted with good tolerances and are adjustable to ensure precise alignment of the rails. Our clamps are designed to carry the heavy loads that are transferred to the rails by cranes. The installation method can be bolted or welded, depending on the needs of the end user.2. Crane clamp 22/130 AN/BNThe Self-Locking Gantrail Rail Clamp is a special design that secures the rail with a rubber nose. By adjusting the height of the rubber nose, this clamp can be used for different track types.3. KPO Rail ClampFor the KPO track clamp, it is a high strength boltable clamp. KPO3, KPO6, KPO9 are more commonly used in track fastening systems by combining with ribbed plates, track bolts and washers.4. North African Rail ClampThis type of track clamp is commonly used on railway lines or cranes in North Africa.5. K-type rail clamp 6. MTH forceps 7. Other fixtures according to customer requirements or drawings.
