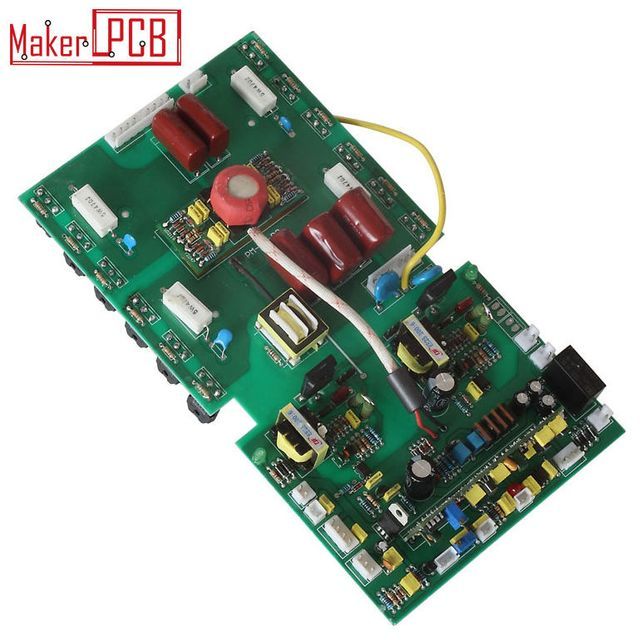

Welder Motherboard 220V MOS Tube Inverter Top Circuit Board Custom Printed PCB PCBA Service Assembly Manufacturer
- $9.85 / 1 - 499 pieces
$0.30 / >=500 pieces - 1 piece
- Shenzhen Ronghuahong Electronic Co., Ltd.
- Guangdong, China
- Mr Kevin Chong
PRODUCT DETAIL
| Copper thickness: | 0.5-6 oz | layer: | 1-24 floors |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Surface treatment: | HASL\Lead-free HASL\Immersion Gold\Gold Finger |
| Silk screen color: | black, white, yellow | Minimum aperture: | 0.15 mm |
| MOQ: | 1 | Solder mask color: | Green, black, red, yellow, white, blue, purple, dumb green. matte black |
| model: | one (10) | Plate thickness: | 0.2-7.0mm |
| Packaging Details: | Vacuum packaging of bare PCB and ESD packaging of PCBA Printed circuit board factory FPC board PCBA company PCBA assembly | type: | Consumer electronics PCBA |
| Substrate: | FR4/ROGERS/Aluminum/High TG | port: | Shenzhen |
| Package preview: | Supplier type: | manufacturer | |
| Supply capacity: | 50000 pieces per week | Origin: | Guangdong, China |
| product name: | PCB board + assembly | brand: | Maker PCB |
MakerPCB provides advanced manufacturing services that benefit customers' product and business success. From the 1 to 100K level, we will support you throughout the entire manufacturing spectrum. We have a flexible production process and can provide fast turnkey solutions for individual manufacturers or small start-up companies with small batch production orders. With standard manufacturing solutions, our customers gain the benefits of supply chain integration, consistent manufacturing efficiencies and lower costs. MakerPCB will be the premier one-stop shop for customers' manufacturing needs.

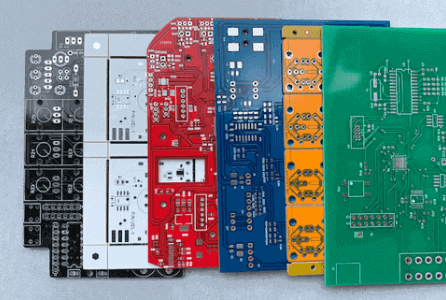

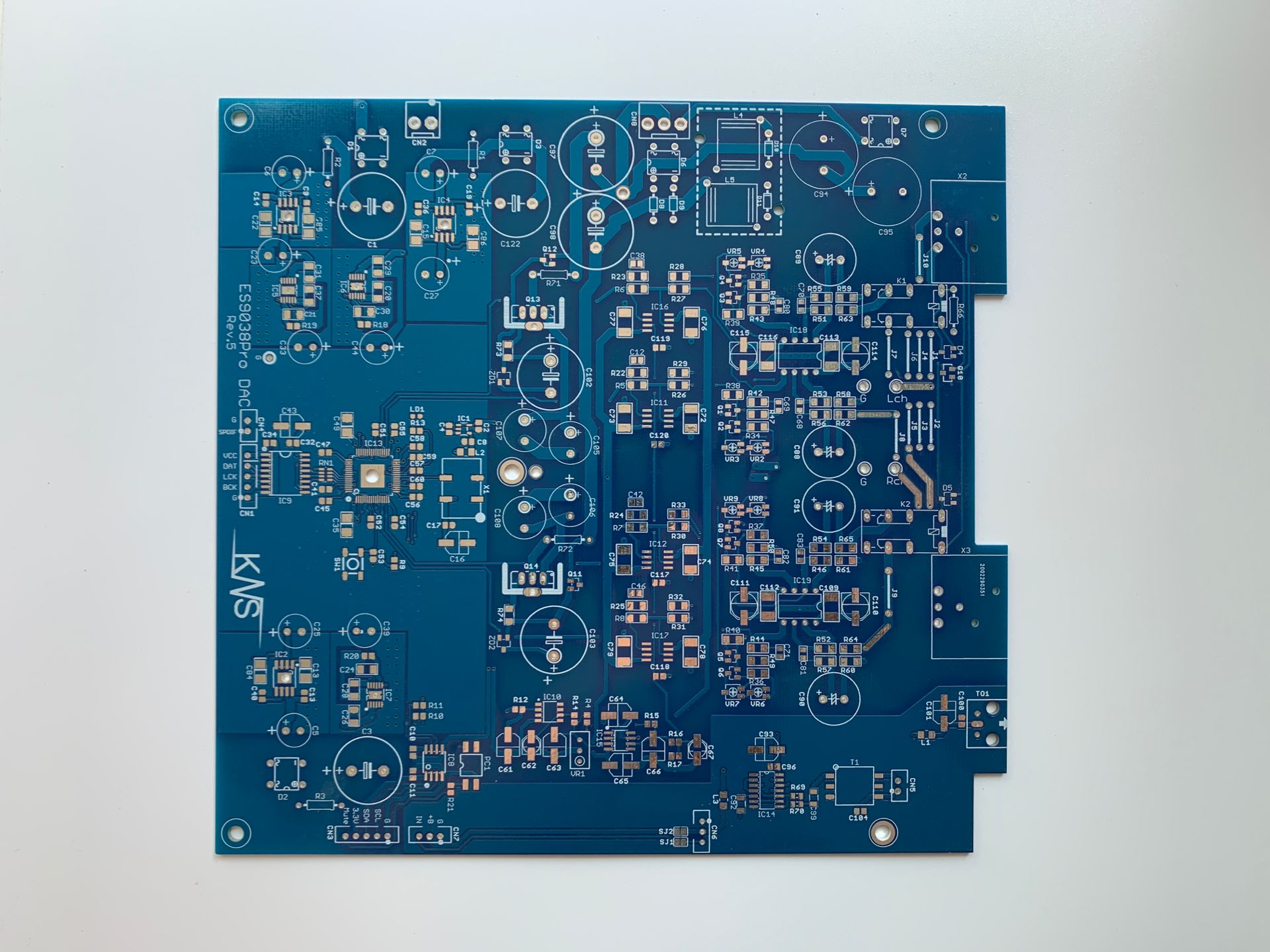

1. PCB fabrication
We cooperate with mature PCB manufacturers, 100% quality assurance. We have the flexibility to modify the PCB according to your specific requirements, whether it is a single-layer board or a complex multi-layer board. MakerPCB's key PCB capabilities include:
* Number of PCB layers: 1~6 layers or more
* Material: FR-4, Aluminum, Flexible
* PCB thickness: 0.4~2.0mm
* PCB maximum size: 400mm*500mm
* Minimum track/spacing: 3.5 million
* Drilling diameter: 0.2~6.3mm
* Minimum characters: line width 6mil, height 32mil
We cooperate with mature PCB manufacturers, 100% quality assurance. We have the flexibility to modify the PCB according to your specific requirements, whether it is a single-layer board or a complex multi-layer board. MakerPCB's key PCB capabilities include:
* Number of PCB layers: 1~6 layers or more
* Material: FR-4, Aluminum, Flexible
* PCB thickness: 0.4~2.0mm
* PCB maximum size: 400mm*500mm
* Minimum track/spacing: 3.5 million
* Drilling diameter: 0.2~6.3mm
* Minimum characters: line width 6mil, height 32mil

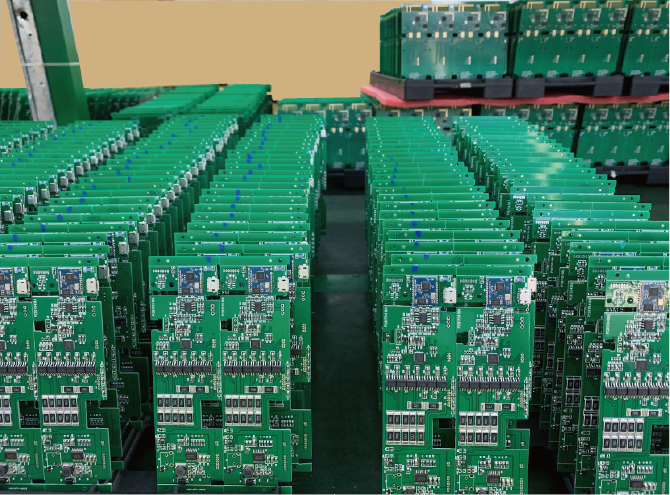

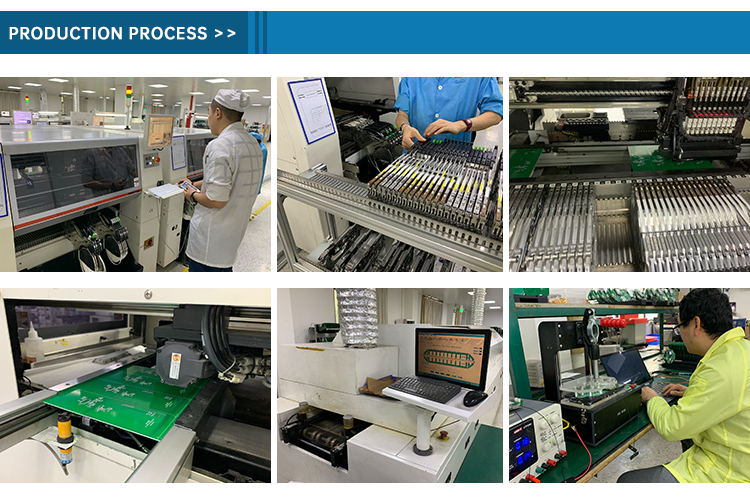

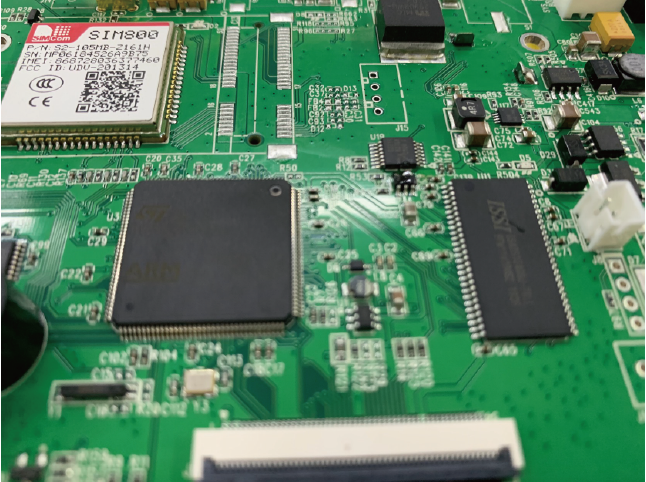

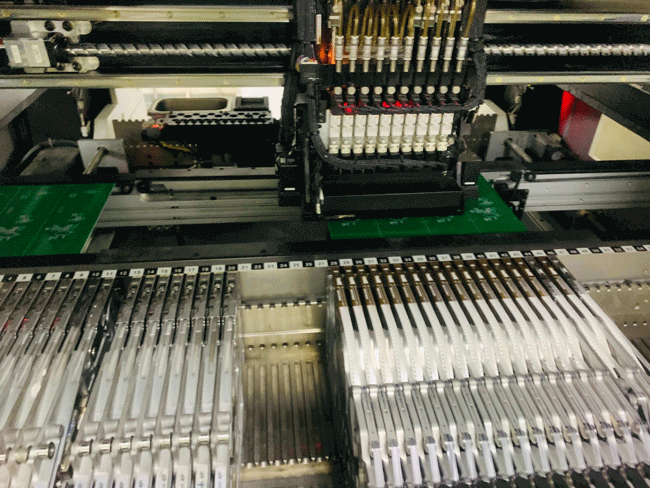

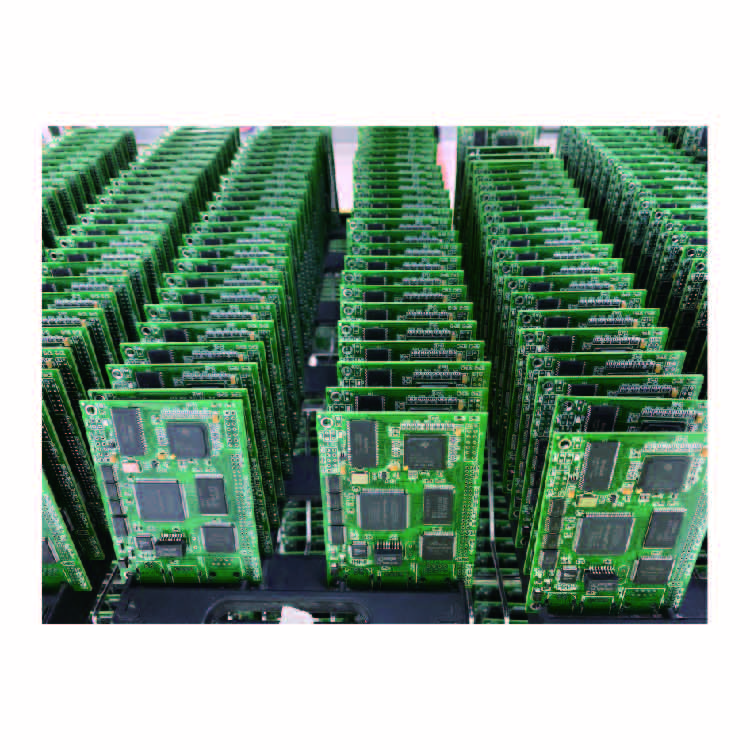

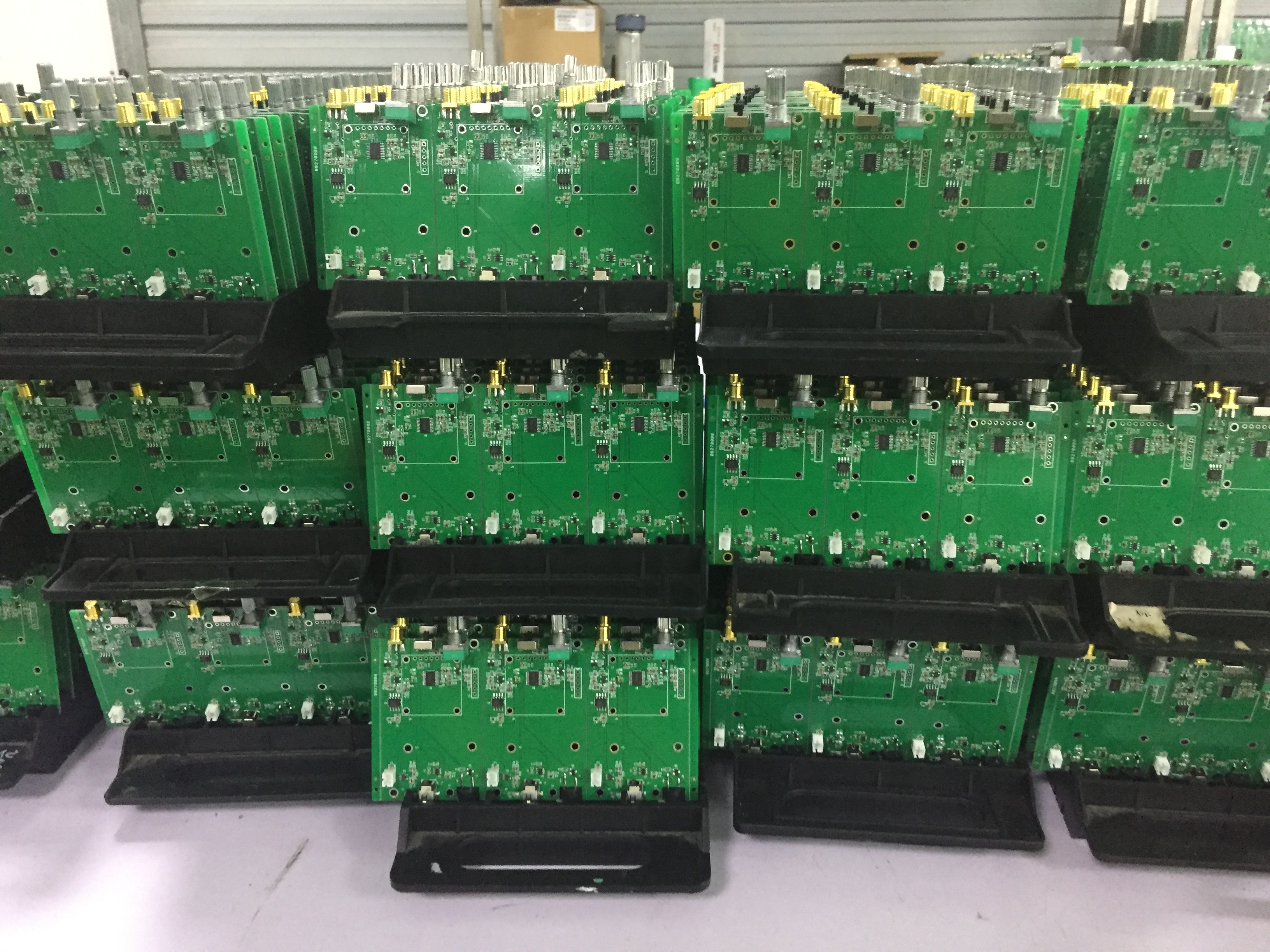

2. PCB AssemblyWe have great advantages in assembled PCBs for prototyping and mass production, especially for large orders. Our team of engineers can support volume production of NPI prototypes with global facility capabilities. MakerPCB's main PCBA capabilities include:*Board size 40x50 mm *Capable of processing 0.35 pitch Micro BGA, AQFN *QFP, QFN and AQFN (Advanced Quad Flat No-Leads) *RoHS/Non-RoHS compliant assembly *Clean or no-clean process *Machine SMT and pass-through Hole-to-hole assembly*100% material procurement, 100% delegated material management or mixing

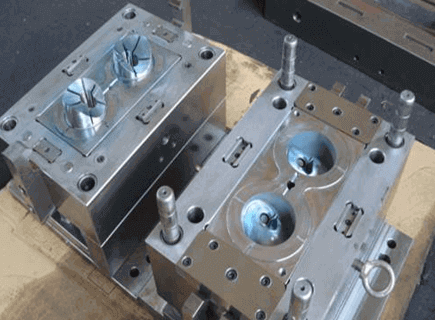

3. Injection molding
MakerPCB also offers a complete mold making service. MakerPCB has a complete mold making, mold design, prototype or production mold, which can solve customers' urgent mold needs and bring customers' products to market quickly. Use your 2D or 3D CAD model, or we can generate a model for you. Whether you need 2 parts or 200, MakerPCB has you covered fast.
* 3D printing
* SLA (Stereolithography)
* CNC machining
* injection molding
MakerPCB also offers a complete mold making service. MakerPCB has a complete mold making, mold design, prototype or production mold, which can solve customers' urgent mold needs and bring customers' products to market quickly. Use your 2D or 3D CAD model, or we can generate a model for you. Whether you need 2 parts or 200, MakerPCB has you covered fast.
* 3D printing
* SLA (Stereolithography)
* CNC machining
* injection molding

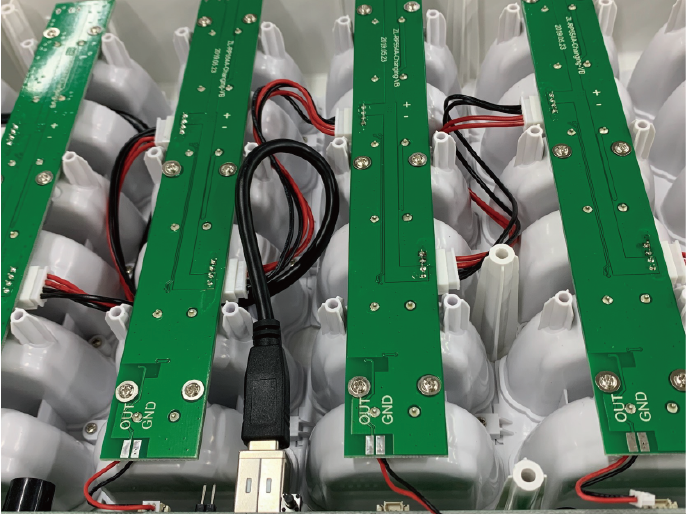

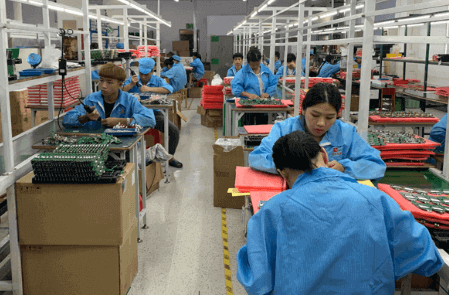

4. Product Assembly
For product assembly applications, our team works closely with customers to ensure the final product meets their exact needs.
We assemble your project with the utmost attention to detail, backed by skilled technicians and equipment. Our experts will perfect your assembly while ensuring low costs and fast lead times. Some of our most popular assembly services include:
* Product assembly
* Packaging and assembly
* Quality inspection
* product testing
For product assembly applications, our team works closely with customers to ensure the final product meets their exact needs.
We assemble your project with the utmost attention to detail, backed by skilled technicians and equipment. Our experts will perfect your assembly while ensuring low costs and fast lead times. Some of our most popular assembly services include:
* Product assembly
* Packaging and assembly
* Quality inspection
* product testing
PCB layers | 1-24 floors | Minimum Solder Bridge | 0.076 mm |
Maximum panel size | 600 mm x 600 mm | Insulation resistance | 1E+12Ω (common) |
Minimum plate thickness | 4 layers 0.40mm, 6 layers 0.80mm, 8 layers 1.00mm, 10 layers 1.20mm | Plate Thickness: Hole Size | 0.209027778 |
Minimum Trace Width | 0.075mm | shock heating | (3 times/10 seconds) |
Minimum tracking space | 0.075mm | winding and twisting | ≤0.7% |
minimum aperture | 0.20 mm | Electric strength | ＞1.3KV/mm |
Hole wall thickness | 0.025mm | Peel strength | 1.4 N/mm |
PTH Hole Tolerance | ±0.076mm | Solder Mask Hardness | ≥6H |
NPTH Hole Tolerance | ±0.05mm | flammable | 94V-0 |
Hole tolerance | ±0.05mm | Impedance control | ±5% |
Profile Tolerance | ±0.15mm | surface treatment | OSP, HASL, ENIG, immersion tin, immersion silver |
Board size | Board machine SMT size 40*50mm |
SMD + DIP | Machine SMT and Through Hole Assembly |

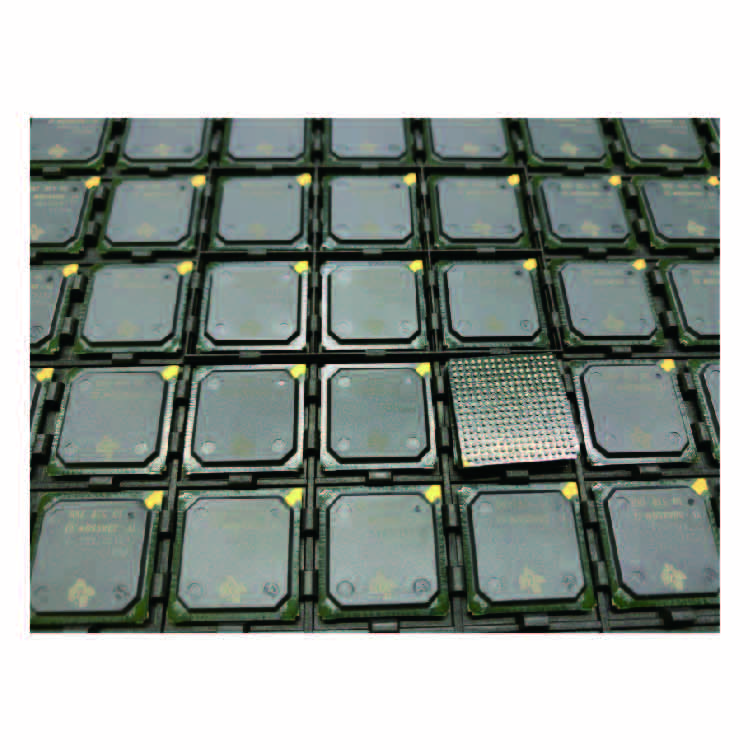

BGA part | Capable of processing 0.35 pitch micro BGA, AQFN, QFP, QFN and AQFN (Advanced Quad Flat No-leads) |
quantity | Fast SMT machine up to 100,000 pieces per day |
quality inspection | AIO and X-RAY automatic inspection |
cleaning requirements | cleaning or non-cleaning process |
ROHS requirements | RoHS/Non-RoHS Compliant Assembly |
Element | 100% material procurement, 100% entrusted material management or mixing |
test | 100% flying probe test, voltage test, test fixture, function test, software test, etc. |
delivery time | Sample order ~2wks, small batch production ~3wks, mass production ~4wks |
Q1. What manufacturing services do you provide?A1: We provide one-stop full turnkey manufacturing solutions, including PCB manufacturing, component sourcing, SMT, injection molding and metal, final assembly, testing, certification support and other manufacturing services.
Q2. Can we sign a non-disclosure agreement before sending the documents?
A2: Of course, we would like to sign an NDA (Non-Disclosure Agreement) with our customers and keep production documents confidential.
Q3. What documents are required for PCB&PCBA quotation?
A3: We need to know Quantity Inquiry, BOM, PCB Gerber, PCB Specification Requirement, Pick & Place File, Test Plan (if you need). Then we will check and quote to you within 24 hours, we will try our best to offer you the best price.
Q4. What is the MOQ for PCBA order?
A4: Our PCBA MOQ is 1 piece, we can support you from design sample verification to mass production run. We are professional and willing to help you through all the manufacturing process quickly and easily.
Q5. What is the production lead time for PCBA order?
A5: Our PCBA production lead time is 1~2 weeks for sample order (1~20pcs); 3~4 weeks for trial production (100~1000pcs), 4~5 weeks for mass production (>1000pcs). If you need it urgently, we can also provide you with express service.

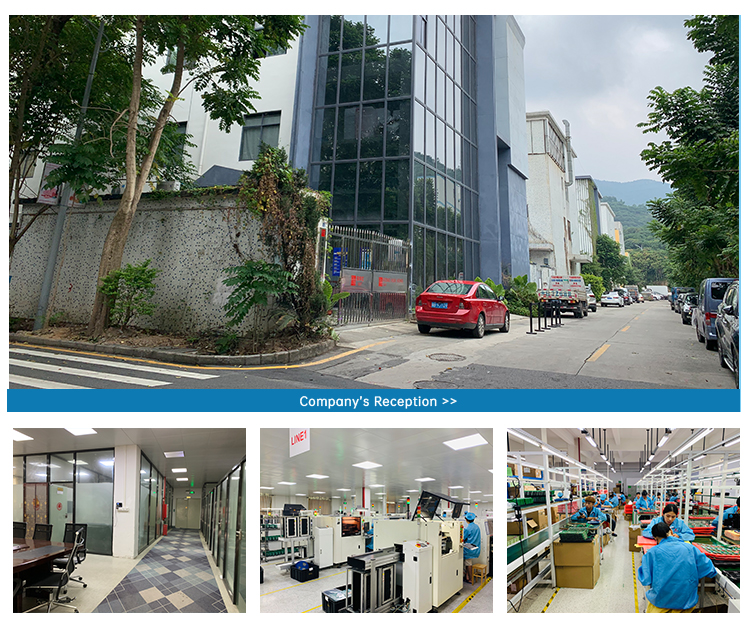

Headquartered in Shenzhen, it is a technological paradise for global hardware startups. We hope to be your one-stop production factory.
Let us work together, come on!
contact us!
