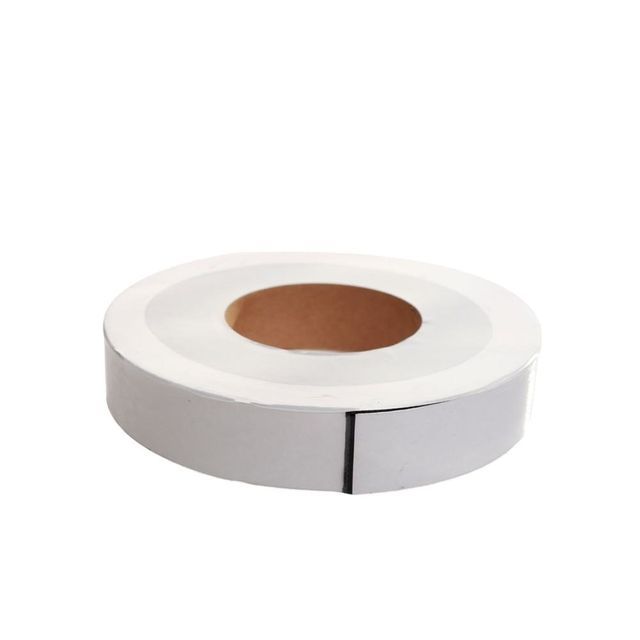

White high-end double-sided adhesive butyl rubber sealing tape
- $5.00 / 100 - 999 rolls
$2.80 / 1000 - 4999 rolls
$2.20 / >=5000 rolls - 100 rolls
- Nantong Zhonghao Adhesive Products Co., Ltd.
- Jiangsu, China
- Ms Janet zhang
PRODUCT DETAIL
color: | white other colors can be customized | width: | 4MM --- 1.2M |
Origin: | Jiangsu, China | model: | 98 series |
Supply capacity: | 30000 meters per day | Warranty: | 30 years |
Material: | Butyl rubber | thickness: | 0.3MM---2MM |
temperature: | -40℃--100℃ | port: | Shanghai/Ningbo |
payment terms: | L/C, T/T | application: | car roof |
product name: | White high-end double-sided adhesive butyl rubber sealing tape | Certificate: | Material Safety Data Sheet |
Packaging Details: | White high-end double-sided adhesive butyl rubber sealing tape carton + tray | Origin: | CN;JS |
brand: | ZHB |
product video
Specification
standard size
Fineness (MM) | Width (MM) | Length (M) |
1mm | 10~1000 | 15 |
show
project | Measurements | Test Methods |
Thickness (mm) | 0.5MM | - |
Adhesion (N/25mm) | According to JIS 0237:2000 Stainless steel 180° peeling off | 50 |
Shear adhesion (N/cm2) | Shear Adhesion Test | 43 |
Retention (minutes) | Suspension of specimen in vertical position for bonding area (10mmx20mm) and Hang a 200g weight and measure the falling time. | 110 |
Tensile elongation (%) | According to JIS 0237:2000 | 9 |
Remarks: No.9805 is a double-sided tape with the same adhesive force on both sides. Adhesion to Representative Substrates
No. | Substrate | Test method (N/25mm) | |||
1 | stainless steel plate | 48 years old | |||
2 | veneer | 36 | |||
3 | Non-combustible board | 35 | |||
4 | Calcium silicate board | 33 | |||
5 | PVC coated steel | surface | 48 years old | ||
step back | 54 | ||||
6 | Color coated steel plate | surface | 54 | ||
step back | 57 | ||||
Comment | Temperature 23±2℃ |
Double sided butyl sealing tape
feature:
Good durability, good adhesion to rough surfaces, waterproof, water resistant, and alkali solution resistant Low pollution, sticky layer is not easy to sag even in summer weather Good adhesion even on complicated parts even in winter
use:
●Fixation of artificial turf ●Temporary fixation of non-combustible panels, artificial turf, heat insulation panels, plywood and other panels ●Airtight sealing of panels, interior wall joints, through halls ●Waterproof sealing of building foundation joints
