Wholesale 60W/120W factory workshop IP66 waterproof linear strip led three-proof high bay light
- $8.00 /piece
- 1 piece
- Zhengzhou Ledinpro Lighting Co., Ltd.
- Henan, China
- Ms Amy Lee
PRODUCT DETAIL
| Packaging Preview: | brand: | LEDINPRO | |
| application: | LED workshop lights for garages, factory workshops | place of origin; place of origin: | Henan, China |
| Warranty Period (Years): | 6 years | product name: | led high bay light |
| Working life (hours): | 100000 | Product weight (kg): | 1.9 |
| payment terms: | L/C,Western Union,D/P,D/A,T/T | Supply capacity: | 5000 pieces per month |
| port: | Qingdao | light source: | lead |
| lumen: | 9000/18000 lumens | Dimming: | 0-10V |
| length: | 1140mm | Working temperature (℃): | -20 - 40 |
| Packaging Details: | Master carton with pallet | Input voltage (V): | 120-240VAC |
| Lamp luminous flux (lm): | 9000/18000 | Beam Angel: | 130° |
| Lifetime (hours): | 100000 | Dimmers supported: | Yes |
| Color Temperature (CCT): | 4000K | Color rendering index (Ra>): | 90 |
| Lamp body material: | aluminum | Voltage: | 120-240VAC |
| Intellectual property level: | IP66 | Lamp luminous efficiency (lm/w): | 150 |
| waterproof: | IP66 | Lighting Solutions Services: | Lighting and circuit design, DIALux evo layout, LitePro DLX layout, auto CAD layout, site metering, engineering installation |
| Color rendering index (Ra): | 90 | watt: | 60W 120W |
| model: | 417 | Material: | aluminum |
| control method: | switch control | Working hours (hours): | 100000 |
Factory workshop 60W/120W waterproof IP66 linear strip three proof LED workshop light for garage high bay light
1. High impact resistant texture, high protection grade IP66 and IK08
2.6 year warranty
3. Special optical design, efficiency up to 150lm/W
4. Working temperature -20℃ ~ +40℃
5. High quality LED, lifespan>100,000hrs L70B20
6.Ra>80
7.UGR<25
8. Aviation grade aluminum. Flame retardant PC cover
9.0-10V dimming
2.6 year warranty
3. Special optical design, efficiency up to 150lm/W
4. Working temperature -20℃ ~ +40℃
5. High quality LED, lifespan>100,000hrs L70B20
6.Ra>80
7.UGR<25
8. Aviation grade aluminum. Flame retardant PC cover
9.0-10V dimming

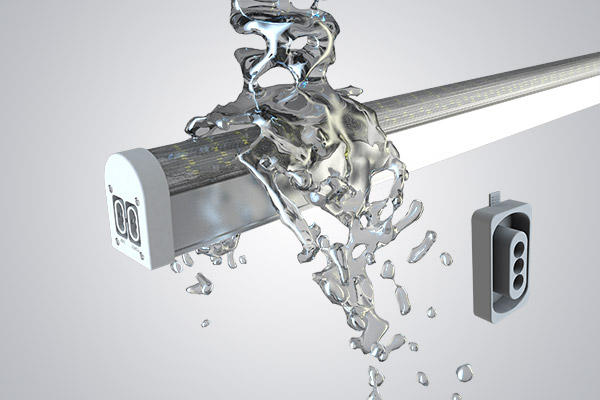

High protection class IP66 and IK08.

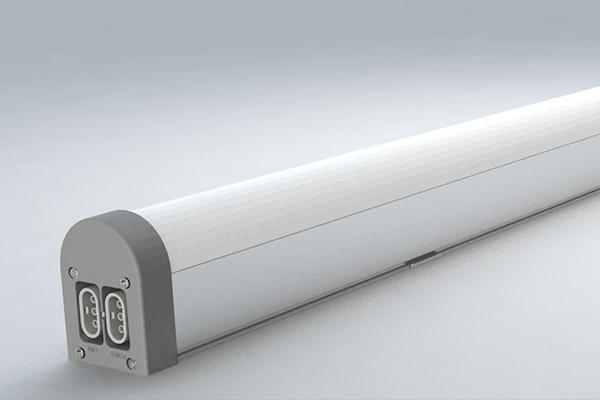

Plug and Play
High performance and flicker free
Aviation grade aluminum. Flame retardant PC cover
High quality LED, life > 100,000 hours L70B20
Special optical design enables high efficiency up to 150lm/w.
parameter
model. | 417-0001 | 417-0002 |

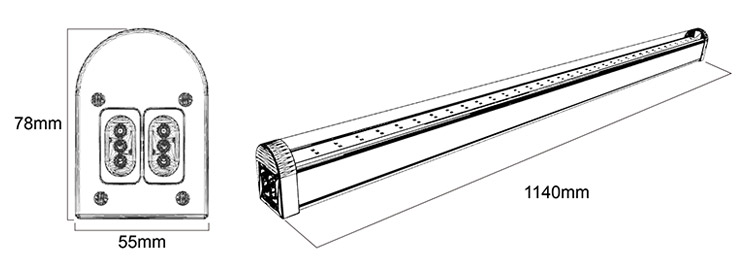

length | 1140mm | 1140mm |
Beam angle | 130° | 130° |
strength | 60W | 120W |
efficiency | 150 lumens/watt | 150 lumens/watt |
Voltage | 120-240VAC | 120-240VAC |
total lumens | 9000lm | 18000lm |
lead | Samsung 2835 | Samsung 2835 |
Dimming | 0-10V | 0-10V |
CCT(K) | 4000 | 4000 |
Maximum number of connections | ||||
Voltage (AC) | 417-0001 | 417-0002 | ||
120V | / | / | ||
208V | / | / | ||
230V | 30 | 15 | ||
277V | / | / | ||
348V | / | / | ||
480V | / | / | ||

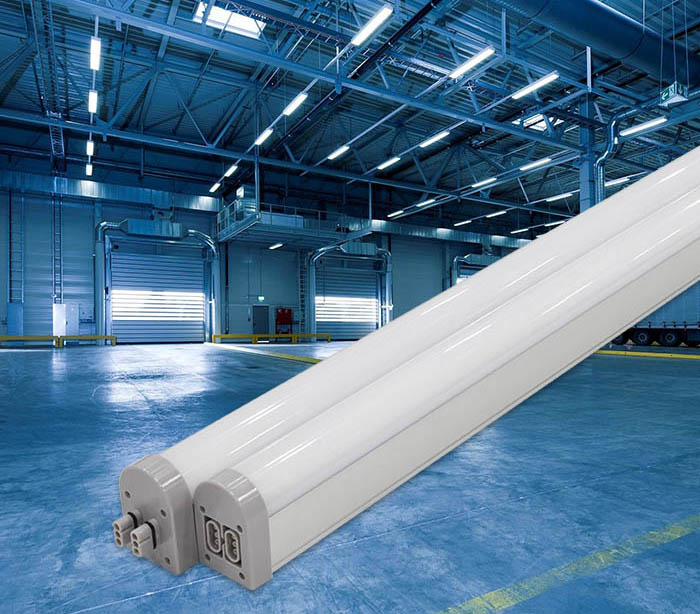

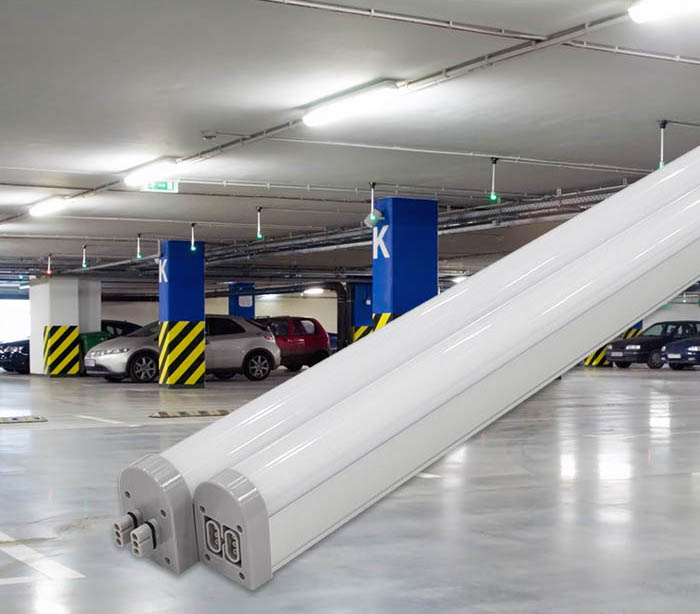

Application scenarios
A new generation of LedConex Pro LED Lowbay/ Highbay lights. High performance and flicker free. The luminous efficiency is as high as 150lm/W. While creating a comfortable environment, LedConex LED lights can also significantly reduce energy consumption.

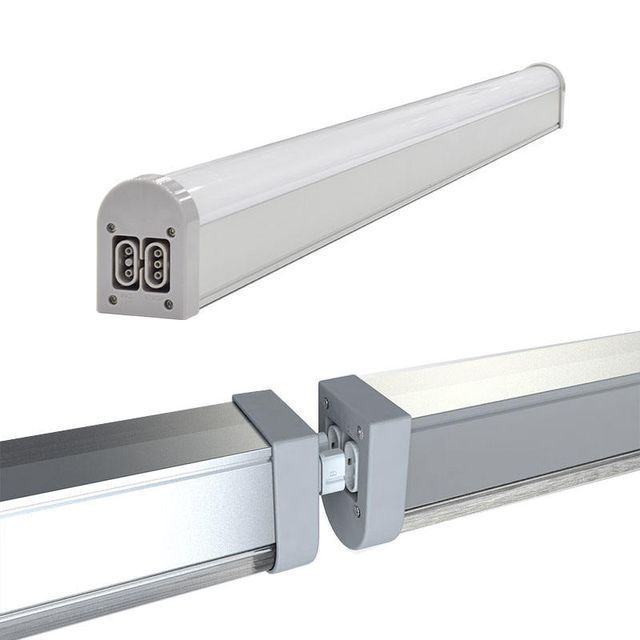

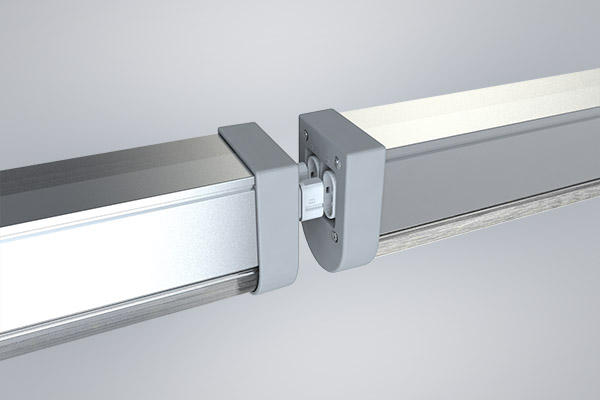

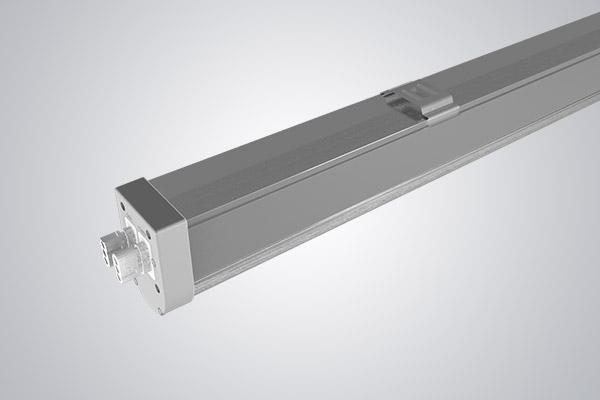

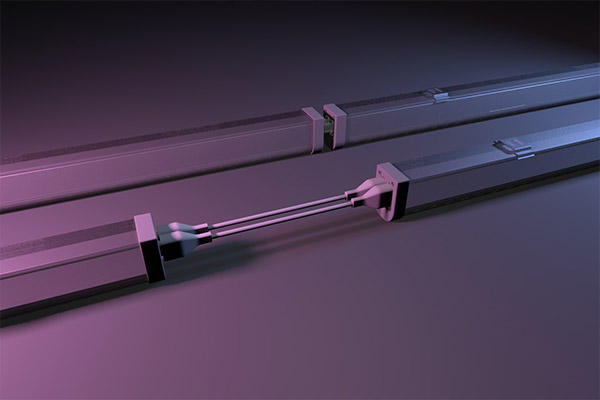

Integrated interconnect design minimizes footprint. Sliding Mount Kits Improve Installation Efficiency
Installation, maintenance and reduced labor costs. At the same time, it enhances the beauty of the architectural space. With its excellent performance, LedConex Pro can be applied to a variety of scenarios such as complex factories

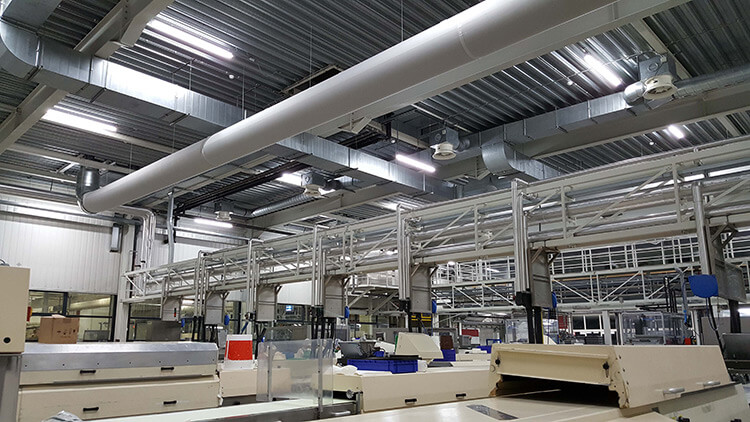

Workshops, warehouses and work areas. Packing and Transshipment Area. Low to medium height storage area.
Integrated interconnect design minimizes footprint. Sliding Mount Kits Improve Installation Efficiency
Installation, maintenance and reduced labor costs. At the same time, it enhances the beauty of the architectural space. With its excellent performance, LedConex Pro can be applied to a variety of scenarios such as complex factories
Workshops, warehouses and work areas. Packing and Transshipment Area. Low to medium height storage area.
