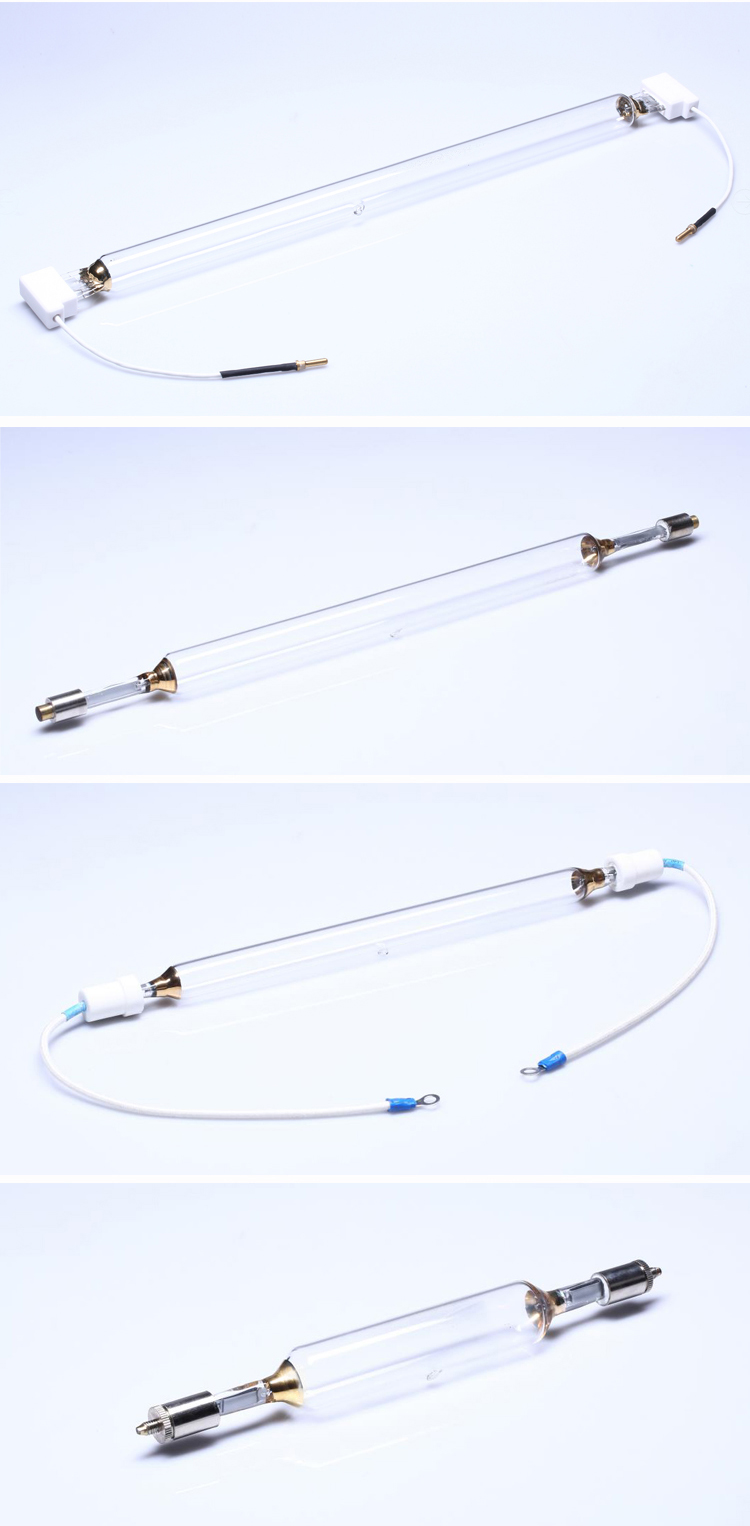

Wholesale Mercury Glass 5kw High Pressure Mercury Lamp For UV Curing
- $45.00 / 5 - 19 pieces
$40.00 / >=20 pieces - 5 pieces
- Beijing Huiyixin Electric Light Sources Technology Development Co., Ltd.
- Beijing, China
- Ms Anata Liu
| Working current: | 7A | Arc length: | 450mm 700mm 620mm |
| brand: | Shin Kong | rated power: | 5 kW |
| payment terms: | T/T, western union, paypal escrow service | Lamp working frequency: | 50-60 Hz |
| Voltage: | 380V | Delivery Details: | Ships within 3 days after payment |
| model: | XG-LYQ129-3 | Supply capacity: | 500 high pressure mercury lamps per month 1000 |

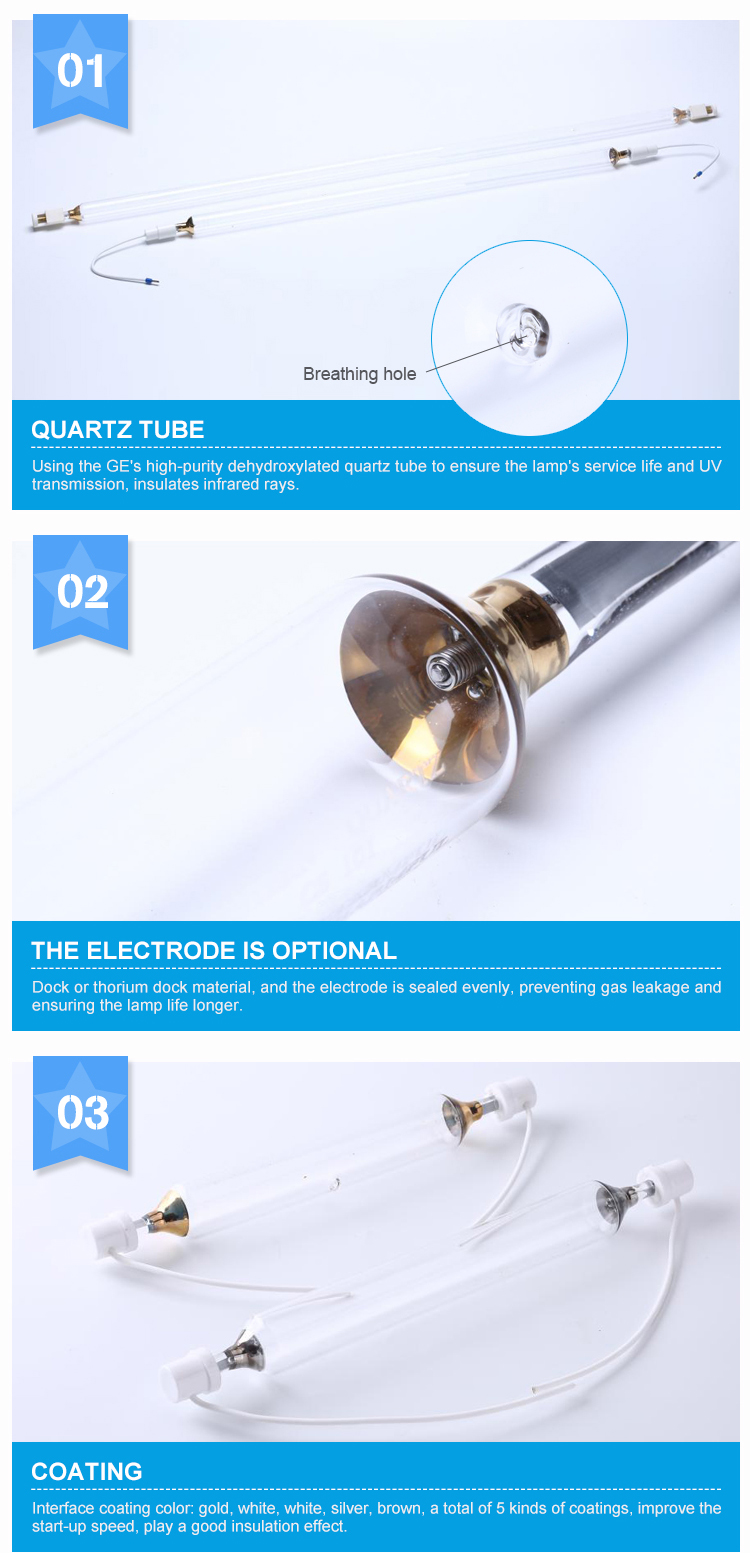

| life: | >800H | Tube: | GE quartz glass tube |
| Light wavelength: | 365 nm 417 nm | Overall length: | 550mm 800mm 725mm |
| Lamp voltage: | 380v | place of origin; place of origin: | Beijing China |

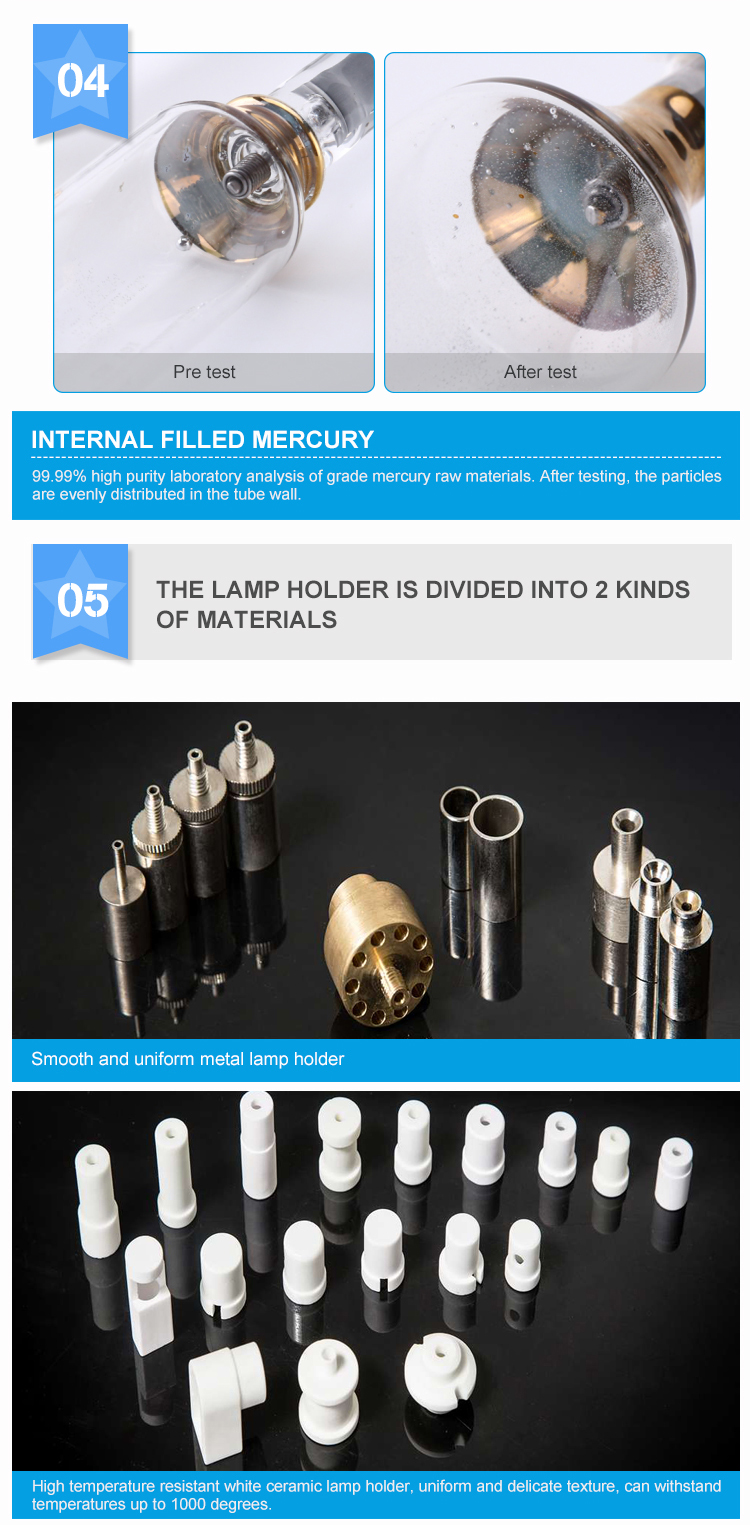

| Lamp holder: | ceramics | diameter: | 22.5 mm 25 mm |
High pressure ultraviolet mercury lamp is the latest product developed by Huiyixin. The spectrum of the lamp is mainly distributed between 200nm-450nm, and its main peak is 365nm. It is mainly used in printing plate making, flexible packaging color printing, furniture industry, decorative materials, paper coating, surface coating of printing iron cans, aging of polymer compounds, photosensitive flame retardants such as semiconductors and ideal light sources for photosensitive character inks, printed circuit boards and signage.
| Model | strength | Tube pressure | pipe flow | overall length | polar distance | Diameter | power density |
| number | (kilowatt) | (five) | (One) | (mm) | (mm) | (mm) | (W/cubic centimeter) |
| GG1000 | 1 | 138 | 8.1 | 225 | 125 | 25 | 80 |
| GG1001 | 1 | 135 | 8.1 | 335 | 200 | 25 | 50 |
| GG2000 | 2 | 300 | 7.5 | 400 | 250 | 22.5 | 80 |
| GG3000 | 3 | 700 | 5 | 360 | 250 | 25 | 120 |
| GG3001 | 3 | 700 | 5 | 620 | 460 | 22.5 | 50 |
| GG4000 | 4 | 500 | 8.8 | 485 | 340 | 25 | 120 |
| GG4001 | 4 | 620 | 7.2 | 664 | 508 | 22.5 | 80 |
| GG5000 | 5 | 700 | 7.8 | 700 | 600 | 25 | 80 |
| GG5001 | 5 | 750 | 7.5 | 725 | 625 | 22.5 | 80 |
| GG5002 | 5 | 750 | 7.5 | 775 | 625 | 22.5 | 80 |
| GG5003 | 5 | 850 | 6.3 | 778 | 625 | 22.5 | 80 |
| GG5004 | 5 | 850 | 6.3 | 804 | 653 | 20.5 | 80 |
| GG5600 | 5.6 | 950 | 7.2 | 820 | 700 | 25 | 80 |
| GG5601 | 5.6 | 950 | 7.2 | 1020 | 900 | 25 | 50 |
| GG6001 | 6 | 850 | 7.8 | 640 | 500 | 22.5 | 120 |
| GG6500 | 6.5 | 900 | 7.5 | 1030 | 910 | 22.5 | 80 |
| GG7200 | 7.2 | 1150 | 7 | 1026 | 900 | 25 | 80 |
| GG8000 | 8 | 1200 | 7.5 | 1150 | 1000 | 22.5 | 80 |
| GG8001 | 8 | 1200 | 7.5 | 1320 | 1180 | 22.5 | 80 |
| GG8400 | 8.4 | 950 | 10.4 | 826 | 700 | 25 | 120 |
| GG9600 | 9.6 | 1570 | 6.6 | 1387 | 1247 | 25 | 80 |
| GG1100 | 11 | 1870 | 6.3 | 1575 | 1419 | 25 | 80 |
| GG1200 | 12 | 1800 | 7.5 | 1440 | 1300 | 25 | Post-90s |
| GG1300 | 13 | 1870 | 7.5 | 1807 | 1651 | 25 | 80 |

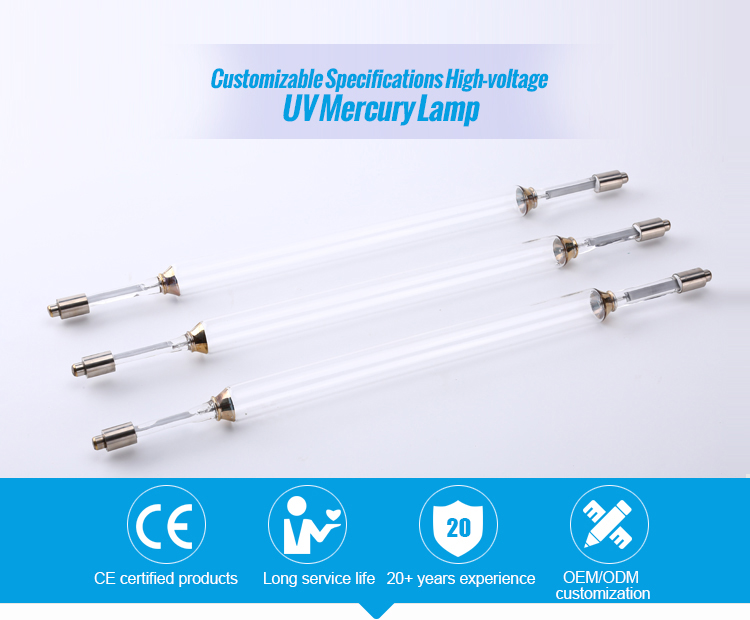

*Note: We provide customized services for UV lamp tubes of various lengths from 250W to 20KW!
High-pressure UV mercury lamps are mainly used for ink curing, printing, flexible packaging color printing, paper coating, bamboo flooring, paint coating, printed tin can board, electronic component curing, rubber aging test and various UV curing.
