Wholesale Mini BLE 4G GPS Vehicle Tracking Device with Remote Control

  • $6.00 / 50 - 499 pieces
    $5.00 / >=500 pieces
  • 50 pieces
  • Meitrack Group (Shenzhen)
  • Guangdong, China
  • Mr Jack Gong
PRODUCT DETAIL
Packaging Details:Box size: 125*70*25mm Gross weight: 0.1kg/boxResolution:no screen
weight:77 gramsWarranty:12 months
Car equipment:Isuzubrand:US track
year:2014-2016connect:3G/4G Internet card
Bluetooth 2.4G:Compatible with Bluetooth Low Energy 5.0 GHzplace of origin; place of origin:Guangdong, China
use:Motorcycleenergy consumption:DC 11.4-90 V/1.5 A
Model:bisoncombination:Driver Behavior Analysis
Screen type:no screenCertification:Chief Executive, CITIC
place:Dashboard 1DIN, Dashboard 2DINTypes of:GPS tracker
model:T711LI/O Power Cable Length:50cm
size:75mm x 44mm x 17mmmemory:8MB
sensor:Triaxial accelerometerFeatures:Remote control, road planning, speeding warning
payment terms:Western Union, T/T, MoneyGram, PayPalStandby hours:Standby current: 65mA
Supply capacity:100000 pieces per monthoperating system:no system
waterproof level:IP67
Product overview

Specification

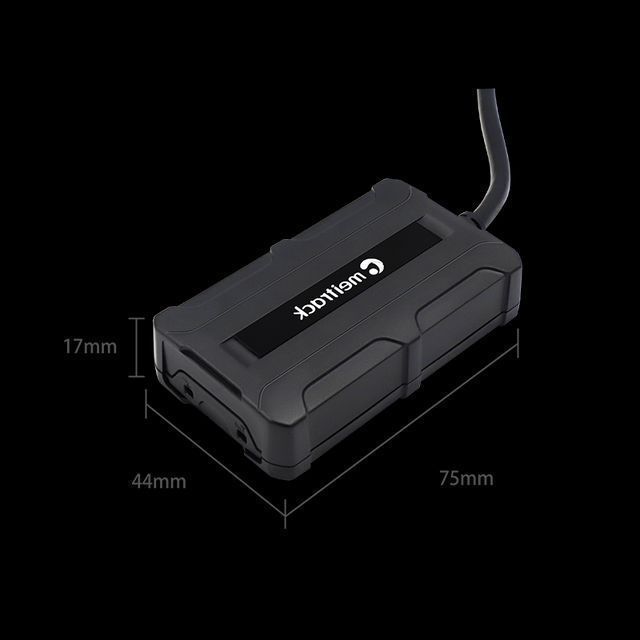

size
75mm x 44mm x 17mm
weight
77 grams
I/O Power Cable Length
50cm
power supply
DC 11.4–90 V/1.5 A
energy consumption
Standby current: 65mA
High temperature resistant battery
200mAh (operating temperature: -5°C to 75°C)
Operating temperature
-35°C to 80°C (for devices without batteries)
Working humidity
5% to 95%
LED indicator
Green light shows network signal
Blue light showing GPS signal

power switch button
1 upgrade button (for manual firmware upgrade)
1 power button
memory
8 MB buffer
sensor
Triaxial accelerometer
Bluetooth (optional)
Bluetooth 2.4G,Compatible with BLE 5.0 GHz
frequency band
T711L:
LTE Floppy Drive: B1/B3/B5/B7/B8/B20/B28
LTE TDD: B38/B40/B41
GSM: 850/900/1800/1900

GNSS
Dual-mode positioning (GPS/Beidou/GLONASS)
positioning accuracy
2.5 meters
input/output port
Default is 1 positive input (ACC)
1 analog sense input (0–30 V)
1 open collector
1 x 1-Wire port
1 debugging interface (Micro USB)

Accessories

T711L tracker
L-shaped wrench
SHCS
High temperature resistant battery (200mAh)
CD download card

Optional accessories

Relay (12V/24V)
A52 Digital Temperature Sensor
A53 Oil level sensor
buzzer
iButton reader
usb cable
BLE temperature and humidity sensor
BLE beacon


Certificates: CE, CITC, IP67

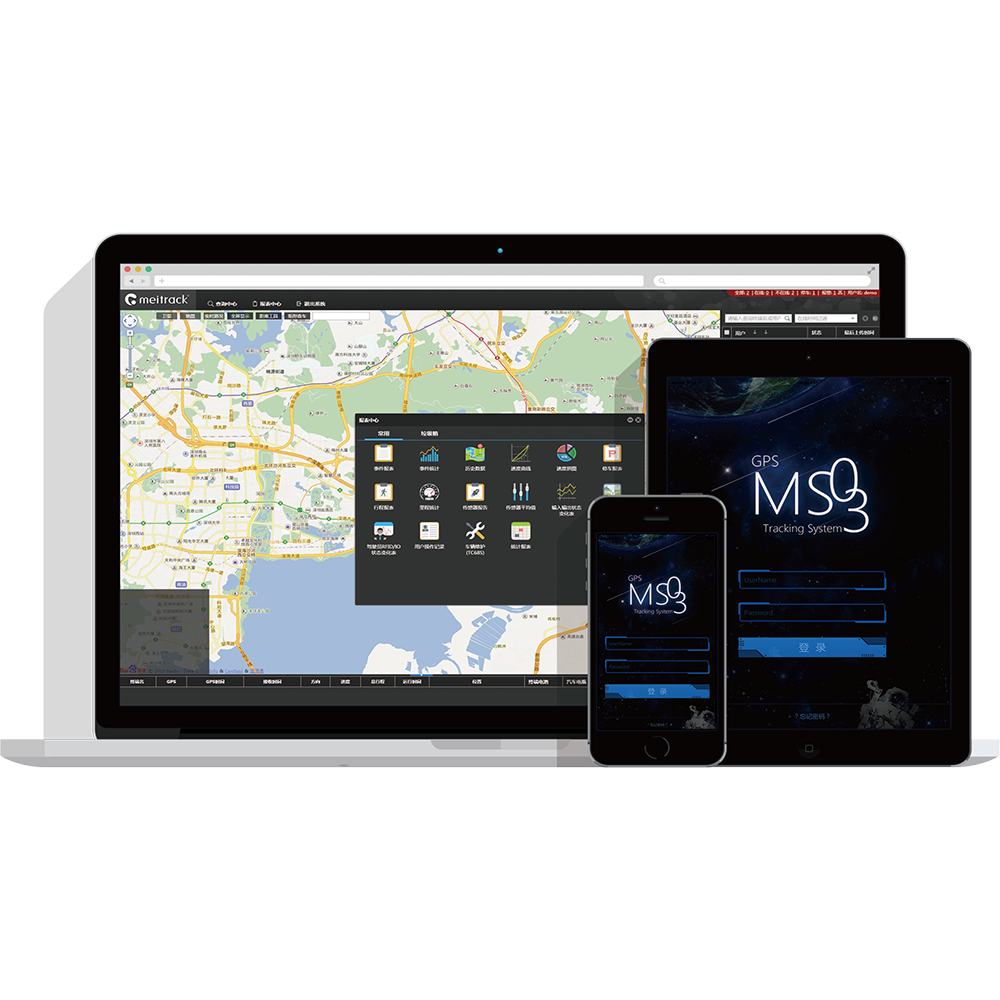

American track MS03


Advanced GPS Tracking Software

The MS03 is the latest GPS tracking innovation from the Meitrack Group. Extensive programming combined with a well-designed user interface (UI) provides a more user-friendly experience for the MS03 platform. The platform consists of a scalable database that can ultimately meet various functional requirements and needs.


Contact us for a free demo!

case analysis

Thai Government Taxi GPS Tracking

T333L | Thailand

Meitrack presented a taxi GPS tracking solution to the Thai government to enhance driver and passenger safety while improving taxi service. Taxis are equipped with T333L trackers, magnetic card readers, taximeters and cameras. These taxis can only be driven by authorized drivers. In the event of an emergency, the government monitoring center can quickly and efficiently locate and take immediate action.


Garbage truck management

T366L | Singapore

The system connected to the T366L is used to record the status of the garbage truck: when and how the garbage truck travels, how each vehicle travels, and when it reaches its destination. This information can be used to analyze time spent versus cost. Ultimately allowing the company to make any necessary modifications to its operations.


city ​​bus

MD522S | Mexico

The Mexican government hopes to find an optimal bus monitoring system solution to ensure the safety of Mexican residents, ensure the safety of bus travel, and eliminate illegal activities in buses. In the event of an accident, the government can obtain effective video surveillance data as evidence as soon as possible. Meitrack launches its MDVR solution to meet the needs of the Mexican government.

armored bank vehicle

MD511H | Malaysia

Inside an armored banking van, an MD511H mobile DVR is connected to four cameras. Video surveillance solutions allow only authorized personnel to start the vehicle. If the door is opened without authorization or the vehicle is hijacked, the monitoring center can quickly and efficiently grasp the situation inside the vehicle, cut off the engine remotely to prevent the vehicle from moving, and take immediate action to minimize the loss.
VIEW MORE
