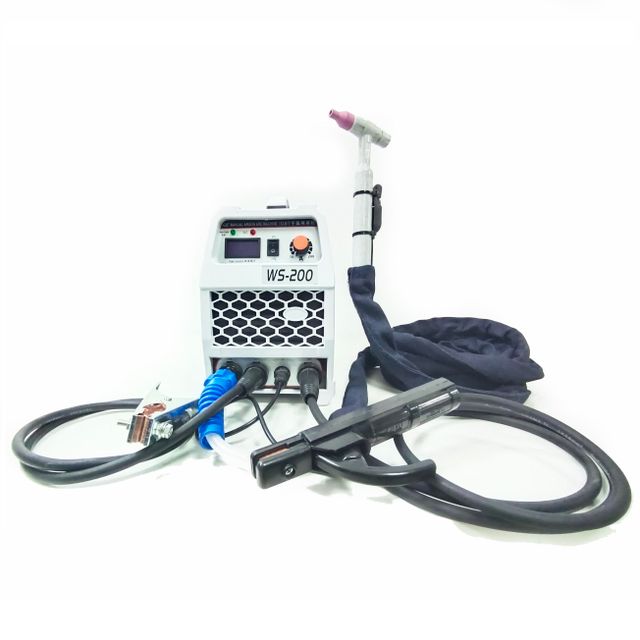

Wincoo Welding machine Portable arc welder mig tig mma 200
- $122.00 /set
- 1 set
- Wincoo Engineering Co., Ltd.
- Jiangsu, China
- Mr Jacky Nie
PRODUCT DETAIL
| Function: | TIG welding and mixed martial arts | Warranty: | 1 year |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Maximum material thickness: | 1/2 inch |
| model: | WS200 | stage: | 220/380V |
| Maximum wire diameter: | 2.6mm | Key words: | arc welding machine |
| Packaging Preview: | brand: | WINCOO | |
| weight: | 11.5kg | Minimum material thickness: | 1mm |
| port: | Shanghai | Supply capacity: | 200,000 pieces per month |
| Custom Support: | OEM, ODM, OBM | Packaging Details: | carton |
| Dimensions (LxWxH): | 37x16x30cm | place of origin; place of origin: | Jiangsu, China |
product description

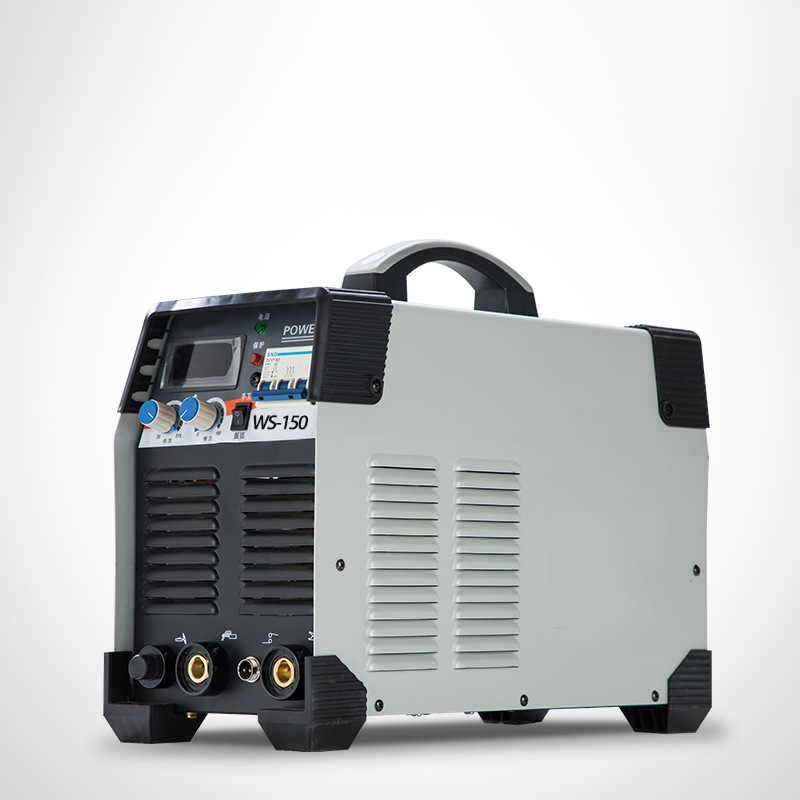

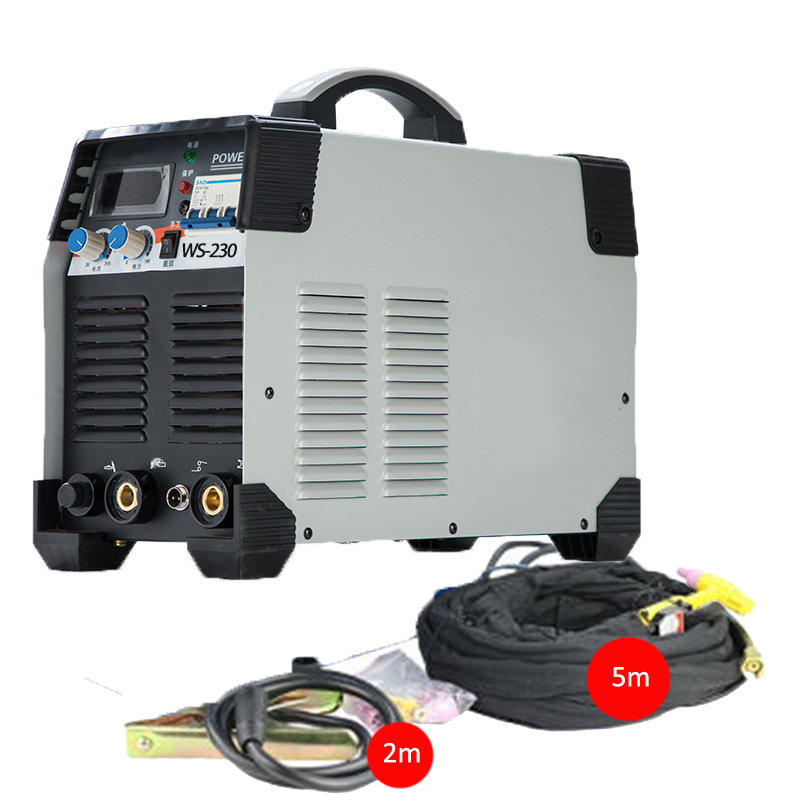

WS Series Welder (TIG & MMA)

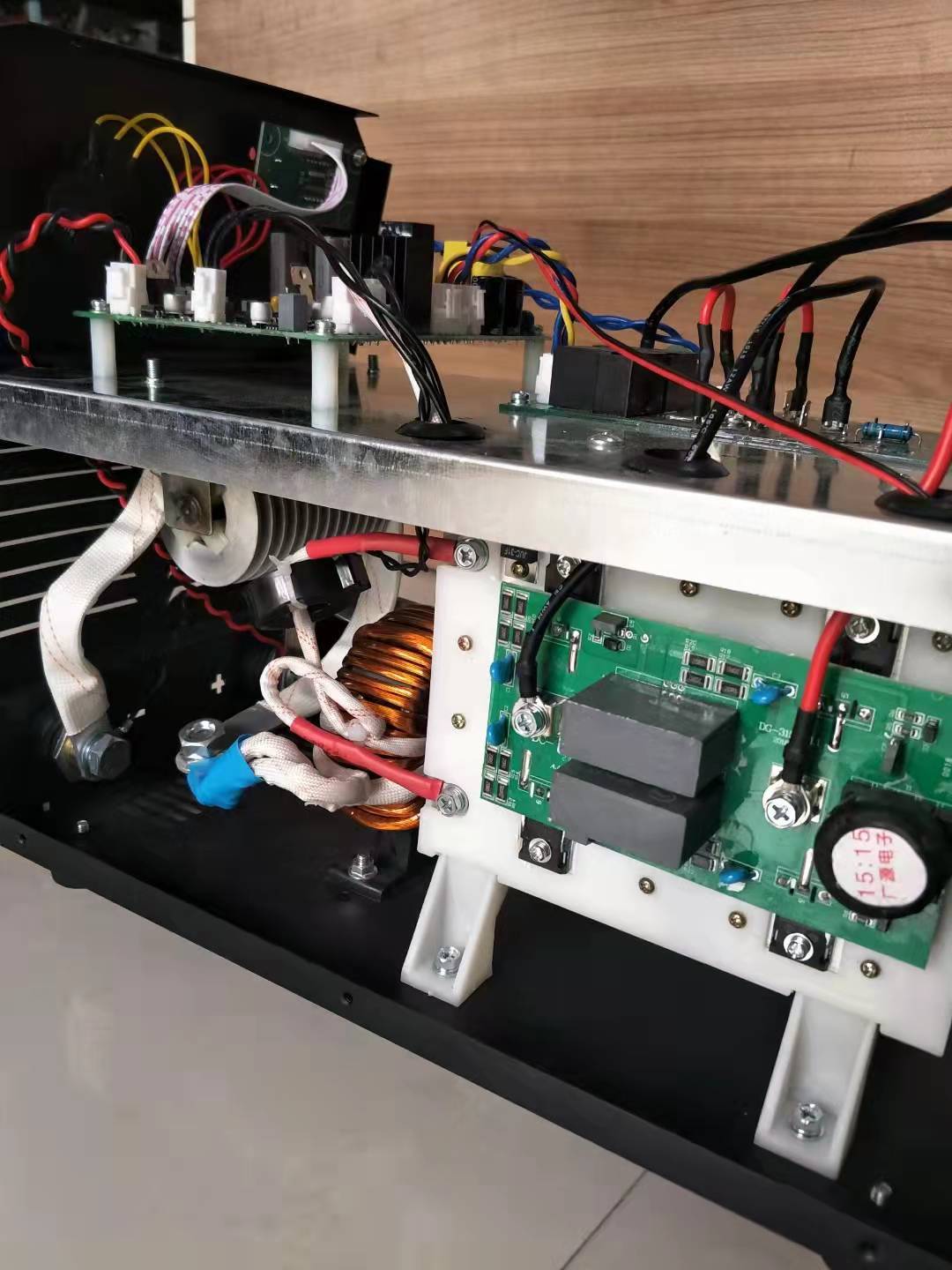

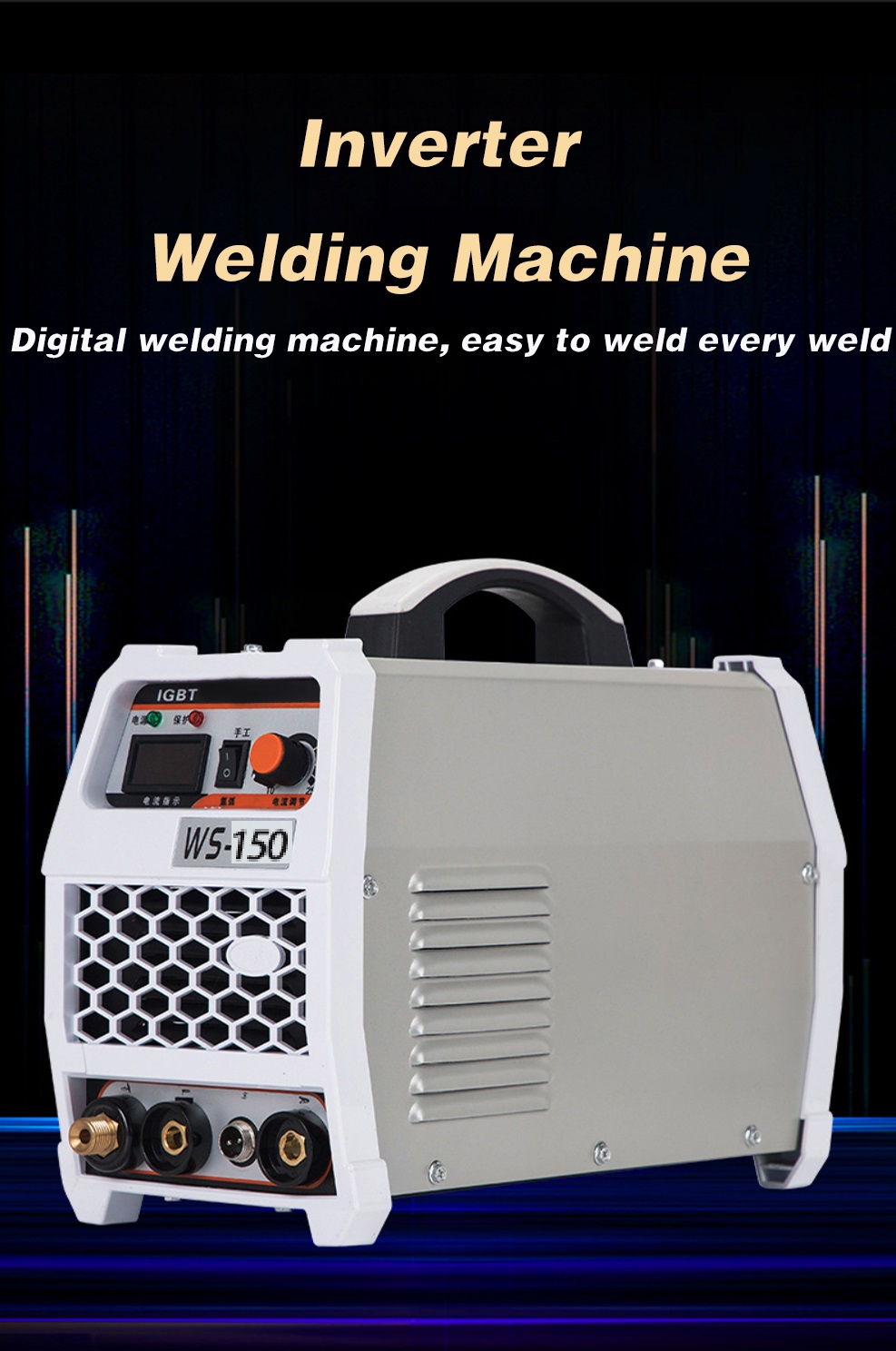

Advanced IGBT technology, energy saving and low noise.
Shielding gas backflow function; stable and mild welding arc. High frequency starting circuit ensures high success rate of arc ignition.
Both TIG (GTAW) and Stick (SMAW) processes are available.
Automatic overvoltage, overcurrent and overheating protection.
Suitable for welding various metals, such as carbon steel, stainless steel, alloy steel, copper and other non-ferrous metals
Metal.
Shielding gas backflow function; stable and mild welding arc. High frequency starting circuit ensures high success rate of arc ignition.
Both TIG (GTAW) and Stick (SMAW) processes are available.
Automatic overvoltage, overcurrent and overheating protection.
Suitable for welding various metals, such as carbon steel, stainless steel, alloy steel, copper and other non-ferrous metals
Metal.
Function list
Model | TIG-300 | TIG-350 | WS-250 | WS-315 | WS-400 |
Input voltage (V) | AC220+15% | AC220+15% | AC380+15% | AC380+15% | AC380+15% |
Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Rated power (KVA) | 4 | 4.5 | 5 | 8.3 | 13 |
No-load voltage (V) | 57 | 57 | 54 | 54 | 64 |
Output current (A) | 10-155 | 10-170 | 5-220 | 10-300 | 10-400 |
Rated output voltage (V) | 16.4 | 16.8 | 18.8 | twenty two | 26 |
Thrust range (A) | -- | -- | 10-220 | 10-270 | 20-360 |
Load Sustainability (%) | 60 | 60 | 60 | 60 | 60 |
No-load loss (W) | 40 | 40 | 40 | 40 | 40 |
efficiency(%) | 85 | 85 | 85 | 85 | 85 |
power factor | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 |
Insulation class | F | F | F | F | F |
IP level | twenty one | twenty one | twenty one | twenty one | twenty one |
