Wood Chip Hot Rotary Airflow Duct Dryer CE Approved Dryer Price Biomass Dryer
- $1500.00 /set
- 1 set
- Tianjin Mikim Technique Co., Ltd.
- Tianjin, China
- Ms Fiona Mikim
Voltage: | custom made | brand: | rice gold |
Core component warranty: | 1 year | Marketing Type: | normal product |
Origin: | China | heating method: | Hot stove |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | type: | Sawdust Dryer |
Health status: | new | Video shipment inspection: | if |
Warranty: | 1 year | Finished material humidity: | 8-12% |
weight: | 3000 kg | application: | drying sawdust |
Showroom location: | Philippines, Peru, Indonesia, Mexico, Thailand, Kenya, Chile, Colombia, South Africa | Packaging Details: | Wooden Export Packaging Sawdust Rotary Dryer Biomass Dryer |
Install: | Engineer Guidance | Production capacity: | 300-700kg/hour |
Name: | Sawdust Rotary Dryer | Mechanical test report: | if |
Heating source: | Wood, natural gas, oil, etc. | Applicable industries: | Building supplies store, manufacturing plant, farm, household, retail, energy and mining, food and beverage store, advertising agency |
Used for: | dry sawdust | Raw material moisture: | 30-40% |
Drying material: | sawdust, wood shavings, sawdust | thing: | Biomass dryer |
Core components: | engine |
Wood Chip Hot Rotary Airflow Duct Dryer CE Approved Dryer Price Biomass Dryer
Sawdust dryer is also called pipeline dryer, wood chip flash dryer, this machine is specially designed for drying wood chips, wood shavings, wheat, straw, corn stalks and other materials.
The diameter of straw and other raw materials should be less than 3mm, and
The raw material moisture is less than 40%, and drying once can meet the requirements of the briquette production line.
Biomass Dryer Features:
² Suitable for dry materials with moisture content of 20-70%.

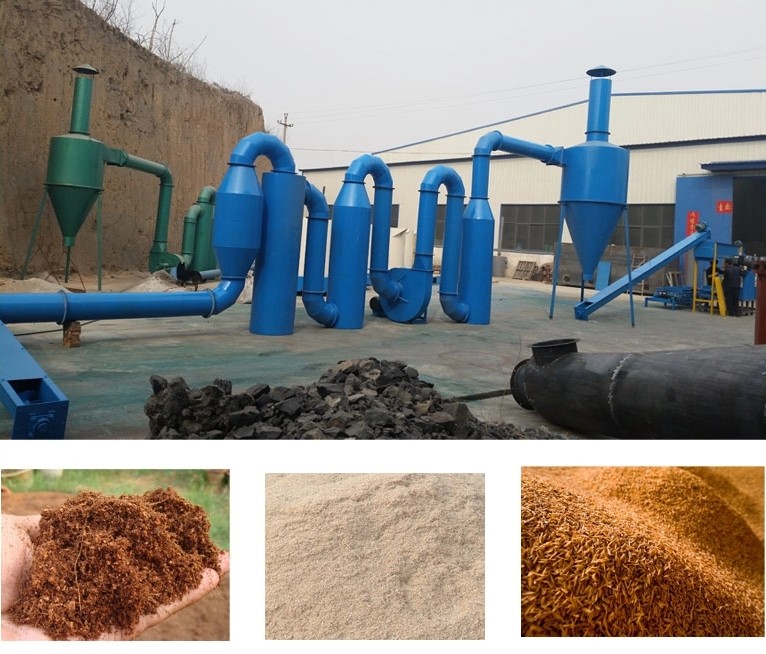

² Suitable for drying sawdust, rice husk, milling wheat straw, corn straw and other materials.
² Equipped with two oil-fired boilers, air inlets, steel pipes, exhaust fans (fans), air locks, and cyclone separators. Wet material enters the hopper.

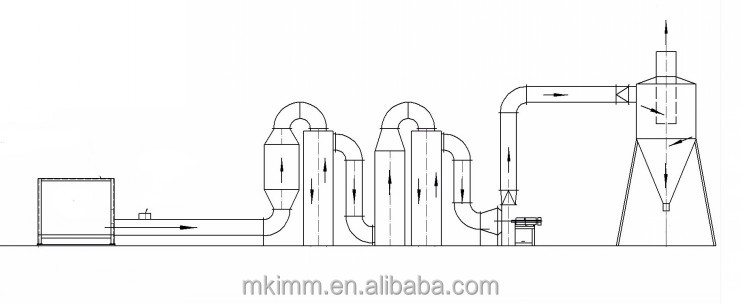

² After the hot air produced by the oil-fired boiler is mixed with the wet material, it is quickly sucked into the pipeline by the exhaust fan (fan). Then the hot air flows through the curved pipe and the buffer (drying chamber) of the dryer, thus completing the drying of the wet material, and the dried material is discharged from the outlet with an air lock.
² Reduce moisture to 8-12%.
² Customers can change the angle of the dryer according to the production site.
operatePprogram:
² After the installation is complete, turn on the fan, check the rotation direction of the fan, and check whether the air suction port is normal.
² Check the flange connection for air leakage.
² Bind the bag with both ends open at the lower opening of the separator.
² Add the material to be dried at the feed port, and remove large particles before drying, which is beneficial to improve the drying speed.
² Add fuel to the stove to ignite and turn on the fan. When the temperature of the air outlet is as high as 150°C, the material is cut off and dried.
² Timely remove the bulk material at the slag outlet to facilitate feeding.
product |
Wood Chip Hot Rotary Airflow Duct Dryer CE Approved Dryer Price Biomass Dryer | |||
Model |
HG-219 |
Mercury-300 |
Mercury - 350 |
Mercury-400 |
initial moisture |
25%-40% |
25%-40% |
20%-40% |
20%-40% |
final moisture |
10%-15% |
10%-15% |
10%-15% |
10%-15% |
main power |
4 kW |
7.5 kW |
11 kW |
15 kW |
drying speed |
200-250kg/hour |
300-400kg/hour |
600-800kg/hour |
800-1000kg/hour |
pipe diameter |
260mm |
300mm |
350mm |
400mm |
Cyclone diameter |
780mm |
900mm |
1050mm |
1200mm |
Fuel consumption |
40-50kg/hour |
60-80kg/hour |
80-100kg/hour |
100-150kg/hour |
aspect |
9*2.5*3.1m |
16*2.5*3.2m |
18*3*3.3m |
20*3*3.5m |
weight |
1760 kg |
2660 kg |
3200 kg |
4000 kg |
The role of sawdust dryer:
Ø Able to ensure the compliance rate of finished products
Ø It can solve the problem of uneven final particle size.
Ø High-tech reliability and precision
Ø Unique design, advanced diesel electric heating method
