YANING EN ISO14644 GMP standard clean room air shower electronic interlock air lock air purification equipment
- $1200.00 / 1 - 9 units
$1080.00 / 10 - 49 units
$960.00 / >=50 units - 1 unit
- Dongguan Yaning Purification Equipment Co., Ltd.
- Guangdong, China
- Ms Viola Xiang
PRODUCT DETAIL
| Marketing Type: | New Products 2021 | brand: | yanin clear |
| nozzle: | 6 | Material: | Powder Coated Steel / SUS304 |
| Door: | Electronic interlock | Packaging Details: | The product itself is first wrapped with plastic film, the four corners are protected with cardboard or protective foam, and then fixed in a pallet or wooden box. |
| Mechanical test report: | if | Video external inspection: | if |
| Voltage: | 380V/220V/110V Customized | port: | Shenzhen, China |
| Health status: | new | application: | clean room entrance |
| place of origin; place of origin: | Guangdong, China | air filter: | H14 high efficiency filter |
| Air shower time (s): | 0-99s adjustable | Wind speed: | 25 m/s |
| Packaging Preview: | Dimensions (L*W*H): | 1290*1000*2050 | |
| Core Components Warranty: | 1 year | weight: | 650kg |
| Applicable industries: | Manufacturing plants, food and beverage factories, food and beverage stores, others, semiconductor production, biochemical technology, biotechnology, precision machinery, pharmaceuticals, hospital operating rooms | Air blowing method: | 2 sides left and right |
| Supply capacity: | 1000 units per week | payment terms: | L/C,Western Union,T/T |
| Core components: | PLC, HEPA filter, high efficiency fan | Warranty: | 1 year |
| Function: | dust | Filtration efficiency: | 99.995%@0.3um |
| strength: | 1000W | Showroom location: | not any |
Product Description

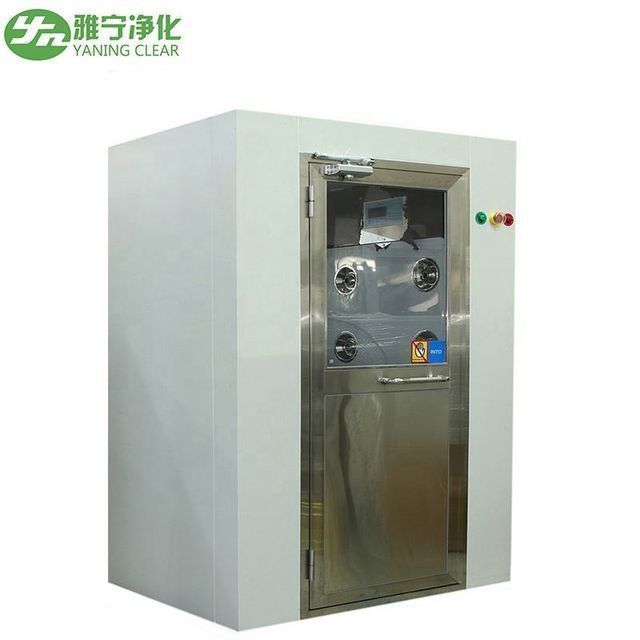

YANING EN ISO14644 GMP standard clean room air shower electronic interlock
Airlock Air Purification Equipment
Face recognition temperature measurement The stainless steel air shower is equipped with a voice prompt system. The detection system consists of dual cameras and infrared thermal imaging temperature measurement, which can quickly complete face recognition temperature measurement and avoid the risk of fingerprint punching and cross infection.
Features:
1. Pre-filtering
2. High efficiency HEPA filter without partition
3. Photoelectric sensor control
4.LCD control panel
5. Stainless steel rotatable nozzle
6. Electronic interlock
7. Specially installed blower
Production Specifications:
| Product Category | click / 1 person |
double whammy / 1 person |
double whammy / 2 people |
air shower tunnel |
| Model | YN-1000 | YN-1500 | YN-2000 | YN-5000 |
| Dimensions | 1290*1000*2050 | 1290*1000*2050 | 1290*2000*2050 | 1590*5000*2050 |
| Air shower area (mm) | 790*860*1910 | 790*860*1910 | 790*1860*1910 | 790*4860*1910 |
| capacity: | 1-2 people | 1-2 people | 2-4 people | channel type |
| Number of nozzles | 6PCS | 12PCS | 24PCS | 72PCS |
| wind speed | ≥25m/s | ≥25m/s | ≥25m/s | ≥25m/s |
| noise level | <62 | <62 | <62 | <62 |
| Pre-filter size efficiency |
775×380×17×1pcs | 775×380×17×2pcs | 775×380×17×4 | 775×380×17×8 |
| G4 | G4 | G4 | G4 | |
| High efficiency filter efficiency |
610*610*120*1 | 610*610*120*2pcs | 610*610*120*4 | 610*610*120*8 |
| 99.99%@0.3 | 99.99%@0.3 | 99.99%@0.3 | 99.99%@0.3 | |
| fan power | 750W*1 | 750W*2 | 750W*4 | 750W*8 |
| fluorescent lamp strength |
20W*1 | 20W*1 | 20W*2 | 40W*4 |
| strength | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
detailed picture:
