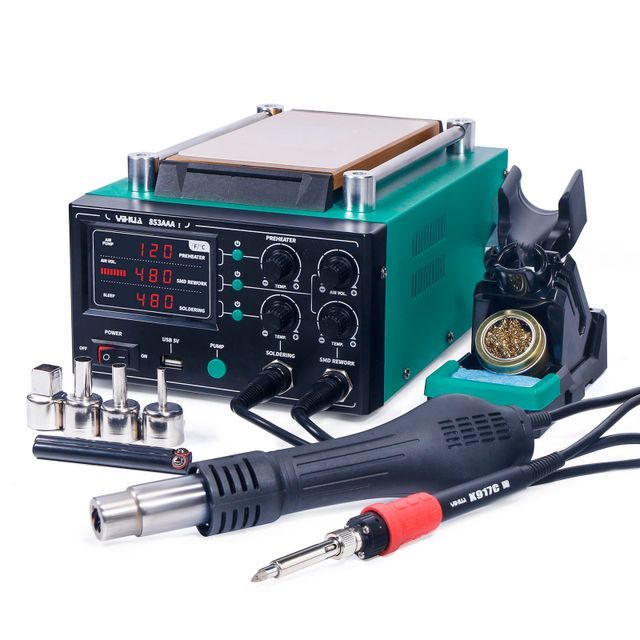

YIHUA 853AAA-I basic version 3-in-1 digital SMD desoldering hot air gun preheating BGA rework soldering station

PS: The video is an upgraded version.



1. Adopt microcomputer processor PID programmable temperature control technology.
2. The air gun heater adopts ceramic heater. The heating element is securely wrapped around the model ceramic, heating up quickly and evenly. Using an upgraded version of the fan, the air volume is larger than that of ordinary fans, the air is spirally discharged, and the life is long.
3. The soldering iron part adopts imported heater. Rapid heating, stable temperature, long service life; anti-static design to prevent static electricity from damaging precision SMD components.
4. The machine has self-checking function. Fully intelligent over-temperature, short circuit, open circuit, overload and fault display and protection functions.
5. Temperature correction function. You can use this function to calibrate the temperature to adapt to environmental influences or to replace heating elements, soldering iron tips and other spare parts that cause temperature deviations. The calibration temperature range is -50℃~+50℃.
6. Celsius/Fahrenheit temperature display function. Temperature display modes designed to meet different market needs, you can choose according to your habits and interests.
7. The hot air gun part has an automatic/manual function.
8. The soldering iron sleep standby function saves energy, protects the heating core and soldering iron tip, extends their service life, and is safer.

data:

Input voltage: AC 110~127V 60Hz or 220~240V 50Hz
Maximum power consumption: 1180W

Screen separator:
Temperature range: 50～120℃
Display type: LED
Preheating area: 200*110±5mm

hot air station
Airflow brushless fan with spiral air outlet
Air volume ≤120L/min
Temperature range 100 ~ 480 °C
Display type: LED
Handle cord length ≥100cm

soldering iron station
Temperature range 200~480℃
Soldering iron heater: 60W ceramic heater
Tip-to-ground voltage <2mV
Tip ground impedance <2 ohms
Display type: LED
Handle cord length ≥100cm

General usage

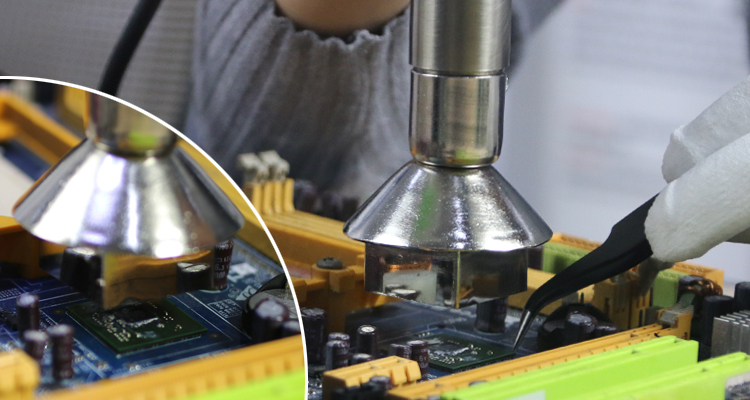

1). Suitable for desoldering and soldering of BGA, SOIC, CHIP, QFP, and PLCC packaged SMD ICs.

It is especially suitable for desoldering BGA modules, computer motherboard north and south bridges, various mobile phone motherboards, SMT IC and LED lights.

2). Shrinking, paint drying, glue removal, thawing, heating, plastic welding, etc.

Company information display

Welding is a job that requires patience, skill, and reliable tools. Yihua has been committed to the research, production and sales of welding equipment and DC power supplies since 2000. We are a well-known manufacturer in China, specializing in the production of various high-quality product rework stations including 2-in-1 soldering equipment, hot air rework stations, DC power supplies, lead-free soldering stations, constant temperature soldering stations, etc. Hot air rework stations with soldering irons and soldering rework stations with power supplies are also available. In nearly ten years, we have manufactured approximately 21 million high-fidelity machines.

Our product certifications

We have passed the ISO9001-2008 international quality management system, and our products have passed European CE certification, American ETL certification, SAA certification, SGS certification, in-depth export certification and Korean KC certification, etc.

China soldering industry standard setter

In 2016, our company was invited to participate in the Home Appliances Standardization Committee——Chinese Welding industry standards set.

Complete quality inspection system

All our products are tested by professionalsBefore shipment, so you don’t have to worry about quality issues.

Our warranty

*Credit protection

Guangzhou Yihua Electronic Equipment Co., Ltd. signed a contract with Alibaba and paid a large deposit, so that buyers can buy with confidence

*Factory advantage

Factory R&D/production/sales/sales service integration.

Factory direct sales, sufficient supply, fast delivery, and favorable prices. You can arrange the delivery yourself, or you can ask us to arrange the delivery for you. If we help you arrange shipment. We need to know the model and quantity you want before quoting shipping costs. We will suggest you sea, air or express shipping based on your detailed address, order model and quantity. As usual, we use DHL Hong Kong to ship small orders.

*delivery date

Over 100~over 500 pieces will be shipped within 20 days. Over 1000 pieces it is 30 days.

If the materials are not enough or we have some customers lining up our products in front of you, we will discuss the shipping date with you. If you would like a delivery date earlier than the same day, please ask us and we will do our best to accommodate your request.

*Warranty Policy

one year warranty

As usual, shipping costs are high. It's not worth the money if it's returned to China for repairs. Therefore, we can support the technology and provide you with products and spare parts.

Note: The warranty does not cover consumable parts: for example: soldering iron heater, spray gun heater, soldering iron tip.

*Product discounts

As usual, we quote three prices for each model: sample price, price for 60 pieces or more, and price for 500 pieces or more.

These prices are calculated for our production cost, because you know the sales profit for big orders is less. We hope to achieve a win-win situation with both parties.

*Kind tips

1. If the technical parameters are changed due to product upgrades or quality improvements, our factory will not provide further notice.

2. If the customer has no special requirements, the product will be produced in accordance with the quality standards set by the factory.
