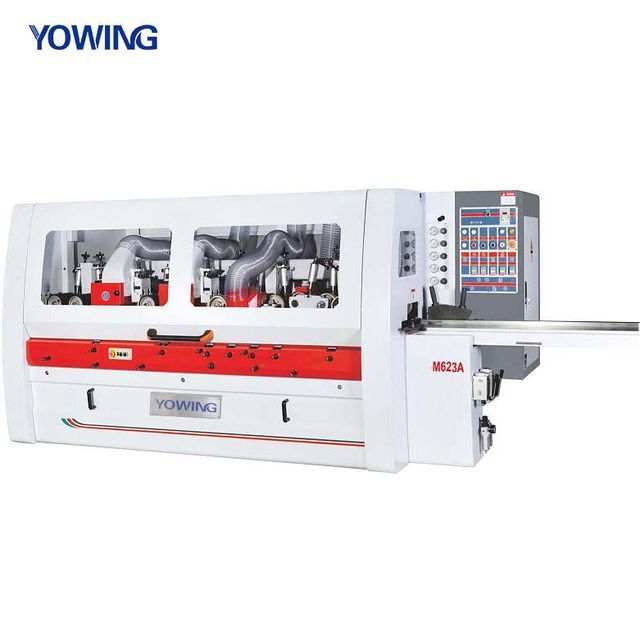

Yowing 6-axis milling cutter forming machine
- $15000.00 / 1 - 4 sets
$14000.00 / >=5 sets - 1 set
- Foshan Yowing Machinery Co., Ltd.
- Guangdong, China
- Ms Yowing Machinery
PRODUCT DETAIL
| The following parameters are: | MB626A | Core component warranty: | 2 years |
| Mechanical test report: | if | Marketing type: | normal product |
| Voltage: | 220V 380V 415V 440V | Applicable industries: | Building material stores, machine repair shops, manufacturing plants, construction projects, furniture factories |
| Video outbound inspection: | if | Weight (kg): | 4000kg |
| Maximum planing width (mm): | 330 | Front feeding table length: | 1550mm |
| Health status: | new | Main selling points: | High accuracy |
| brand: | Youying | Package preview: | |
| type: | Four-sided forming machine | Spindle speed: | 8000 rpm |
| Dimensions (length*width*height): | 4100*1630*1750mm | Upper axis: | 15kW*2 |
| Slide equipment: | No | Power (kW): | 81.0 |
| Most spindle axis: | 11.0kw*4 | Warranty: | 2 years |
| Number of blades: | 4 5 6 7 8 | Packaging details: | Standard export packaging or customized plywood box packaging |
| payment terms: | L/C, D/A, D/A, wire transfer | Working width: | 25-260mm |
| Maximum planing depth (mm): | 160mm | Blade type: | spiral |
| Place of origin: | Guangdong, China | Lifting motor: | 0.75kW*2 |
| Core components: | PLC, bearings, pressure vessels, gears, pumps | Total power: | MB626A 81.0kw |
| Speed of work: | 10-50mm | Working thickness: | 8-210mm |
China Swing Spindle Forming Machine 4-Side Forming Machine Wood Forming Machine Wood Processing Machine Solid Wood Furniture, Door Frame, Picture Frame, Linear Wood Profiling Wood Grinder Grinder Surface Planer Surface Planer.
Product Description
Specification
Model | MB616A | MB621A | MB626A | MB633A |
working width | 20-160mm | 25-210mm | 25-260mm | 25-330mm |
working thickness | 8-120mm | 8-120mm | 8-210mm | 8-210mm |
Feeding speed | 10-40m/minute | 10-40m/minute | 10-50m/minute | 10-50m/minute |
Workbench length | 1800mm | 1800mm | 1800mm | 1800mm |
Spindle inner diameter | Φ40 | Φ40 | Φ50 | Φ50 |
axial movement | 0-20mm | 0-20mm | 0-20mm | 0-20mm |
Spindle speed | 6800 rpm | 6800 rpm | 6800 rpm | 6800 rpm |
1st bottom spindle | 5.5kW | 5.5kW | 11.0kW | 11.0kW |
Right 2nd spindle | 5.5kW | 5.5kW | 11.0kW | 11.0kW |
Left third spindle | 5.5kW | 5.5kW | 11.0kW | 11.0kW |
4th upper spindle | 5.5kW | 7.5kW | 15.0kW | 15.0kW |
Fifth upper spindle | 5.5kW | 7.5kW | 15.0kW | 15.0kW |
Sixth bottom spindle | 5.5kW | 5.5kW | 11.0kW | 11.0kW |
Feeding motor | 4kW | 5.5kW | 5.5kW | 7.5kW |
Pressure beam lifting motor | 0.75kW | 1.1kW | 0.75kW*2 | 0.75kw+1.1kw |
total power | 37.75kW | 43.0kW | 81.0kW | 83.35kW |
Trimming knife outer diameter | Φ145-Φ160 | Φ145-Φ160 | Φ145-Φ160 | Φ145-Φ160 |
Tool outer diameter | Φ125-Φ140 | Φ125-Φ140 | Φ125-Φ140 | Φ125-Φ140 |
Dust exhaust port diameter | Φ120 | Φ140 | Φ140 | Φ140 |
Feed roller diameter | Φ140 | Φ140 | Φ140 | Φ140 |
total measurement | 4100*1630*1675 | 4100*1630*1750 | 4100*1830*1750 | 5200*2000*1750 |
gross weight | 2800kg | 3000kg | 4200kg | 5500kg |
Machine details

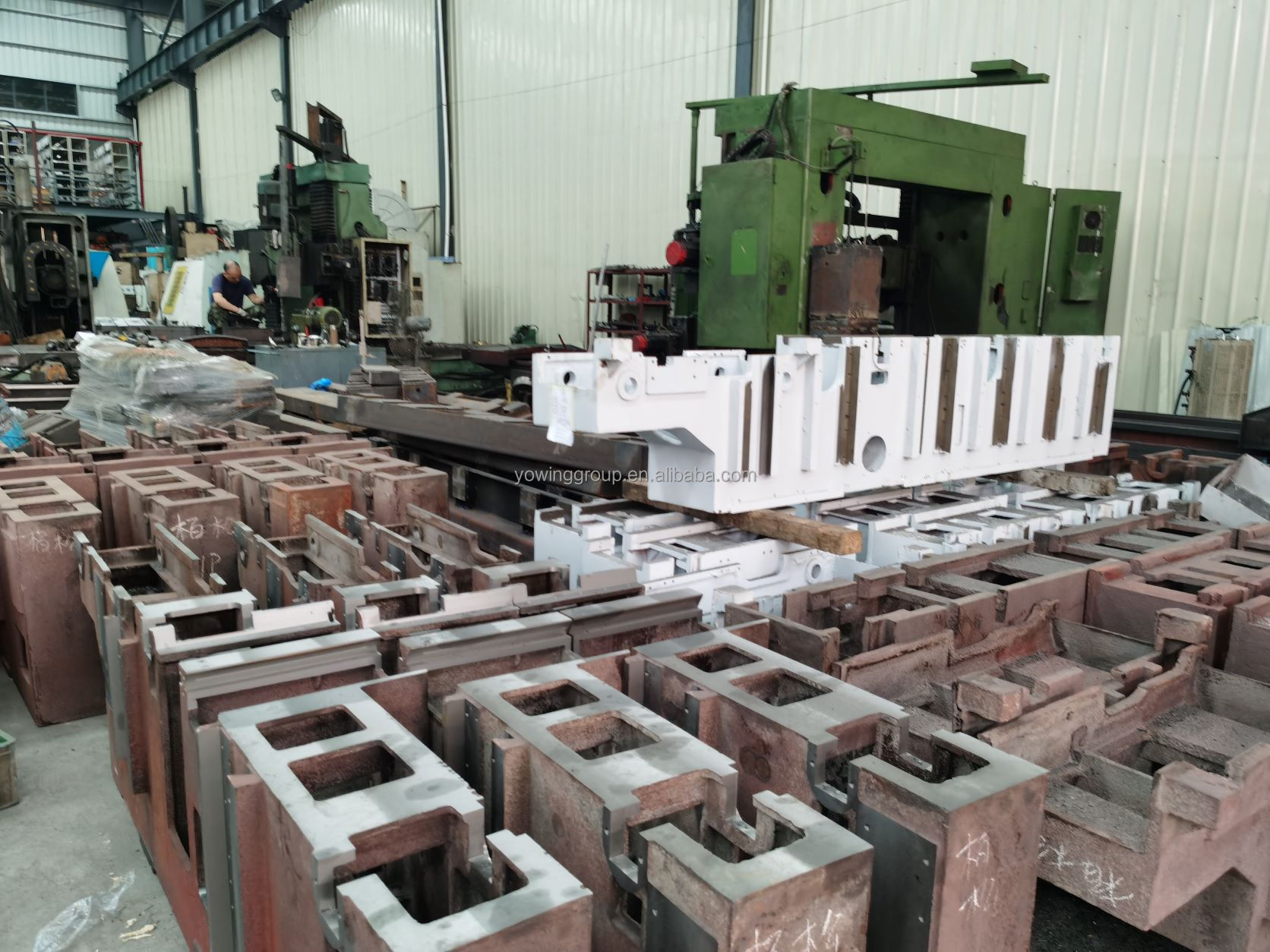

Heavy cast iron frame
This is the key point for whether the molding machine can operate stably for a long time without vibration and with high precision.

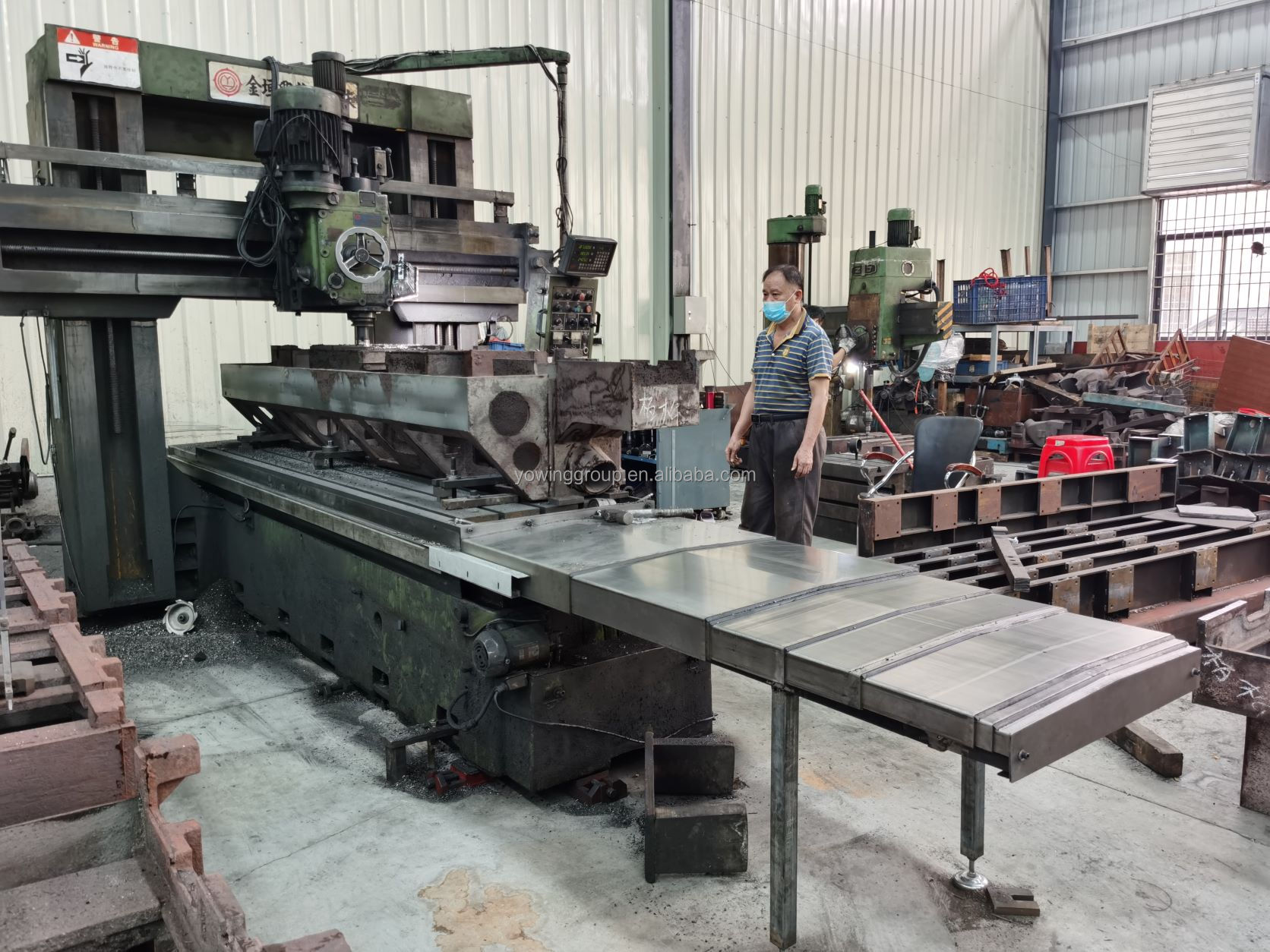

CNC machining
This is the secret behind all the precision, we process all references for the whole body in 1 pass without moving it.

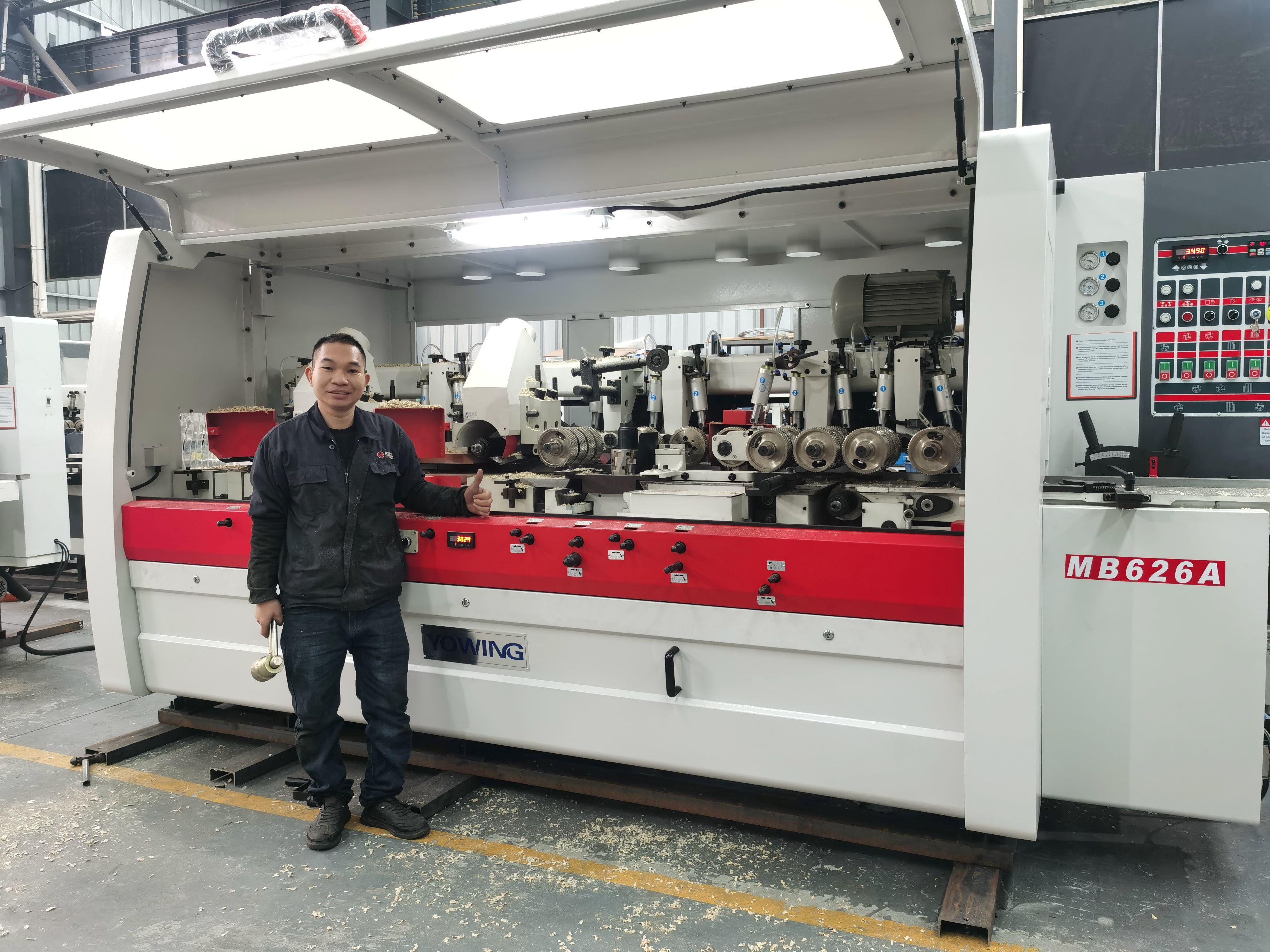

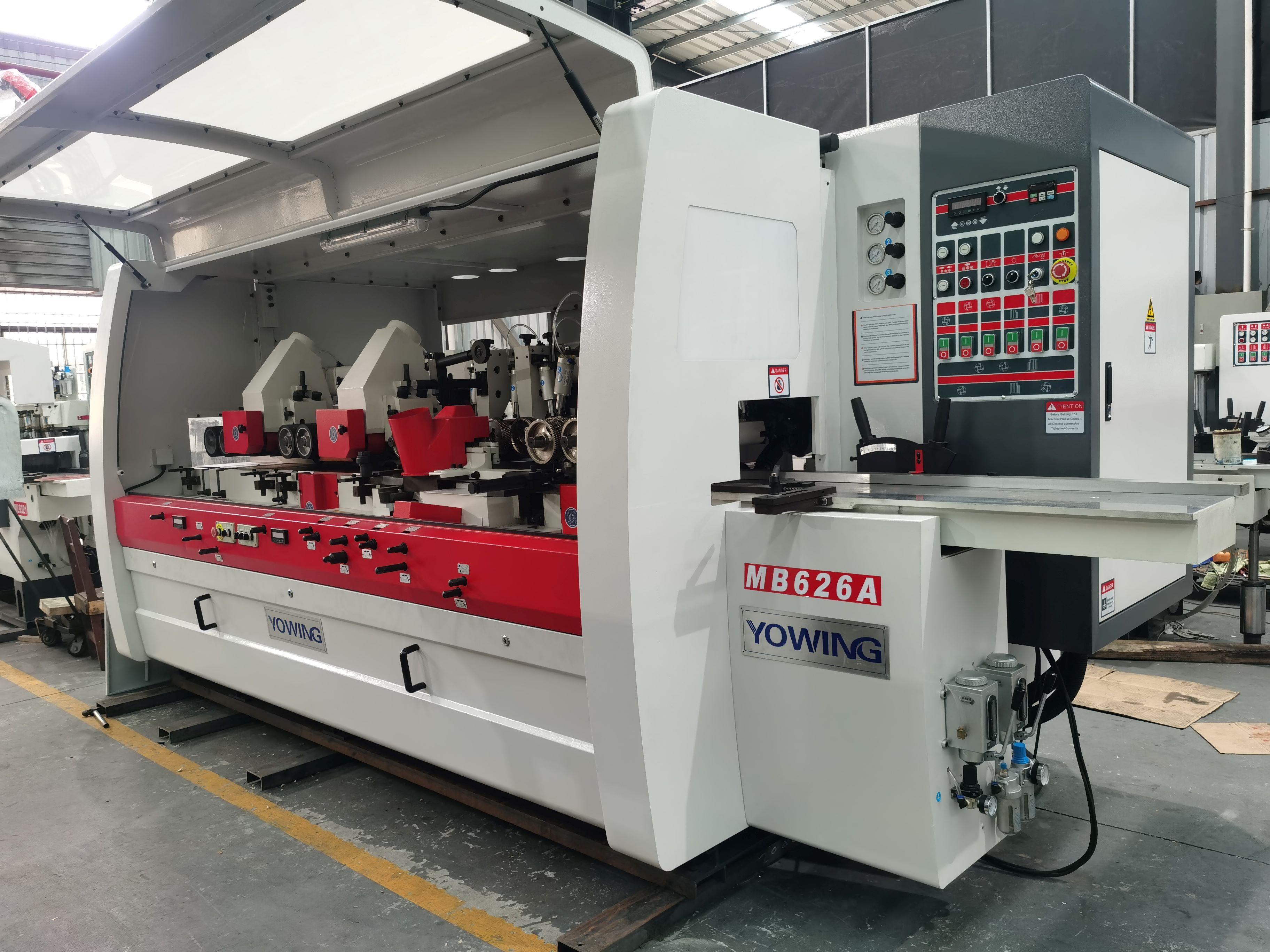

Full safety cover
The fully sealed safety cover can effectively prevent sawdust from flying and isolate noise, thus providing safety protection.

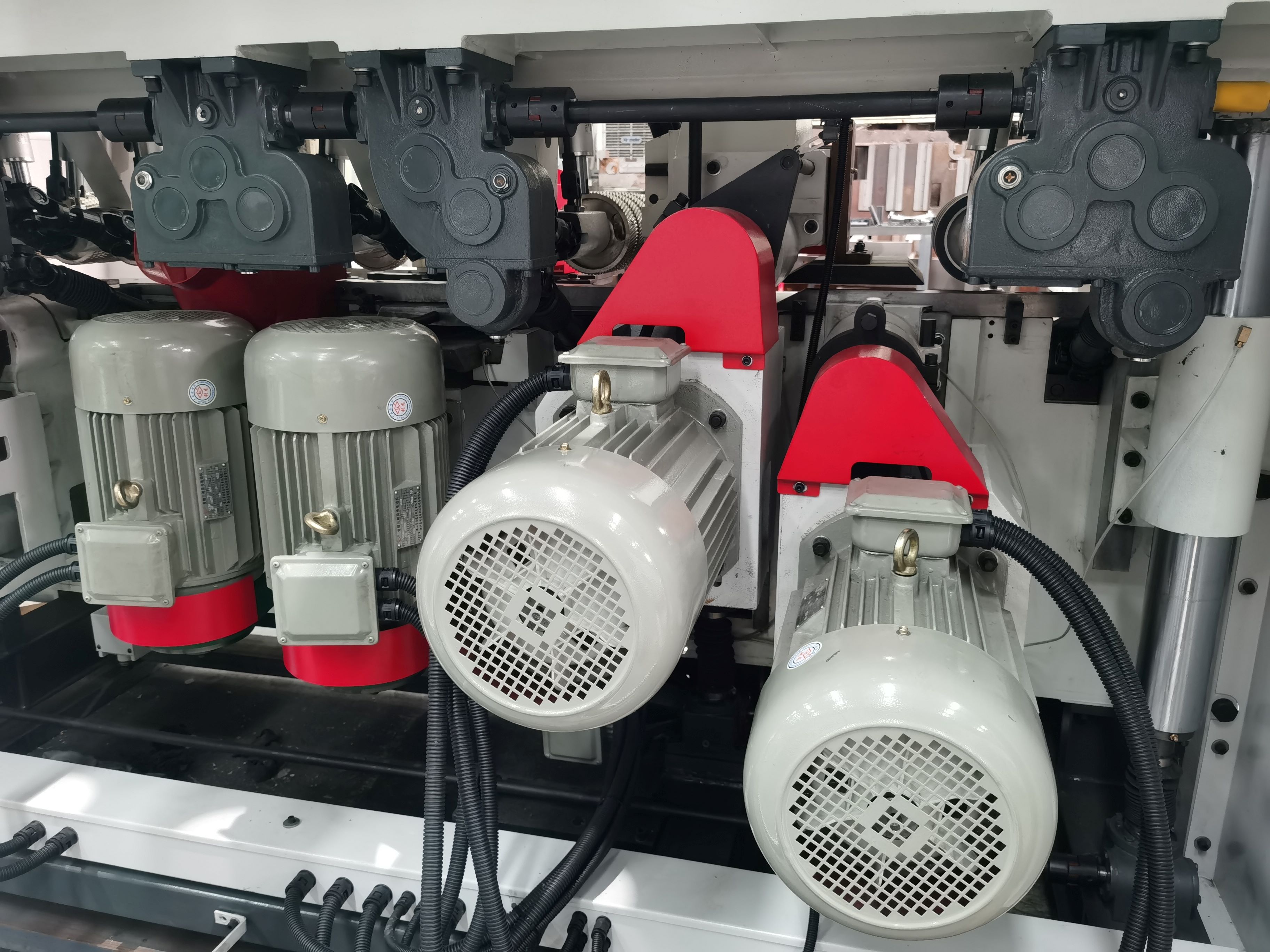

Each spindle has its own motor.
Each spindle has an individual motor to ensure maximum power transmission.

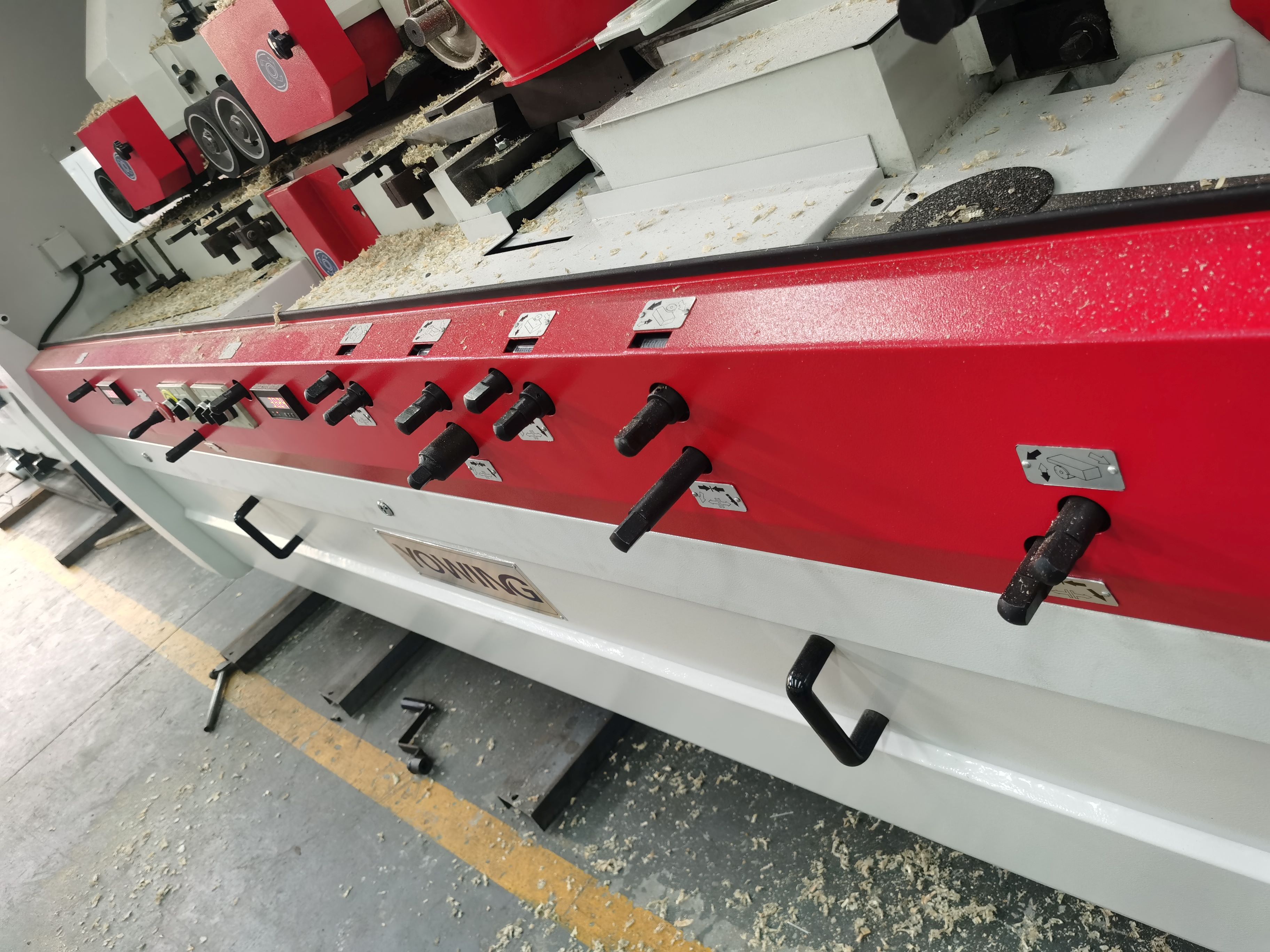

Front adjustment
All adjustments of the spindle are concentrated on the front end of the machine, making it easy to operate.

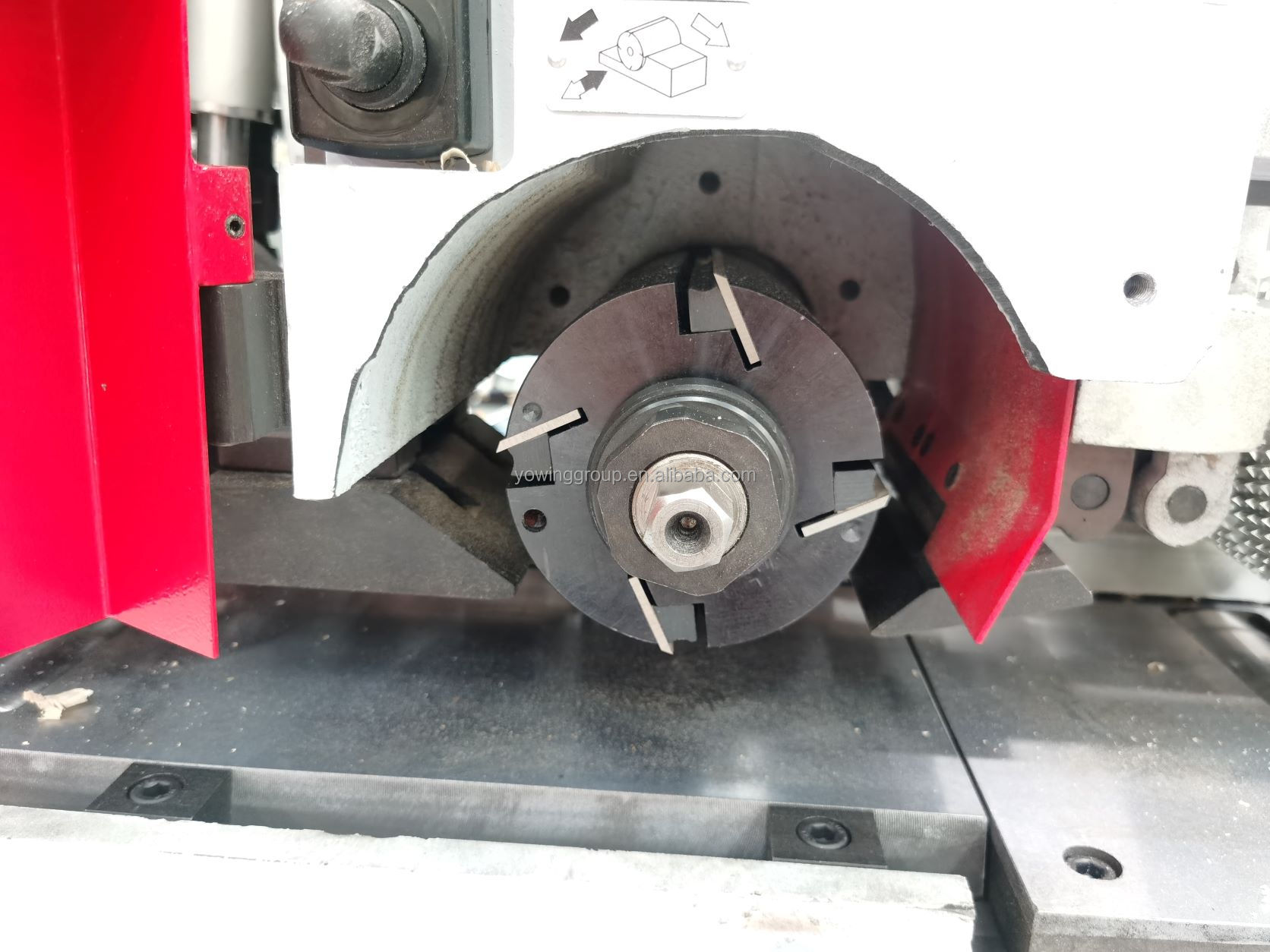

Φ50 spindle diameter
The spindle diameter is Φ50 and two pairs of high-precision and high-load support bearings are more suitable for heavy-duty cutting.

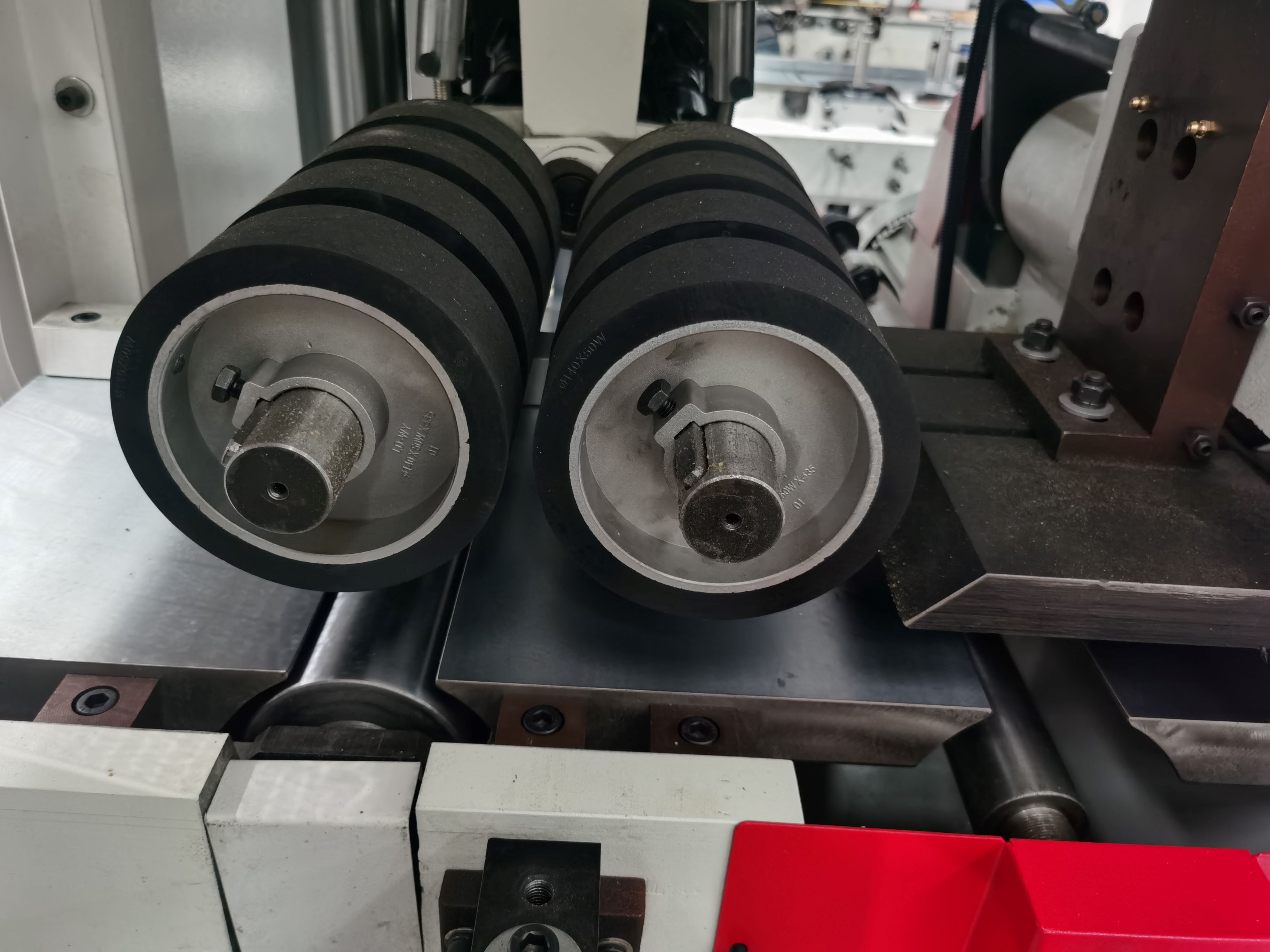

Auxiliary stamping parts
The first set of feeding rollers and sprocket box have a pneumatic two-way adjustable pressure rise function, which can feed or retreat the workpiece.
hard rubber wheel
Hard rubber wheels are fixed to the output of this machine to ensure that the wood comes out safely.
Famous brand electrical accessories
It is of high quality and uses brand-name electrical components to ensure long life and is easy to repair on site.

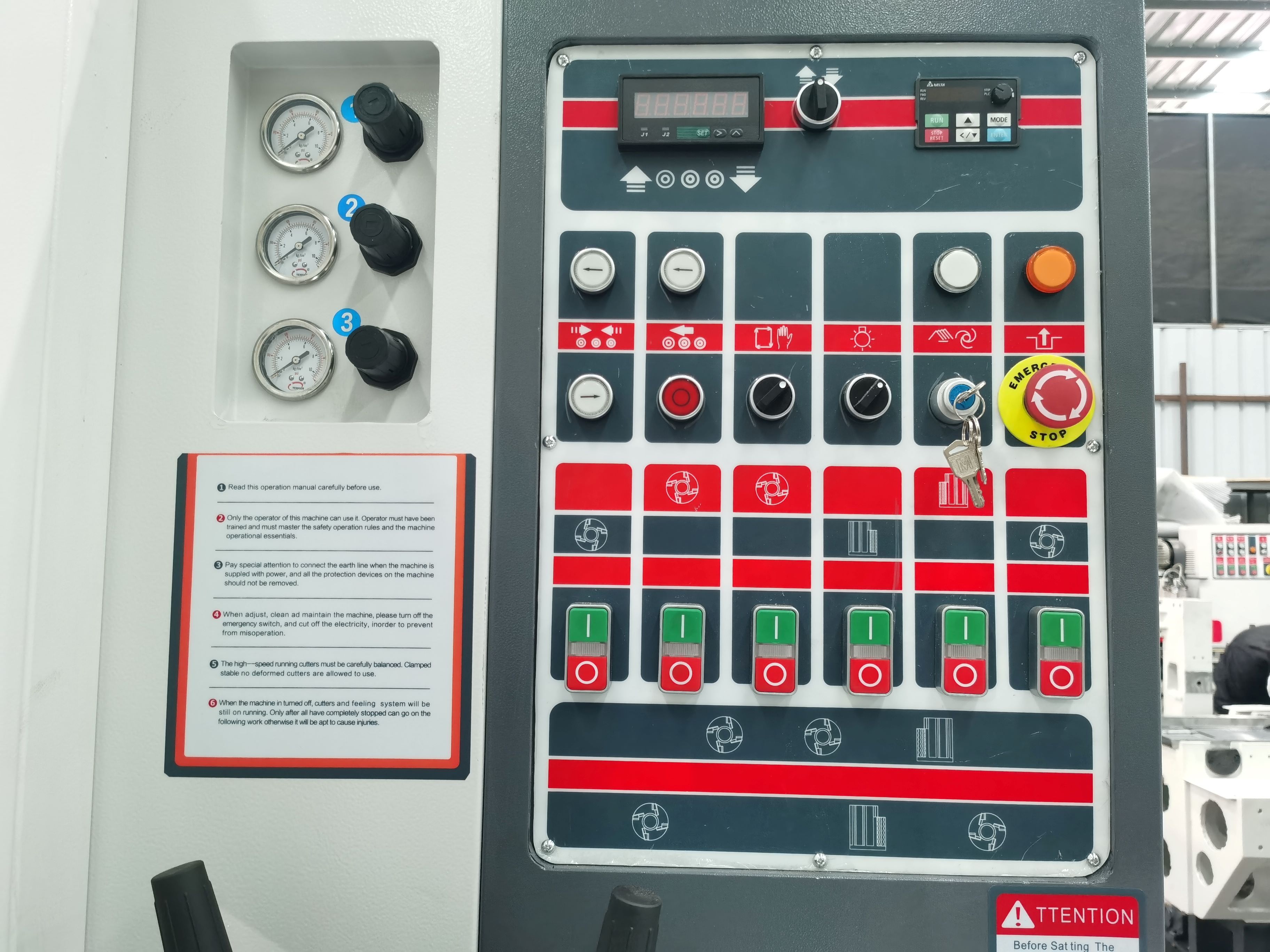

Button screen control system.
Visually beautiful new design with renowned stable electrical critical components.
