ZB High Pressure Electric-driven Power Team Hydraulic Gear Oil Pump for Various Hydraulic Jacks
- $530.80 / 1 - 99 sets
$477.70 / >=100 sets - 1 set
- Liuzhou Lingqiao Prestressed Machinery Co., Ltd.
- Guangxi, China
- Ms Zoe Zeng
| Supply Ability: | 1000 Sets per Month; | Product name: | Portable Ultra High Pressure Hydraulic Electric Power Oil Pump; |
| Port: | Shenzhen,Guangzhou,Fangchenggang; | Packaging Detail: | Wooden Case; |
| Payment Terms: | Western Union,T/T,MoneyGram,PayPal; | Rated pressure: | 50~80MPa; |
| Power Source: | Electric, Hydraulic; | Application: | Construction Area, Bridge; |
| Type: | Hydraulic Power Units Oil Pump; | Weight: | 53~270Kg; |
| Customized support: | OEM,ODM; | Package Preview: | ; |
| Certification: | ISO; | Warranty: | 1year; |
| Material: | Stainless Steel Case; | Model Number: | ZB; |
| Place of Origin: | Guangxi, China; | Power: | 3KW; |

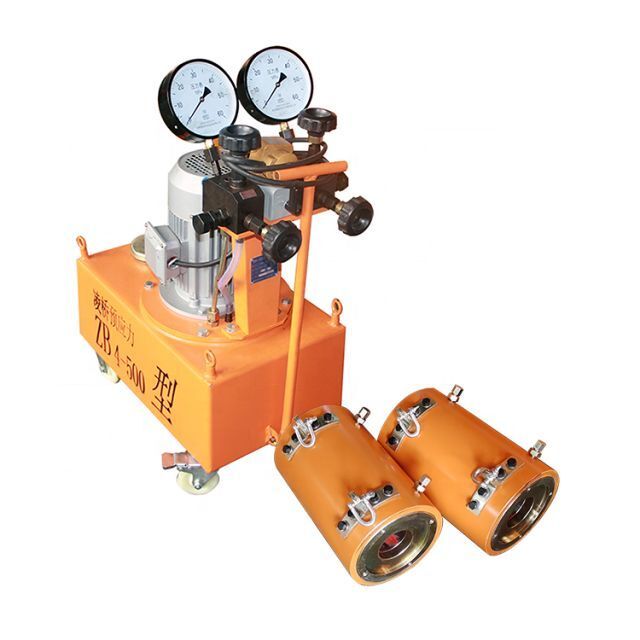

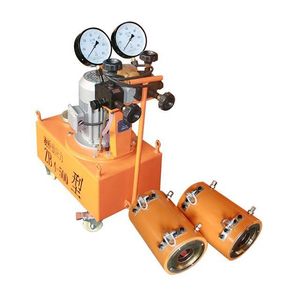

High Pressure Hydraulic Electric Oil Pump
This pump is the reinforcement tensile power and control part, is the use of rated oil pressure within 50-60mpa of various types of jacks power equipment. Can also be used in other types of low flow, high pressure hydraulic machinery.
In the case of equipped with a variety of special machines, it can realize lifting, bending, straightening, extrusion, scissors, riveting, disassembly, press-assembly and other work requirements as hydraulic power parts, but also can be installed in other mechanical equipment. It has the characteristics of small volume, light weight, simple structure, convenient operation and high working pressure.
(1)Screw Plug (2)Distributing (3)Nozzle (4)Lower Part (5)Plunger Sleeve (6)Plunger (7)Return Spring (8)Upper Part (9)Axis (10)Out-Put Port
1.Unload Valve Socket Assembly 2.Throttle Valve Socket Assembly 3.One-Way Valve Assembly 4.Steel Ball 5.Connector Of Pressure Meter 6.Output Nozle 7.Control Valve Body 1 8.Intake Nozzle 9.Control Valve Body 2 10.Relief Valve Assembly 11.Oil-Return Nozzle
Model Parameters
|
Type |
Nom. Pressure
MPa |
Nom. Flow
L/Min |
Power
KW |
Cylinder capacity
L |
Frequency
HZ |
Weight
KG |
Size
MM |
| ZB10-800H | 80 | 10x10 | 7.5 | 120 | 50 | 270 | 1090*590*1120 |
| ZB6-600 |
60 |
6x6 | 5.5 | 120 | 50 | 270 | 1090*590*1120 |
| ZB4-600H | 50 | 4x4 | 4 | 40 | 50 | 120 | 745*494*1052 |
| ZB4-500 | 50 | 2x2 | 3 | 40 | 50 | 130 | 745*494*1052 |
| ZB2-500 | 50 | 2x2 | 1.5 | 25 | 50 | 66 | 660*460*260 |
