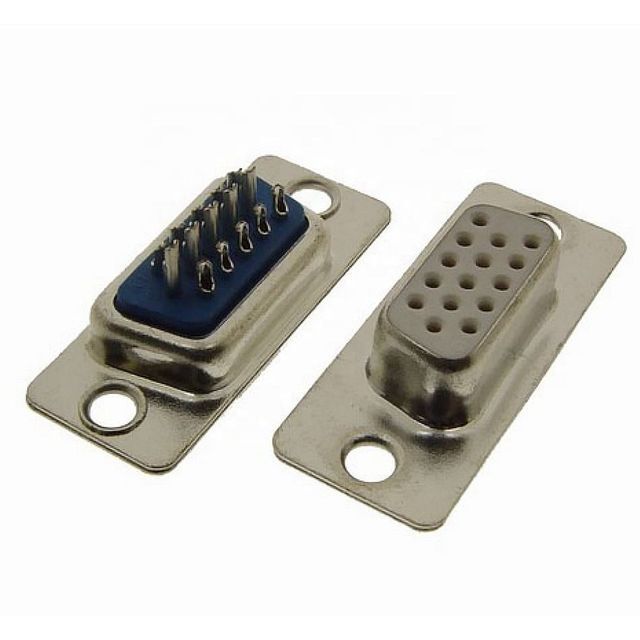

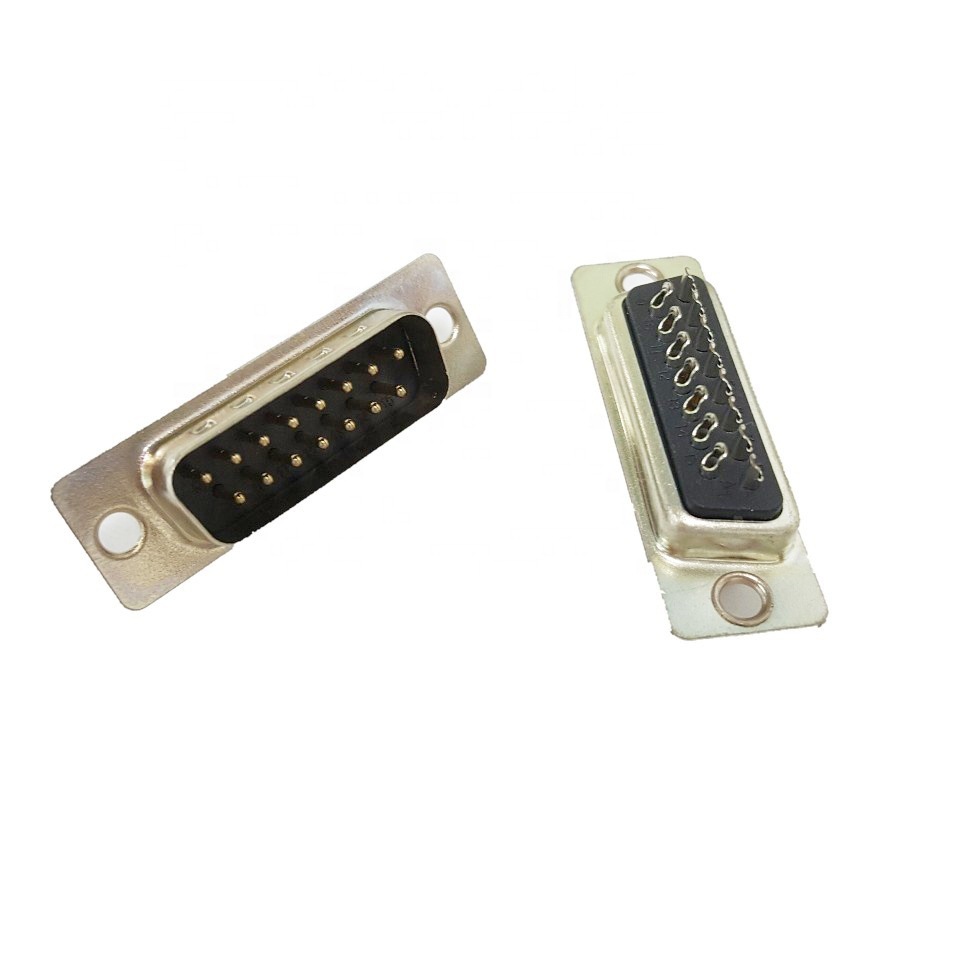

d-sub 15pin solder type connector , gold terminal blocks d sub 15 pin connector
- $0.15 / 100 - 999 pieces
$0.12 / 1000 - 4999 pieces
$0.09 / >=5000 pieces - 100 pieces
- Dongguan Zechao Hardware Electronic Technology Co., Ltd.
- Guangdong, China
- Mr
PRODUCT DETAIL
| NO. OF CONTACTS: | 09 15 25 26 37 44 50 62 78; | TEMPERATURE: | -55℃ TO+105℃; |
| Brand: | zechao; | PIN CONTACT: | PHOSPHOR BRONZE OR BRASS GOLD PLATED; |
| Port: | shenzhen guangzhou; | CONTACT TYPE: | P:PLUG S:SOCKET; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Packaging Detail: | plastic bag sleeve packaging with carton packaging. PE bag,according to customer requirment.; |
| D/C: | No; | OEM: | can be OEM; |
| INSULATOR RESISTANCE: | 1000MΩMIN.(AT 500V DC); | SHELL: | STEEL,TIN PLATED OR NICKEL PLATED; |
| Model Number: | DB15-connector; | CONTACT PLATING: | A:GOLD FLASH(C:5U D:10U E:15U F:30U); |
| DIELECTRIC STRENGTH: | 500V FOR ONE MINUTE; | Description: | d-sub connector; |
| Place of Origin: | guangdong; | Packaging: | packing box; |
| Supply Ability: | 1000000 Pieces per Month; | INSULATOR COLOR: | B:BLUE K:BLACK W:WHITE; |
| Type: | D-Sub Adapters; |
Product Detail
Specifications:d-sub crimp type connector | |||||||
Material: | |||||||
Standard insulator | PBT thermoplastic,30%glass filled(UL94V-0 rated) | ||||||
Insulator color | Blue/Black/White | ||||||
Contacts material | Brass | ||||||
Contact Plating | Gold Plated | ||||||
Shell Material | SPCC | ||||||
Shell Plating | Nickel (or Tin,Zinc,Gold)Plated | ||||||
Hardware Plating | Steel,Nickel (or Tin,Zinc,Gold)Plated | ||||||
Electrical: | |||||||
Rated load | 0.5A 30V DC | ||||||
Contact resistance | 30MΩ Max | ||||||
Insulation resistance | 100 MΩ Min.AT 500V DC | ||||||
Dielectric Withstand Voltage | 500V AC for 1 minute Min. | ||||||
Mechanical: | |||||||
Insertion force | 0.75 lbs max. | ||||||
Extraction force | 0.44 lbs min. | ||||||
Life | 5000 Times | ||||||
Temperature Rating: | |||||||
Operating temperature: | -40°C to +70°C | ||||||
Packaging: | Plastic Bag (Inner)+Carton(Outter) | ||||||
Advantages description: | |||||||
1. Professional & experienced engineers | |||||||
2. Competitive price | |||||||
3. In time good service | |||||||
4. Product warranty | |||||||
5. Many years export experiences. | |||||||
6. High technology | |||||||
7. Lead time: short lead time | |||||||
Related Products
application area

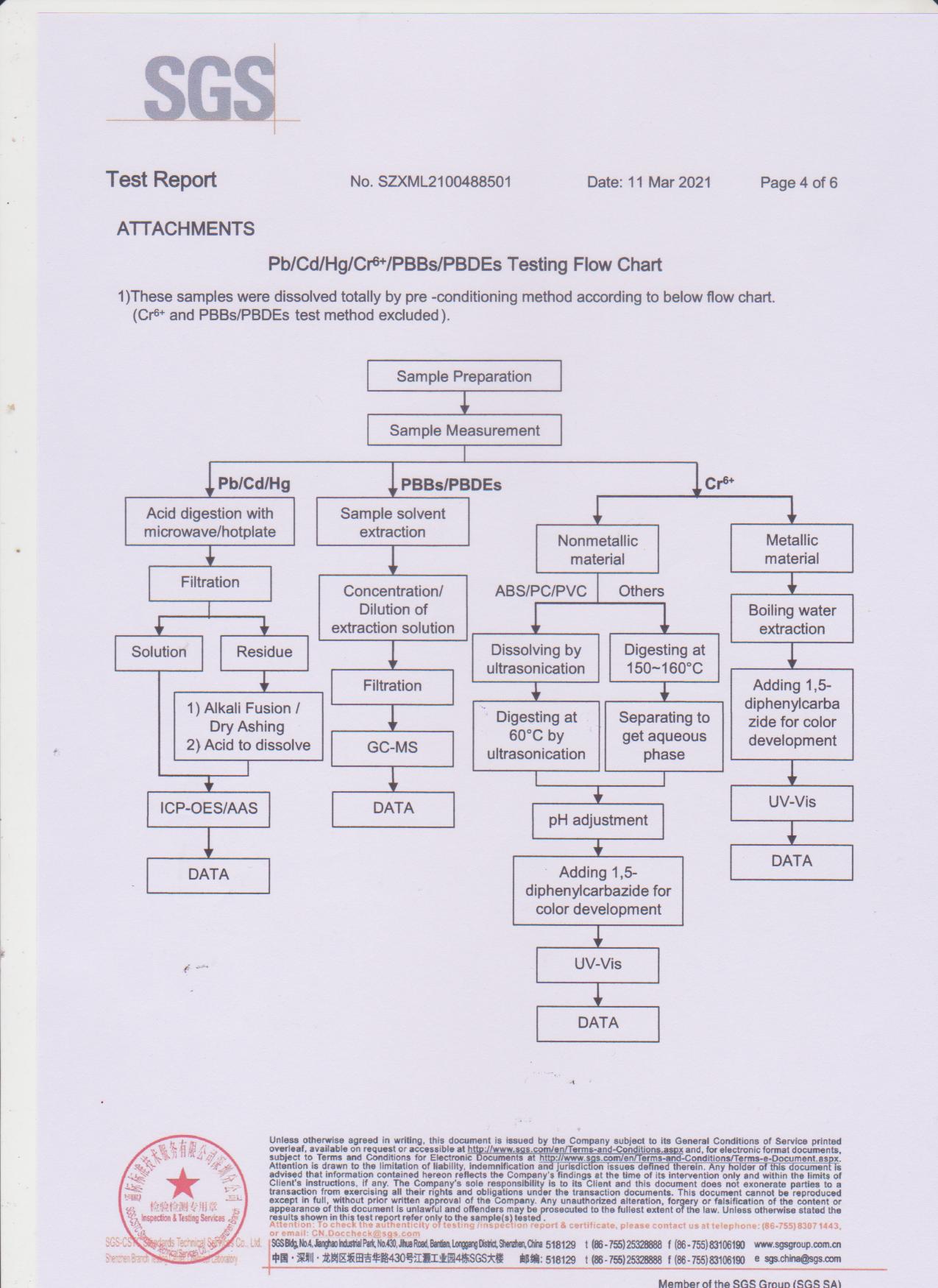

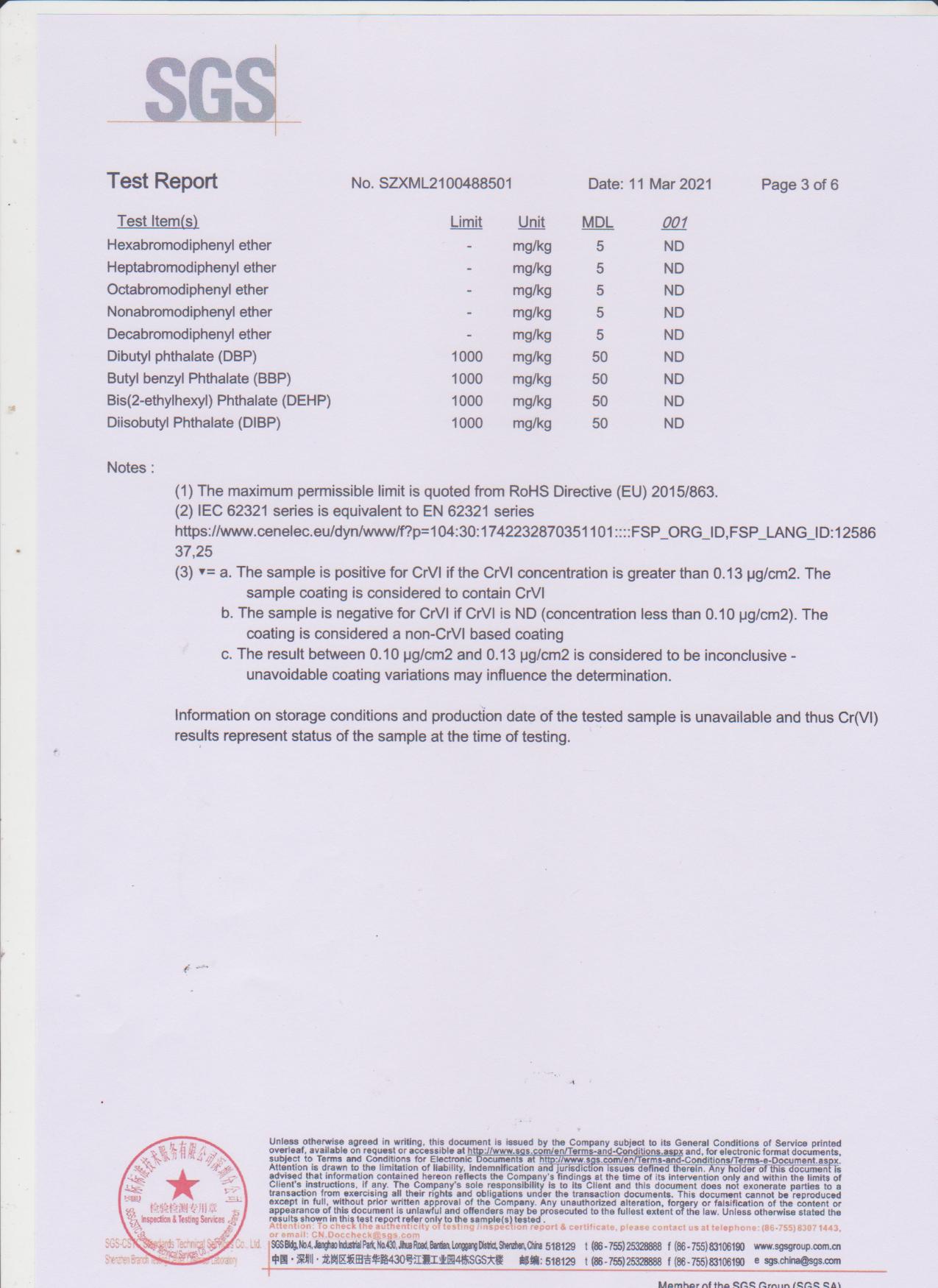

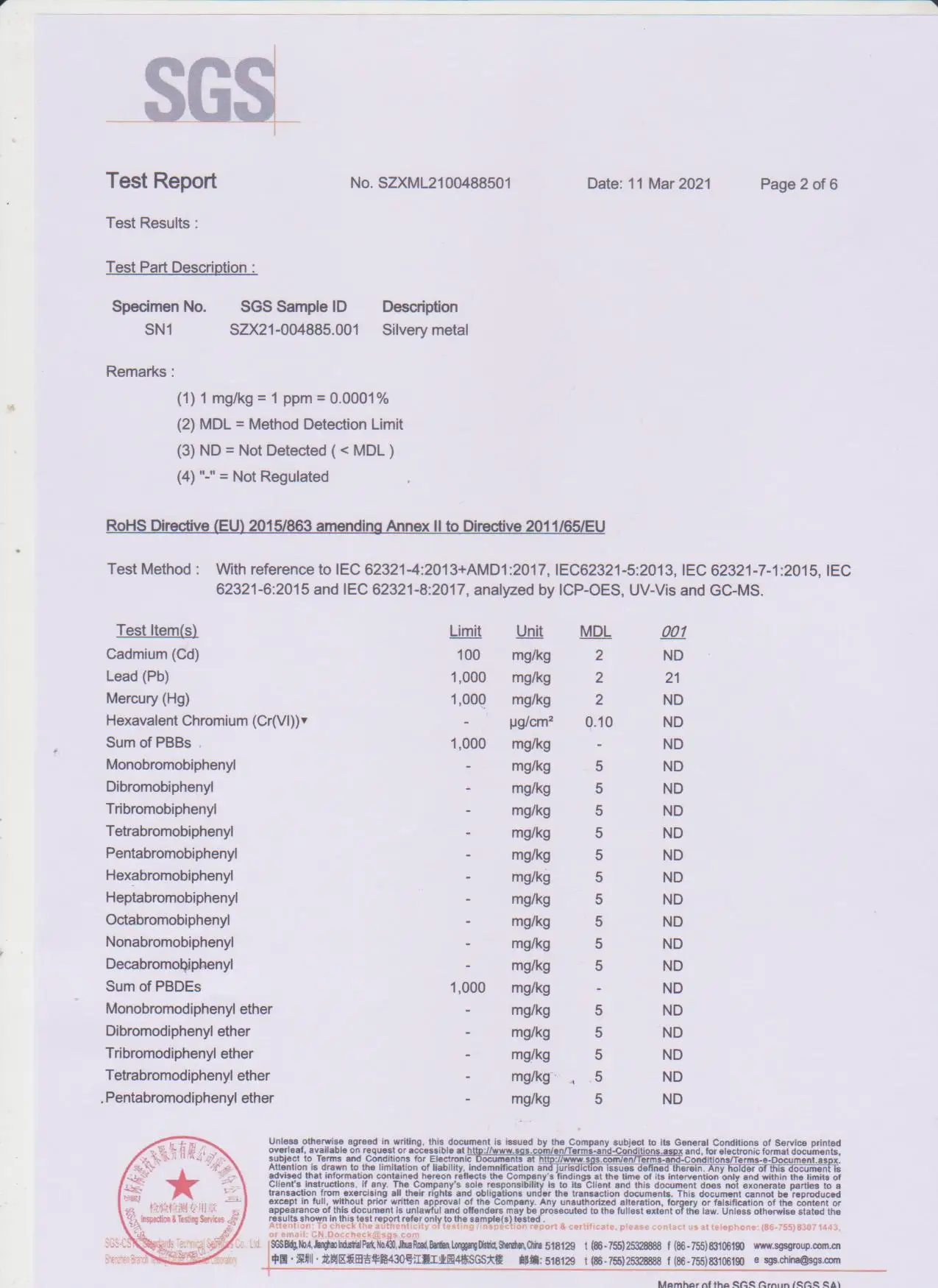

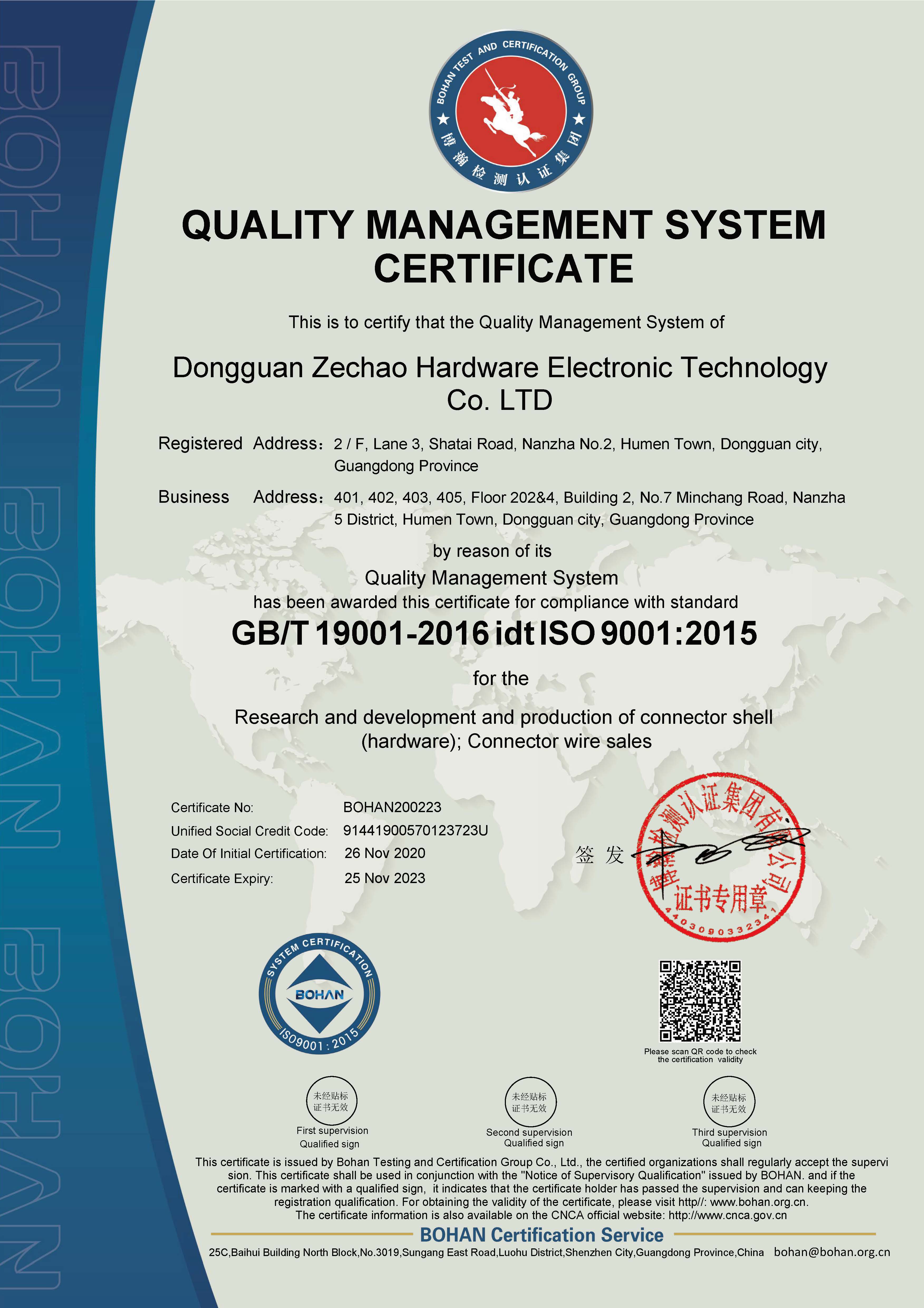

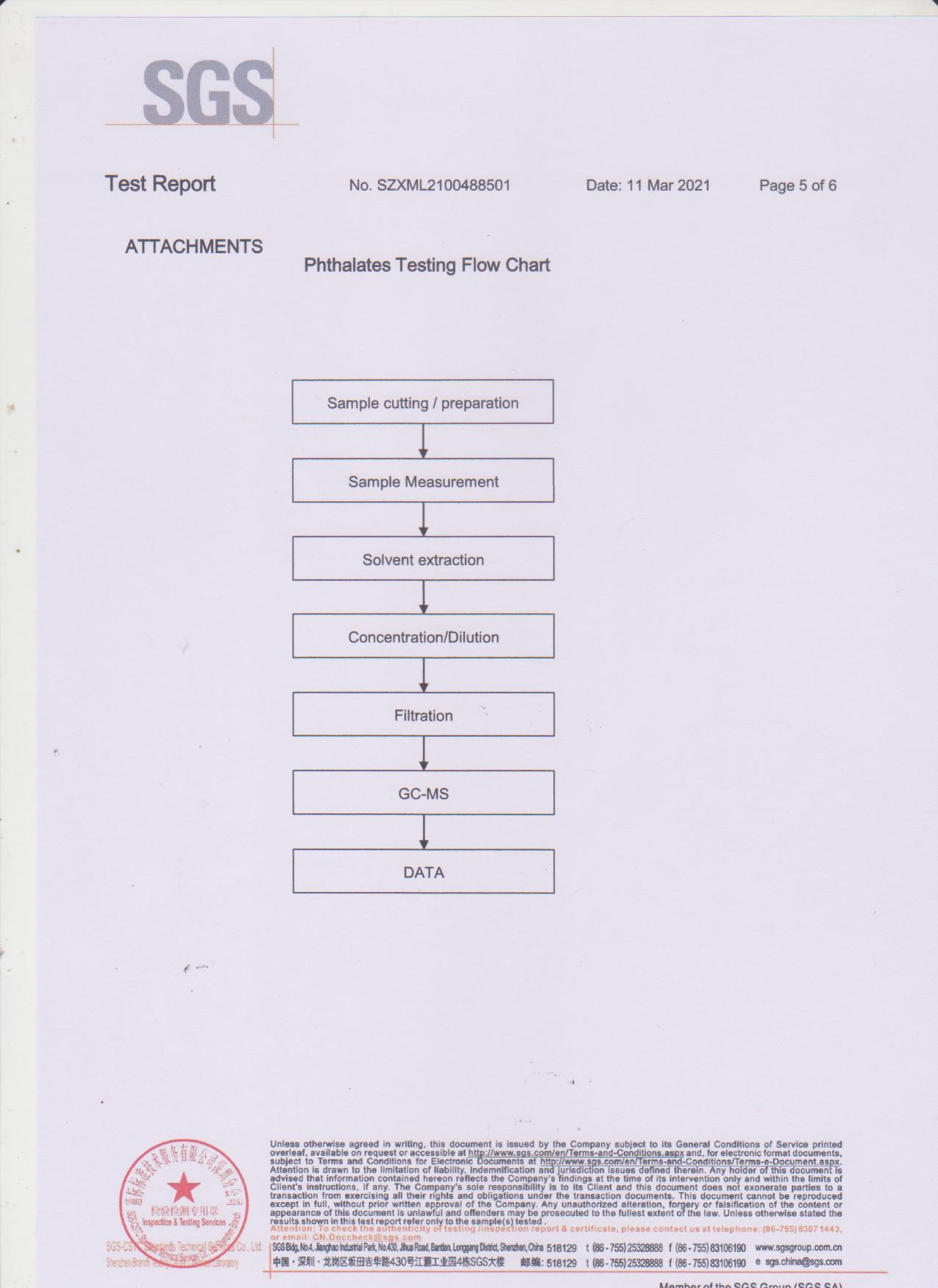

Certifications

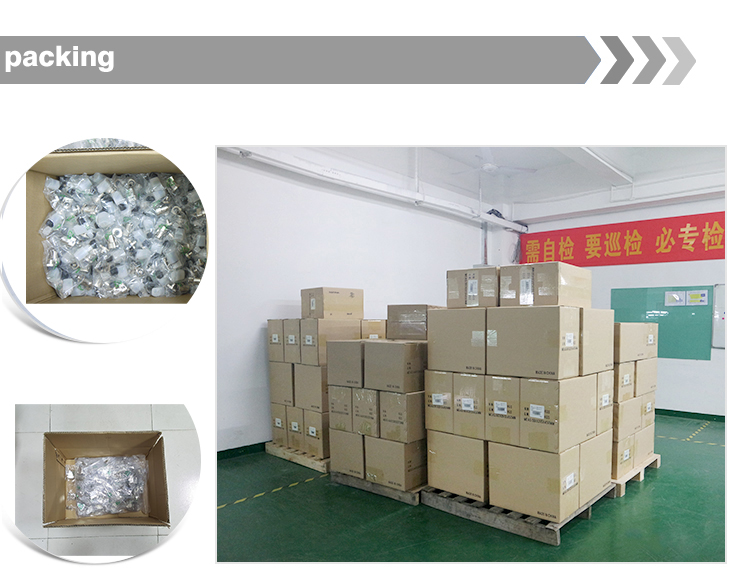

Packing
Plastic bag packing (Single Packaging)
Packaging according to customer's design
plastic bag sleeve packaging with carton packaging.

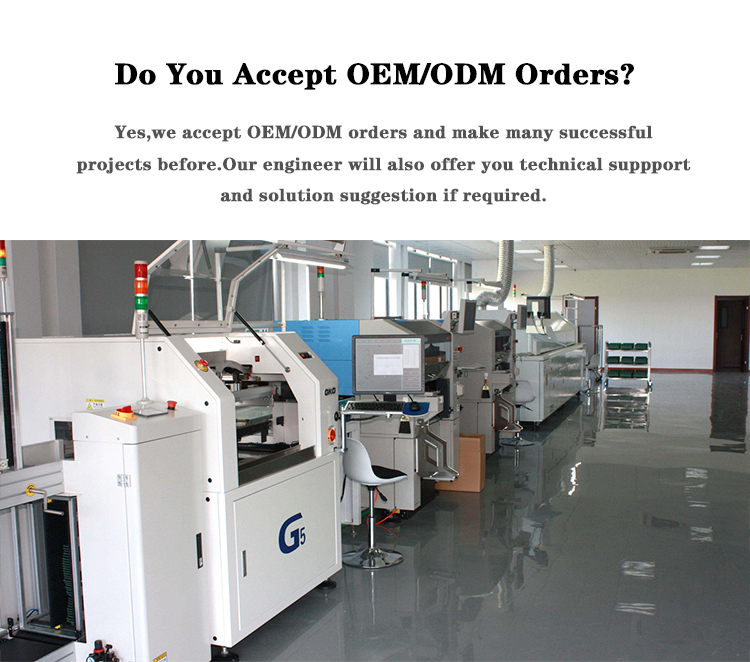

1.OEM:The price will be different according to customer's detail specifications.Aims to different kinds of market,also for low-end market.It is completely up to customer's demands.
EXW Dongguan, if client needed, it’s work that we can do FOB or CNF, CIF…etc.
<Q3>:Title goes here.

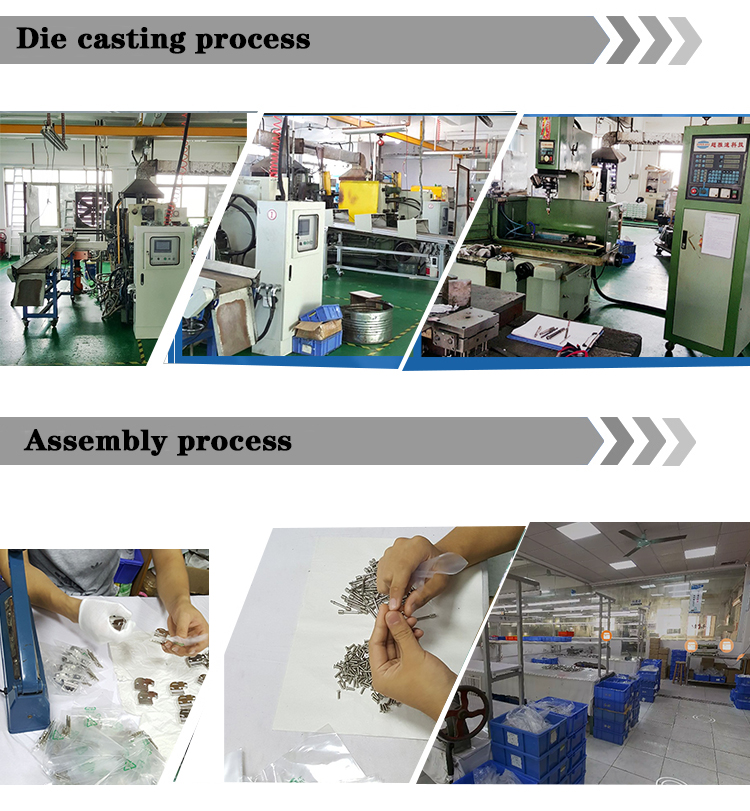

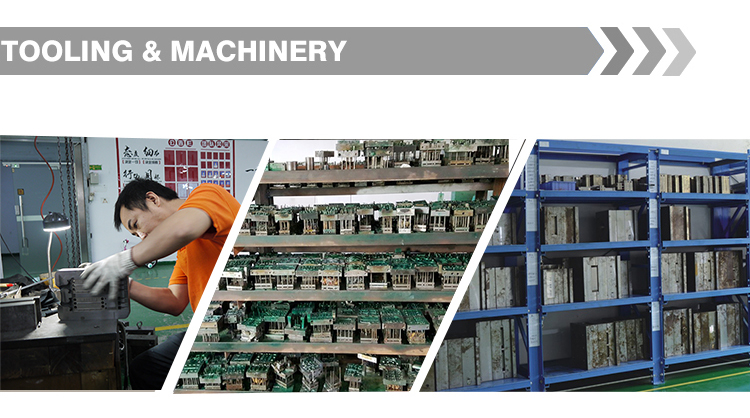

We have our own factory,there are hundreds of mold in stock,We also welcome customization,you can order any size/shape/style you need.If you can provide 3D drawings or samples,we can product according to it,or you can tell us what you are needing,and we will provide you the drawing for confirm before produce the bulk.
