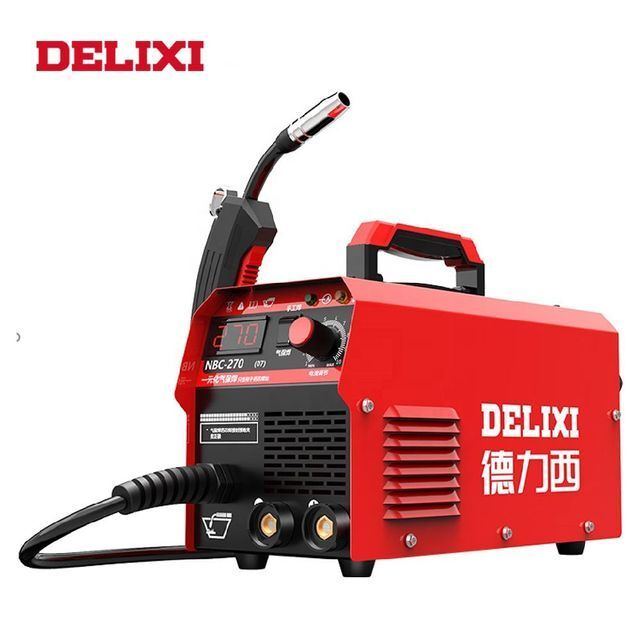

delixi welding equipment with good price, welder
- $45.00 /piece
- 1 piece
- Hangzhou Delixi Group Co., Ltd.
- Zhejiang, China
- Ms DE LIXI
| Payment Terms: | L/C,T/T; | Condition: | New; |
| Video outgoing-inspection: | Provided; | Weight (KG): | 3.33 KG; |
| Place of Origin: | China; | After Warranty Service: | Spare parts; |
| Applicable Industries: | Machinery Repair Shops,Energy & Mining; | Showroom Location: | None; |
| Warranty: | 1 Year; | Max. Load Power Capacity: | 6.0KVA; |
| Key Selling Points: | Easy to Operate; | Machinery Test Report: | Provided; |
| Rated Input Voltage: | AC220V±15%; | Marketing Type: | OTHER; |
| Rated Output Voltage: | 24.8 V; | Local Service Location: | None; |
| After-sales Service Provided: | Online support; | Dimensions: | 125mm*210mm*300mm; |
Features
1. Advanced IGBT inverter technology, low consumption and high output
2. Digital control improves the reliability
3. All kinds of acid, alkalic electrodes are applicable
4. Wide range of power grid adaptation, 220V/380V switch automatically and precisely
5. High no load voltage, smooth and stable welding performance with minimal spatter

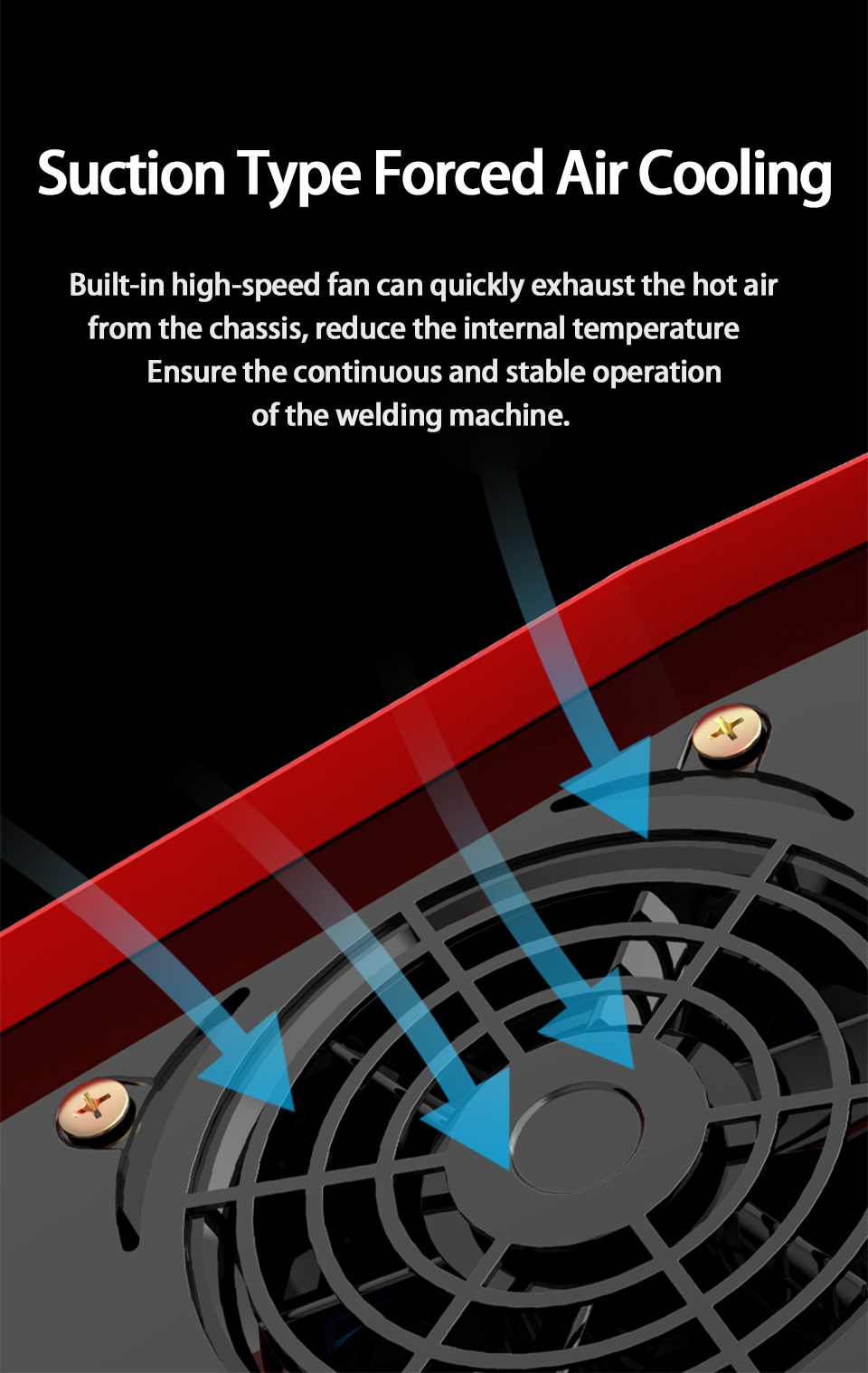

6. High speed fan brings effective dissipation and high duty cycle
7. Over-current, over-voltage and over-heat protection

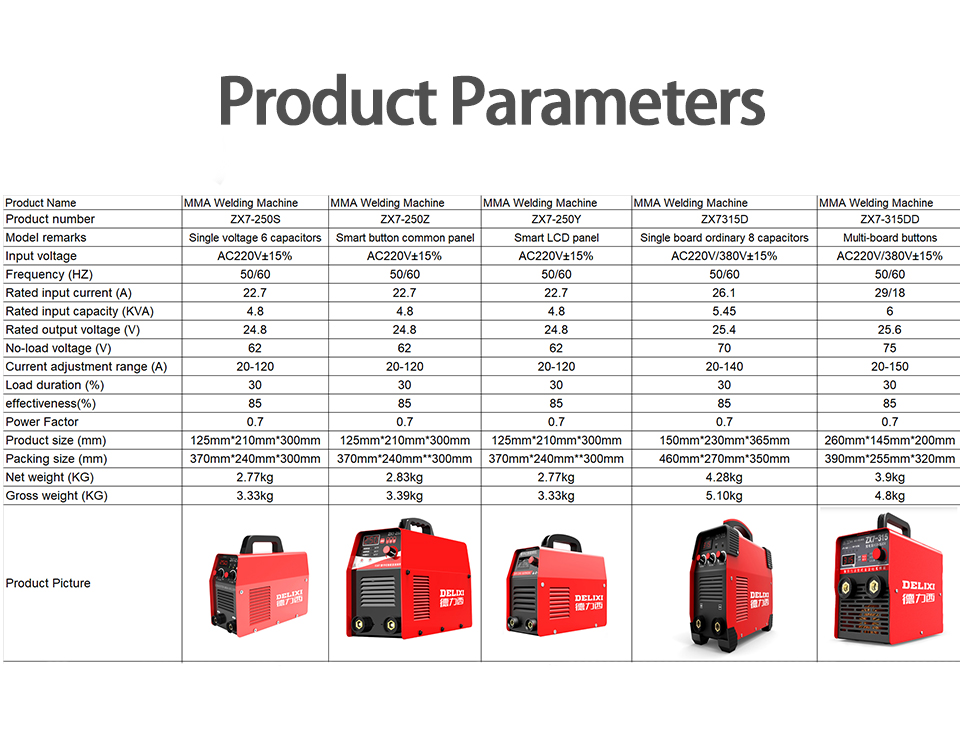

Specifications
|

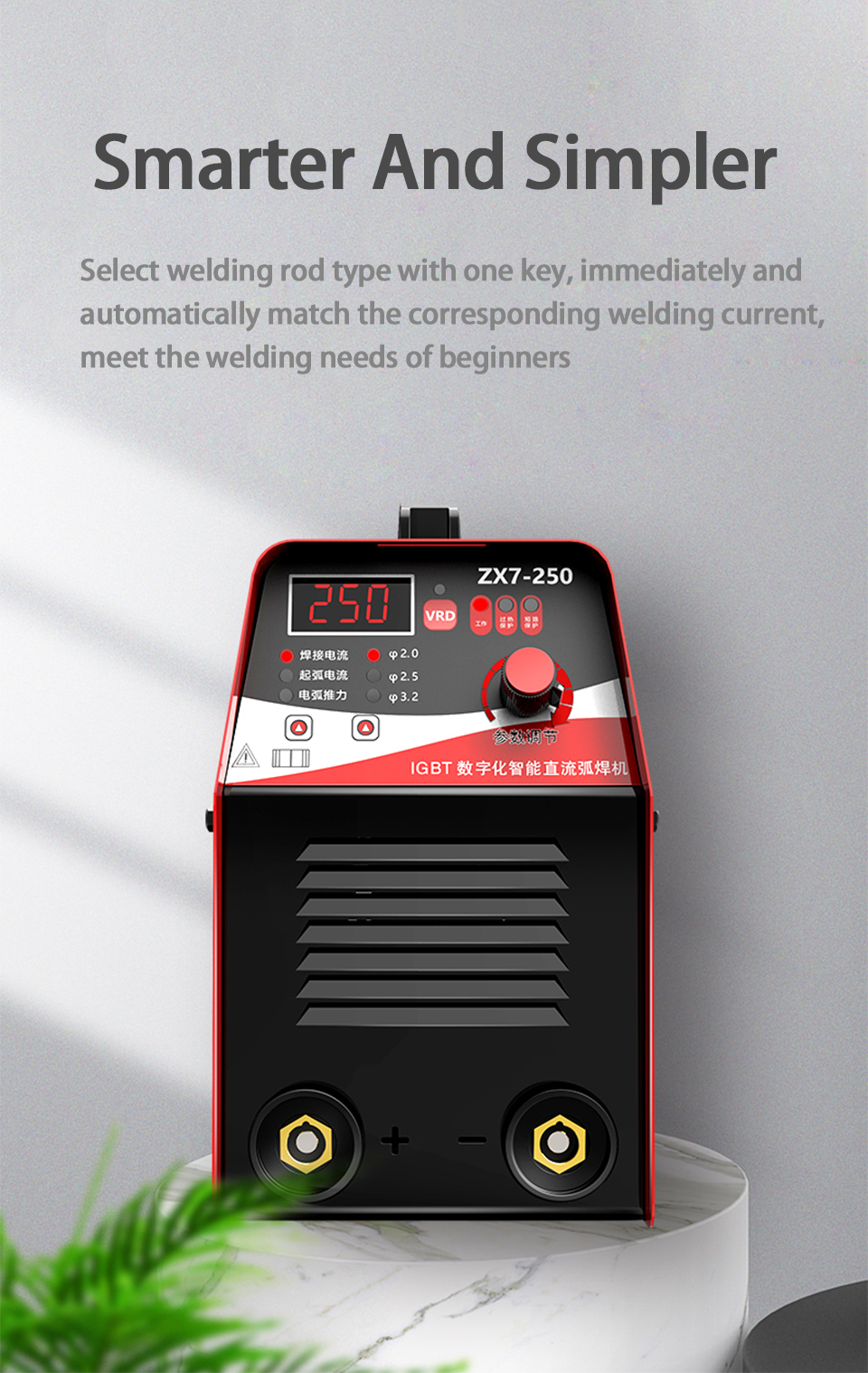

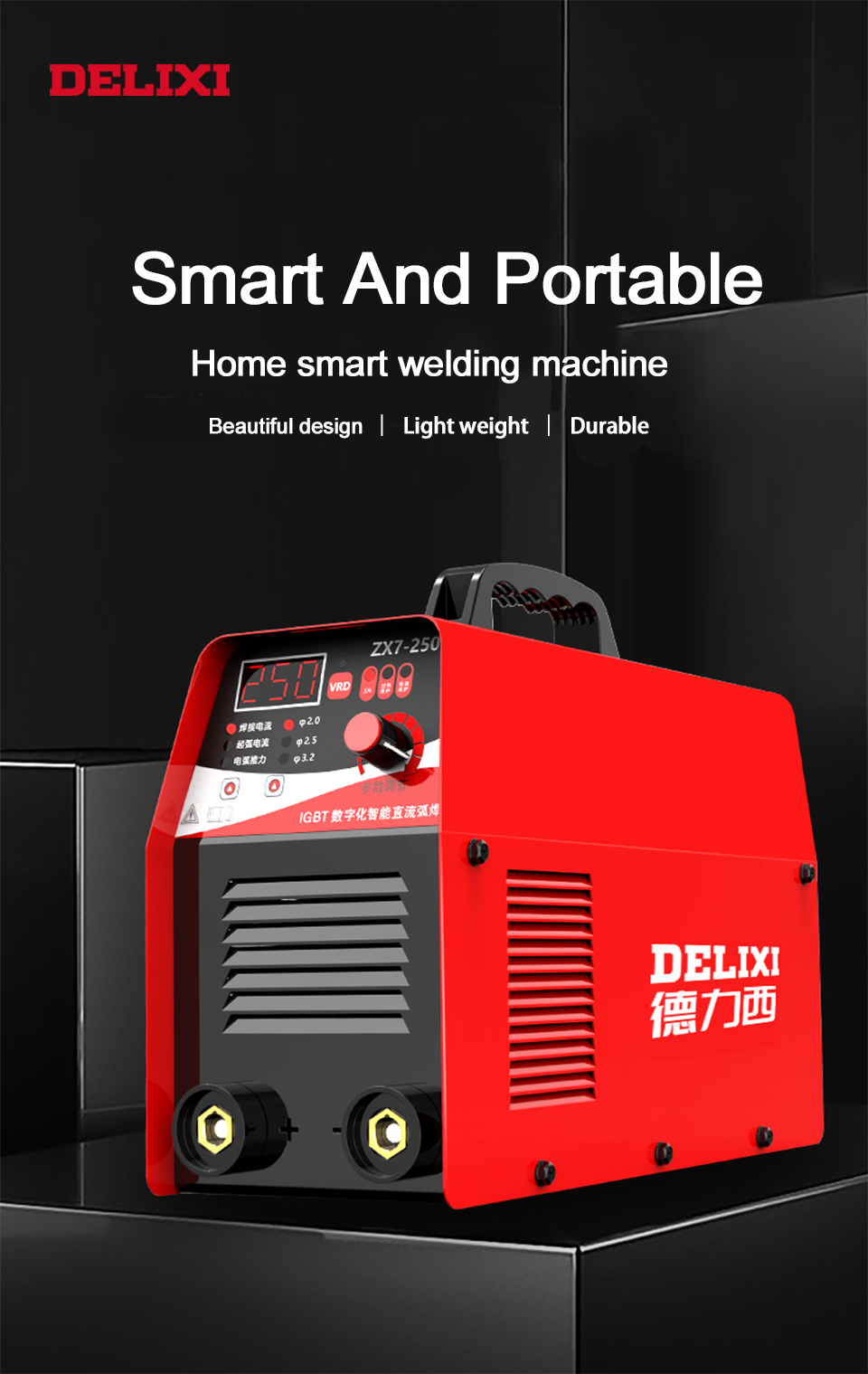

Product number |
ZX7-250S |
|
Model remarks |
Single voltage 6 capacitors |
|
Input voltage |
AC220V±15% |
|
Frequency (HZ) |
50/60 |
|
Rated input current (A) |
22.7 |
|
Rated input capacity (KVA) |
4.8 |
|
Rated output voltage (V) |
24.8 |
|
No-load voltage (V) |
62 |
|
Current adjustment range (A) |
20-120 |
|
Load duration (%) |
30 |
|
effectiveness(%) |
85 |
|
Power Factor |
0.7 |
|
Product size (mm) |
125mm*210mm*300mm |
|
Packing size (mm) |
370mm*240mm*300mm |
|
Net weight (KG) |
2.77kg |
|
Gross weight (KG) |
3.33kg |
|
Product number |
ZX7-250Y |
|
Model remarks |
Smart button common panel |
|
Input voltage |
AC220V±15% |
|
Frequency (HZ) |
50/60 |
|
Rated input current (A) |
22.7 |
|
Rated input capacity (KVA) |
4.8 |
|
Rated output voltage (V) |
24.8 |
|
No-load voltage (V) |
62 |
|
Current adjustment range (A) |
20-120 |
|
Load duration (%) |
30 |
|
effectiveness(%) |
85 |
|
Power Factor |
0.7 |
|
Product size (mm) |
125mm*210mm*300mm |
|
Packing size (mm) |
370mm*240mm*300mm |
|
Net weight (KG) |
2.8kg |
|
Gross weight (KG) |
3.39kg |
|
Product number |
ZX7-250Y |
|
Model remarks |
Smart LCD panel |
|
Input voltage |
AC220V±15% |
|
Frequency (HZ) |
50/60 |
|
Rated input current (A) |
22.7 |
|
Rated input capacity (KVA) |
4.8 |
|
Rated output voltage (V) |
24.8 |
|
No-load voltage (V) |
62 |
|
Current adjustment range (A) |
20-120 |
|
Load duration (%) |
30 |
|
effectiveness(%) |
85 |
|
Power Factor |
0.7 |
|
Product size (mm) |
125mm*210mm*300mm |
|
Packing size (mm) |
370mm*240mm*300mm |
|
Net weight (KG) |
2.77kg |
|
Gross weight (KG) |
3.33kg |
