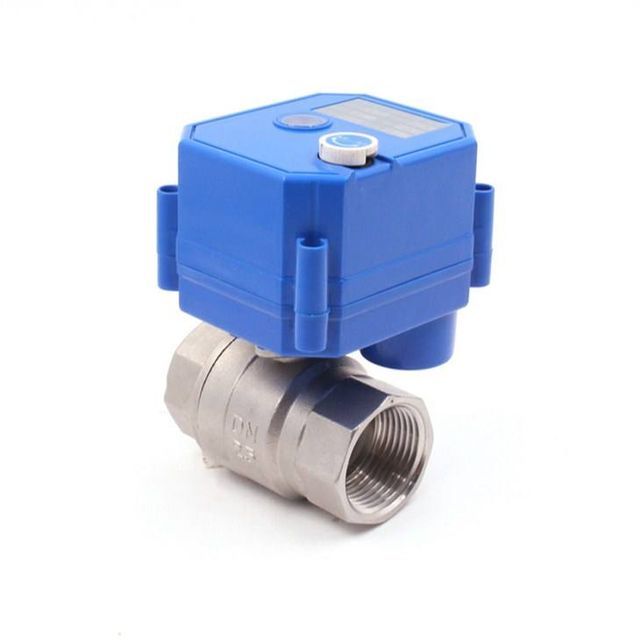

electric water ball valve with manual function electric water valve flow control 5V 12V 24V 110V 220V

PRODUCT DETAIL
strength:electric/manualPort size:DN25 (DN8-DN32 optional)
Supply capacity:20000 electric ball valves per monthCertificate:ISO9001:2008
Intellectual property level:IP65Customization support:OEM,ODM,OBM
structure:ballport:Beijing Tianjin
Medium temperature:Medium temperaturePackaging Details:Carton (electric ball valve)
Origin:Tianjing, Chinamedia:water
model:CWX25Scurrent:Max80mA
product name:Electric valvePort type:Neck/full mouth
Moment:2.5 nautical milesBody material:304 stainless steel/brass/PVC

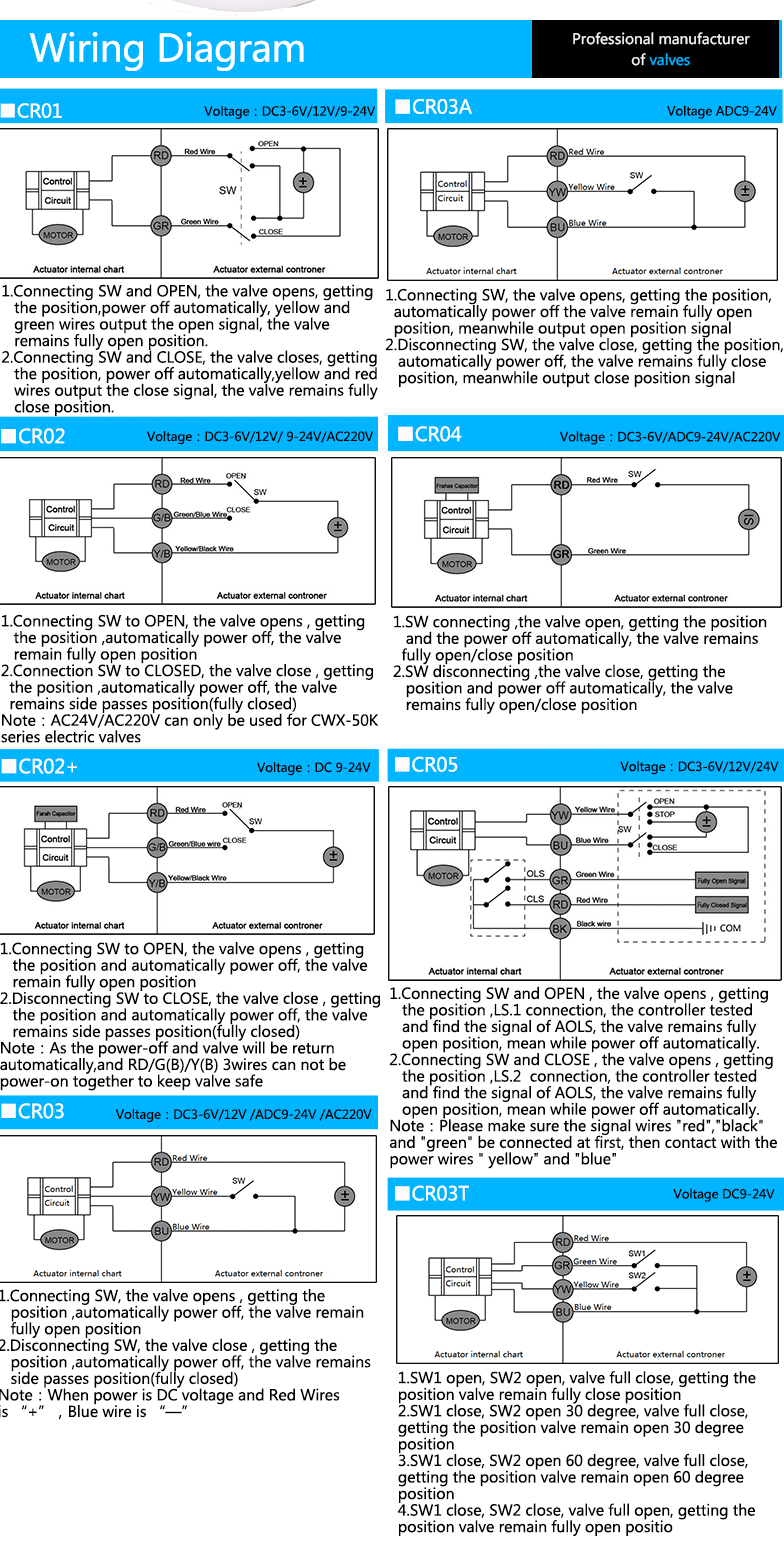

type:Electric ball valve, BALL VALVES, Float ValvesWiring diagram:CR01 CR02 CR03 CR04 CR05
brand:wxyapressure:Max1.0mpa
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, paypalapplication:General

Electric Ball Valve/Electric Ball Valve Electric Water Ball Valve Brass Ball Valve



1. POM material gearbox;

2. Manual operation, the valve can still be operated when the power is off;

3. Minimum size and position indicator

4. Good sealing performance, IP65 shell

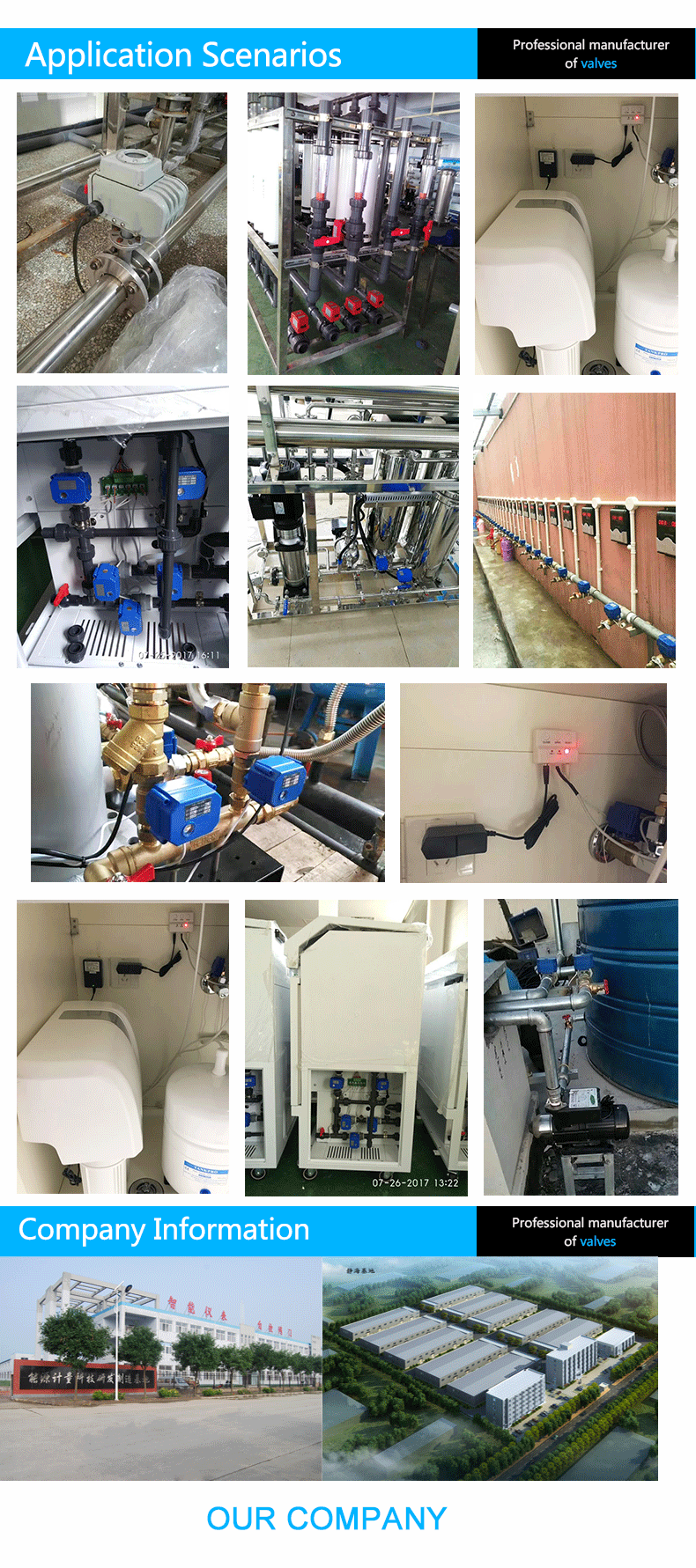

1. Heat meter, fire protection, water saving system

2. Automatic control system, industrial miniature automatic control equipment

3. Water-saving equipment, drinking water equipment

4. Air Conditioning Fan Coin (HVAC)

Product number Rated voltage Working current output torque on/off time control method
CWX-25S DC3-6V
DC12V
A/DC9-24V
AC220V
AC85-265V
Max80mA Max2.5NM <8s CR01 CR02 CR03 CR04 CR05
work pressure strength Medium temperature size IP Gard special function
Max1.0Mpa <2W 0-90℃ DN8-32 two-way DN8-20 three-way IP65 Wireless switch control (within 200 meters)

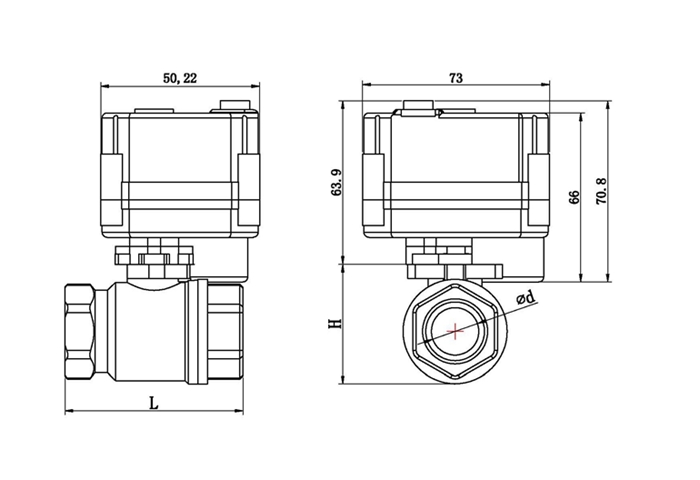

brass connect size d large h W
Double internal thread full mouth DN8 8 46 31 0.287
DN15 15 57 38 0.363
DN20 20 71 45 0.444
DN25 23.5 72 49 0.533
Double internal thread shrink DN10 8 46 31 0.286
DN20 15 66 38 0.378
DN25 20 72 47 0.538
DN32 25 86 60 0.75
3 way vertical DN15 12 63 49 0.365
DN20 15 66 53 0.422
Male and female thread full mouth DN15 15 63 38 0.362
Female and male thread shrink DN20 15 66 38 0.392
DN32 20 76 50 0.624
All external threads DN15 15 68 38 0.354
Stainless steel Double internal thread full mouth DN8 8 46 31 0.294
DN15 15 55 38 0.37
DN20 20 71 45 0.438
DN25 25 72 49 0.547
Double internal thread shrink DN10 8 46 30.5 0.298
DN20 15 63 39 0.443
DN25 20 75 47 0.538



Electric ball valve CWX-15N

Electric ball valve CWX-60P





Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valves and manual valves, and is the founding enterprise of the valve industry in Tianjin. Tianfei has a professional

The research and development team has won patent certificates and recognition from Tianjin government departments for many times. "CWX" is our brand, our company has passed

ISO9001, CE, RoHS, NSF61 certificates, etc., the products are exported to many countries and regions around the world.

The motto of our company is innovation, simplification, and high value. We have accumulated rich experience and resources during more than ten years of development, and we are confident in providing you with satisfactory products and services in cooperation. Tianfei pays attention to product quality, and using "CWX" valve is your right choice.
