frozen french fries machinery 100kgh semi automatic french fried production line

PRODUCT DETAIL
Motor:Siemens or others;Marketing Type:Ordinary Product;
Machinery Test Report:Provided;Final products:French fries;
Key Selling Points:High Productivity;Brand Name:Joyshine;
Local Service Location:Viet Nam,Philippines,South Korea,Sri Lanka;Weight:2 ton;
After Warranty Service:Video technical support;Warranty of core components:1 Year;
Capacity:100 kg/h;Core Components:PLC,Engine,Bearing,Gearbox;
Custom:Voltage, capacity, heating method;Type:Semi-automatic;
Selling Units:Single item;Package Preview:;
Voltage:220v, 380v;Condition:New;
Applicable Industries:Food & Beverage Factory,Farms,Restaurant,Food Shop,Food & Beverage Shops;Package:Wooden case or packaged in container directly;
Application:Snack food industry;Showroom Location:Viet Nam,Sri Lanka,South Africa;
Output product name:french fried potatoes production line;Material:304 stainless steel;
Heating method:Electric heating;Dimension(L*W*H):4000*1100*2200mm;
Application fields:Flour mill,Seasoning plant,Fruit processing plant,Snack food factory,Frozen food Factory;Video outgoing-inspection:Provided;
Packaging Detail:Standard export wooden cases, full container, or according to customer's requirements for frozen french fries machinery 50-100kgh semi automatic french fried potatoes chips production line;Place of Origin:Henan China;
Machinery Function:french fried potatoes production line;Single gross weight:1000.0 KG;
Certification:CE certificate;Name:french fried potatoes production line;
Single package size:400X230X220 cm;Raw material:Fruit,Vegetables,Potato;
Warranty:1 year;Power:1500w;
Products Description

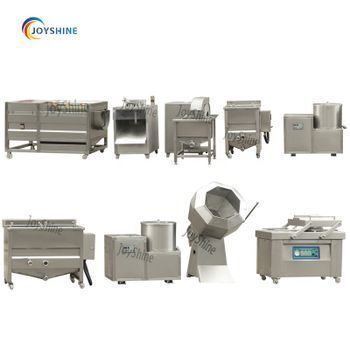

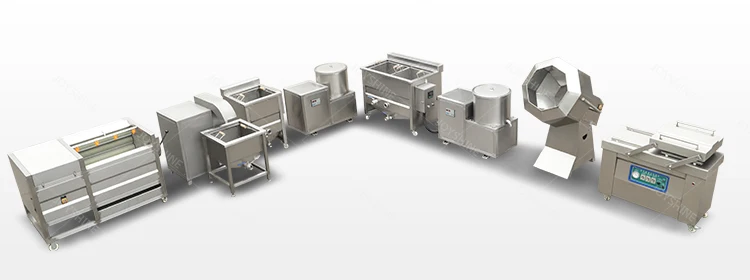

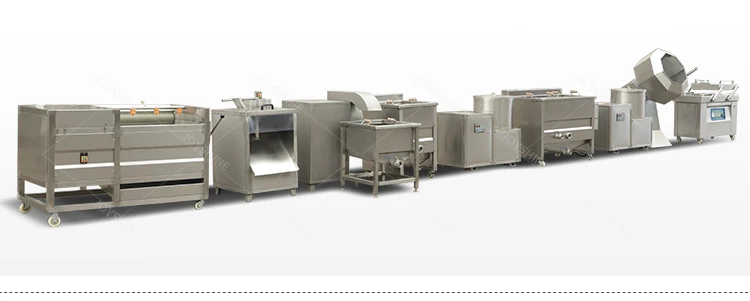

Frozen french fries machinery 50-100kgh semi automatic french fried potatoes chips production line
2. Capacity: 50-100kg/h
3. Heating methond: electric or gas heating.
4. Final products: french fries, potato chips, banana chips, and so on.
Production name
Dimension(mm)
Weight(kg)
Power
Other details
Potato peeling machine
1400*850*800
210
1.1kw
Equipped with water tray
French fries cutting machine
950*850*950
110
1.1kw
Standard cutting size 7*7mm, customized.
Blanching machine
1200*700*950
120
24kw
2 baskets, electic heating
Dehydrator
1000*500*850
350
1.1kw
Basket diameter: 400mm
Height: 280mm
Deep fryer
1200*700*950
120
24kw
2 baskets, electic heating
Deoiling machine
1100*500*850
350
1.1kw
Basket diameter: 400mm
Height: 280mm
Seasoning machine
1100*800*1300
190
1.5kw
Equipped with vibration seasoning device.
Packing machine
1200*600*850
260
1.5kw
Nitrogen filled & vacuum packing machine.

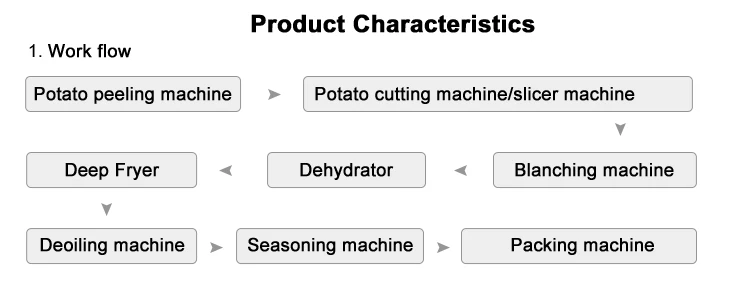

Detailed Description

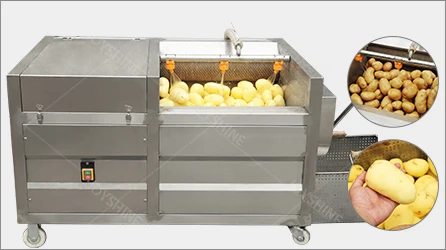

Potato peeling machine

304 stainless steel;
9 high quality nylon rollers;
Customized diamond sand roll according to your needs.

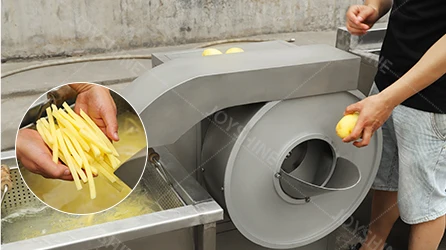

French fries cutting part

Custom blades, 2 years service life;
Conventional blade cut 7*7mm, can be customized within 7*7-12*12mm.

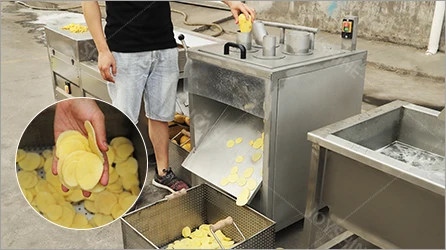

Potato / banana chips cutting machine

Thickness 1-5mm can be adjustable.
Feed inlet diameter 25-150mm can be customized.

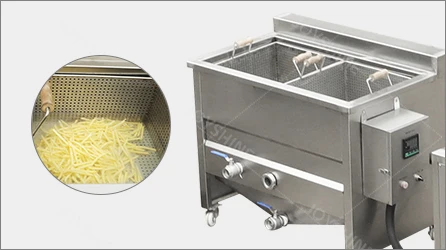

Blanching machine

Recommend blanching time 1.5 minutes.
Banana chip does no need this machine.
Important role: inhibit enzyme activity, avoild oxidation, fix color.

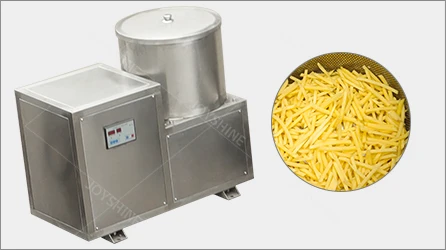

Dehydrator

Recommend dehydration time 20-30 seconds.

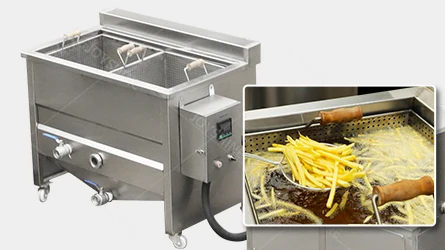

Deep fryer

Oil temperature 170° - 180°;
Light frying semi-finished product time 30-40 seconds;
Deep frying ready to eat time 5-6 minutes.

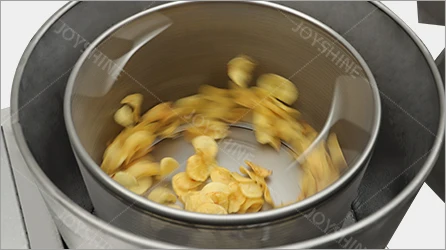

Deoiling machine

Recommended time 20-30s.

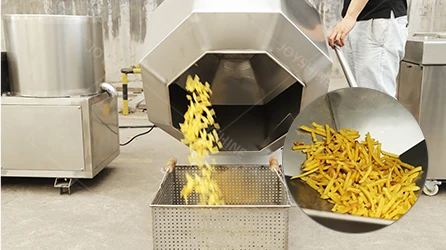

Seasoning machine

Equipped with vibration cutting according to your needs.

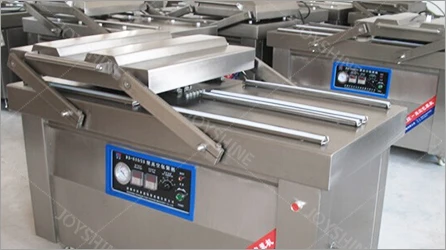

Packing machine

Can be filled with nitrogen, can be vacuum packed.
The machine can be used in multiple places; used for peeling many kinds of food; slice and cut into strips with uniform thickness.
Packing & Delivery
By express, air, railway and sea, LCL and full container.
Why Choose Us
About Us
We can provide the one-stop turnkey project with the industry-leading technology and R&D team as the front-end, the production and processing team led by more than 10 years of skilled workers the mid-end, quality inspection with near-rigorous standards, and the on-site installation by professional after-sales team.
Facility: 12 sets of shearing equipment, 48 sets of argon arc welding auxiliary equipment, shearing machine, cutting machine, electric welding machine, gantry crane, drilling equipment. Scale: workshop 15000㎡, 10 production lines.
We have more than 20 years of design and development team, 12 product patents and can be customized according to the needs of different customer
Our company's productivity can meet the stock of spot products. One of the independent warehouses has an area of more than 2000 square meters, and we can quickly supply customers with machine sets, for production lines.
Certifications
Our company regularly participates in international mechanical equipment exhibition, let more customers understand the company's product information and quality service, and with Europe, Asia, South America and other regions and countries to develop long-term service and cooperation.
Our team is full of youth and passion for work, and we are capable of serving every customer well. Our company philosophy: to provide perfect product line, to provide every customer with quality service and long-term cooperation.
FAQ
What's the applicable materials:
Root vegetables or fruits.
Serving life of blades:
1-2 years
Date of delivery:
5-7 working days
Voltage:
Customize according to the needs of different countries.
Payment Tems:
T/T、Alibaba Trade assurance、L/C、WU、PayPal、Alipay、WeChatPay.
Packing:
Exporting standard fumigation wooden box.
Transportation:
Shipping by express, air, railway and sea.
Warranty:
 2 years
OEM:
Customization of nameplate, material, slicing/cutting size, motor brand, packaging, etc.
